SPECIFICATIONS
Welding Type: Tig Torch
Welding Capacity: 250A
Type1: SR20 SR20F SR20V SR20FV SR20P
Type0: WP20 WP20F WP20FV WP20V WP20P
Type: Welding Torch
Origin: Mainland China
Model Number: WP20F
Brand Name: HA&VS
Length: 4M(13.12FT）
Torch Type: 20F(flex) or 20FV( Flex Value)

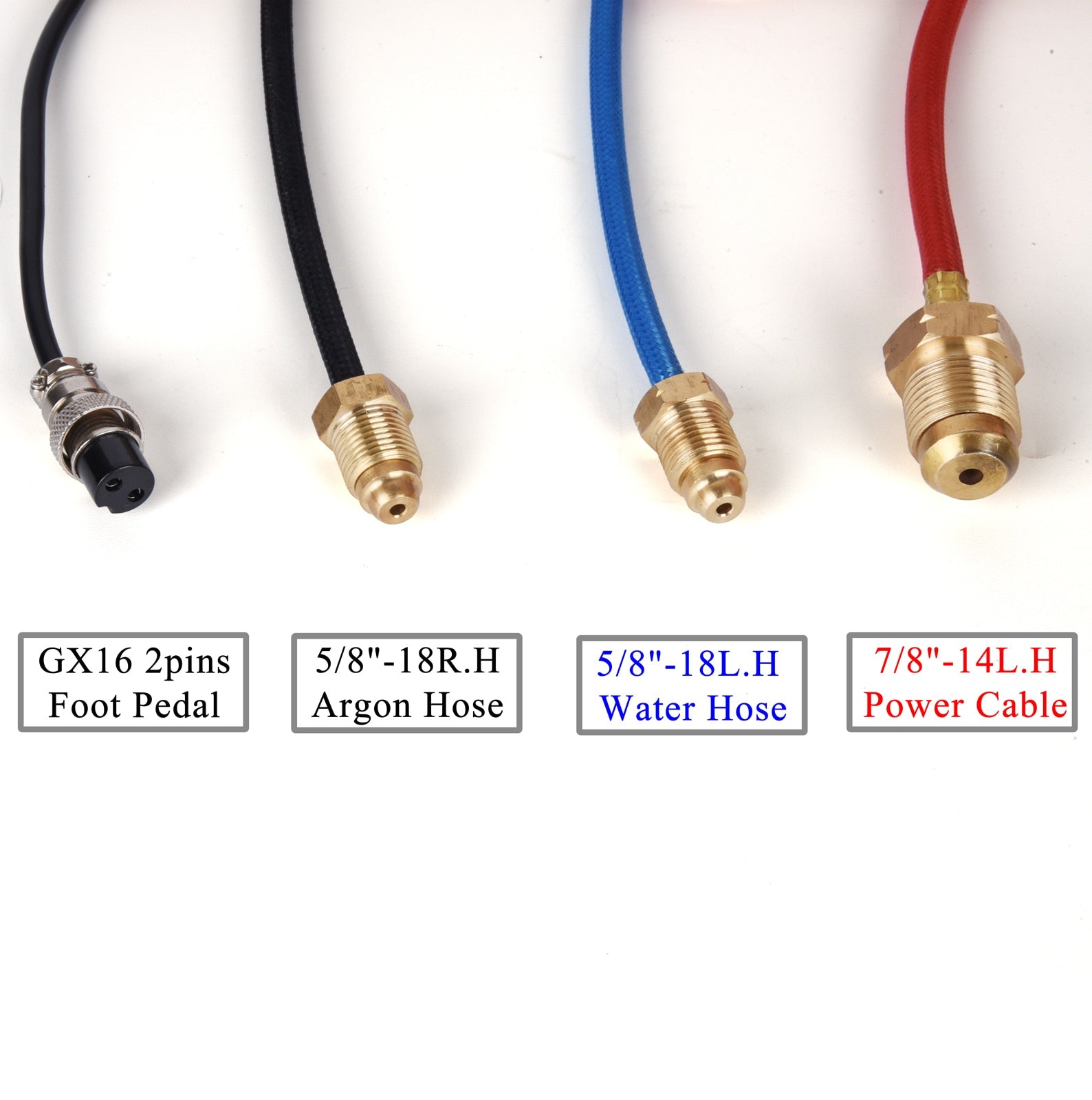

Power Cable Connector:
7/8"-14 L.H.
Cable Connection fits:
45V11 Power Cable Adapter
LDT-1820-L Dinse 35-70 Plug
LDTI-1820-WC Dinse 35-70 Plug Inline
Length: 4M(13.12FT）
Cable:Approximate AWG #9-#10 (0.108")
Water Hose connector:
5/8"-18 L.H Male Connector
Length: 4.2M(13.78FT）
Argon Hose Connector:
5/8"-18 R.H.Male Connector
Length: 4.2M(13.78FT）
Technical Data:
Rating: 250A DC, 175A AC
Duty cycle:100%
Electrodes:1.0~3.2mm(0.04"~1/8")
Spare Part:
13N08 (D6.5 x 1/4'' size 4*29mm)*1
13N09(D8.0 x 5/16'' size 5*29mm)*1
13N10(D9.5 x 3/8'' size 6*29mm)*1
13N22(1/16"&1.6mm)*1
13N22M(5/64" & 2.0mm)*1
13N23(3/32" & 2.4mm)*!
13N28(3/32" & 2.4mm)*1
41V24(Long Back caps)*1
41V33(Short Back caps)*1
(Please carefully check all the pictures for dimensions)
Available with 13.12 feet Cable and Straight or Flexible Head. Torch Head with Valve .2 pin Aviation socket plug
Accessory Kit and Heavy-Duty Nylon Cable Cover are Included
Other accessories might be needed to connect the argon and water lines to the flowmeter and the water recirculation system. Scroll down for additional items available.
