V-WAC Welding Gage welding Biting Edge inspection gauge STANDAR inch reading

Product Name:

V-Wac Gage Biting Edge Under cutt gage Welding Gauge Welder inspection ruler

Descriptions:

WG-5 V-WAC ™ Gage quickly determine if fillet welds meet NRC Visual Weld Acceptance Criteria for structural weldments.

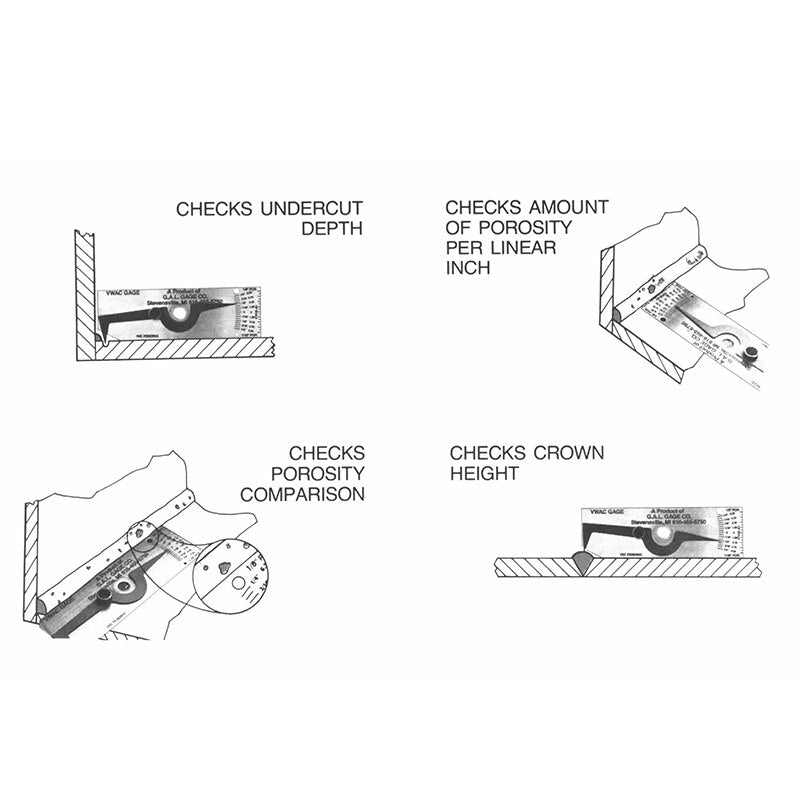

It easily and quickly checks the four essential measurements required for compliance with NRC Visual Weld Acceptance Criteria. It checks undercut depth, porosity comparison, amount of porosity per linear inch and crown height.

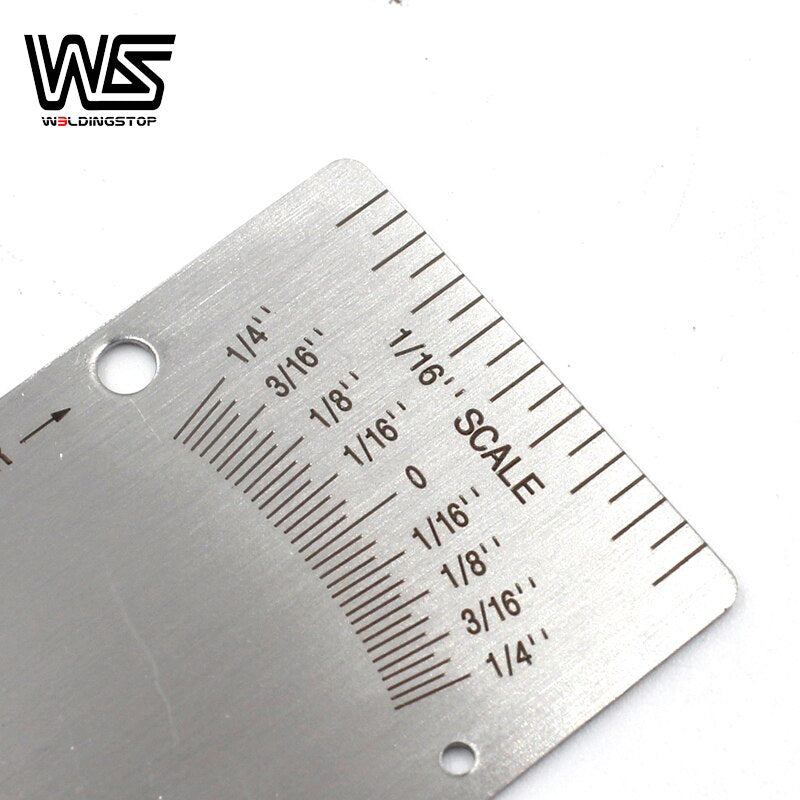

The undercut depth or crown height scale can be read to 1/32 inch. Porosity comparision of 1/8" and 1/16 inch. Linear gage in 1/16 inch increments. The gage is easy to set and a locking screw holds it in position for later reference. All four required measurements are made with a single gage.

Features:

◆ WS high quality welding gauge.

◆  V-WAC welding gauge measure weld reinforcement height and undercut depth in inch

◆ The gauge also can check the size and quantity of pit in unit size

◆ Adopted of laser engraving, clear marking, accurate reading and stable wear-resisting

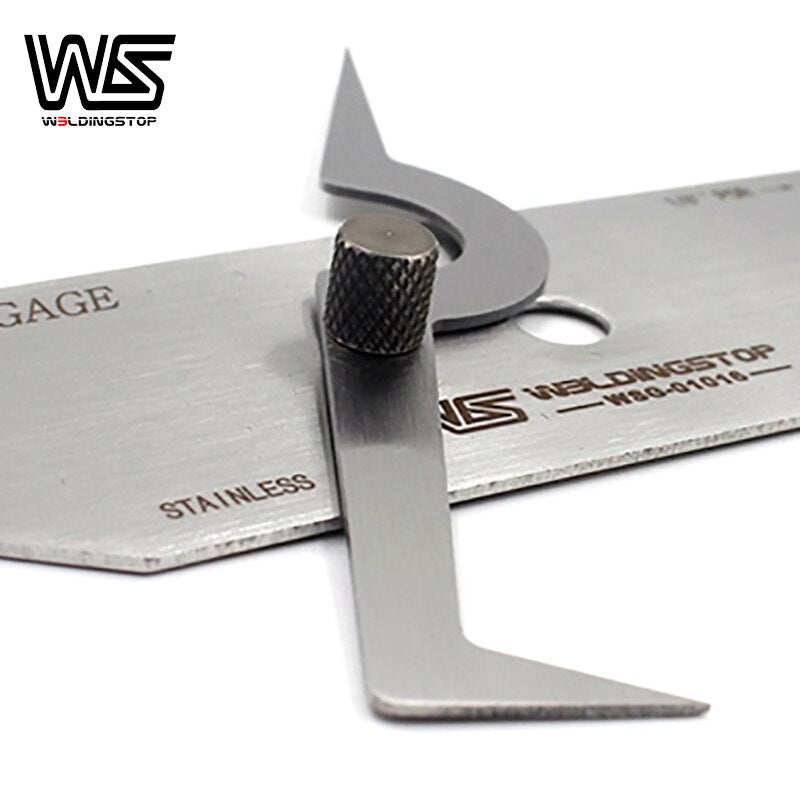

◆ The undercut gauge is made of stainless steel, not easy to rust, effectively extending the service life

◆ The gauge has an instruction that you can download for understand how to use better

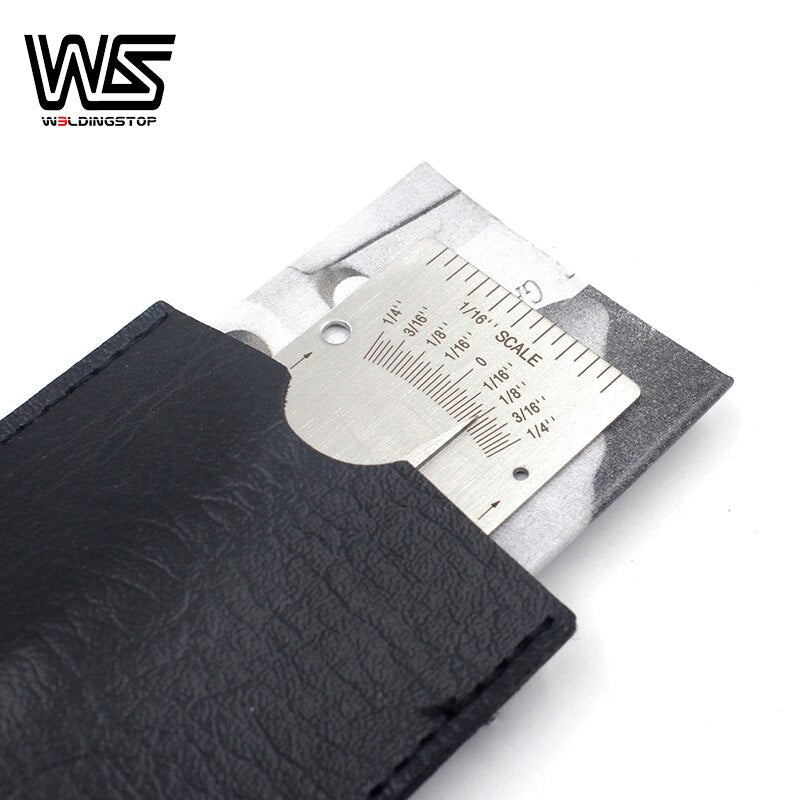

◆ Packed in synthetic leather bag for storage and transportation ,and better of environmental protection

Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Thickness: 0.95mm / 0.04''

◆ Weight: 40g

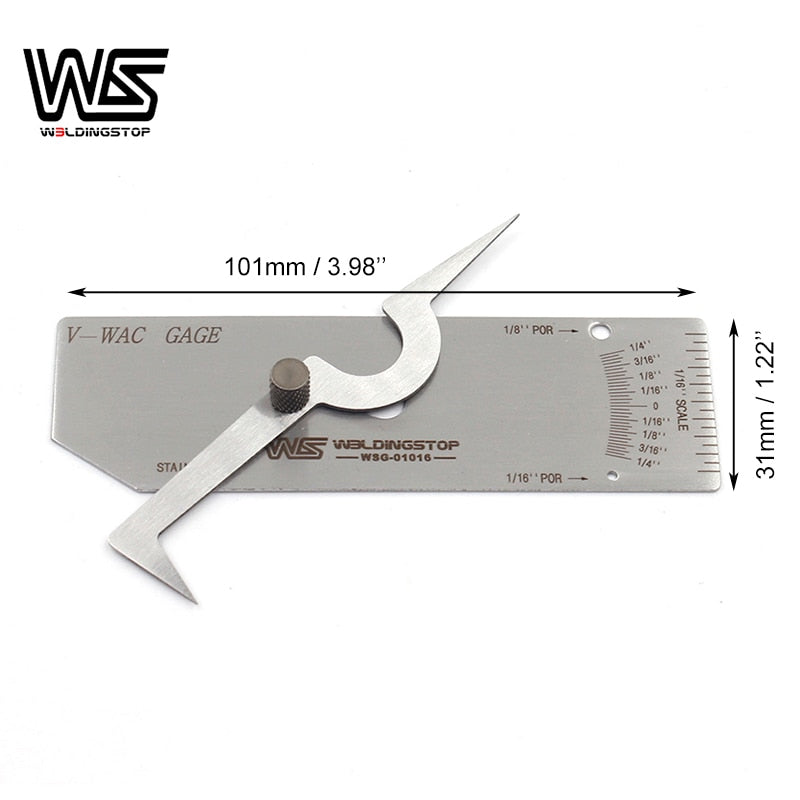

◆ Size:Show in the picture

◆ Transition: 1cm=10mm=0.39inch

◆ Measuring range:

- Check undercut depth

- Check amount of porosity per linear inch

- Check porosity comparison

- Check crown height

Package Included:

◆ 1pc x V-WAC Gauge WSG-01016

◆ 1pc PU packaging and instructions
