Product Name:

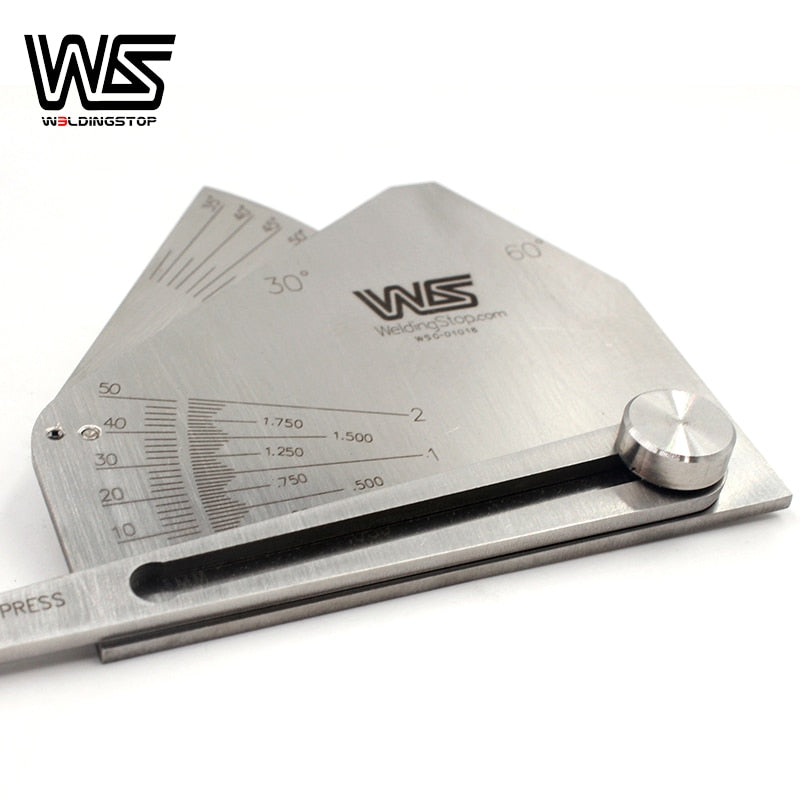

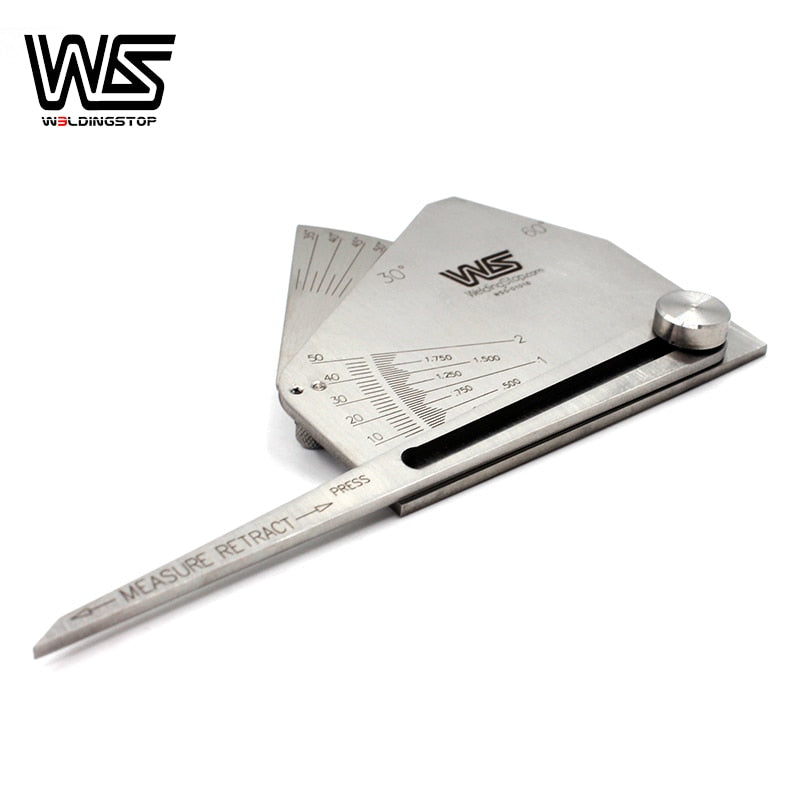

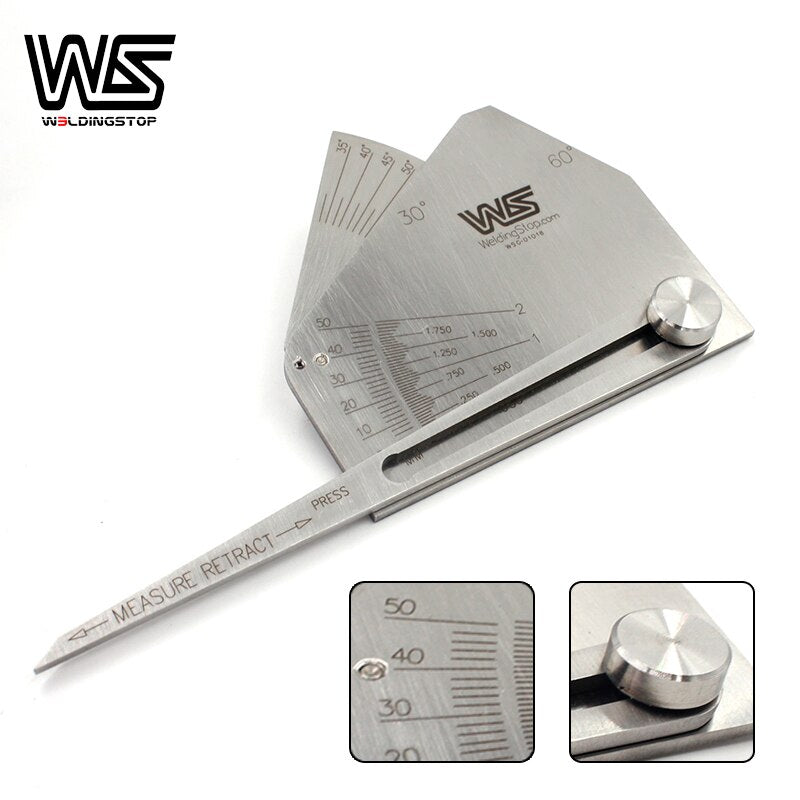

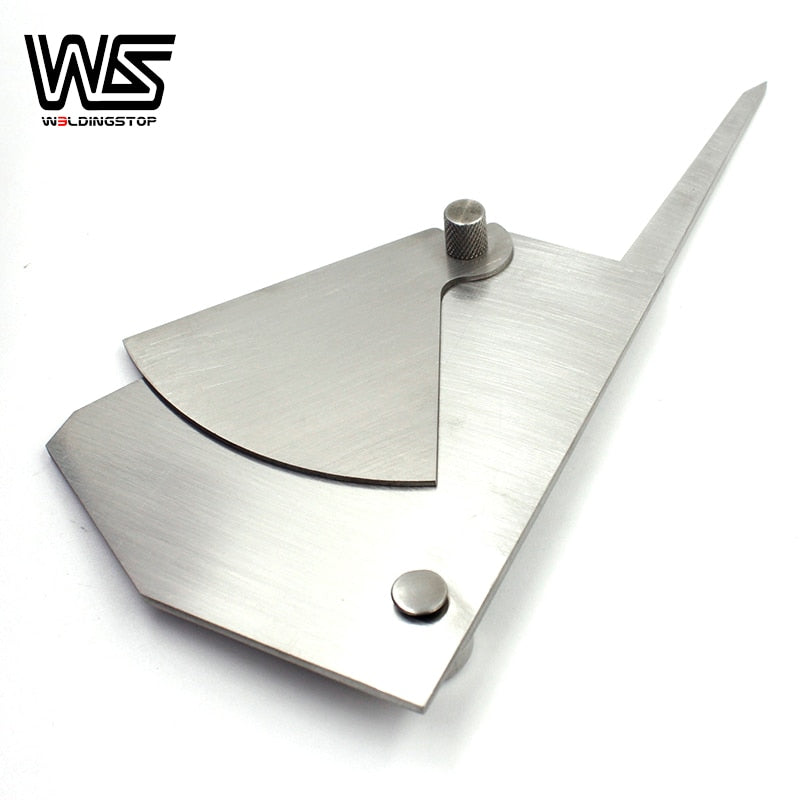

SKEW Welding Gage inspection Acute & Obtuse Side Bevel Angle with Calculator Card Metric Reading Stainless Steel

Descriptions:

Made of stainless steel material, Replaces all other sets of gauges used to measure fillet or groove welds.

Features:

◆ WS high quality gauge.

◆ The gauge has SKEW-T fillet weld calculator in order to converting the measurement readings to theoretical readings.

◆ Stainless steel gauge body ensure durability, it is not easy to bend.

◆ Laser printing ensures that the scales and numbers are clear and not easy to wear.

◆ Packed in plastic box for the convenience of storage and carrying.

◆ The gauge has an instruction that you can download for understanding how to use better.

◆ Metric and Imperial

Specifications:

◆ Material: stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 173g

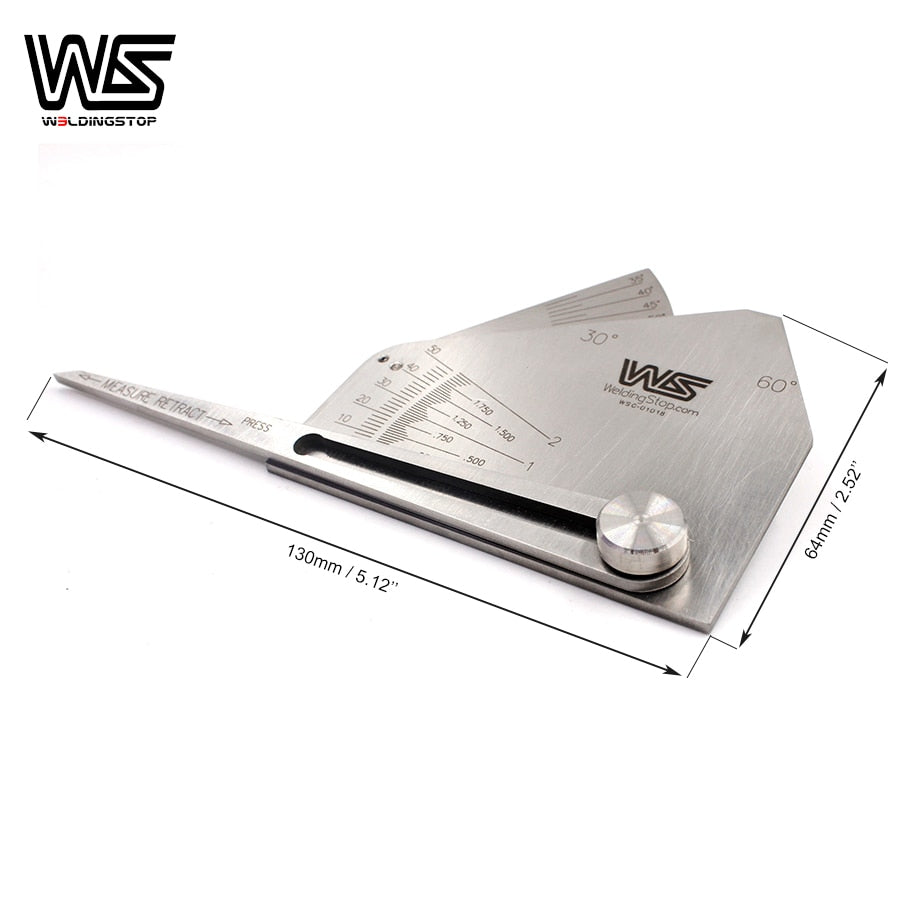

◆ Size in Inch: L x W : 5.12'' x2.52 ''

◆ Size in Metric: L x W :  130x 64mm

◆ Transition: 1cm=10mm=0.39inch

◆ Measuring range:

- Fillet or groove welds in skewed members or members at 90 degrees

- Angle of vertical member

- Weld acute side and obtuse side

Package Included:

◆ 1pc x SKEW-T FILLET WELD GAUGE  WSG-01018

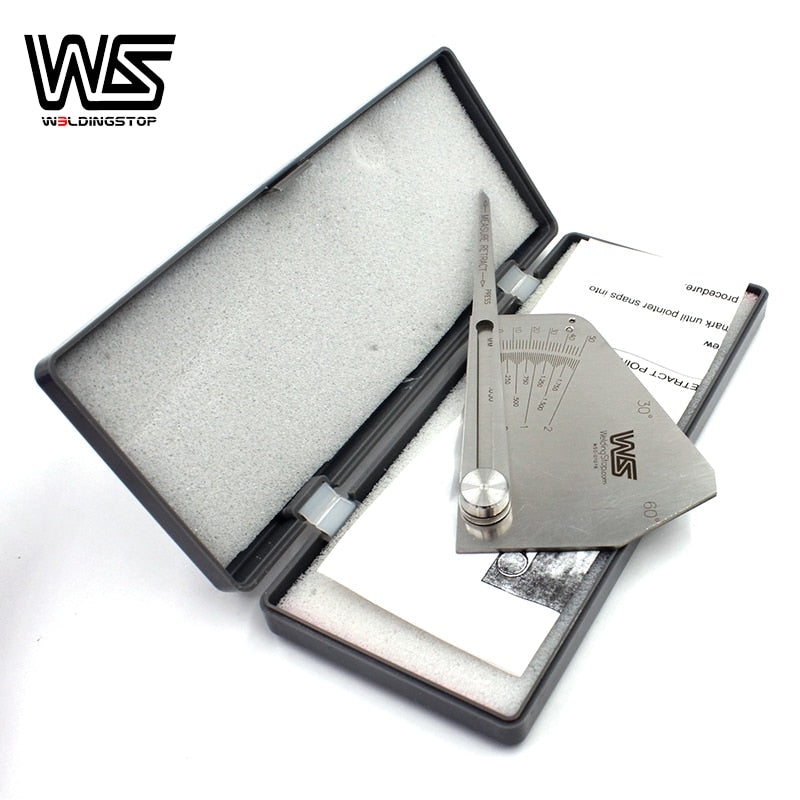

◆ 1pc plastic box 、Instructions and Use card
