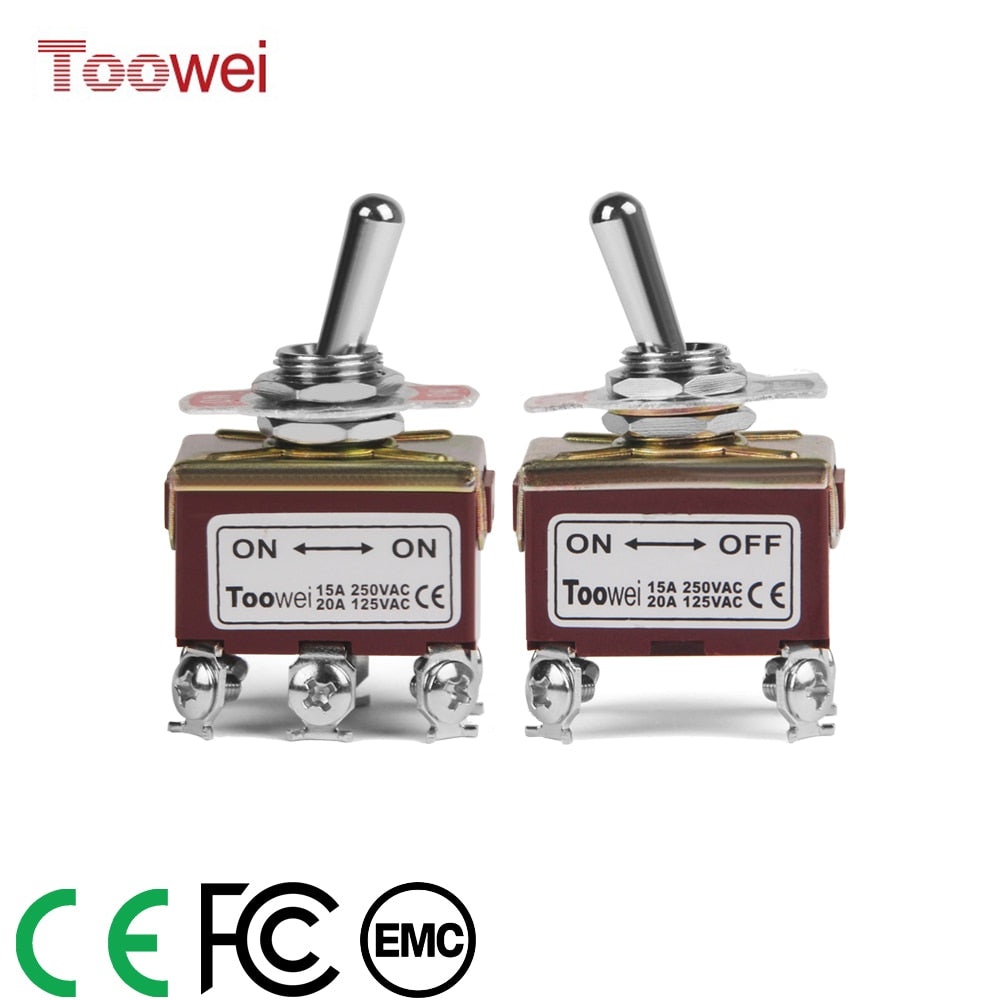

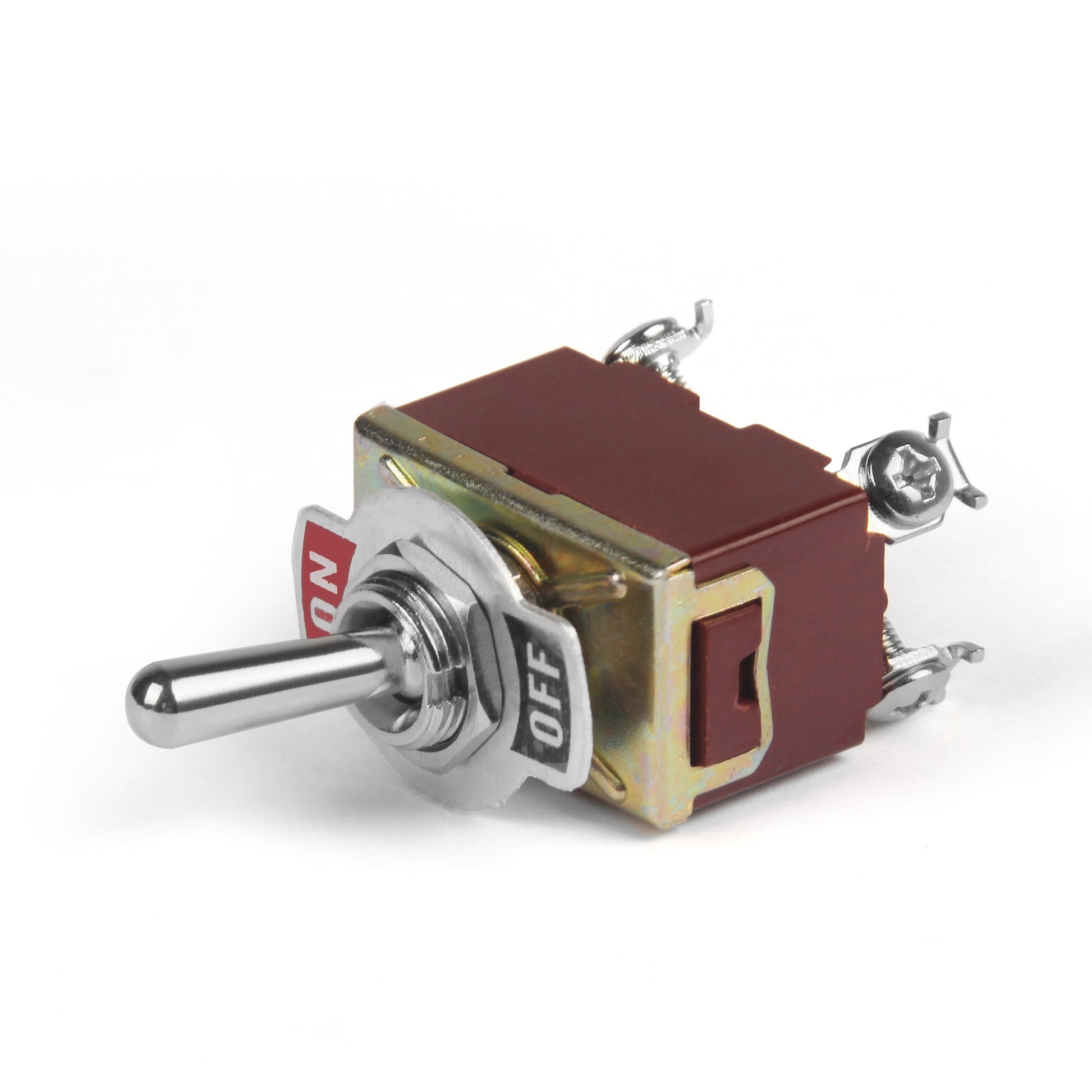

Rocker Toggle Switch 15A 250V 20A 125V DPST DPDT 4 6 Pin Screw Type


Color: ON-OFF Toggle Switch
Sale price$19.90


There are different options in this auction, you can switch options via button above “Buy Now”. Please make sure you have chosen the right option before placing an order.

Rocker Toggle Switch 15A 250V 20A 125V DPST DPDT 4 6 Pin Screw Type ON/ OFF ON/OFF/ON CE FCC EMC Certificate For Boat Car Home

Designed to meet most needs, the T700 Series is easy to integrate into a wide range of applications.

Applications: Food machinery, generators, industrial controls, office automation and markets.

Product Material

Internal contacts of the switch are made of high purity copper with low resistance and fast response.
Screws are nickel-plated from highly pure copper to retard the oxidation of the screws by air.
Housing is made of bakelite with high insulation and high temperature resistance.

Brand Name: Toowei

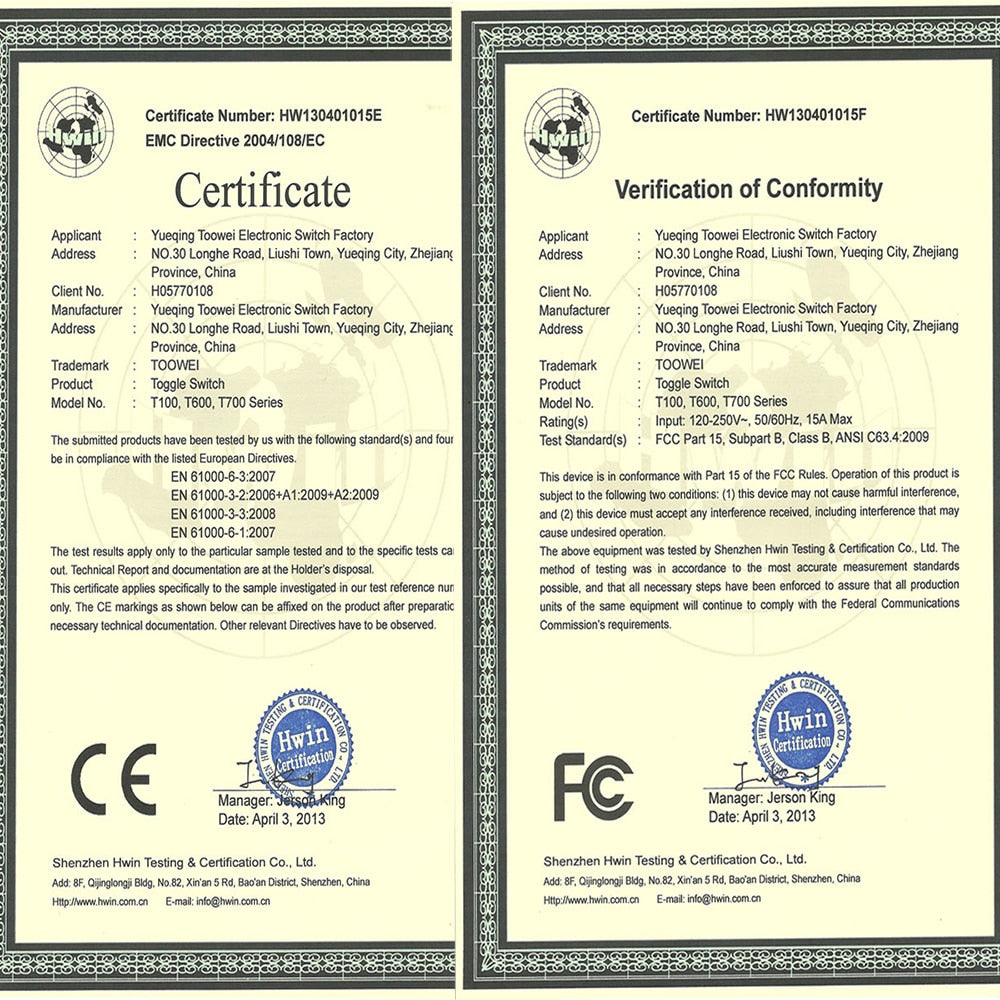

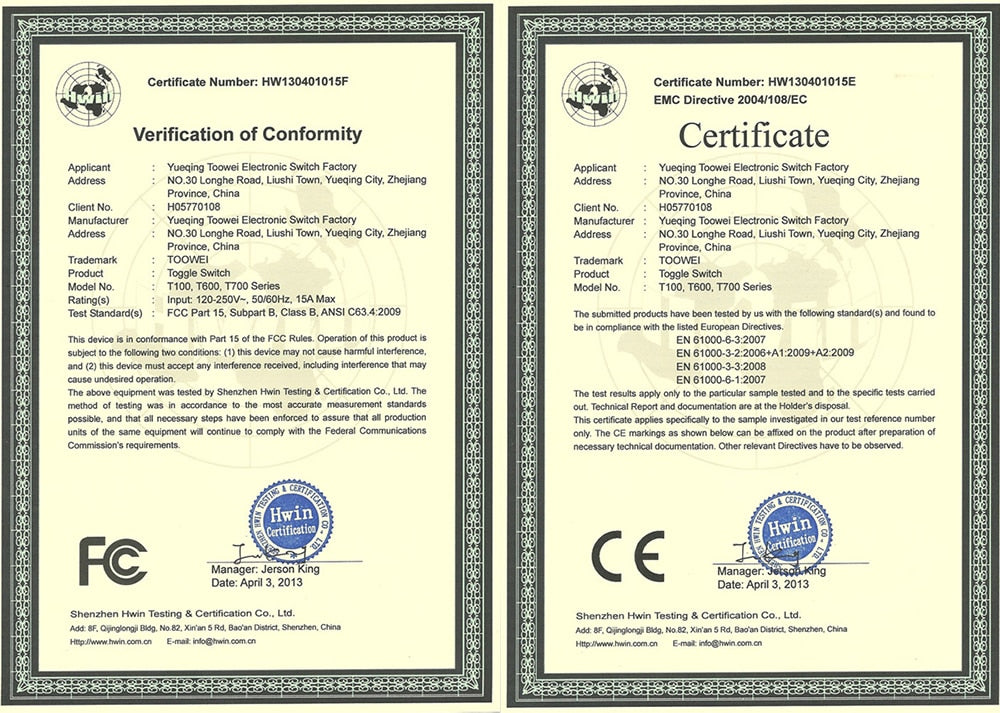

Certification: ce
Certification: EMC
Certification: FCC
Item Type: Switches
Features: Toogle Switch
Warranty: 1Year
Material: Stainless Steel
Switch Type: Toggle Switch

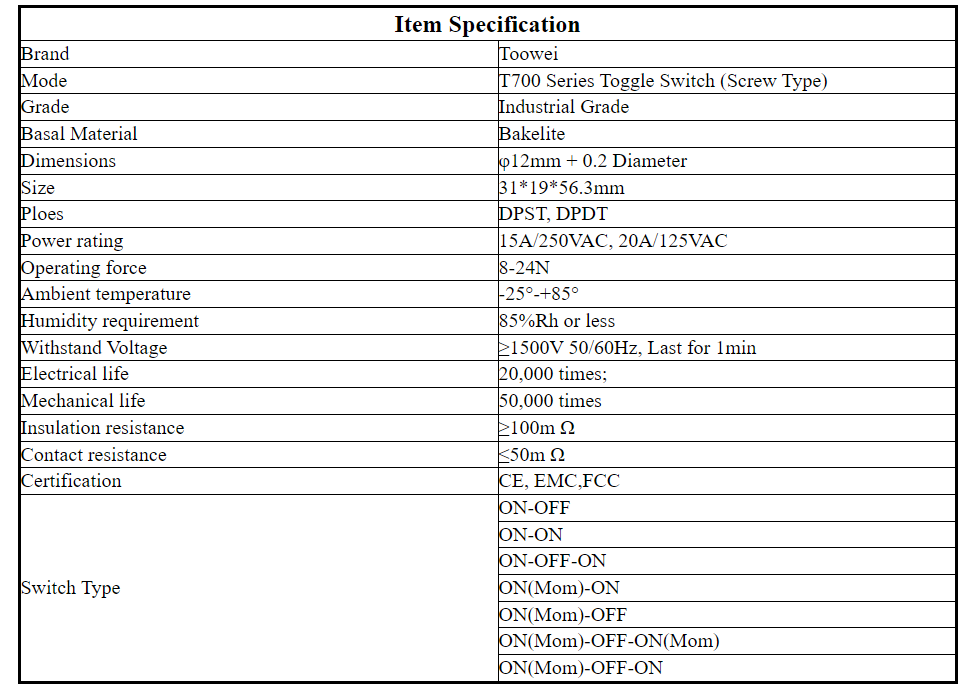

Model Number: T700 series
Current: 20A
Operating force: 8-24N for Toggle Switch
Ambient temperature: -25-+85 for Toggle Switch
Humidity requirement: 85%Rh or less for Toggle Switch
Electrical life: 20000 times for Toggle Switch
Mechanical life: 50000 times for Toggle Switch
Certification: CE, FCC for Toggle Switch
Basal Material: Bakelite for Toggle Switch

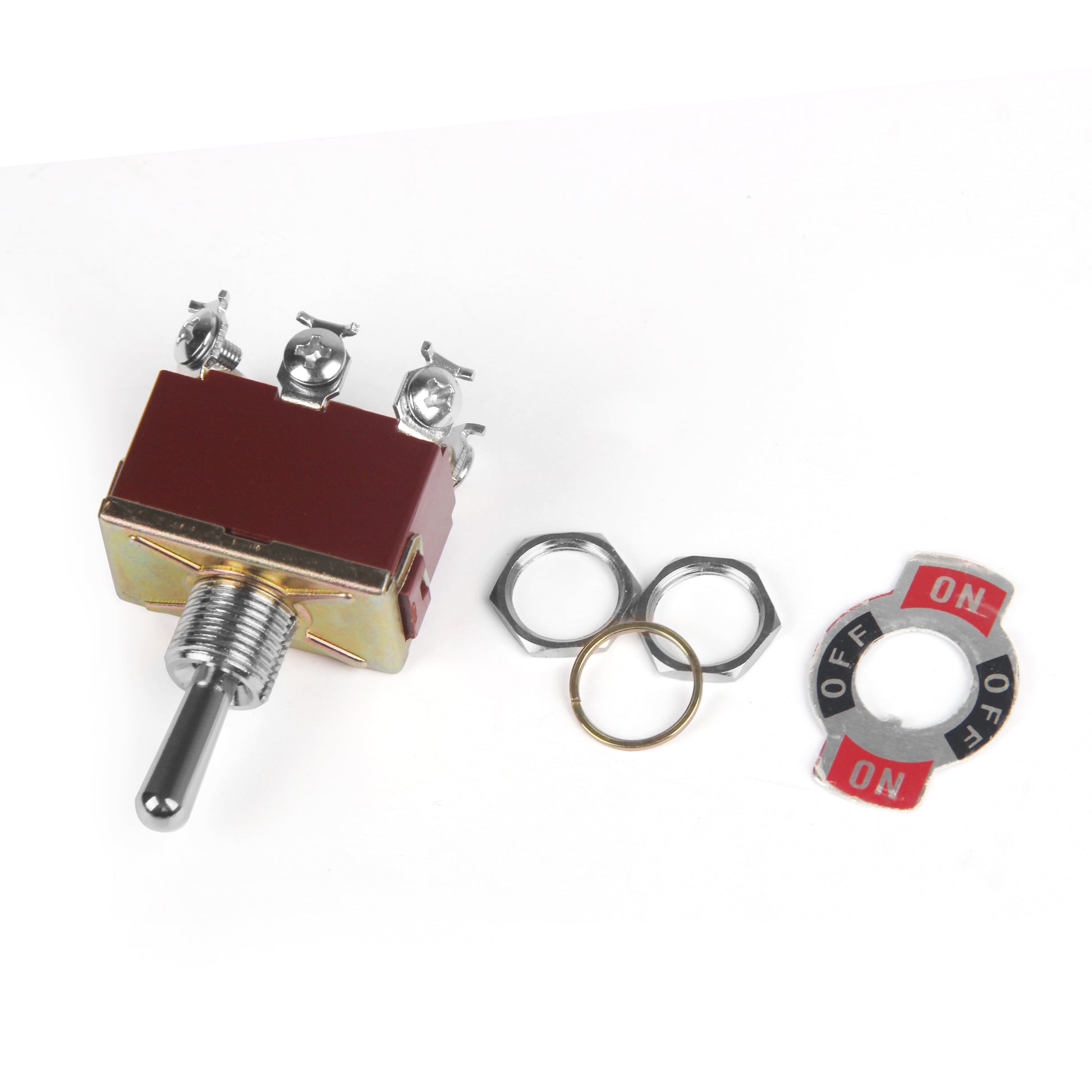

Mounting Method: Bushing Mount for Toggle Switch

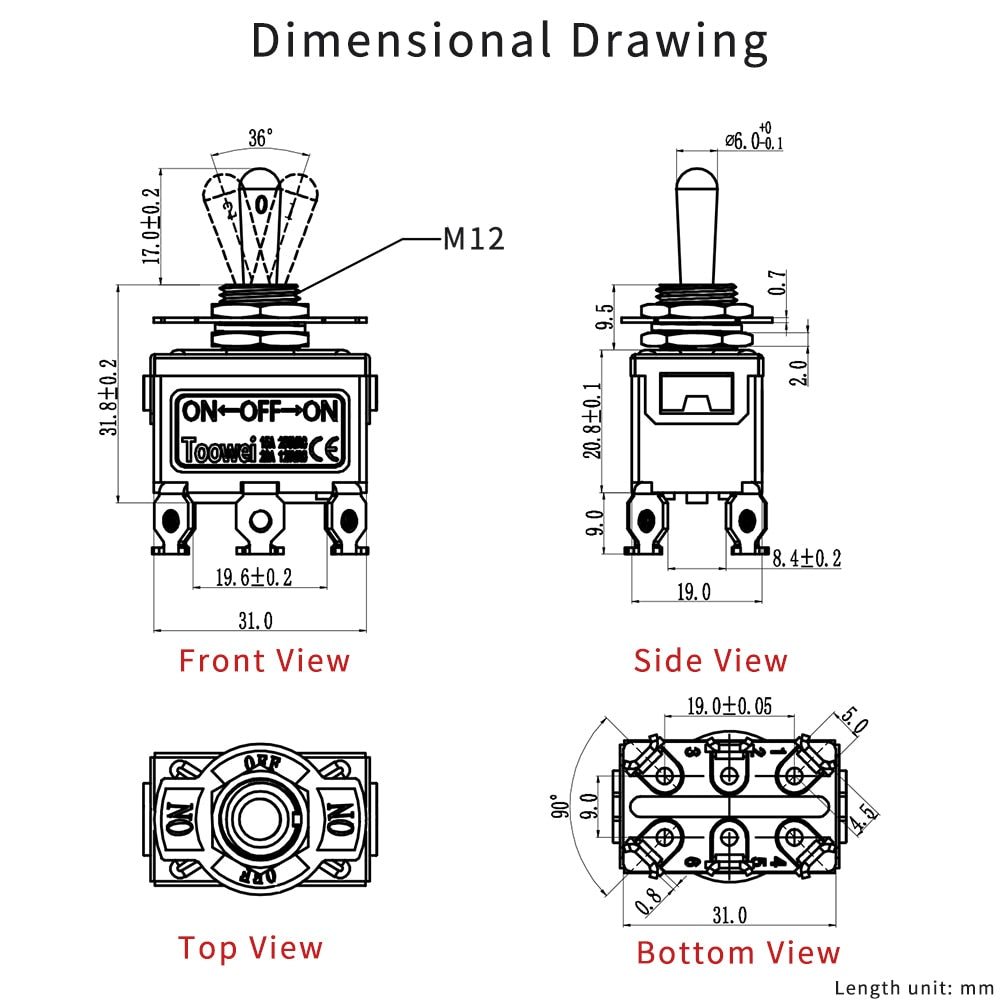

Dimensions: 12mm for Toggle Switch
Withstand Voltage: ≥1500V 50/60Hz, Last for 1min
Ploes: SPST, SPDT for Toggle Switch

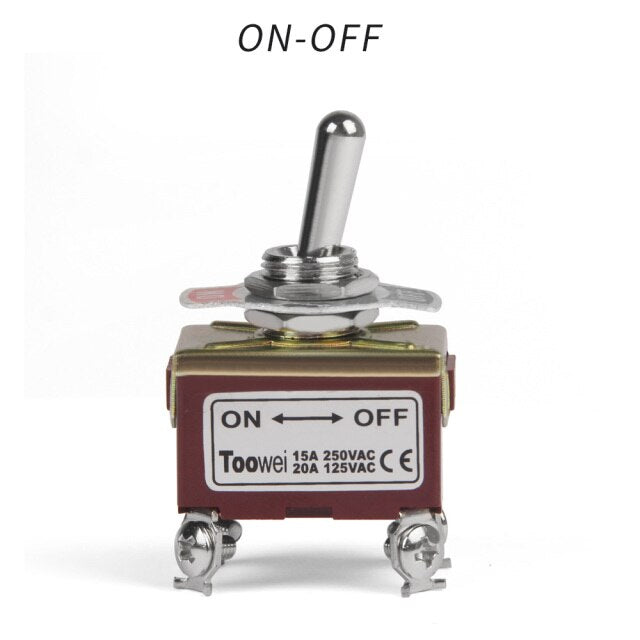

Switch Type: ON - OFF for Toggle Switch

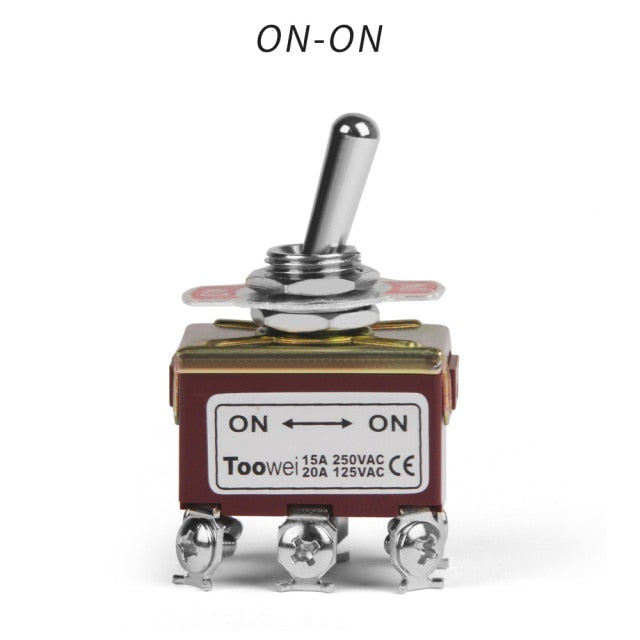

Switch Type2: ON - ON for Toggle Switch

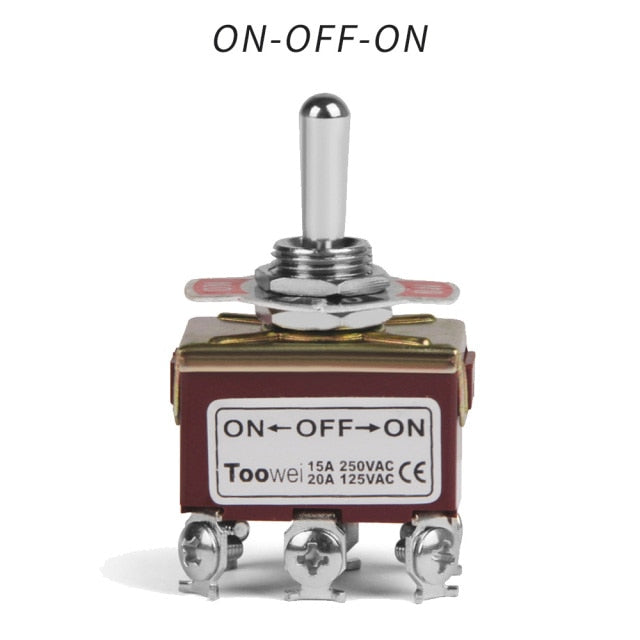

Switch Type3: ON - OFF - ON for Toggle Switch

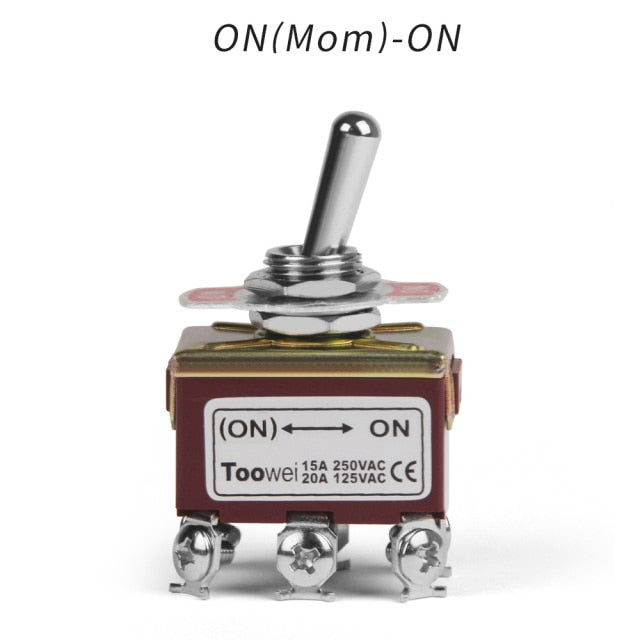

Switch Type4: ON (Mom) - ON for Toggle Switch

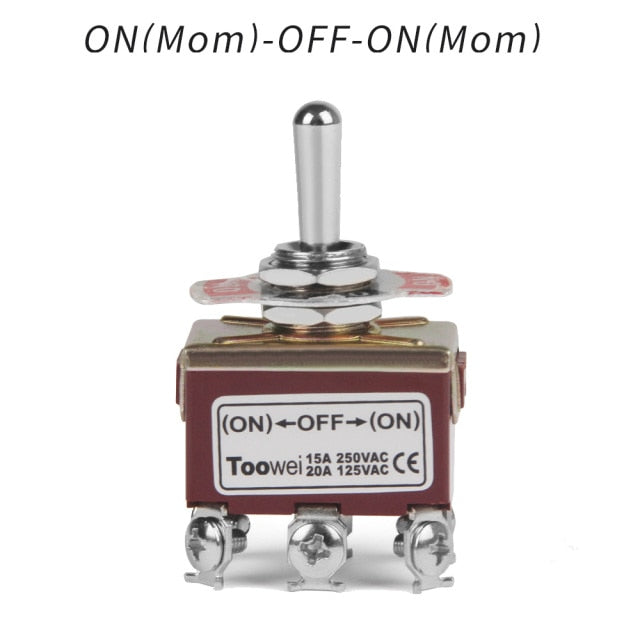

Switch Type5: ON (Mom) - OFF - ON (Mom) for Toggle Switch
PIn Number: 4 Pin for Toggle Switch

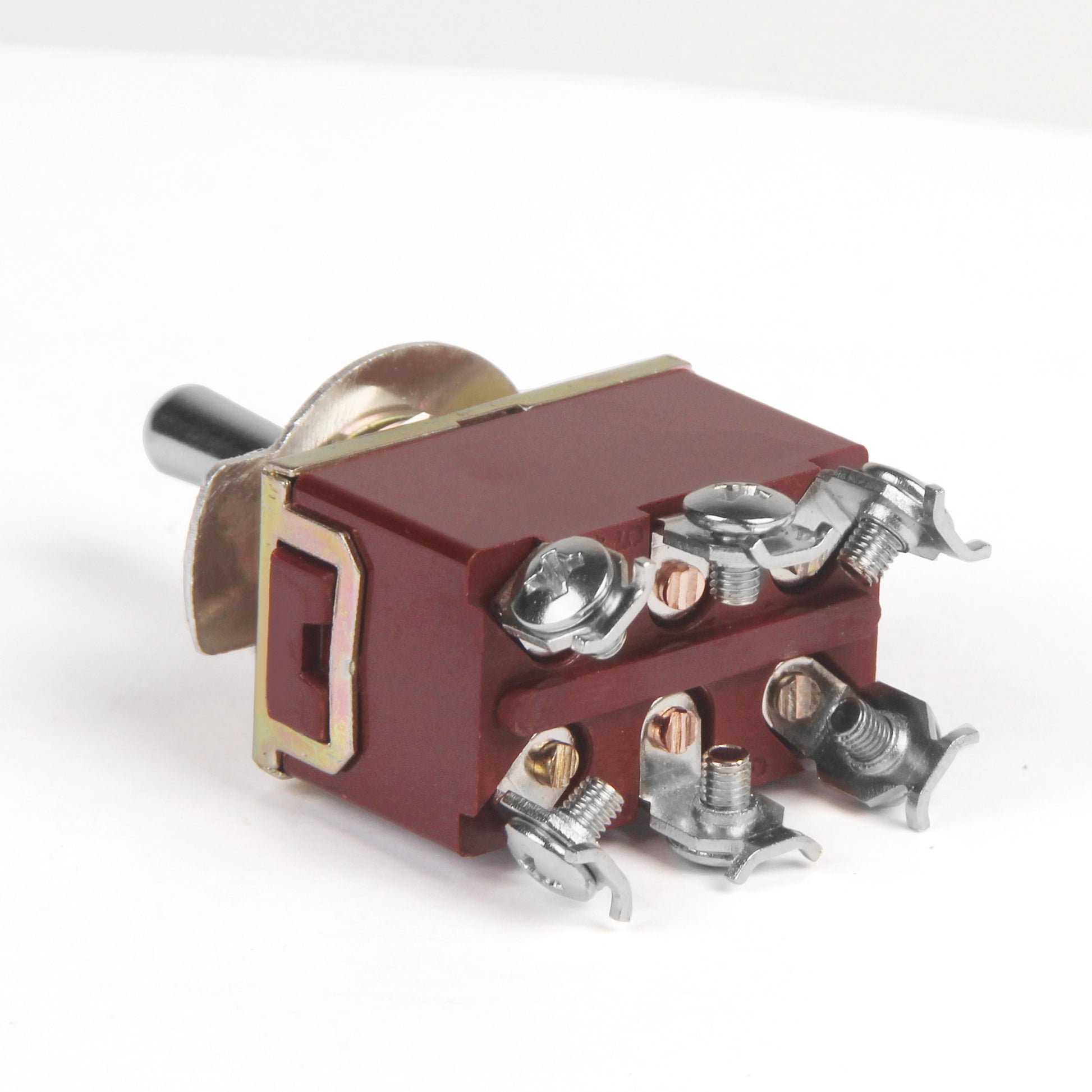

PIn Number 2: 6 Pin for Toggle Switch
