There are different options in this auction, you can switch options via button above “Buy Now”. Please make sure you have chosen the right option before placing an order.
Measuring range:DC 2.5V-30V
Input range:Dc 5-30V

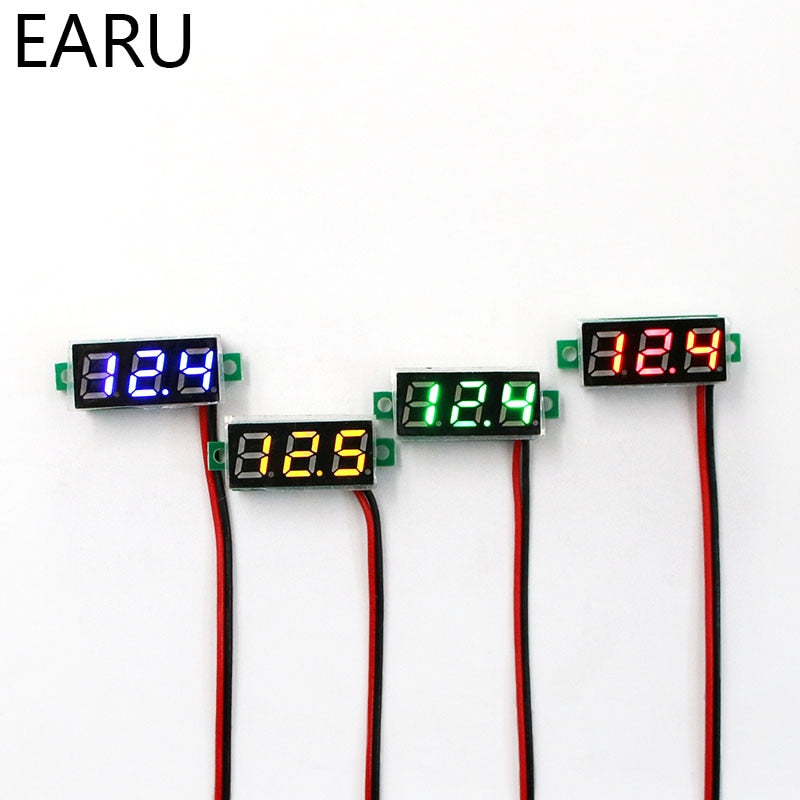

Display:Three:0.28inch digital tube(red,blue,green)
Voltage range:2.5V - 30V
when we measure the voltage less than 10V, our voltmeter display the figure is accurate to two decimal places;when we measure the voltage more than 10V,our voltmeter display the figure is accurate to one decimal places.

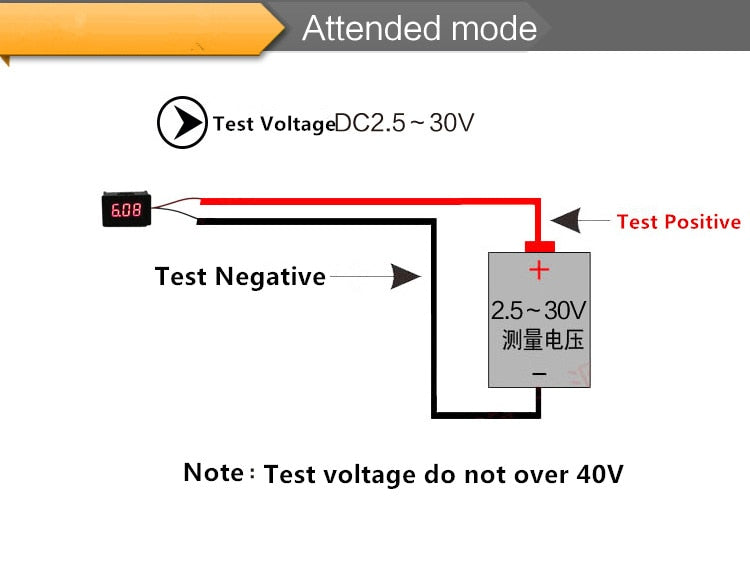

The voltmeter is easy to connect, the conventional two lines, red positive, black negative, there is reverse connection protection, and the connection does not burn.
DIY Supplies: ELECTRICAL
Display Type: Digital Only
Operating Temperature: -10 to +80C
Model Number: C1187-01
Power Supply: DC
Brand Name: EARUELETRIC
refresh rate: About 100mS once
Display specifications: Three bit 0.28LED digital tube
Measuring range: 2.50-32.0V
Type: Digital voltage measuring instrument
Specifications: Two lines
Input impedance: >50KΩ

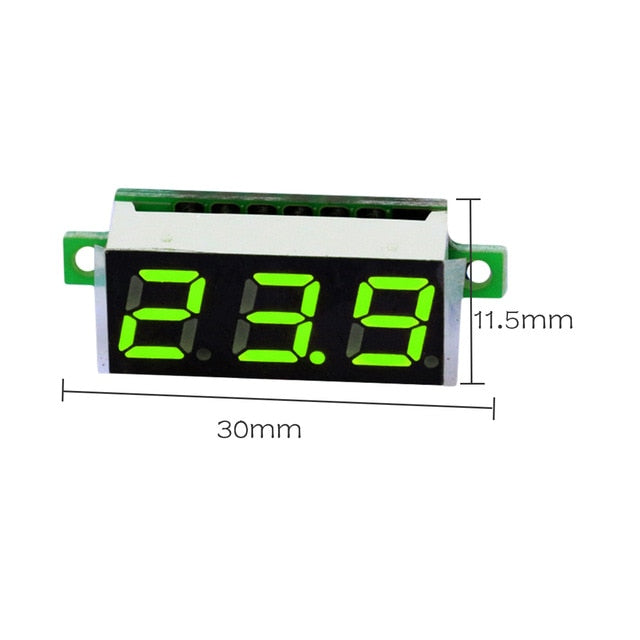

Hole spacing: 26mm
Unit Type: piece
Package Weight: 0.005kg (0.01lb.)
Package Size: 15cm x 15cm x 1cm (5.91in x 5.91in x 0.39in)
