LED Panel Voltage Meter Gauge Digital Voltmeter Tester Car Auto

filler

Color: DC30V 2 Wires
Price:
Sale price$10.00

Description

There are different options in this auction, you can switch options via button above “Buy Now”. Please make sure you have chosen the right option before placing an order.

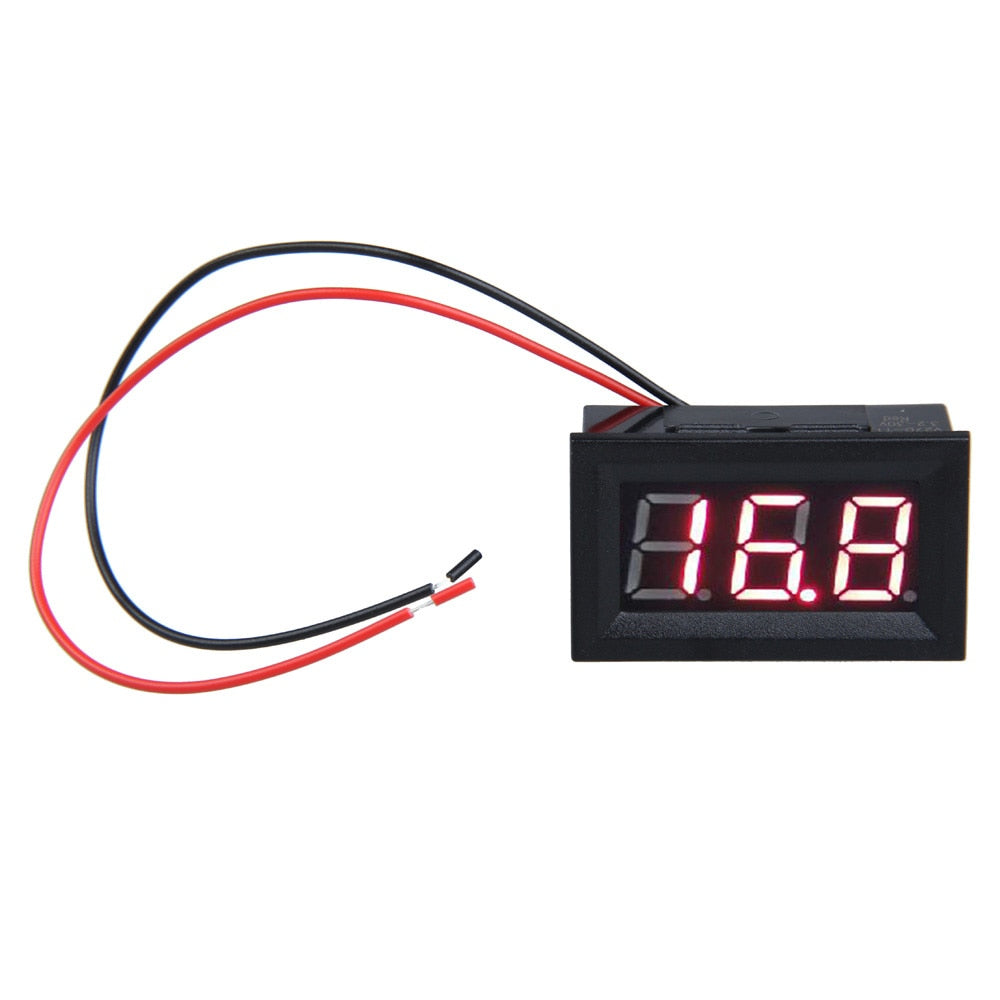

This RED DC Voltage Meter with DC3.2-30V range. It is easy to read, install and use
And it is self-powered version and supports Reverse polarity protection.
When the voltage is under 10V, there will 2 readings after decimal point, which mean the accuracy is 0.01 when it is under 10V; when it is above 10v, the accuracy is 0.1
Mini Red LED display
No power supply needed
Measure Voltage: DC 3.2-30V two-wire access
Display: Three digit 0.56" LED, red color
Refresh Speed: Approx.200mS/time
Highest input:DC 30V (higher than 30v has the risk of burn up)
Minimum input:DC 3.2V(below than 3.2V,measurement is inaccurate or does not show)
Minimum Resolution:0.01V(<10V)/0.1V(>10V)
Resolution:1%±1digit
Working Temperature:-10°~65°

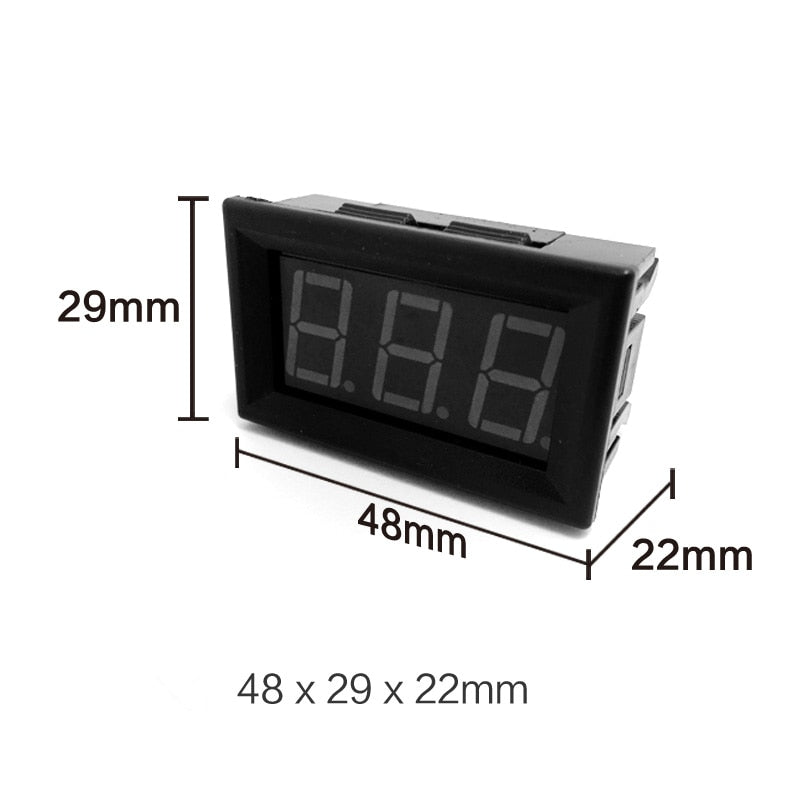

Size:Approx. 48mm x 29mm x 22mm(L*W*H)

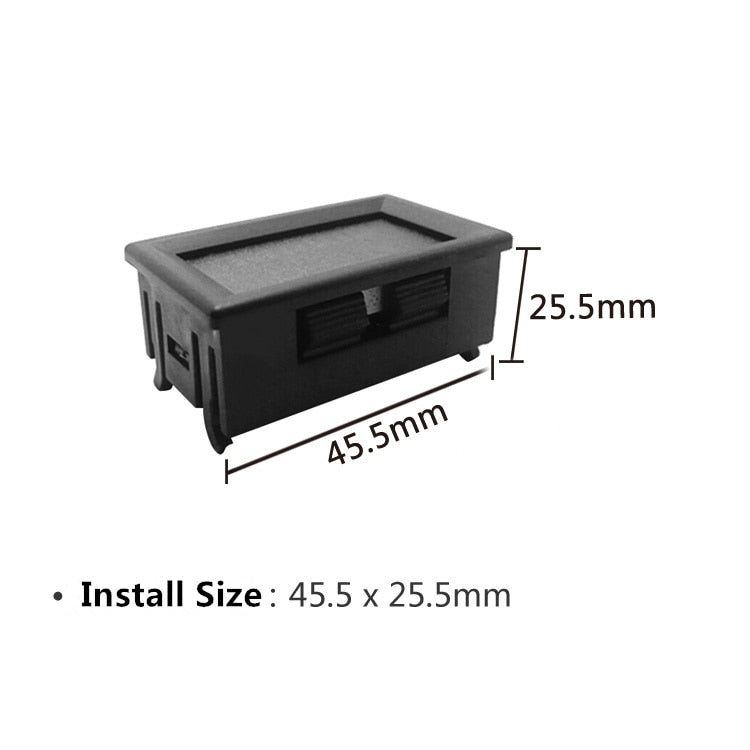

Hole Size: Approx.46*27mm
Current Consumption:<20mA
LED Color: Red color

Model Number: N/A
Display Type: Digital Only
Dimensions: Approx.
Operating Temperature: -10~65
Brand Name: EARUELETRIC
DIY Supplies: ELECTRICAL
Power Supply: NO
Unit Type: piece
Package Weight: 0.41kg (0.90lb.)
Package Size: 5cm x 3cm x 2cm (1.97in x 1.18in x 0.79in)
Measuring Range: 3.2-30V
