Huepar Laser Level Receiver Detector LR-5RG-GN

Laser Level Receiver Detector with Pulsing Line Ourdoor Indoor Electronic Leveling Vertical Horizontal Lines for Red Green Beam

Model Number: LR5RG-GN

Using Tips
● Put the laser level in Pulse (Outdoor) Mode.
● Made sure the laser level and the Receiver windows were clean.
● Recheck the batteries in both devices (Laser level & Huepar Laser Receiver).
● Made sure your laser level could used in accompanied with Huepar Receiver.
● Recommended for using with Huepar 902CG, 901CG, 8211G, BOX-1G/R, GF360G/R, 622CG/R, 621CG/R, 603CG/R, 602CG/R Laser Level

【HUEPAR DEDICATED RECEIVER】- Huepar LR-5RG receiver can ONLY use with Huepar Line Laser Level.Recommended for use in accompanied with Huepar 901CG/902CG, BOX-1G/R, 8211G, 621CG/R, 622CG/R, 602CG/R, 603CG/R, GF360G/R Laser Level. Can also use with Tacklife SC-L03 / SC-L04 Laser Level.

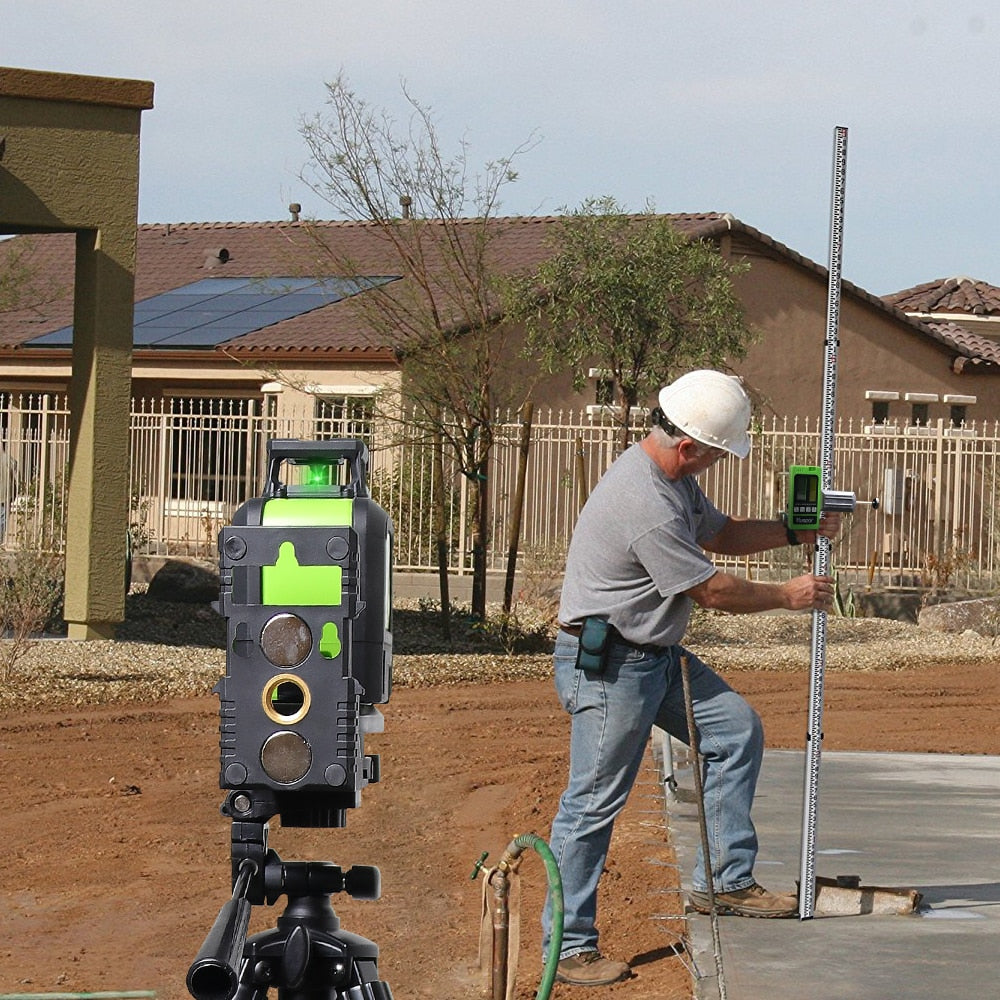

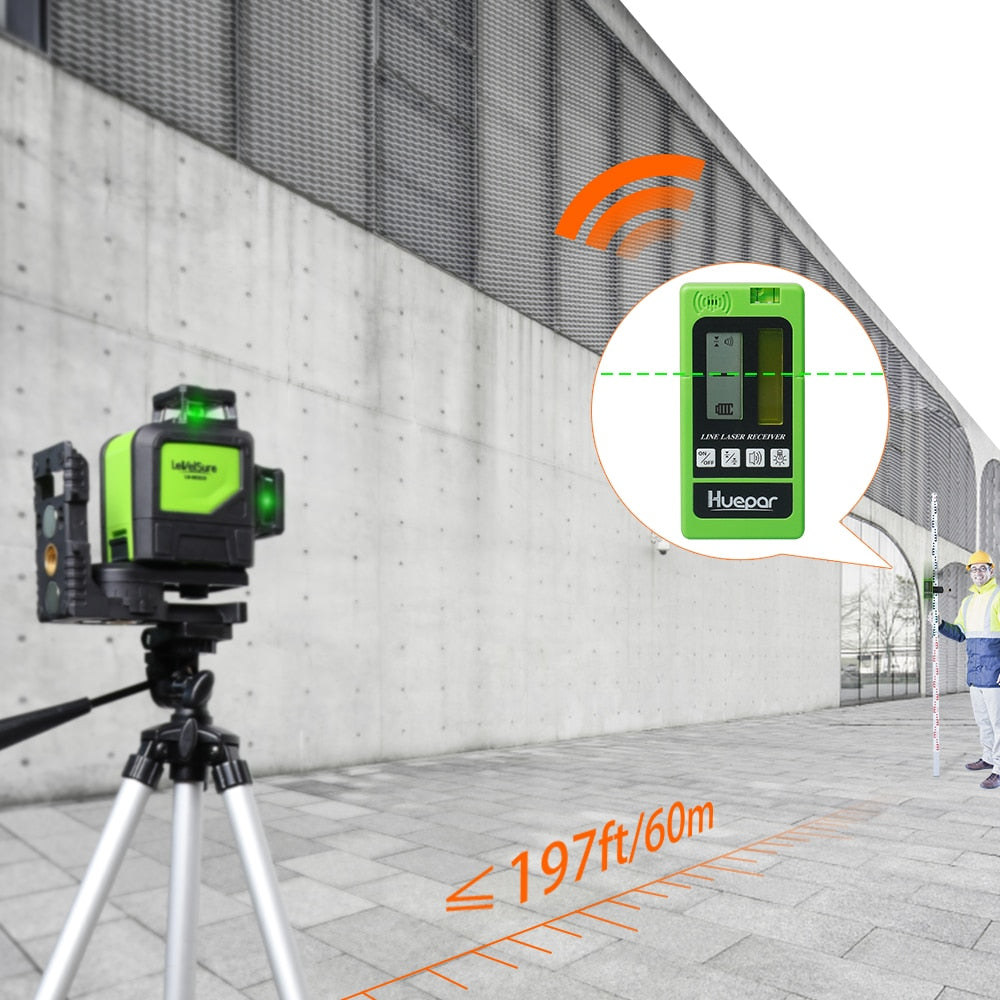

【AVAILABLE FOR RED AND GREEN PULSE LASER】- Turn on the Pulse Mode of the Laser Level, then Huepar LR-5RG laser receiver allows detection of Red and Green pulse laser beams in difficult light conditions, distances up to 200 feet.

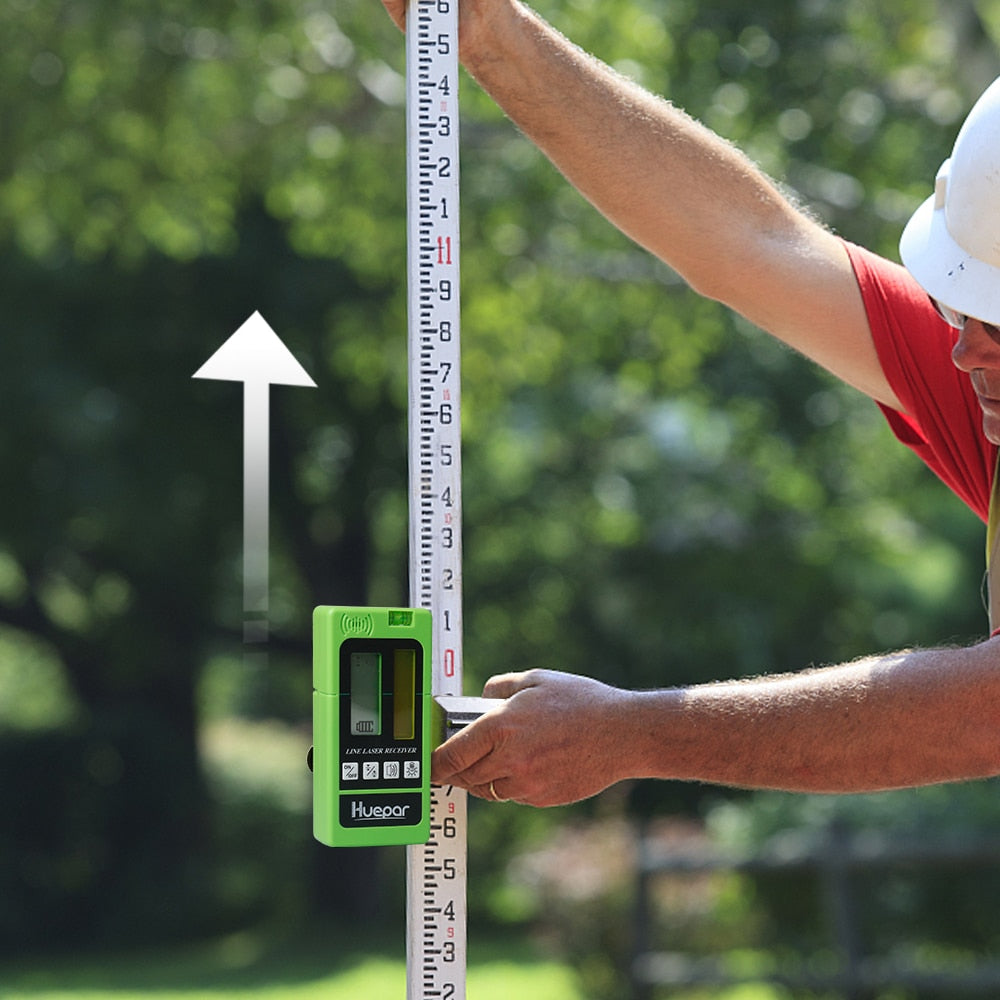

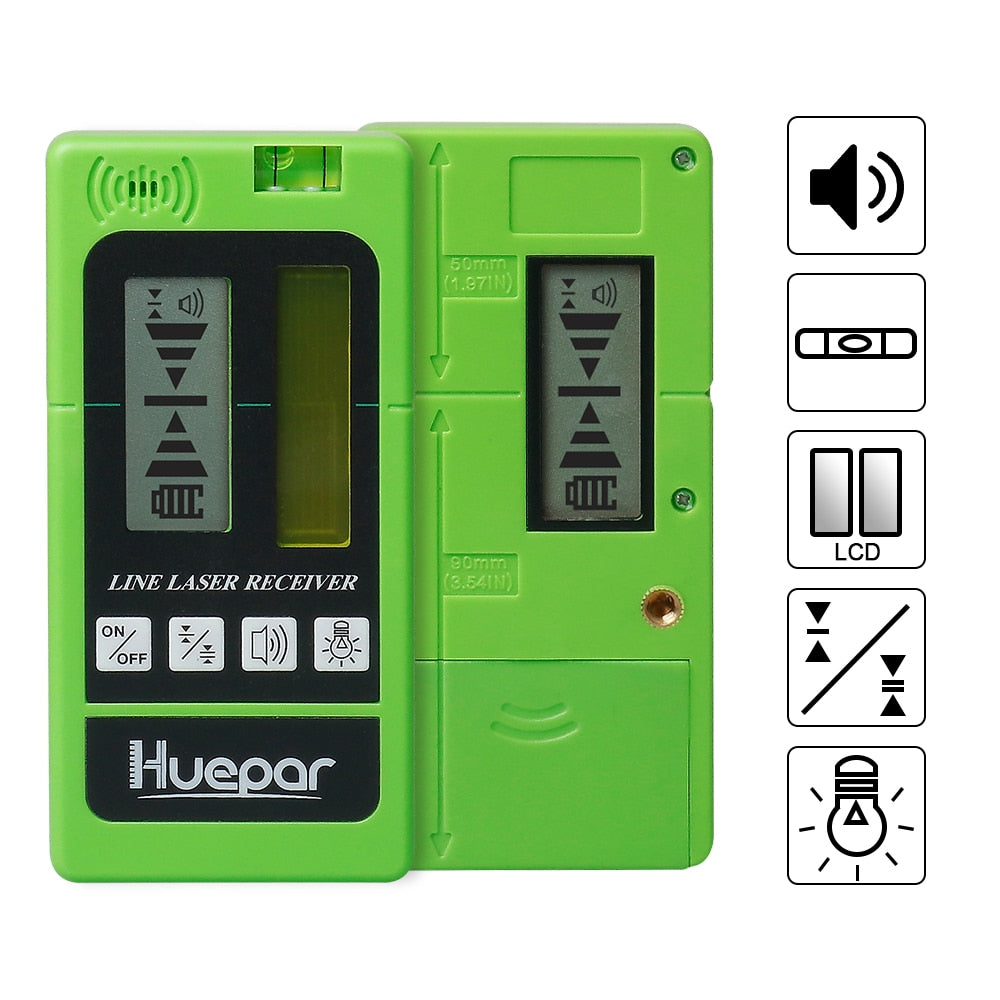

【Large Reception Window & Dual LCD Display】- Large reception window of 2 inches and optical and acoustic signals help to locate the laser plane quickly and accurately. Dual LCD displays for easy visual readout on both sides of the receiver. LCD backlight provides a clear look even in low light conditions. Adjust the height until the horizontal datum line and the arrow disappear on the LCD display.

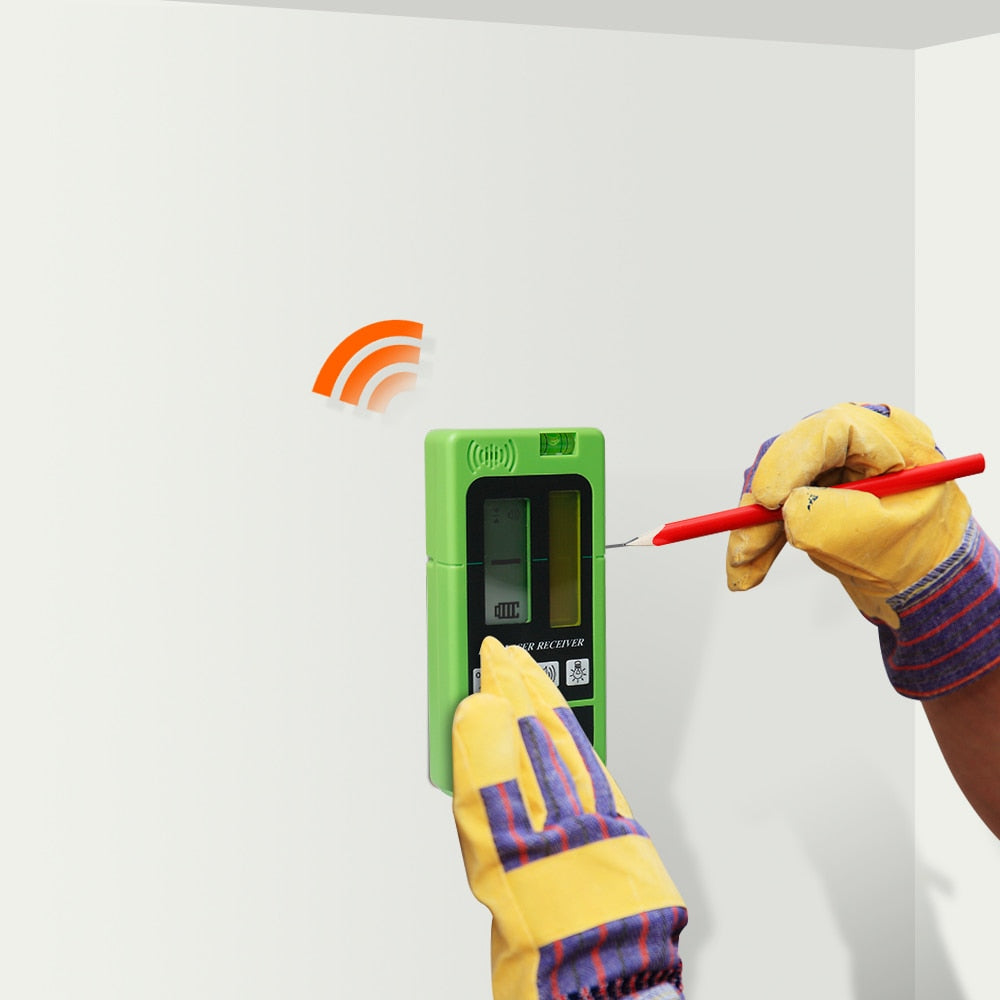

【PRECISE OPTICAL AND ACOUSTIC SIGNALS】- This laser receiver features a user-friendly interface and is smart in its simple design. Optical and acoustic signals help to locate the laser plane quickly and accurately. The LED indicator provides a clear and accurate signal. Beep sounds will remind you when you find the target.

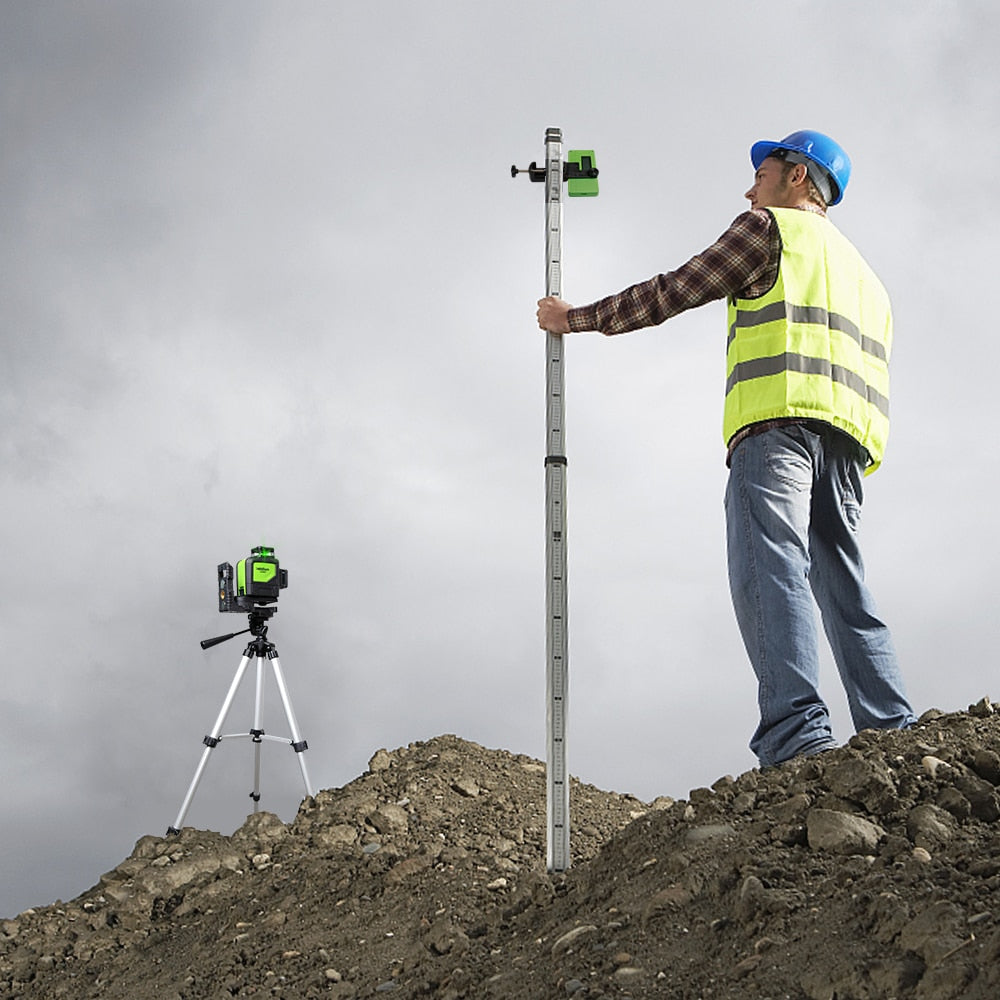

【LONG BATTERY LIFE AND CLAMP HOLDER】- The receiver comes with 2 x AA battery, providing you with about 20 working hours. There is also an automatic shut-off feature that power down the device after about 10 minutes of being idle to extend battery life. The attached heavy-duty clamp makes it easy to mount the detector to a rod or other target point.

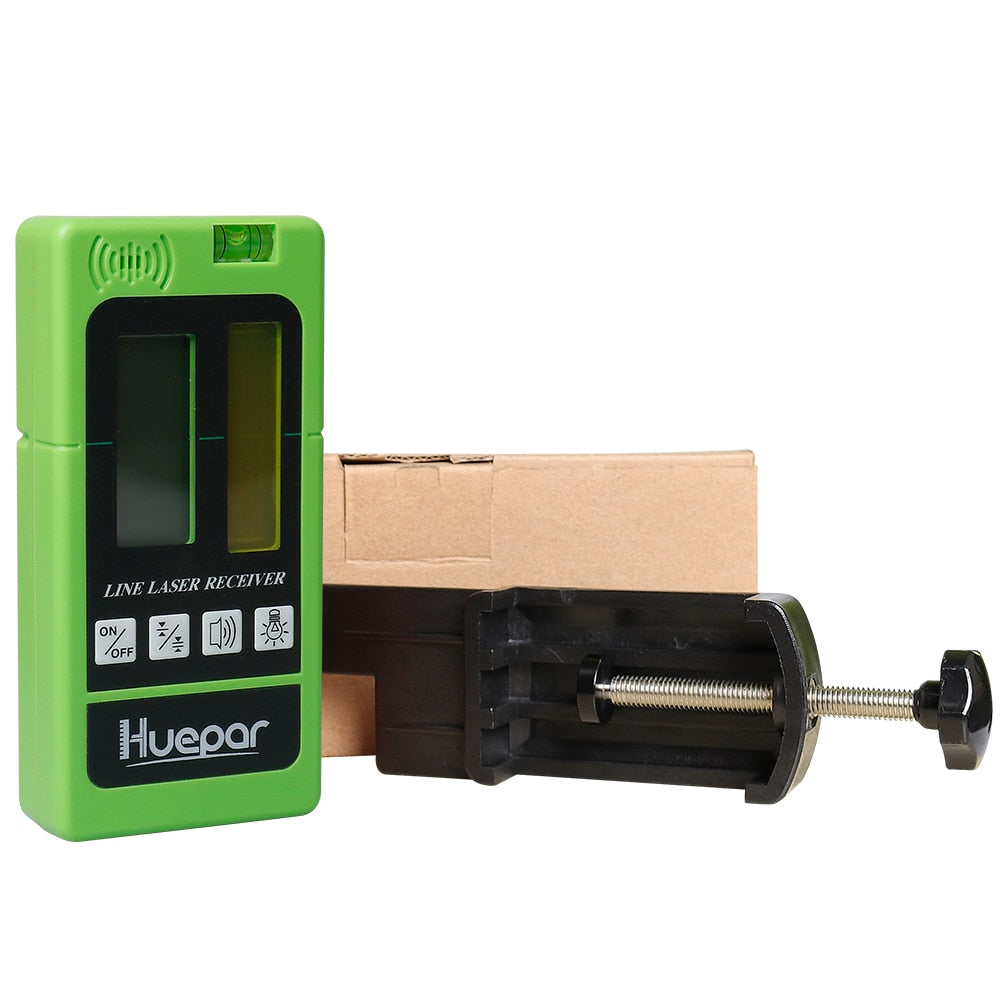

Package include

1 X Huepar LR-5RG-GN Digital Laser Detector( No including battery )
1 X Heavy-duty clamp

Pulse duration: 50μs ;

PWM: 5:5
Frequency: 10KHz (Matched PWM and frequency, Line lasers can work with LR-5RG Laser Receiver)
Display: Dual LCD Display
Leveling Accuracy (High): ≤2mm(1/13in)
Leveling Accuracy (Low): ≤3mm(1/9in)
Working Distance: 130ft~200ft (typical) depend on light source
Operating Time: 20 hours; Auto Power Off (with No Signal Detected): 10min
Power Source: 2*AA Batteries (Alkaline)

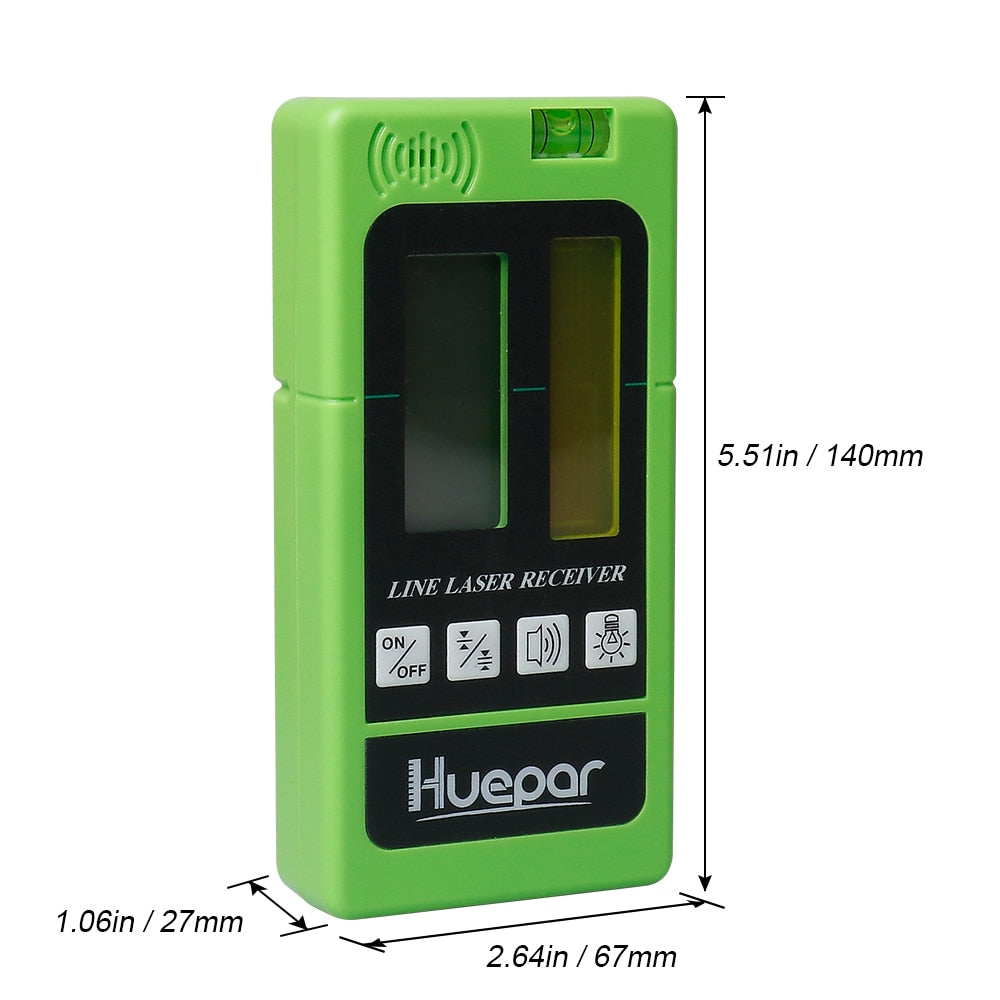

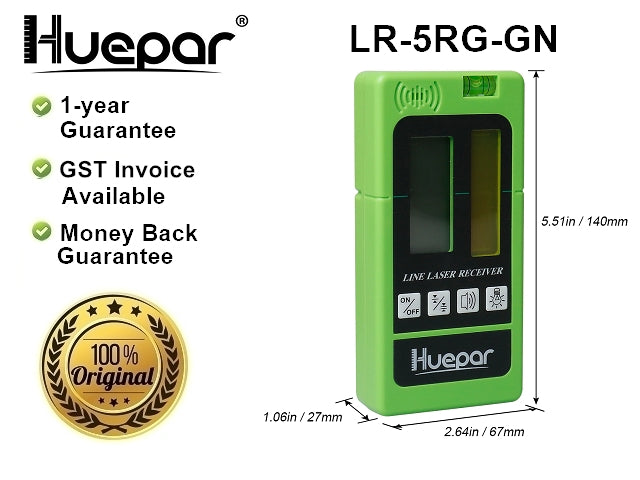

Dimension (LxWxH): 140mm×68mm×26mm; Weight: 140g

Brand Name: Huepar
DIY Supplies: Paint & Decorating
Certification: CE
Origin: CN(Origin)
Output Type: Huepar Laser Level Receiver
Operating Time: 20 hours
Dimension: 140mm/68mm/26mm
Weight: 140g
Frequency: 10KHz
Pulse duration: 50 μs
Display: Dual LCD Display
