Huepar 901CR 5 Lines 3D Cross Line Laser Level Red Beam Vertical Horizontal Lasers

Save $32.00

Sale price$278.00 Regular price$310.00

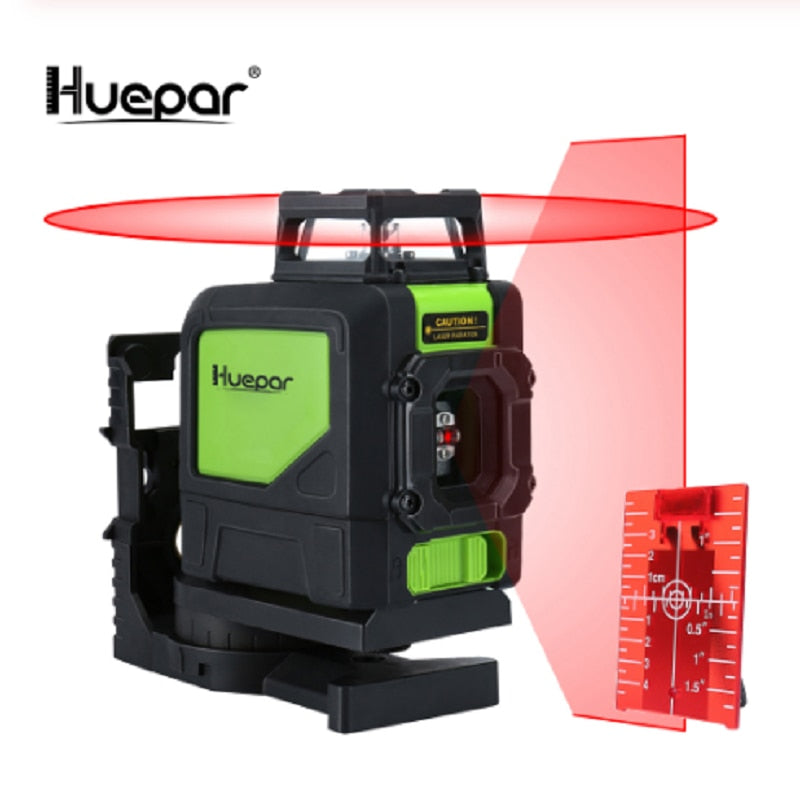

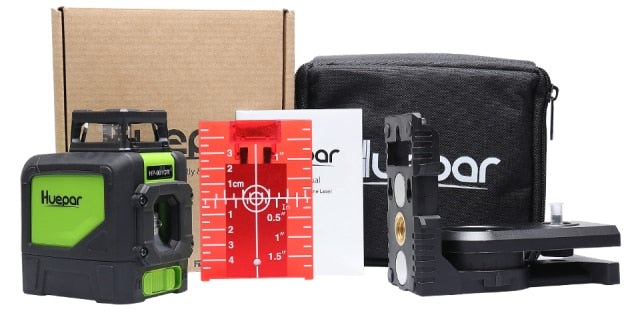

Items in the Package:

1 X Huepar 901CR laser level( No including battery )

1 X Magnetic pivoting Base
1 X Laser target
1 X Cloth case
1 X English User's Manual


✿Precisely project vertical bright red laser line, 360 °horizontal line and cross lines. A professional positioning tool for house fittings, Doors and windows installation, Wall design, House building.

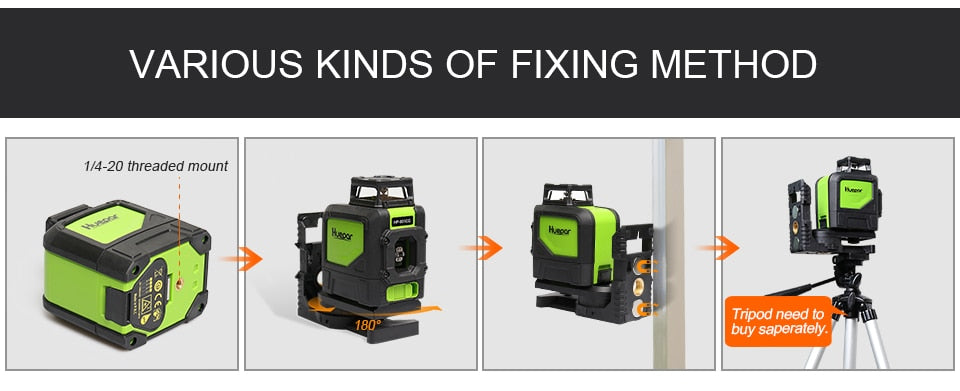

✿Equipped with 360 magnetic pivot bracket mounts for easily fixing on metal surfaces, Which meets your various measuring jobs

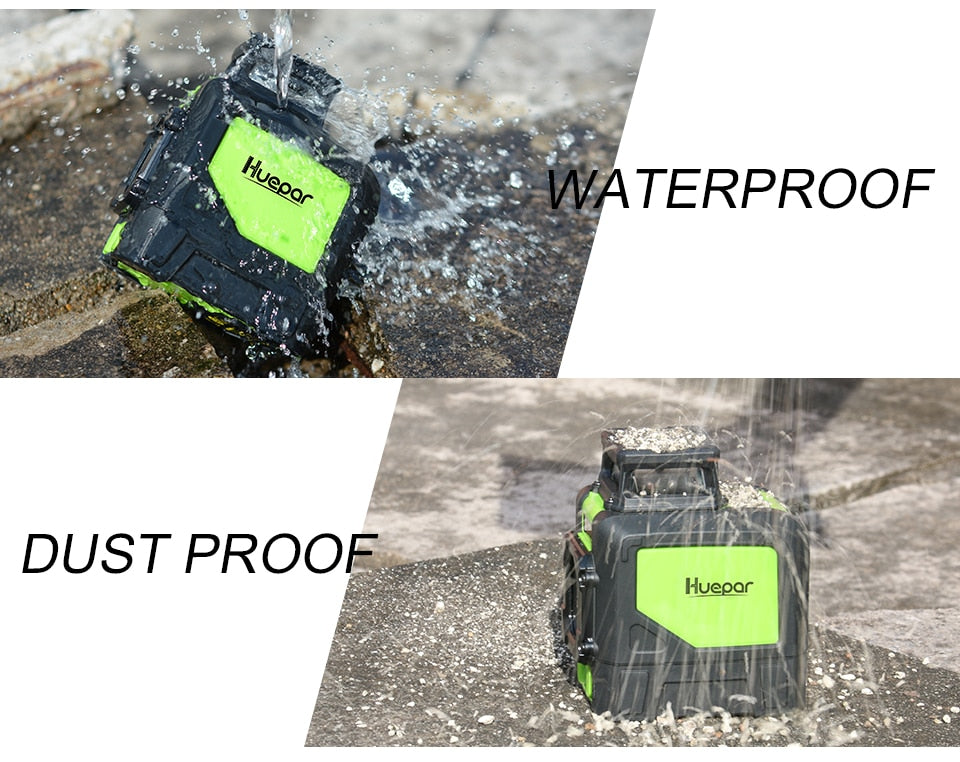

✿IP45 protective design and TPR soft plastic surrounded the item body make it more durable and robust, dust-proof, water-proof and splash-resistant

✿Laser line visible within 30M with 2-Pulse mode for both indoor and outdoor use.

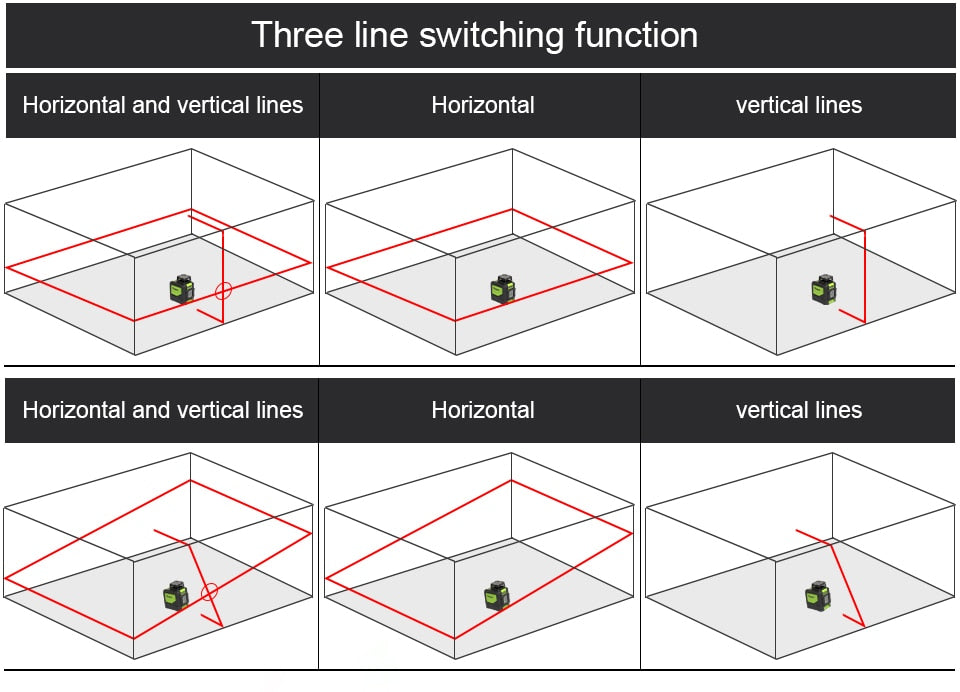

  • Accurate Positioning - In addition to providing precise and flexible alignment of vertical, horizontal and cross lines, this cross-line laser with tilting magnetic mount can project a 360 ° horizontal line to satisfy your various survey needs

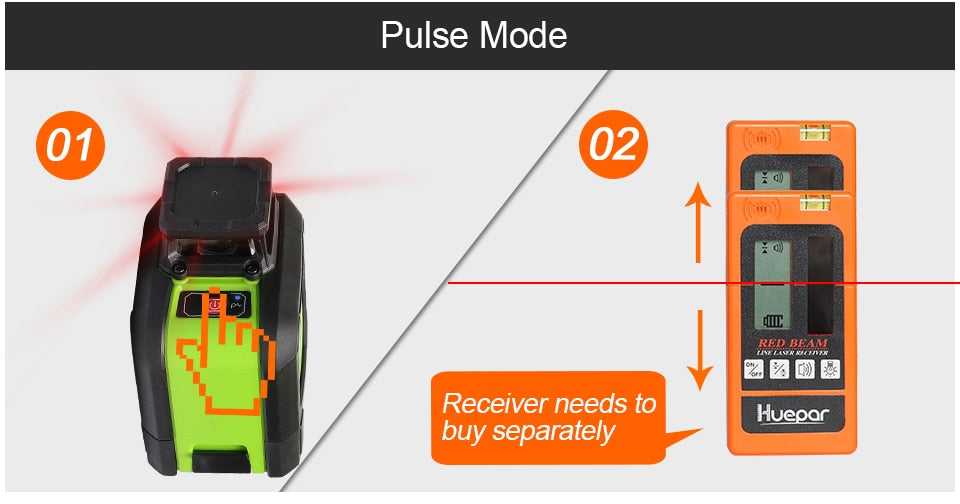

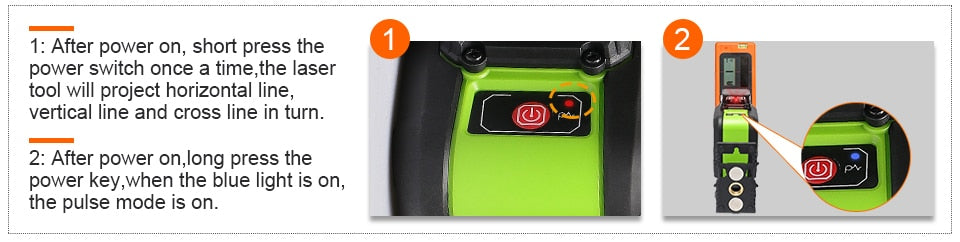

  • Fast Switch Between 2-Pulse Mode - Simply turn it on to enter the 1-pulse mode which is better for indoor use for it is characterized by the bright and clear laser. Press and hold the switch under the unlocked state to enter the 2-pulse mode which is suitable for outdoor use, the laser brightness varies with the intensity of the sun light

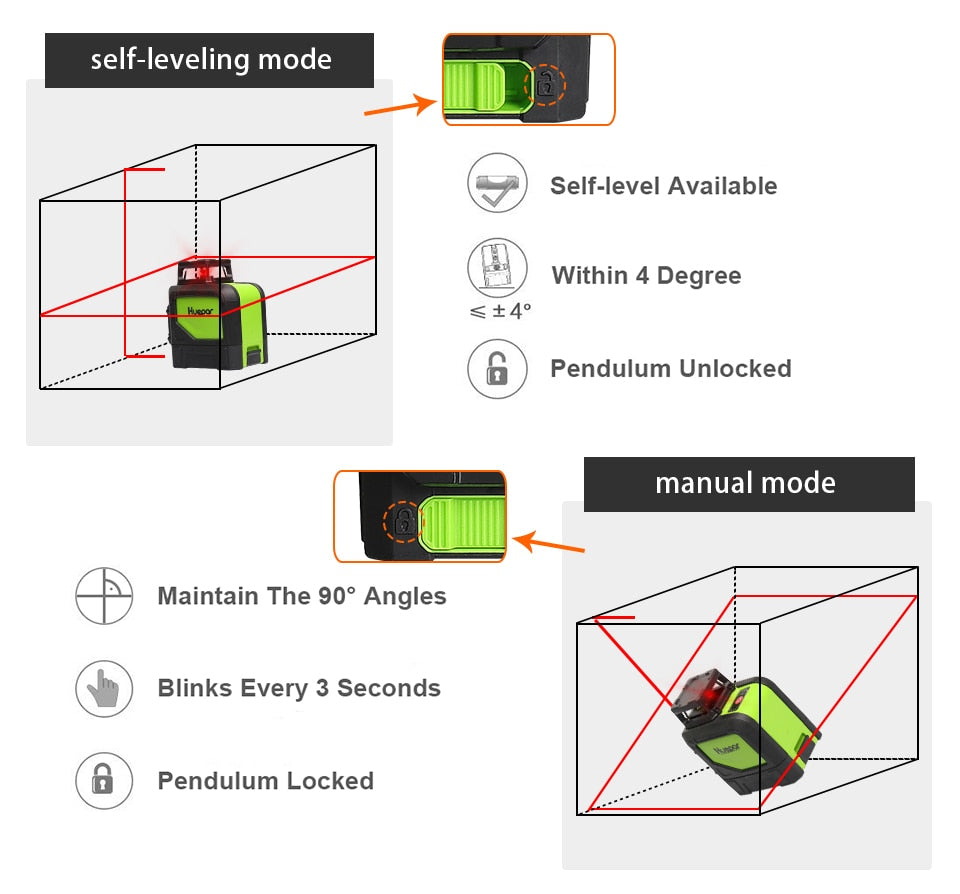

  • High Precision and Self-leveling - Horizontal / Vertical Accuracy: ± 0.3mm /1m. Leveling and self-leveling Compensation Range: 4 °± 1 °, which is under such situation that when it's tilted to less than 4 degrees; If it's tilted to more than 4 degrees, the laser will flash to indicate an out-of-level condition and it need to be leveled manually

  • User-friendly Design - Covered with TPR soft plastic to be durable and robust IP54 protective design, dust-proof and splash-resistant, which can be proved in harsh work environment. Thanks to the powerful laser diode the laser line is clearly visible

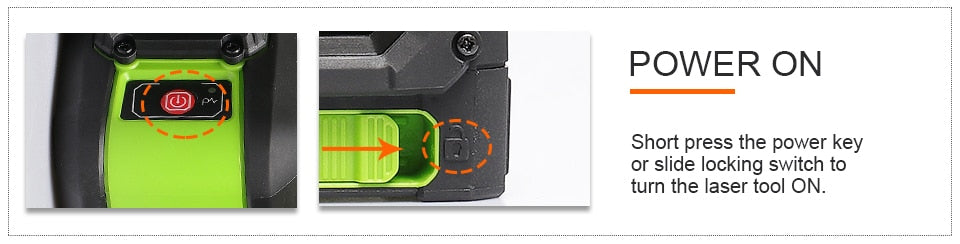

  • Integrated 1/4 inch Thread & Easy Operation- Fits all conventional tripods for hands free leveling and soft grip for high and more comfortable hold; one button operation for ease of use, idea for experts and beginners

901CR Specifications:

Laser Beam Color:Red

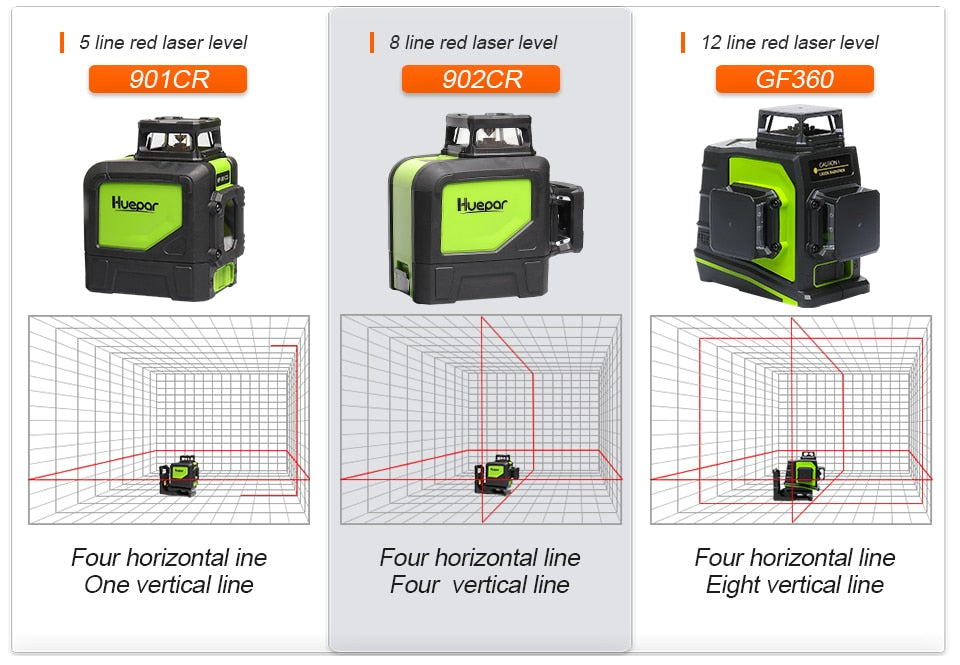

Type:5 Lines
Laser Class:
Class 2(IEC/EN60825-1/2014), output power <1mW
Laser Wavelength: 635 nm
Leveling Accuracy: ±3mm/10m
Leveling/Compensation Range:4°±1°
Working Distance (Line):30m,up to 50m with laser reveiver
Operating Time:10-12 hourswith all laser beams on
Spread Coverage: H360°/ V130°
Power Source: 4×˝AA˝ , >1500mA (do not include)
IP Rating:IP54, waterproof, dustproof and shockproof,reliable and tough.
Operation Temperature Range: 14℉- 122℉(-10℃-+50℃)
Storage Temperature Range: -4℉- 158℉(-20℃-+70℃

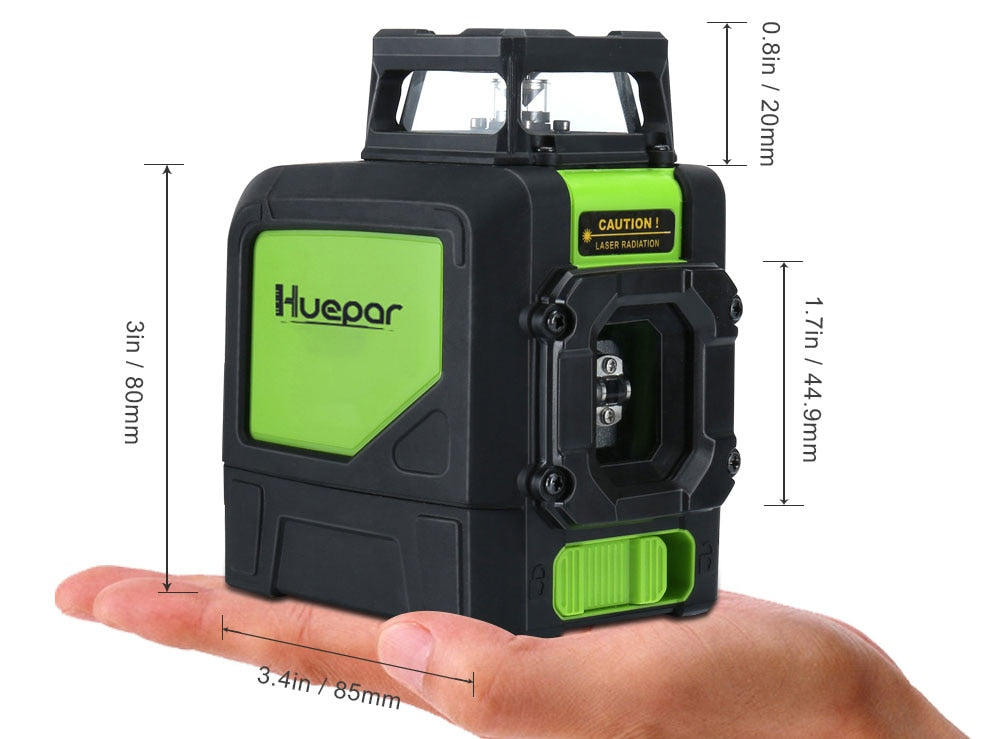

Size: 8.5x10 cm(3.4"x3.8")

Brand Name: Huepar
Certification: CE
Origin: CN(Origin)
Type: Vertical & Horizontal Lasers
Is Smart Device: No
is_customized: Yes
Measurement Model: 5 lines
Size: 8.5x10 cm(3.4"x3.8")
Wavelength: 635nm
Precision: +-3mm/10m
Model Number: 901CR
Name: Huepar 5 Lines 3D Cross Laser Level
Measuring Mode: 5 lines
Laser Beam Color: Red Beam
Spread Coverage: H: 360 Degrees/ V: 130 Degrees
Laser Class: Class 2
Material: Top quality ABS
Type: 360 laser line with a vertical line
Feature: 3D Vertical Horizontal Lasers
Tools: Professional Leveling Tool
Function: 360 Rotary Self-leveling Lasers
