HJC60 Weld bead height welding seam gap Ruler Gage Metric Welding Gauge Inspection Tool WS

filler

Price:
Sale price$69.00

Description



For more measuring tools, please click here!

Product Name:

HJC60 Welding Gauge Weld Bead Height Welding Seam Flat Gap Gage



Descriptions:

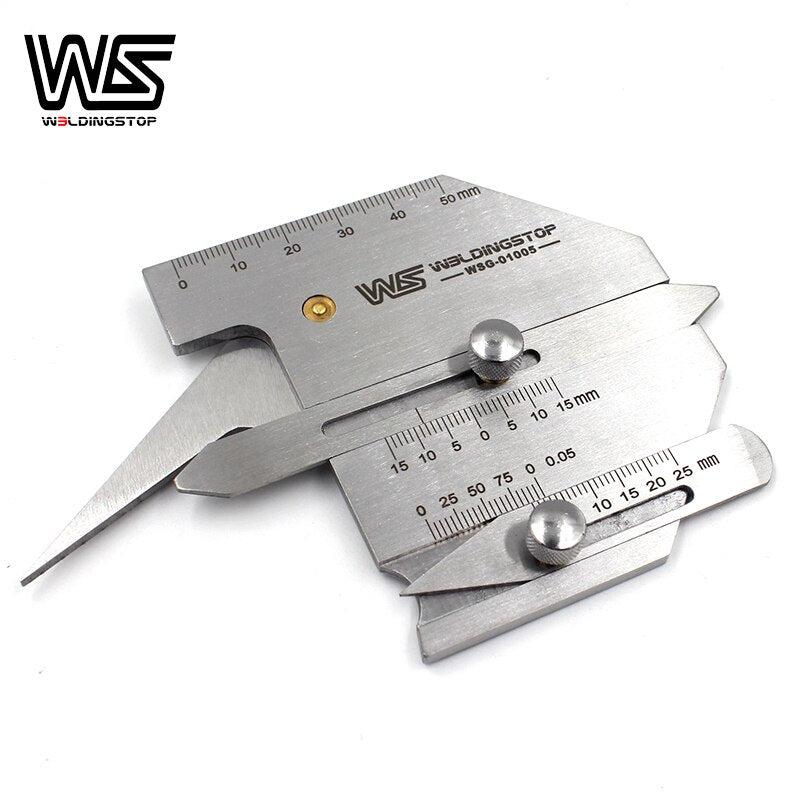

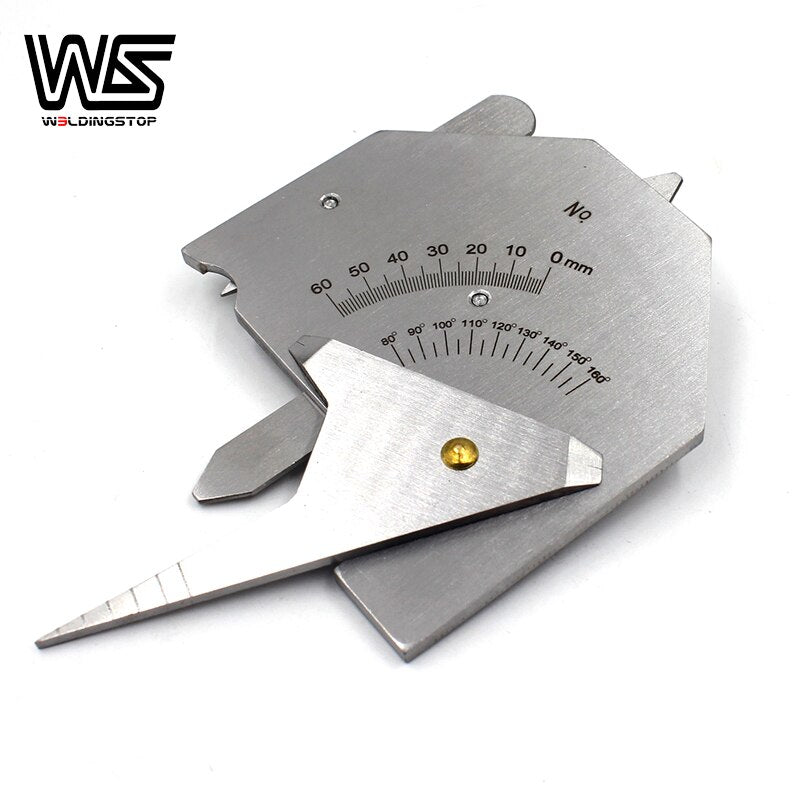

The product mainly consists of a main ruler, a height gauge, an undercut depth gauge and a multi-purpose gauge. It is a welding inspection ruler used to detect various groove angles, heights, widths, clearances and undercut depths of a weldment, is applied to the detection of boilers, bridges, shipbuilding, pressure vessels and oil field pipes, and is also used to measure parts with higher requirements on welding qualit.



Features:

◆ WS high quality welding gauge.

◆ Made of stainless steel material,sturdy and durable in use.

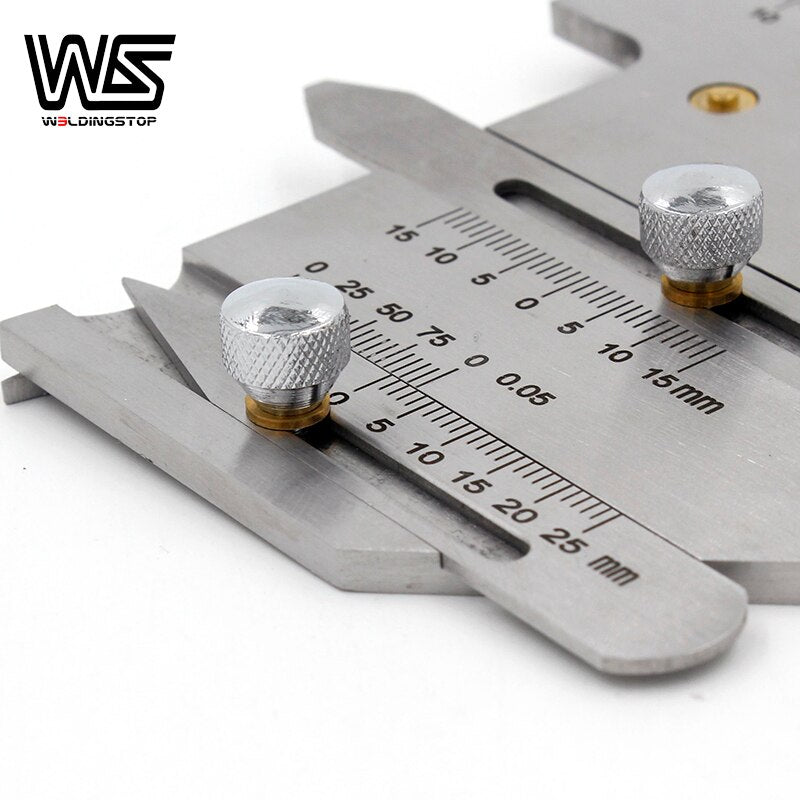

◆ Laser engraving scales,easy to read and wear resistant.

◆ Highly polished,Deburred everyside,Easy operation



Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 230g

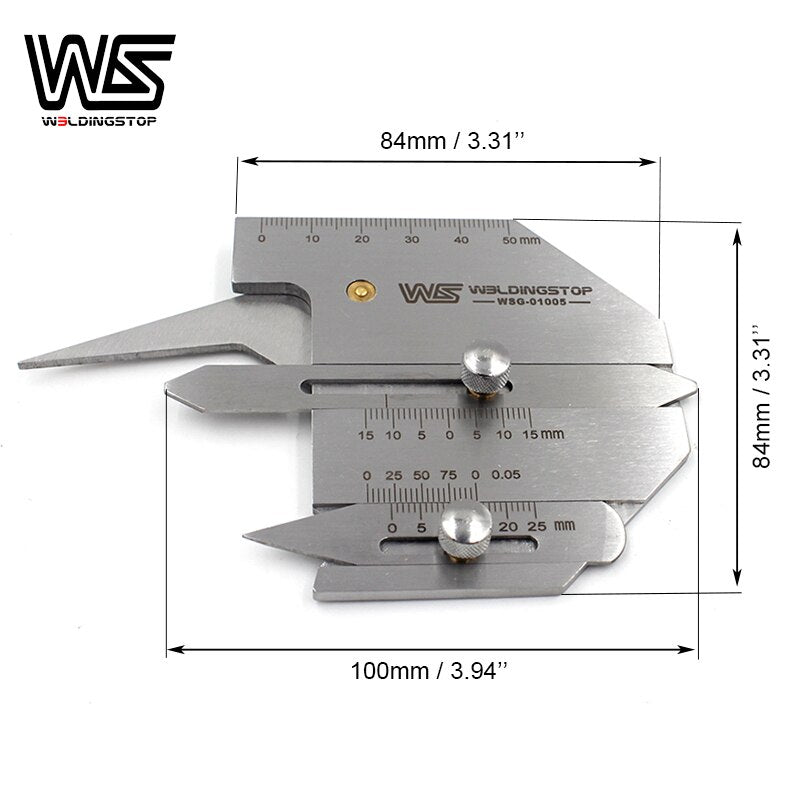

◆ Size:Show in the picture

◆ Plastic box size:L x W x H: 117mm x 95mm x 24mm

◆ Transition: 1cm=10mm=0.39inch

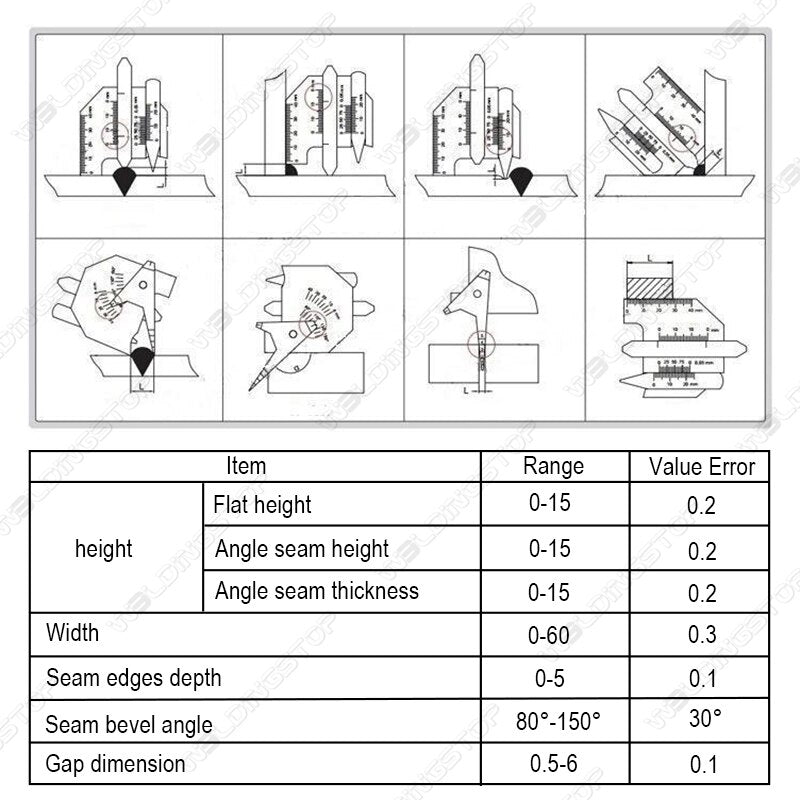

◆ Measuring range:

- Fillet Leg Length / Throat Size: 0-15mm

- Seam Reinforcement: 0-15mm

- Undercut / Pit Depth: 0-5mm

- Seam Width: 0-60mm

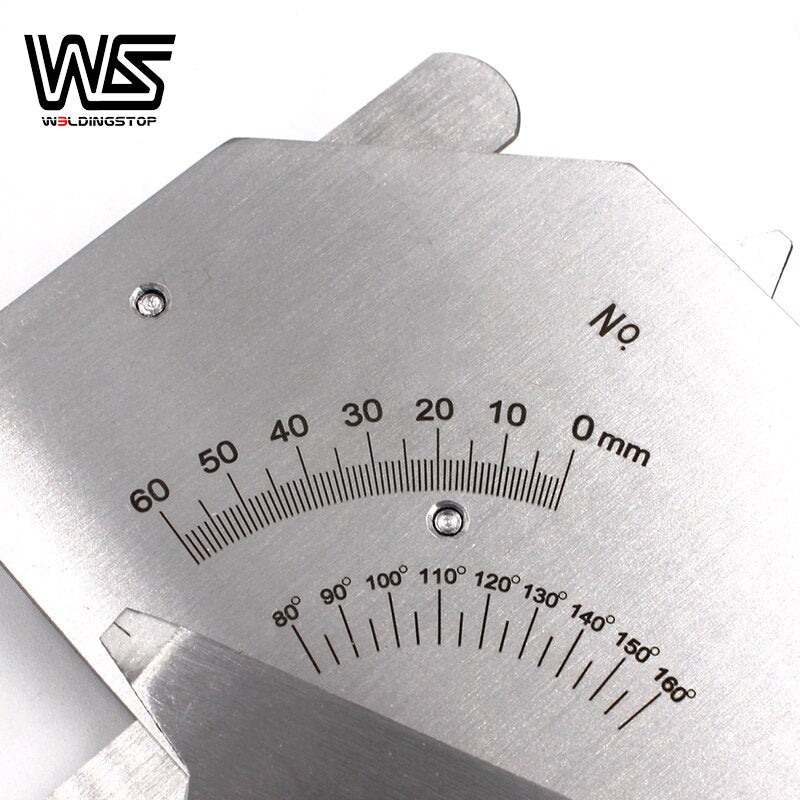

- Bevel Angle: 80-150 degree

- Gap Width: 0.5-6mm



Package Included:

◆ 1pc x Weld Seam Gauge HJC60  WSG-01005

◆ 1pc Plastic box and Instructions

After the package is received, if you are satisfied with our products, please give us 5 star reviews, and we will send coupons to customers who leave 5 star reviews every month!

Thank you for your support and trust in the WS store!
