Product Name:

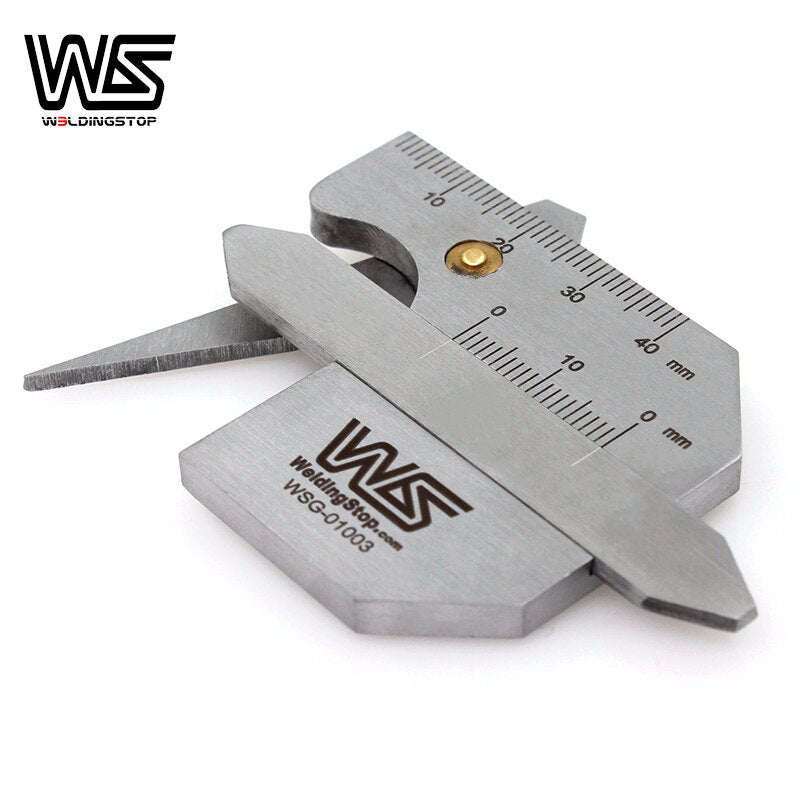

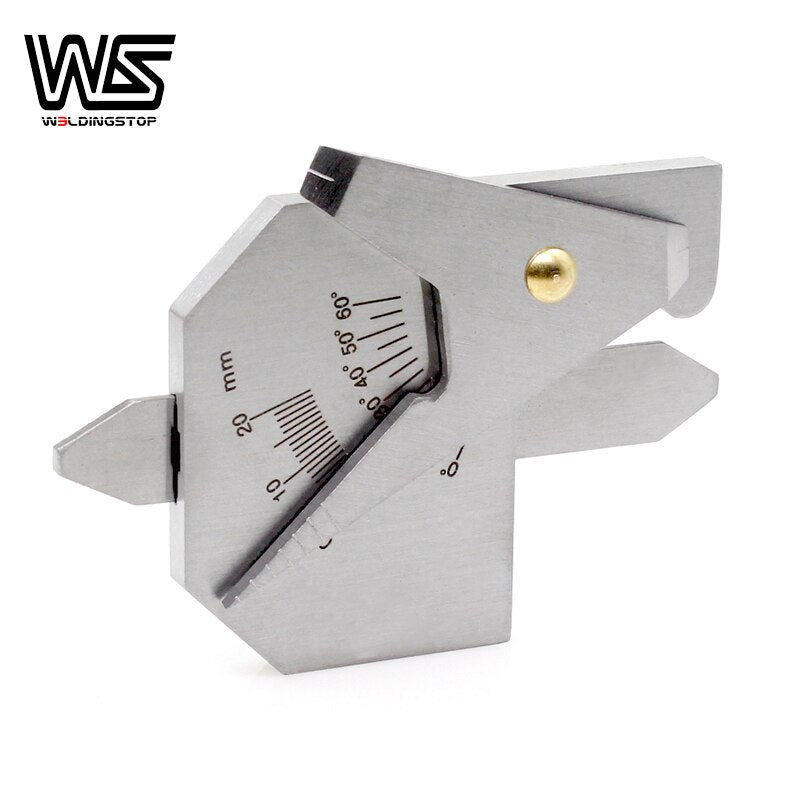

HJC40B Welding Gauge Weld Bead Height Welding Seam Gap Ruler Gage

Descriptions:

The Gauge consists of four components:main scale,height gauge,undercut depth gauge and multiple-purpose gauge and is specially used fot the measutement of the bevel angle,heighr,width,gapand undercut depth of weldment,suitable for the detection of boilers,bridges,ships,pressure vessels and oil piles.

Features:

◆ WS high quality welding gauge.

◆ Made of stainless steel material,sturdy and durable in use.

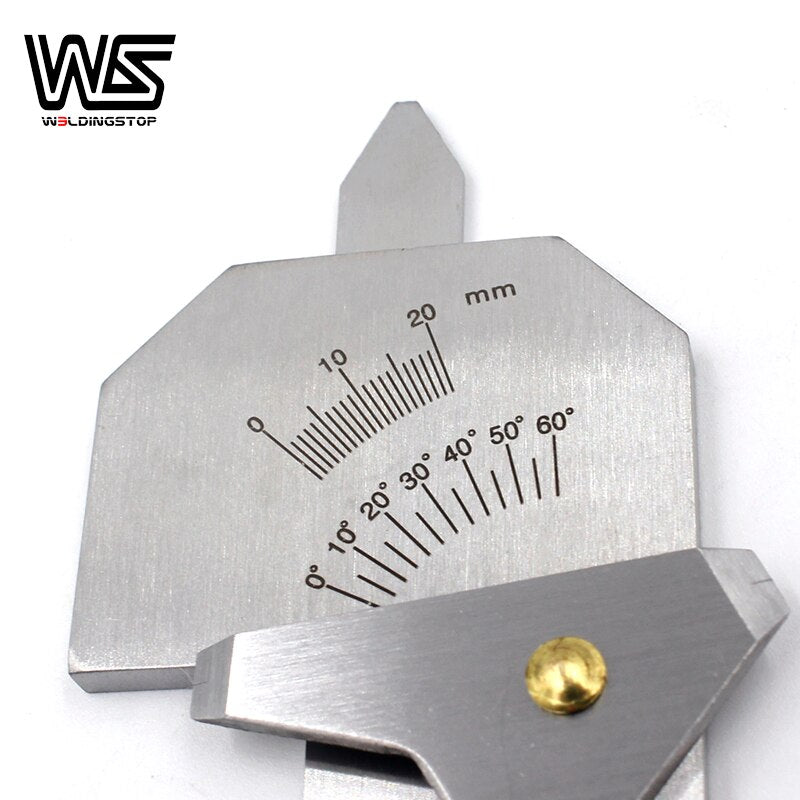

◆ Laser engraving scales,easy to read and wear resistant.

◆ Highly polished,Deburred everyside,Easy operation

Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 118g

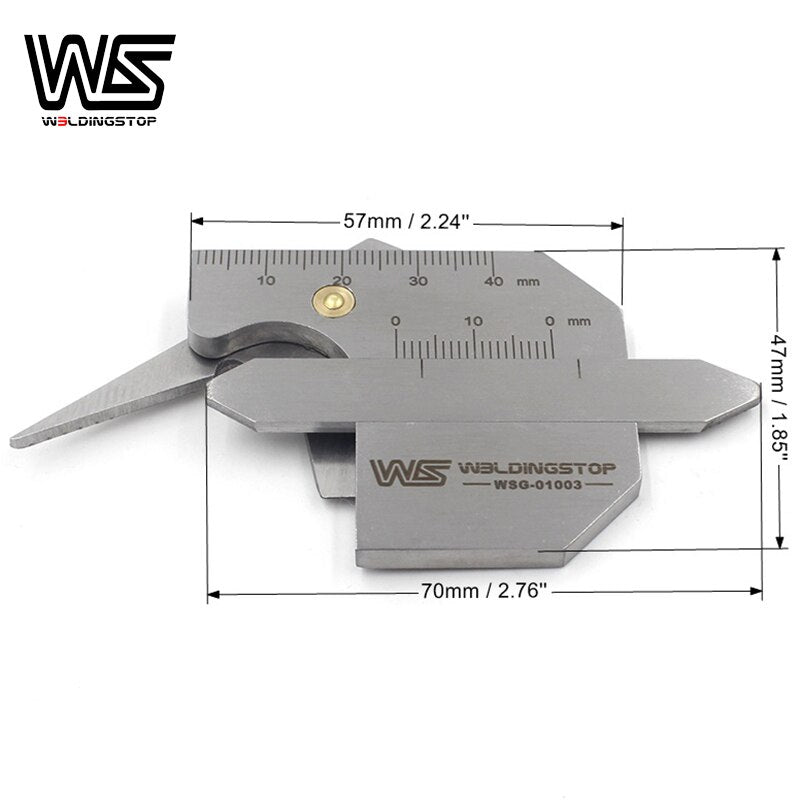

◆ Size：Show in the picture

◆ Plastic box size：L x W x H: 98mm x 76mm x 23mm

◆ Transition: 1cm=10mm=0.39inch

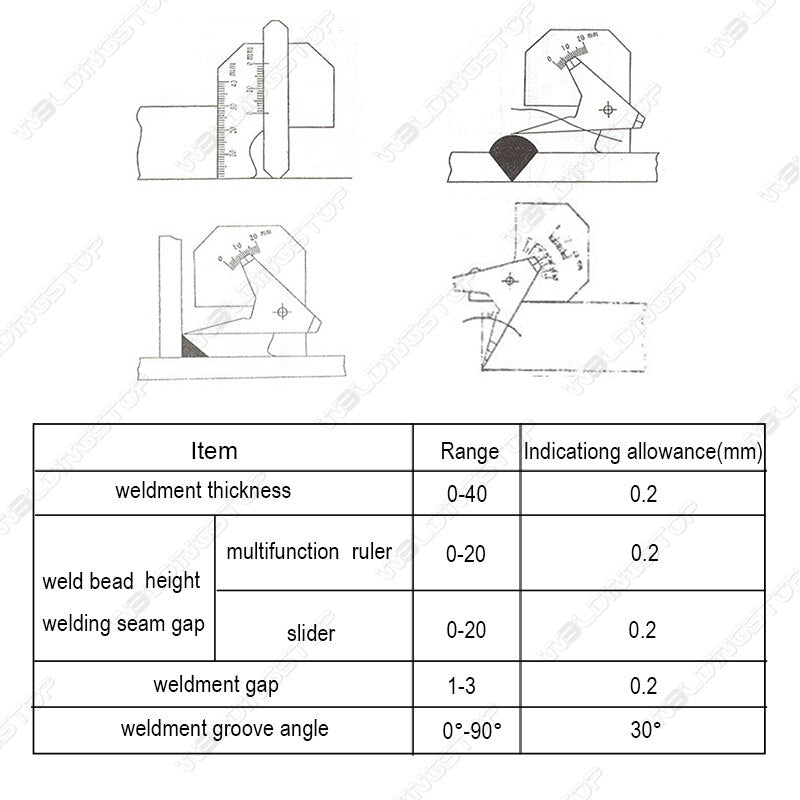

◆ Measuring range:

- Weldment thickness:0-40

- Slider:0-20

- Weldment Gap:1-3

- Weldment groove angle:0°-90°

Package Included:

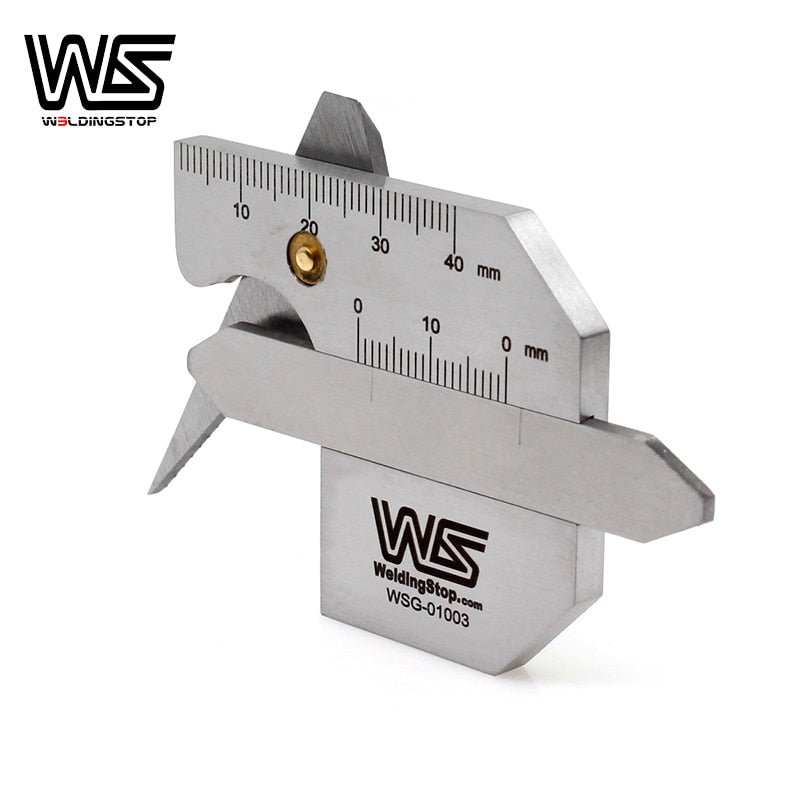

◆ 1pc x Weld Seam Gauge HJC40B  WSG-01003

◆ 1pc Plastic box and Instructions
