HJC30 Welding gauge inspection multi-function Weld seam Gage pit test ulnar ruler


Sale price$39.00



For more measuring tools, please click here!

Product Name:

HJC30 Welding Seam Gauge Bead Gage Pit Measure Ruler Fit-up Gaps Inspection Tool

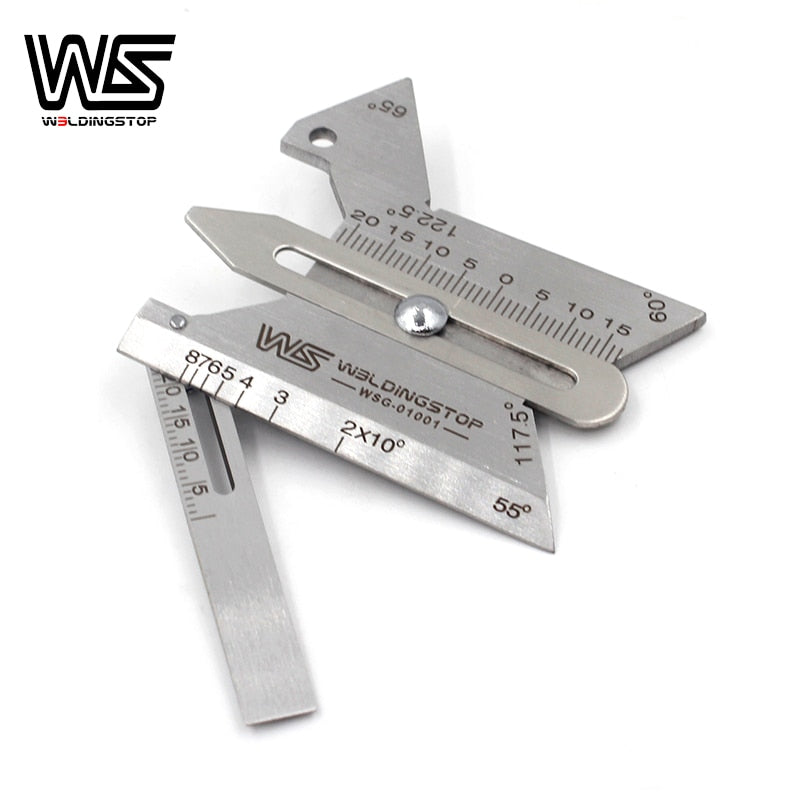

The product mainly consists of a main ruler, a slide gauge and an oblique gauge. It is a special measuring instrument used to measure the groove angle of the weldment and the width, height and gap of the weld. The ruler is applicable to products and parts with higher requirements on welding quality such as boilers, pressure vessels, and so on. Made of stainless steel, the product is reasonable in structure, good in appearance, convenient in use and wide in applicability, and is a necessary measuring tool for a welder.



◆ WS high quality welding gauge.

◆ Made of stainless steel material,sturdy and durable in use.

◆ Laser engraving scales,easy to read and wear resistant.

◆ Highly polished,Deburred everyside,Easy operation



◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 90g

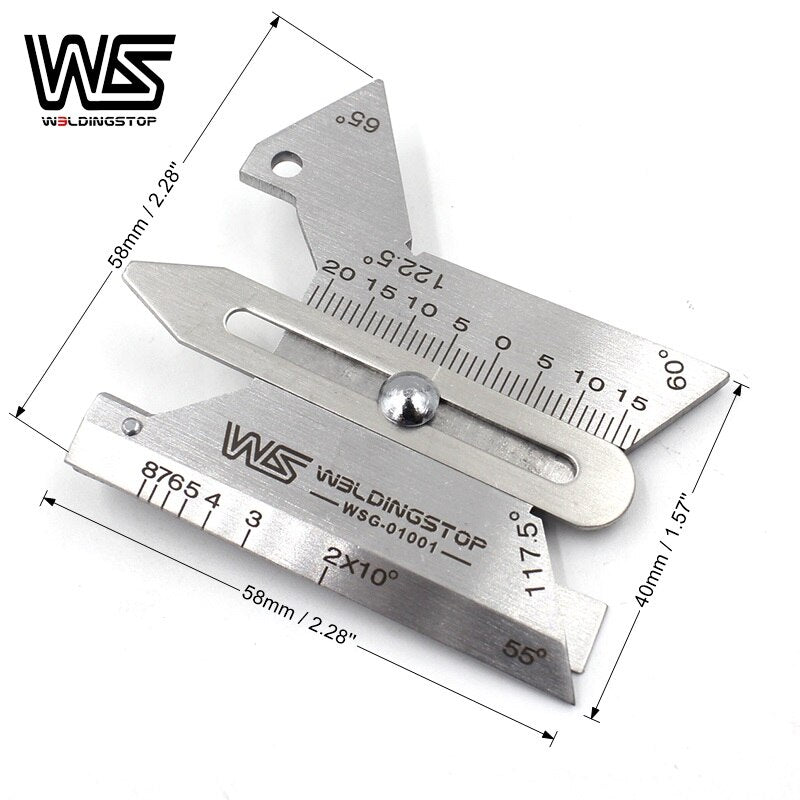

◆ Size:Show in the picture

◆ Plastic box size:L x W x H: 98mm x 76mm x 23mm

◆ Transition: 1cm=10mm=0.39inch

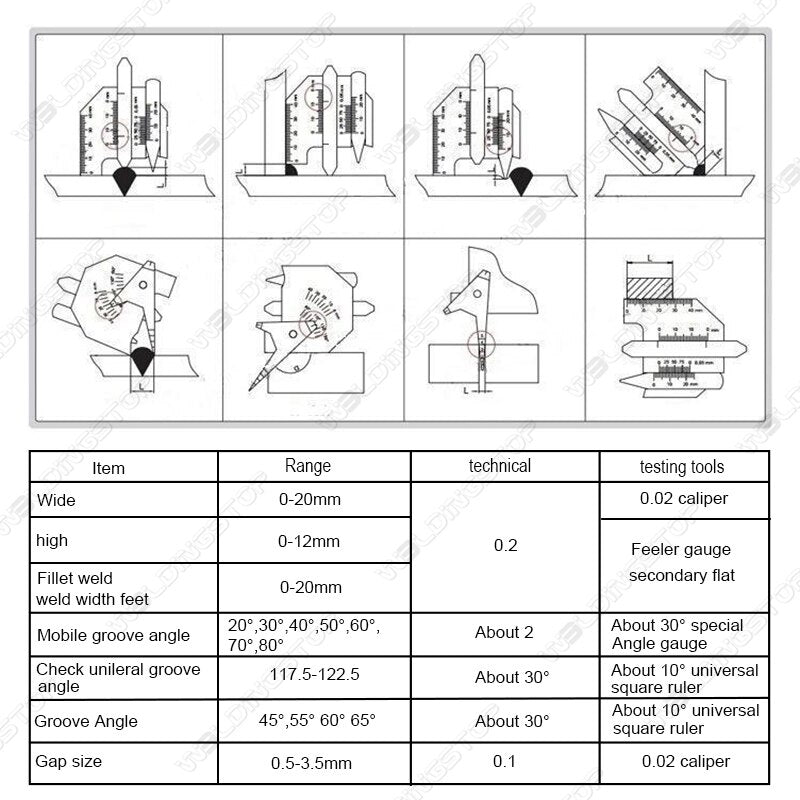

◆ Measuring range:

- Width: 0-20mm

- Hight: 0-12mm

- Angle: 20°  30°  40°  50° 60° 70° 80°

- Seam: 0.5-3.5mm


Package Included:

◆ 1pc x Weld Seam Gauge HJC30  WSG-01001

◆ 1pc Plastic box and Instructions
