Digital Multimeter probe Voltmeter Ammeter Ohm Tester Voltage Current

There are different options in this auction, you can switch options via button above “Buy Now”. Please make sure you have chosen the right option before placing an order.

1.3 1/2 digits, 7segment, 0.5"high LCD Display.
2.Max display: 1999, Auto polarity display.
3.Small and compact design.
4.Overload protection on all ranges.
5.Sampling 2~3 times readings per second.
6.Diode assembly test / Temperature test/Transistor hFE test.

Specification:

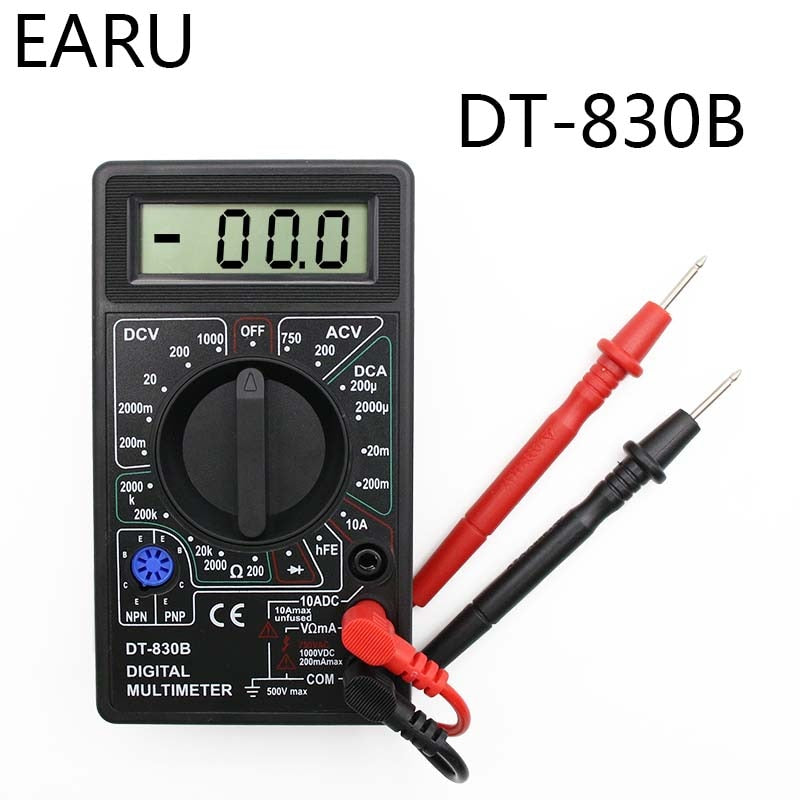

1.Model: DT-830B
2.Measuring range:
3.Max AC Current: 10A
4.Max AC Voltage range: 1000V
5.Max DC Voltage range: 750V
6.Resistance Measurement: 200 Ohm-2000K Ohm range
7.Temperature Test: -40-1000 ℃
8.Power Supply: 9V Battery (Not Included Here)
9.Color: Black /Yellow

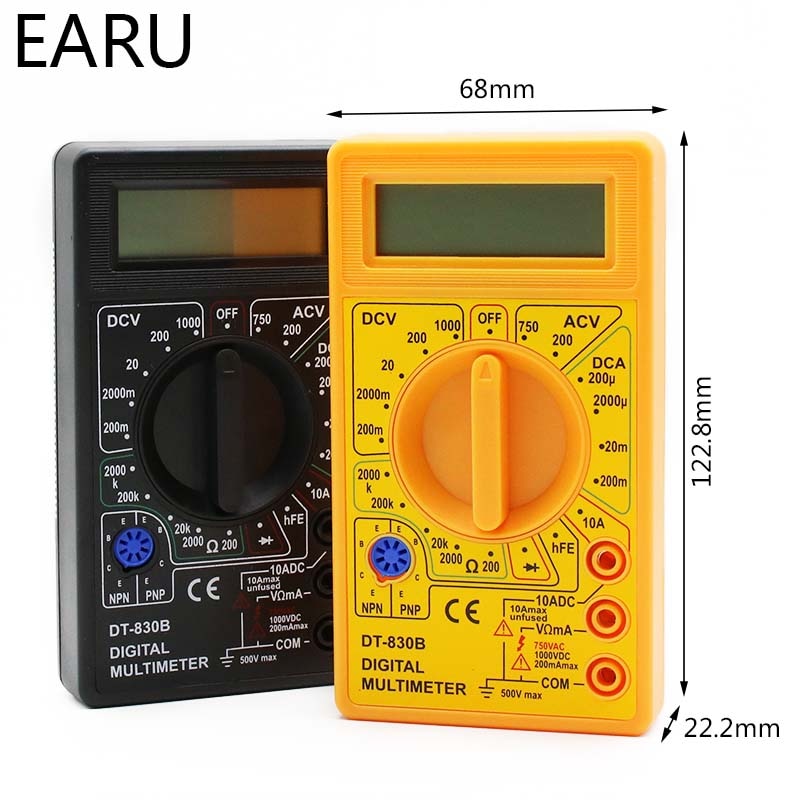

10.Size: Approx. 123 x 67 x 20mm/4.84 x 2.63 x 0.78'' (L*W*H)
11.Scale degree & Accuracy:
12.DC voltage: 200mV 100uv±(0.5% + 2)
2000mv 1mv
20v 10mv
200v 100mv
1000v 1v±(0.8% + 2)
13.AC voltage: 200V 100mv±(1.2% + 10)
750v 1v
14.DC current: 2000ua 1ua±(1% + 2)
20ma 10ua
200ma 100ua±(1.2% + 2)
10a 10ma±(2% + 2)
15.Resistance: 200Ω0.1Ω±(0.8% + 2)
2000Ω1
20kΩ10
200kΩ100
2000kΩ1000Ω±(1% + 2)
16.Temperature: -40-1000℃ 1℃±3%

Brand Name: EARUELETRIC
DIY Supplies: ELECTRICAL
Model Number: DT-830B
AC Voltage: 750V
Measuring Capacitance Range: 10A
Dimensions: 124x 68mm
Measuring Resistance Range: 200-2m+-(0.8%+2dgt)
Display Type: Digital Display
DC Current: 10A
AC Current: 10A
DC Voltage: 1000V
Operating Mode: Digital multimeter
Operating Temperature: 0 - 40 ℃
Measuring Inductance Range: 200 Ohm-2000
Unit Type: Set
Package Weight: 0.11kg (0.24lb.)
Package Size: 10cm x 15cm x 8cm (3.94in x 5.91in x 3.15in)
