Product Name:

Welding Measure Tool MG-8 Weld Gauge Stainless steel Seam Inspection Ruler Bridge CAM Welding Gage measuring tool

Descriptions:

Made of stainless steel material, MG-8A Bridge CAM Gauge for Welding seam inspectio,The measured values can be read out in inch or millimeter. Linear measured values can generally reach 2 inches (50mm). It can be used to quickly and correctly measure the sizes of most common welds in the English system and the metric system.

Features:

◆ WS high quality welding gauge.

◆ The measured values can be read out in inch or millimeter.

◆ Linear measured values can generally reach 2 inches (50mm).

◆ It can be used to quickly and correctly measure the sizes of most common welds in the English system and the metric system.

◆ All numerical values indicating sizes are clear and can be easily read out.

◆ Suitable for the detection of boilers, bridges, ships, pressure vessels and oil pipes.

Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 139g

◆ PU bag Size：L x W : 135mm x 95mm / 5.31'' x 3.74''

◆ Transition: 1cm=10mm=0.39inch

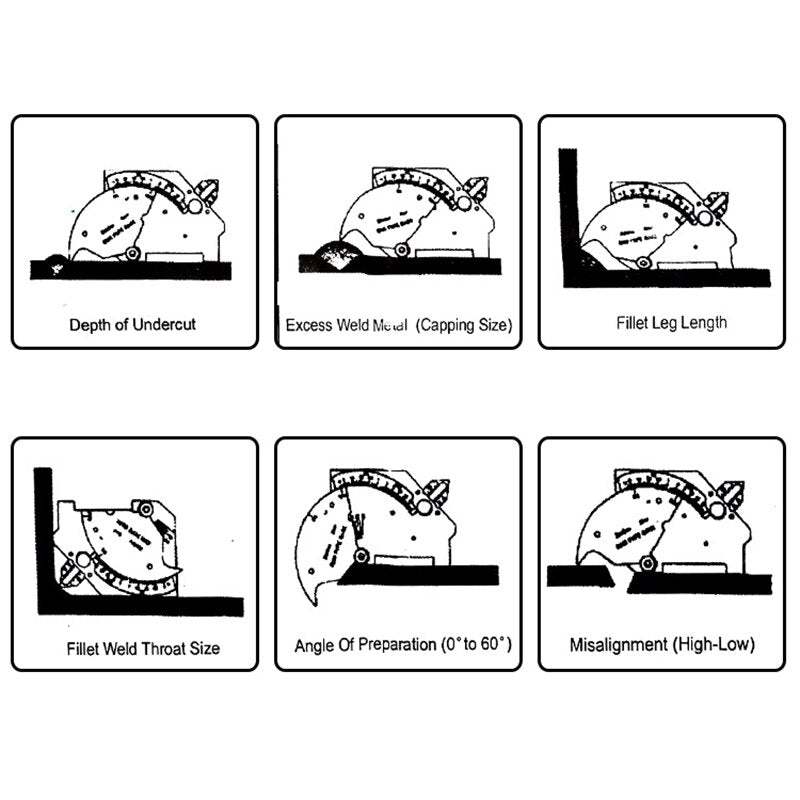

◆ Measuring range:

- Excess weld metal

-Depth of undercut

-Depth of pitting

-Fillet weld throat size

-Fillet weld length

-Outside misalignment

Package Included:

◆ 1pc x Bridge CAM Gauge (slotted) WSG-01007

◆ 1pc PU bag and Instructions
