Description
Working voltage:4.5-30V DC
Note: The maximum input voltage can not exceed 30V, otherwise there is the danger of burning
Working current:≤20mA
Display: 0.28" Two color blue and red
Measuring range: DC 0-100V 0-10A
Minimum resolution (V): 0.1V
Refresh rate: ≥100mS / times
Measure accuracy: 1% (± 1 digit)
Minimum resolution (A): 0.01A
Operating temperature: -15 to 70° c
Working pressure: 80 to 106 kPa
size :47×28×16 mm/1.85*1.10*0.63"
Net Weight:19 g
Weight:29 g

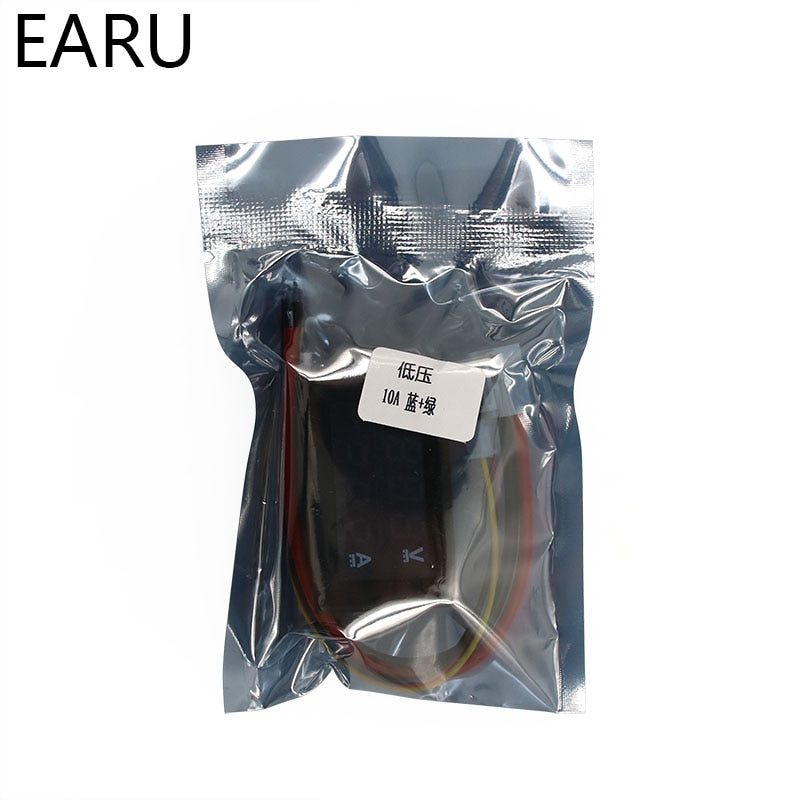

Package Included:
1*Voltmeter Ammeter
Brand Name: EARUELETRIC
Origin: CN(Origin)
DIY Supplies: ELECTRICAL
Certification: None
Display Type: Digital Only
Dimensions: 47*28*16 mm
Power Supply: DC
Operating Temperature: -15-70
Accuracy Class: 0.01A/0.1V
Model Number: ZC15400
Measuring Range: DC 0-100V 0-10A
