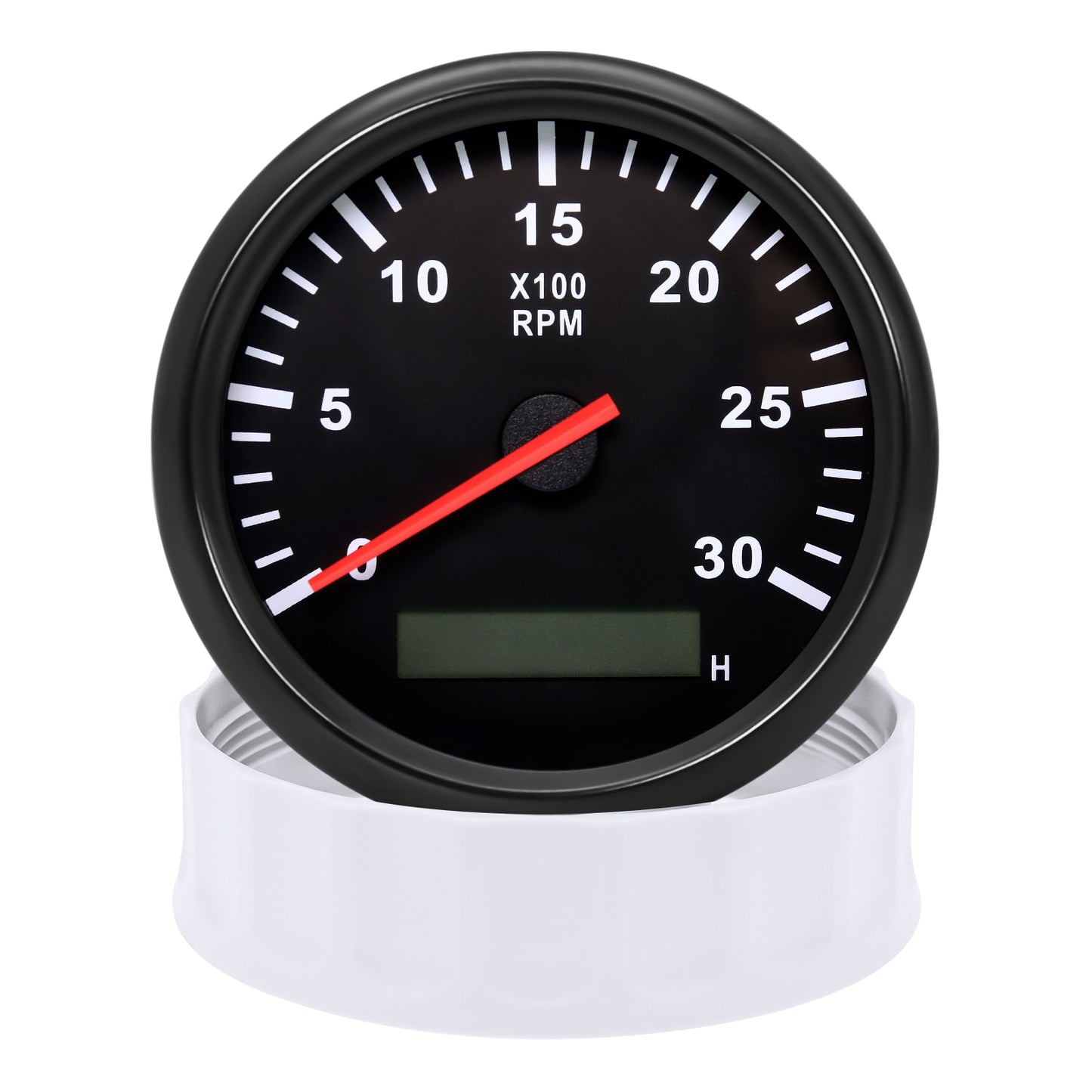

85mm Tacometro Toerenteller 3K/4K/6K/7K/8K Boat Tachometer Diesel Engine Tacho Gauge Hourmeter RPM Sensor Blue / White Shell


Option: 3K Blue shell
Sale price$75.99


Universal 85mm Tacometro Toerenteller 3K/4K/6K/7K/8K Boat Tachometer Diesel Engine Tacho Gauge Hourmeter RPM Sensor 16mm 18mm Blue/White Shell



The sensor needs to be purchased separately, the tachometer does not include a sensor,the sensor do not include the tachometer, please know, thank you!

Package 1

1X Sensor

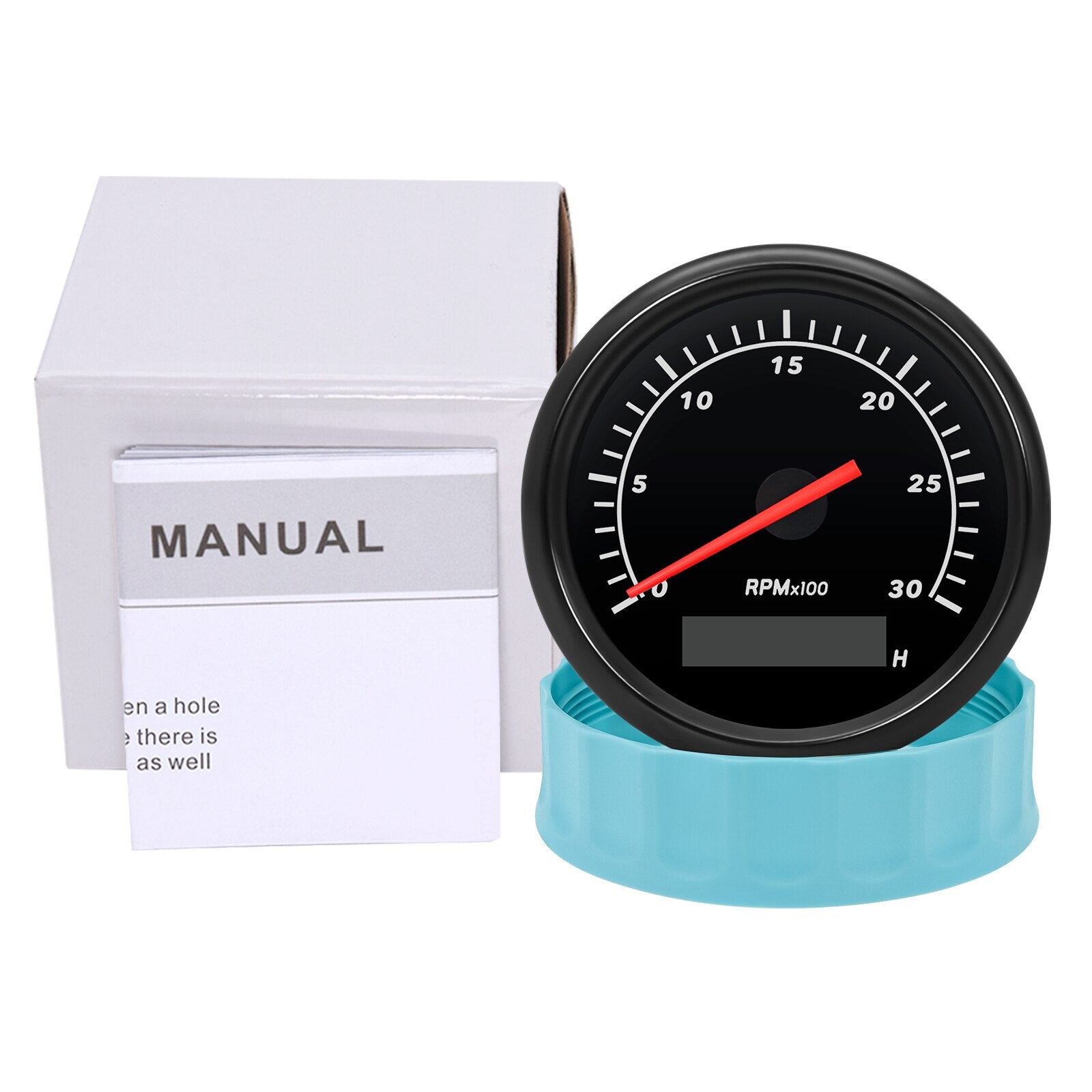

Package 2

1X Tachometer
1X Instruction


* 316L stainless steel for long-term use even in acid-base, humid environment
* IP67 waterproof and dust-proof grade
* Stepper motors used for full range of steeping gauges,great feature with its less power consumption, longer life,higher precision, etc.
* With curved glass( with anti-fog function)

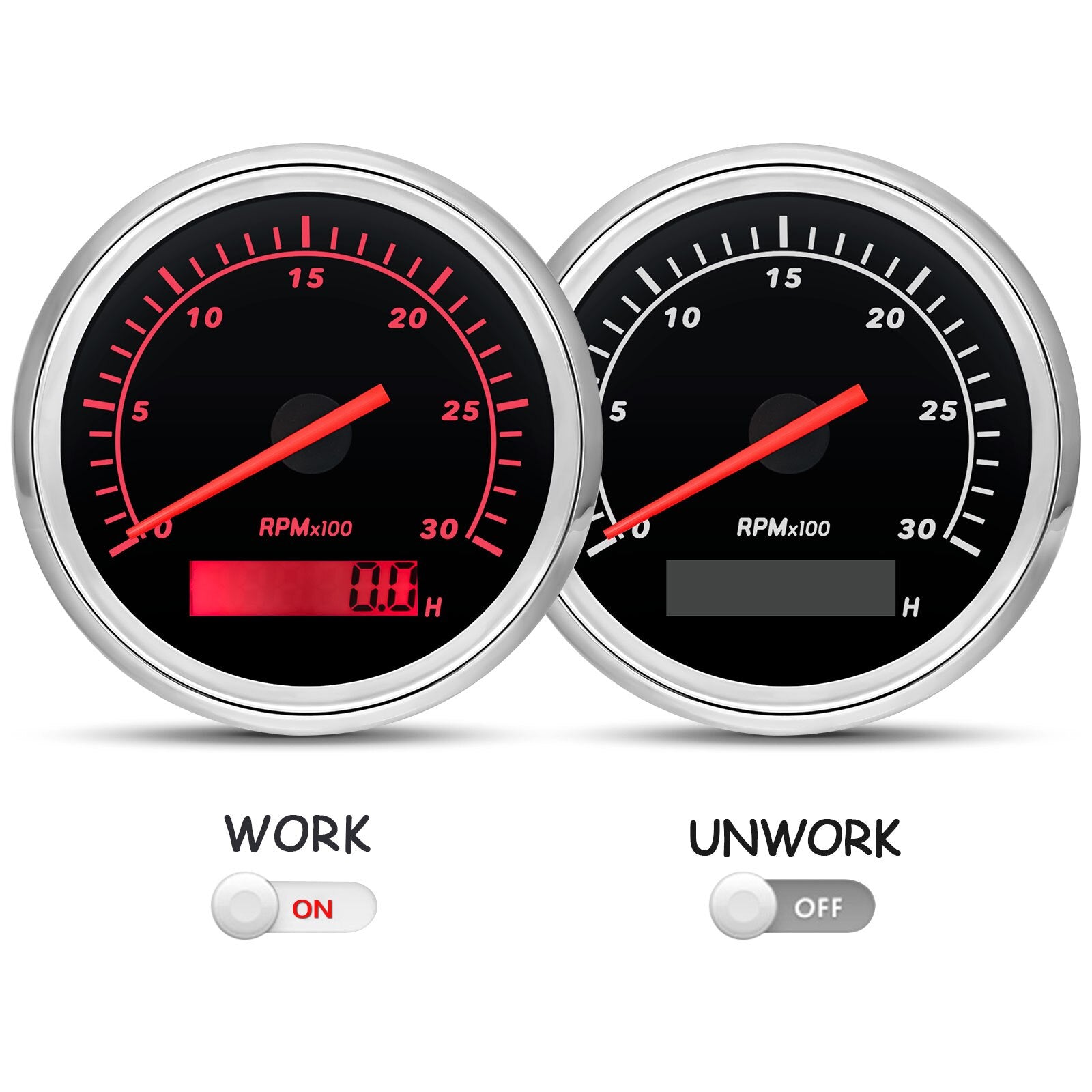

Standard red backlight


- Name: Tachometer
- Red Backlight
- High Precision

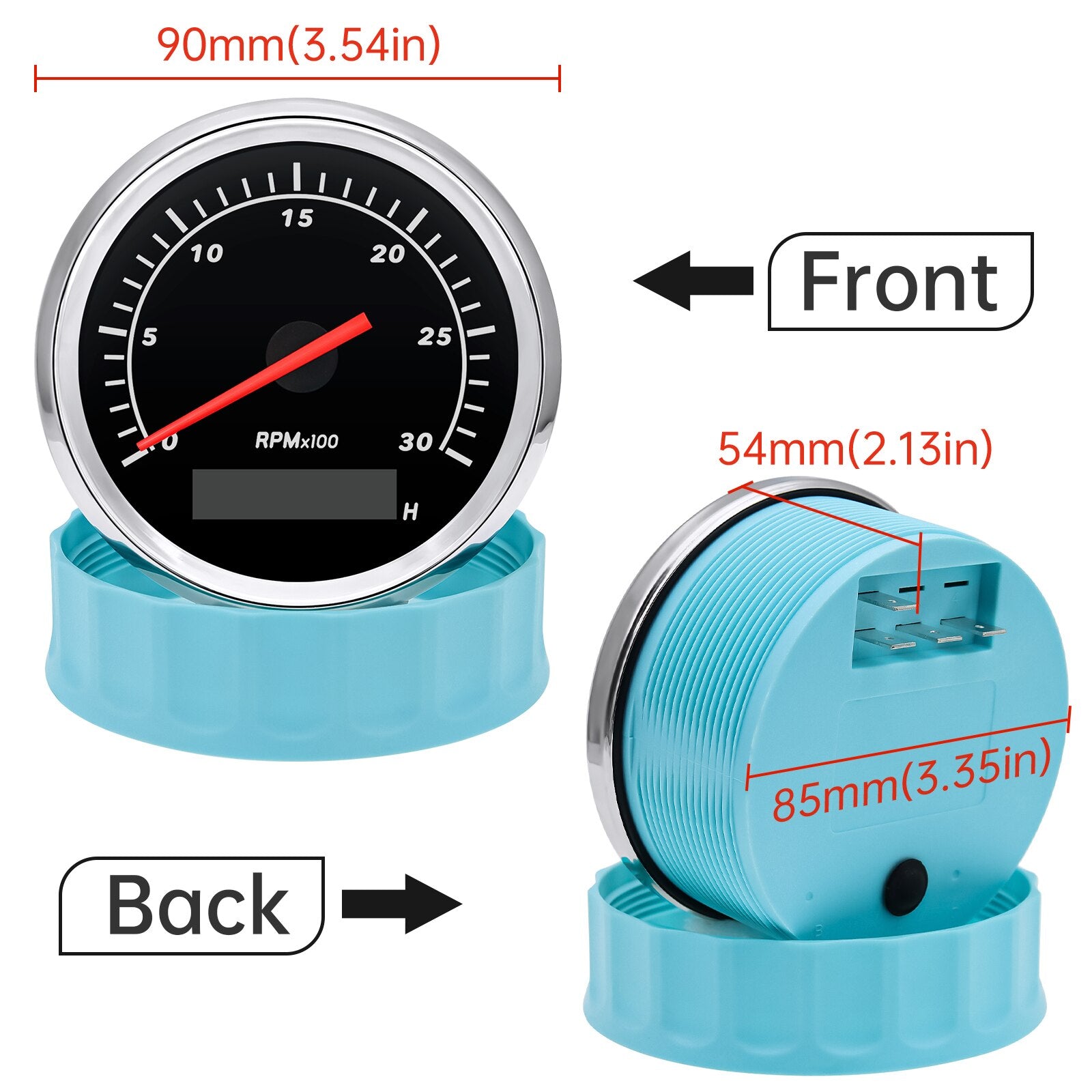

- Size: 90x54mm
- Voltage: 12V/24V
- Installation diameter: 85mm
- Operating Current:≤100 MA
- Speed Ratio: 1~300 adjustable
- Engine hours: 0.0-99999.9H
- Functions: current tacho/RPM and hour
- Operation mode: LCD display, stepper motor
- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Indicating Range:

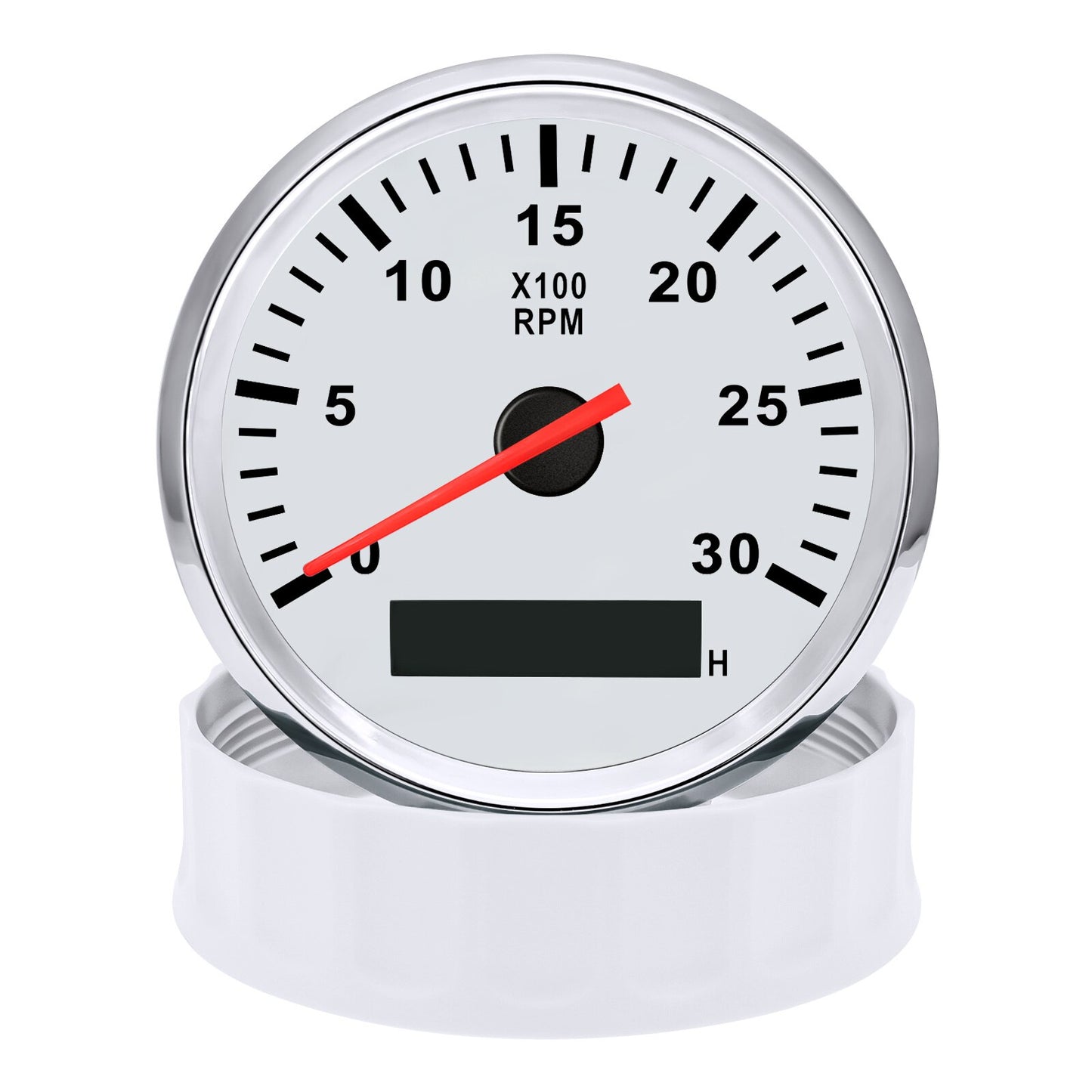

0-3000RPM[85MM Diameter]

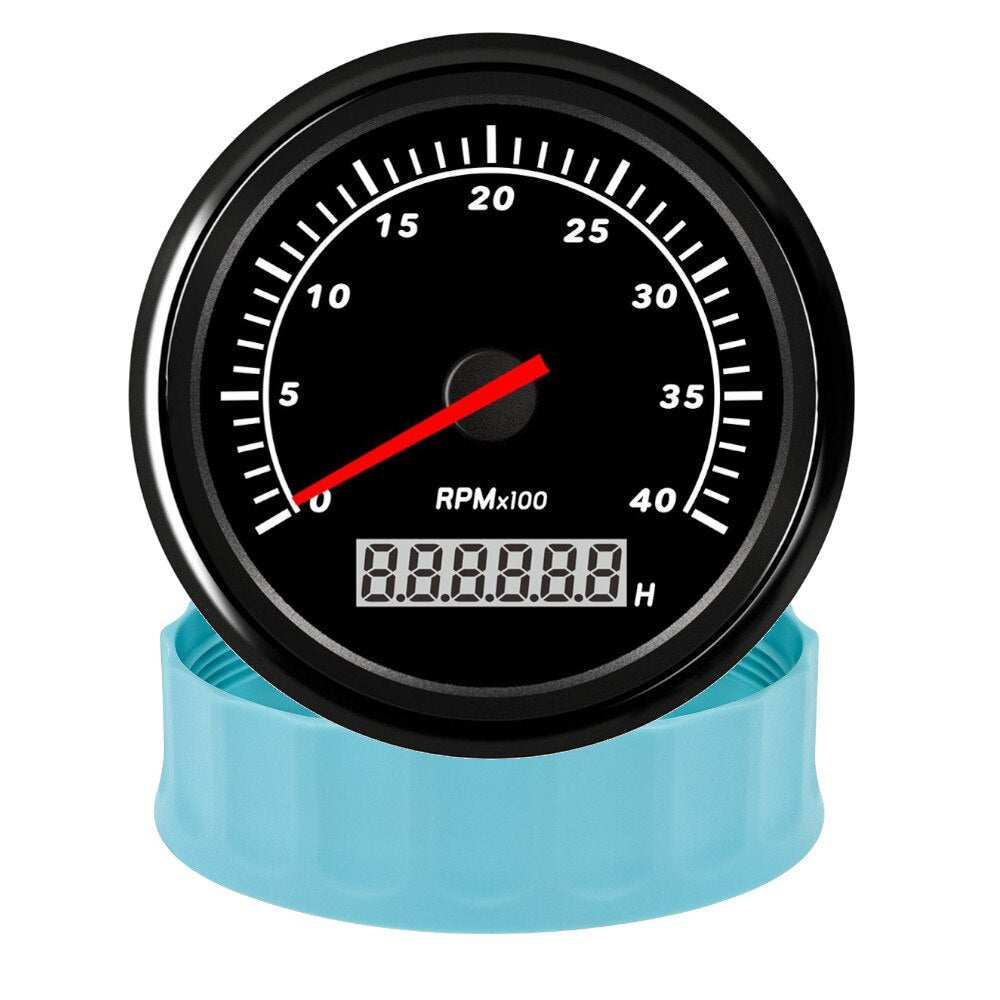

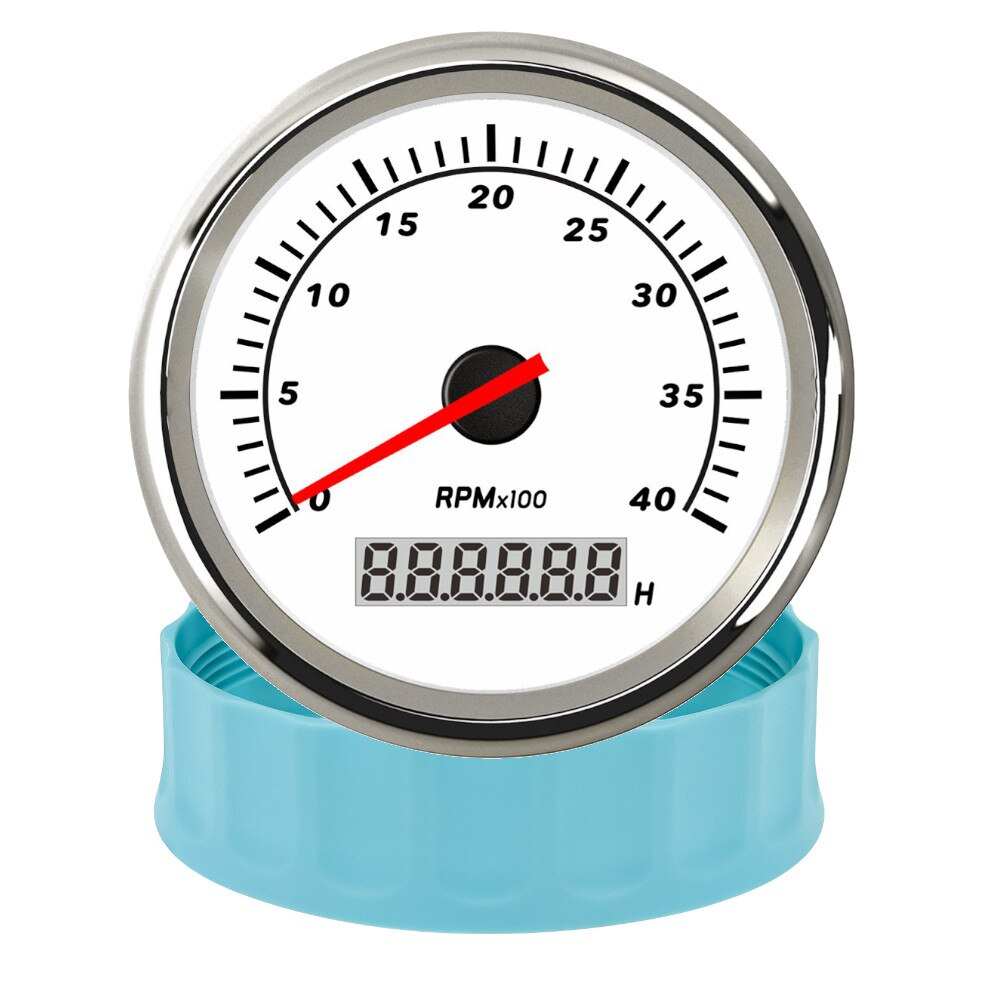

0-4000RPM[85MM Diameter]

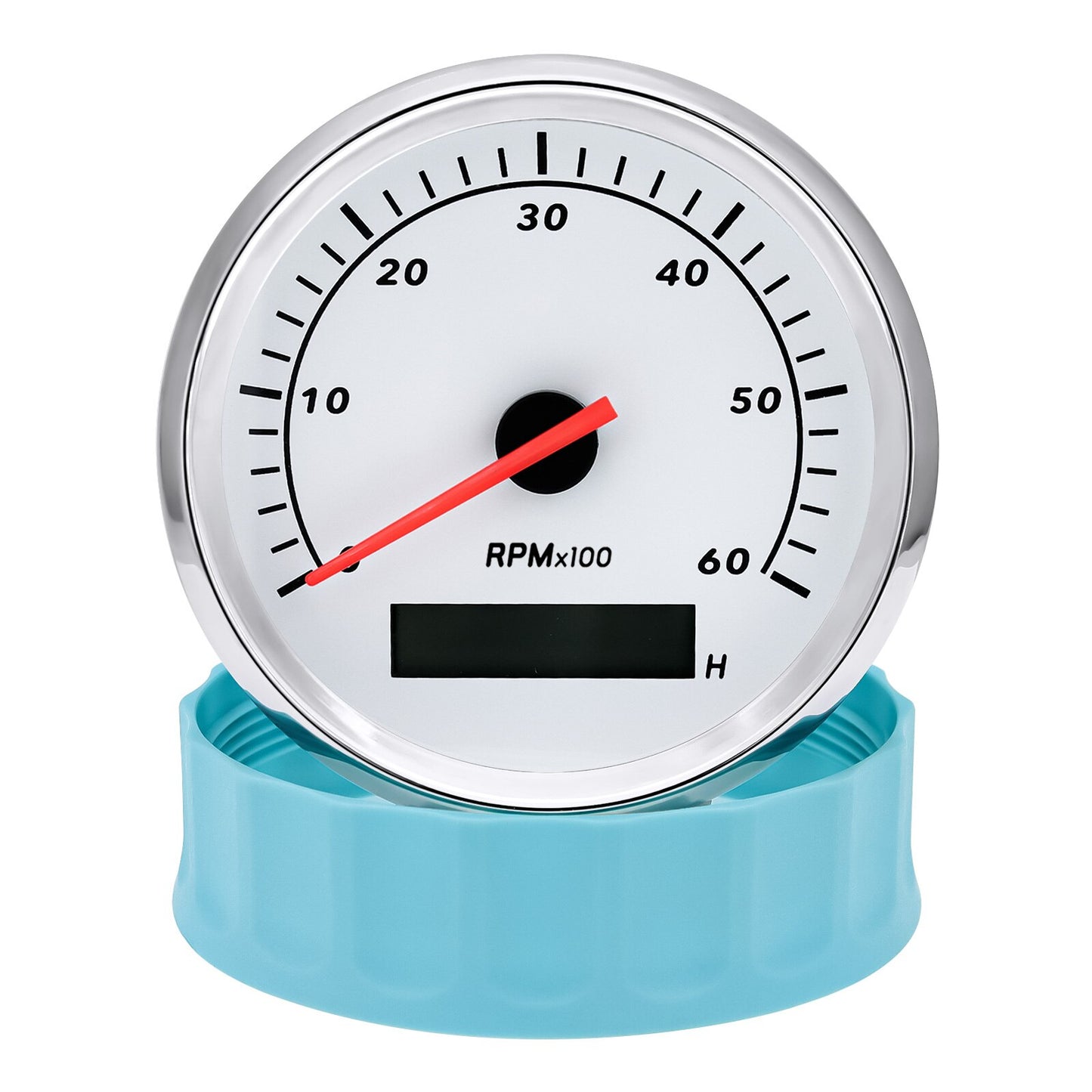

0-6000RPM[85MM Diameter]

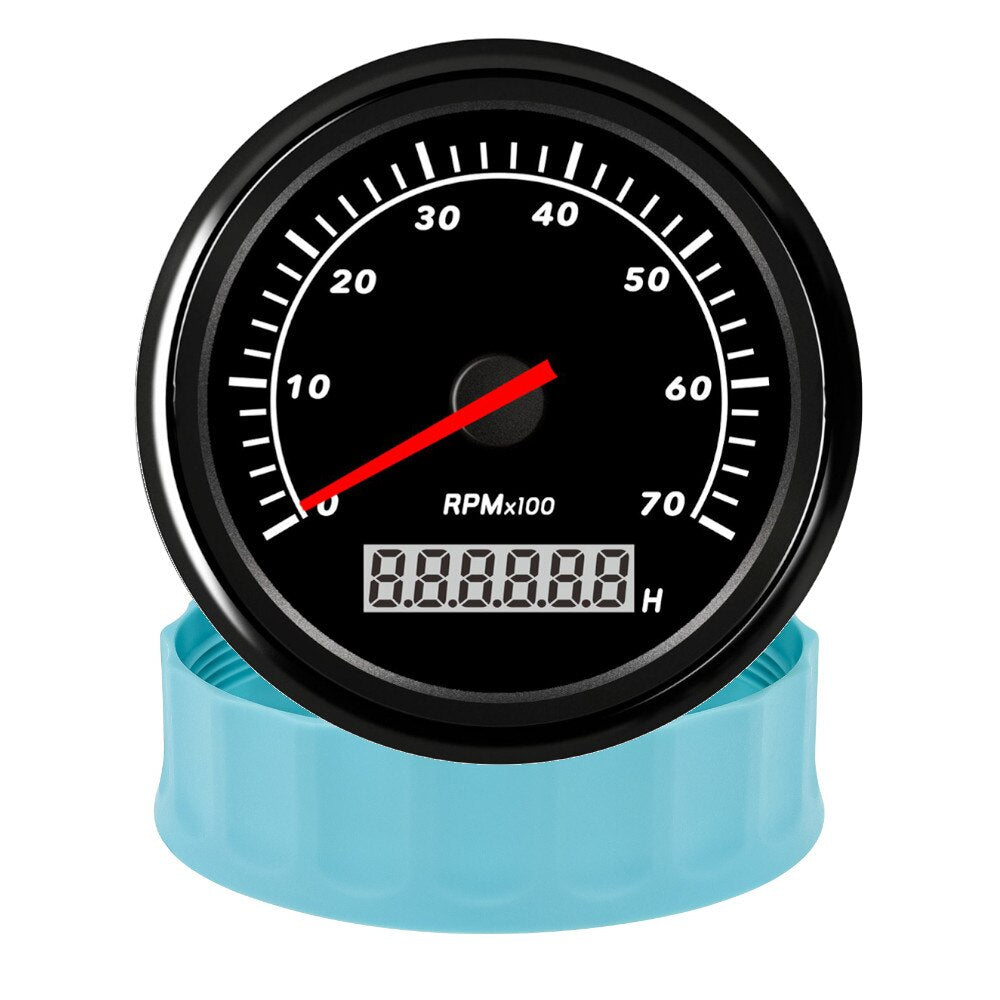

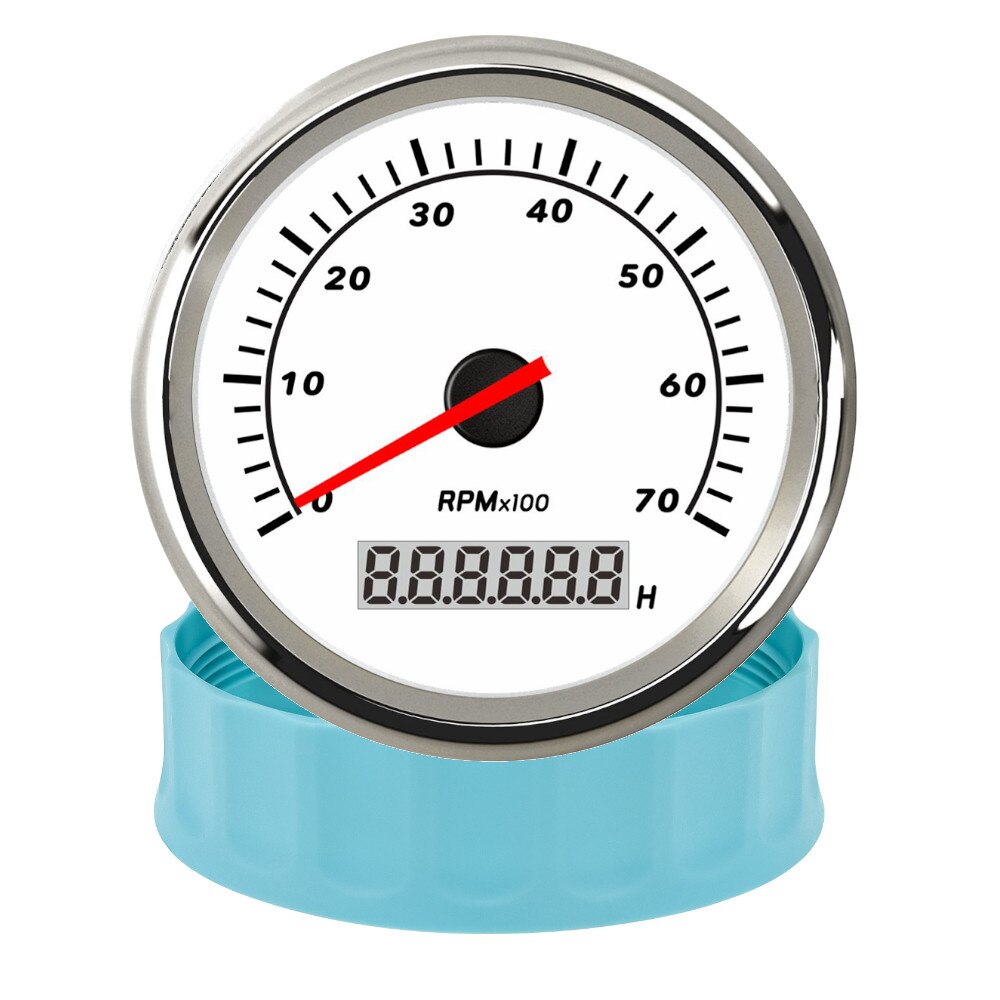

0-7000RPM[85MM Diameter]

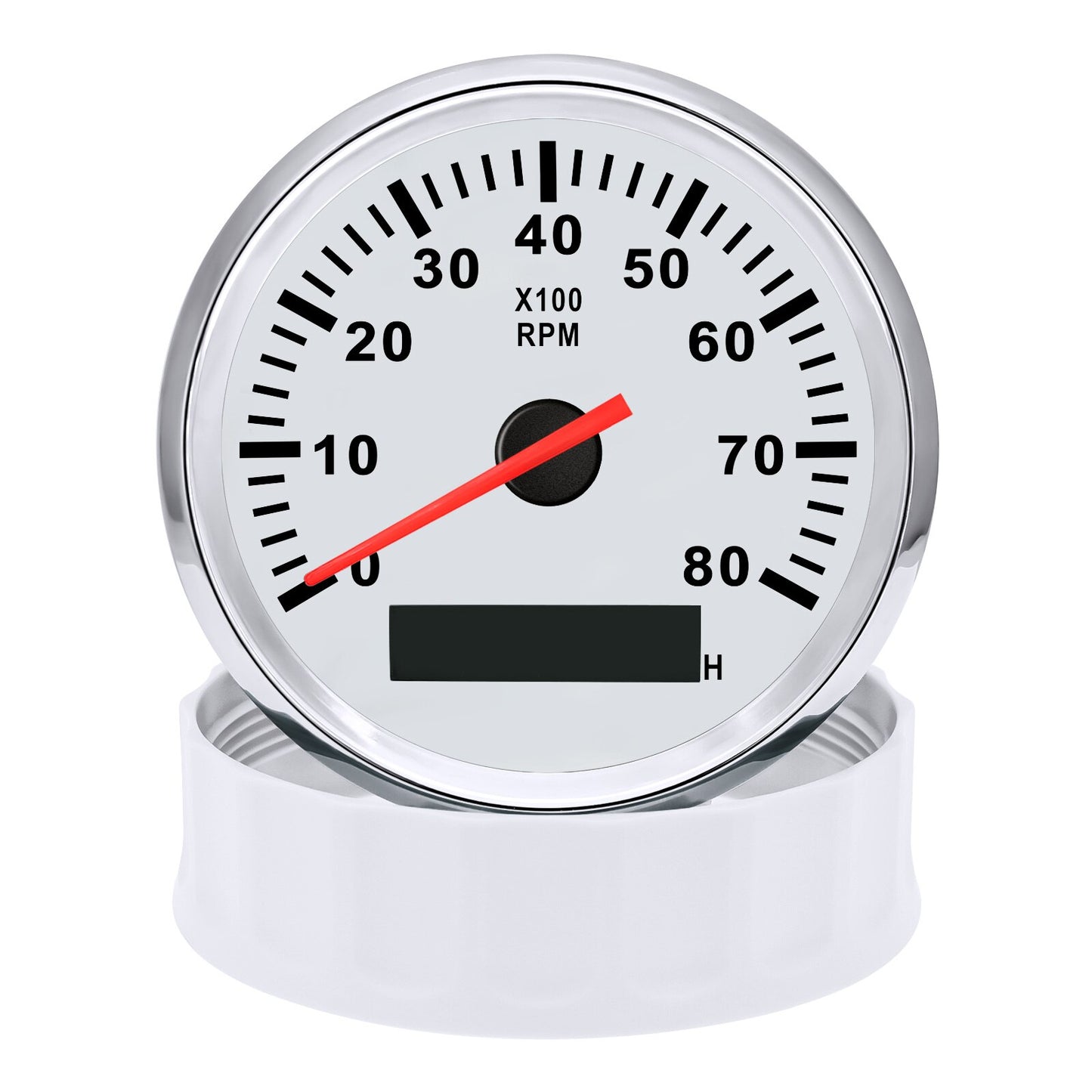

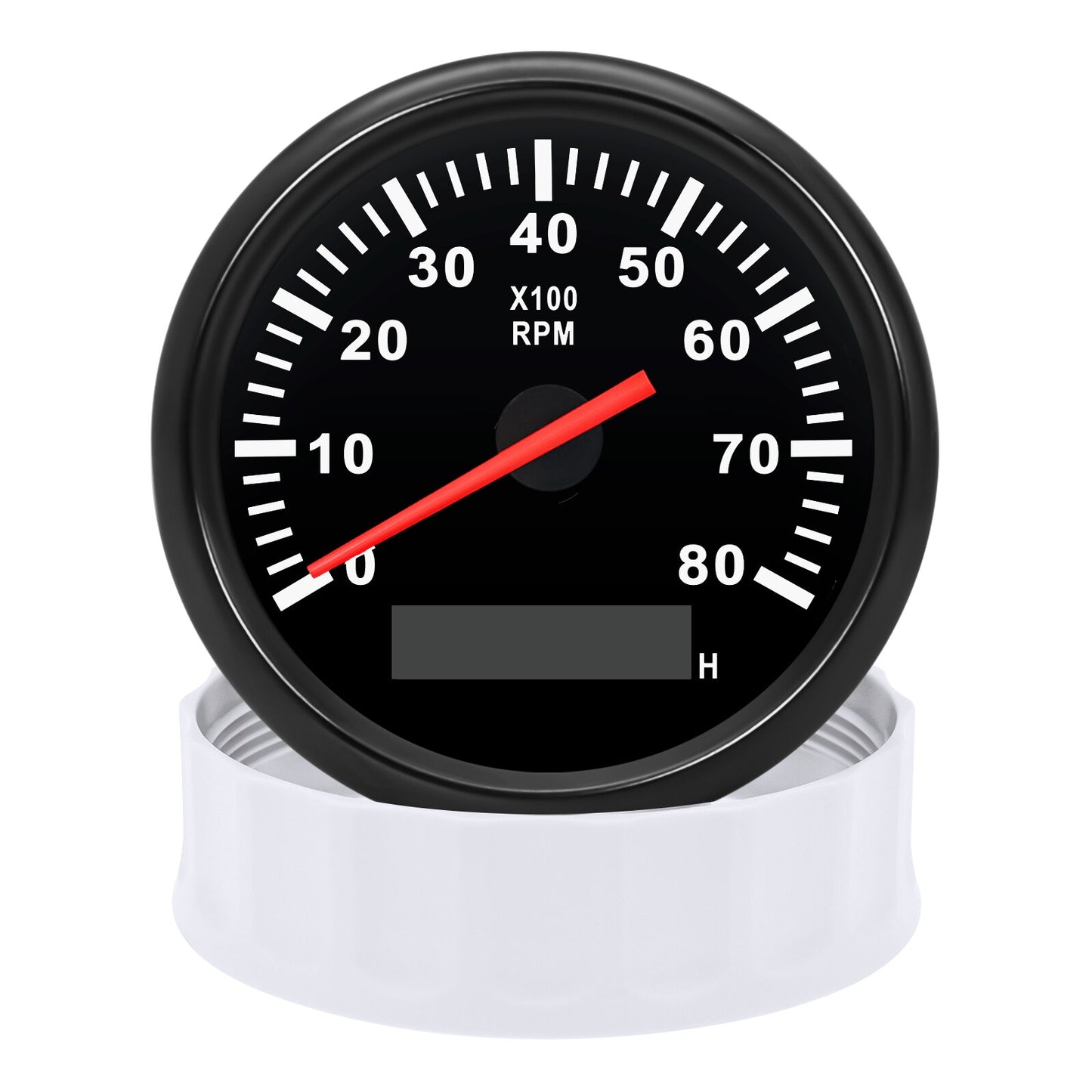

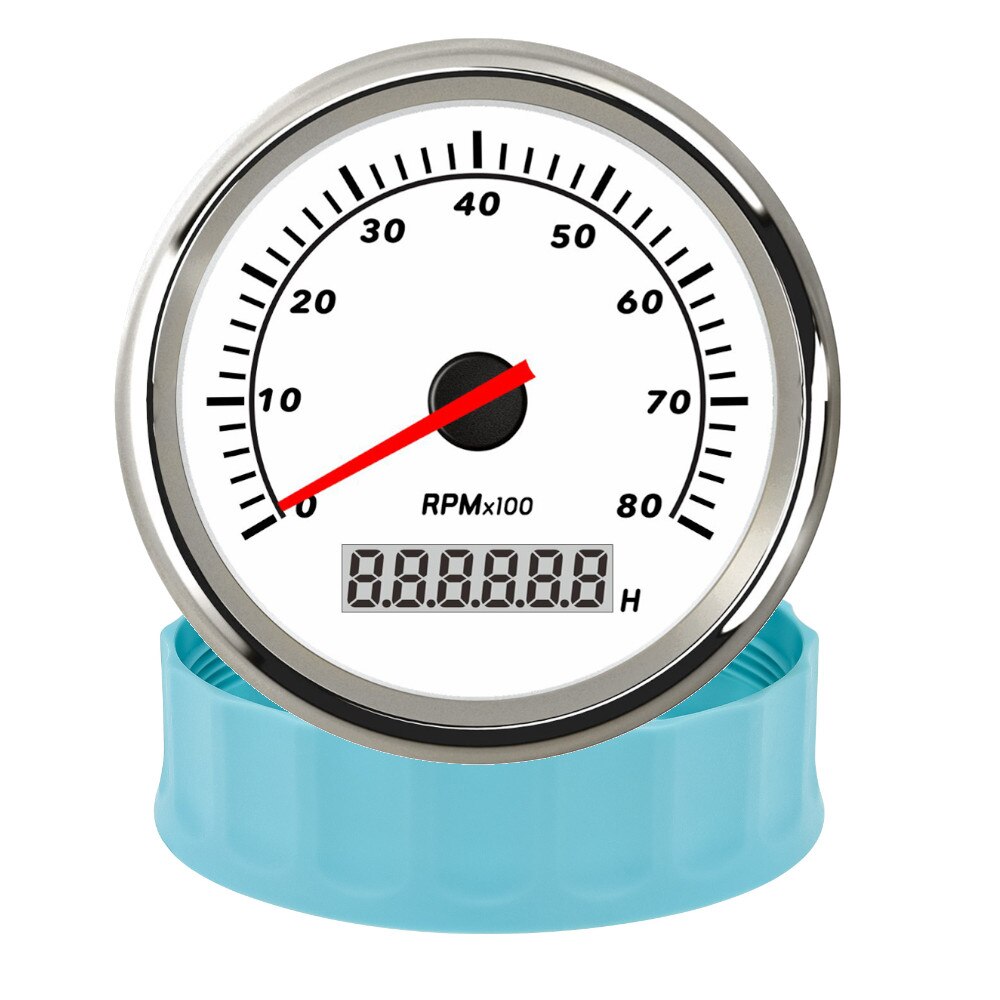

0-8000RPM[85MM Diameter]

Wholesale and drop shipping

- For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.

- For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

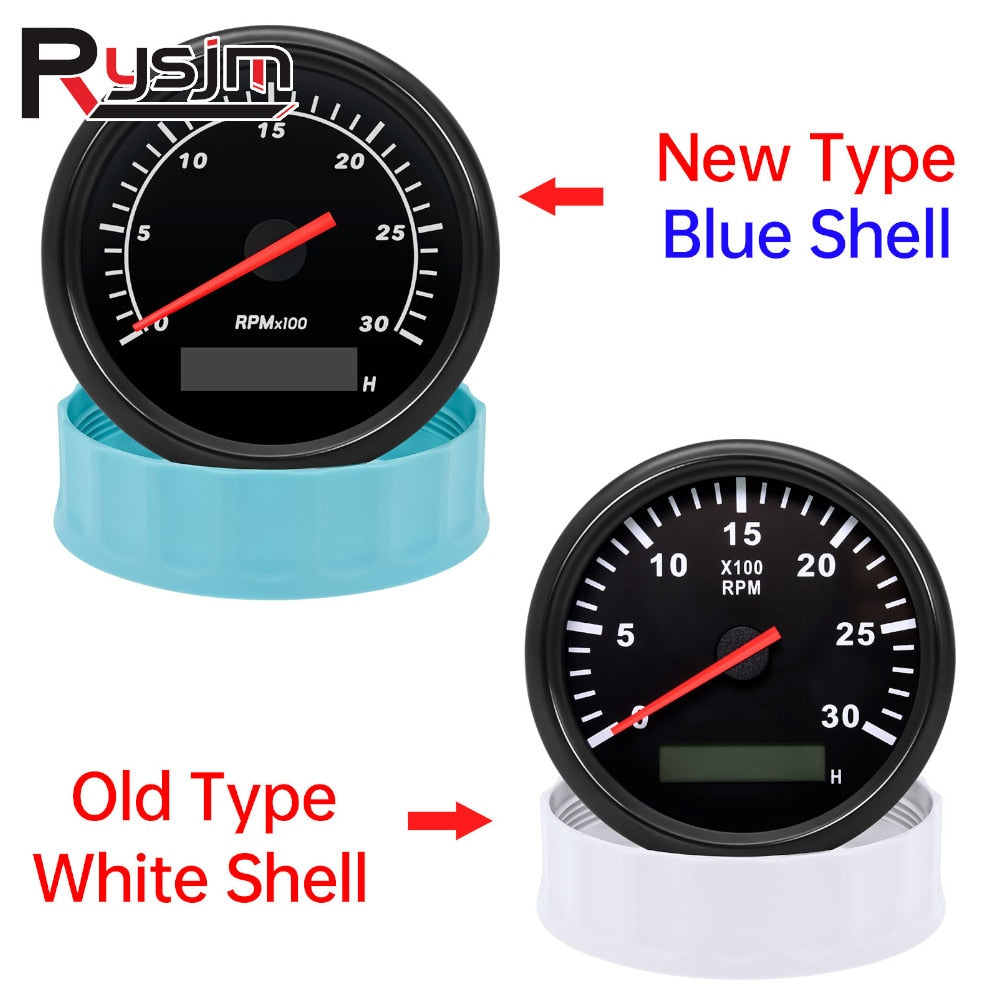

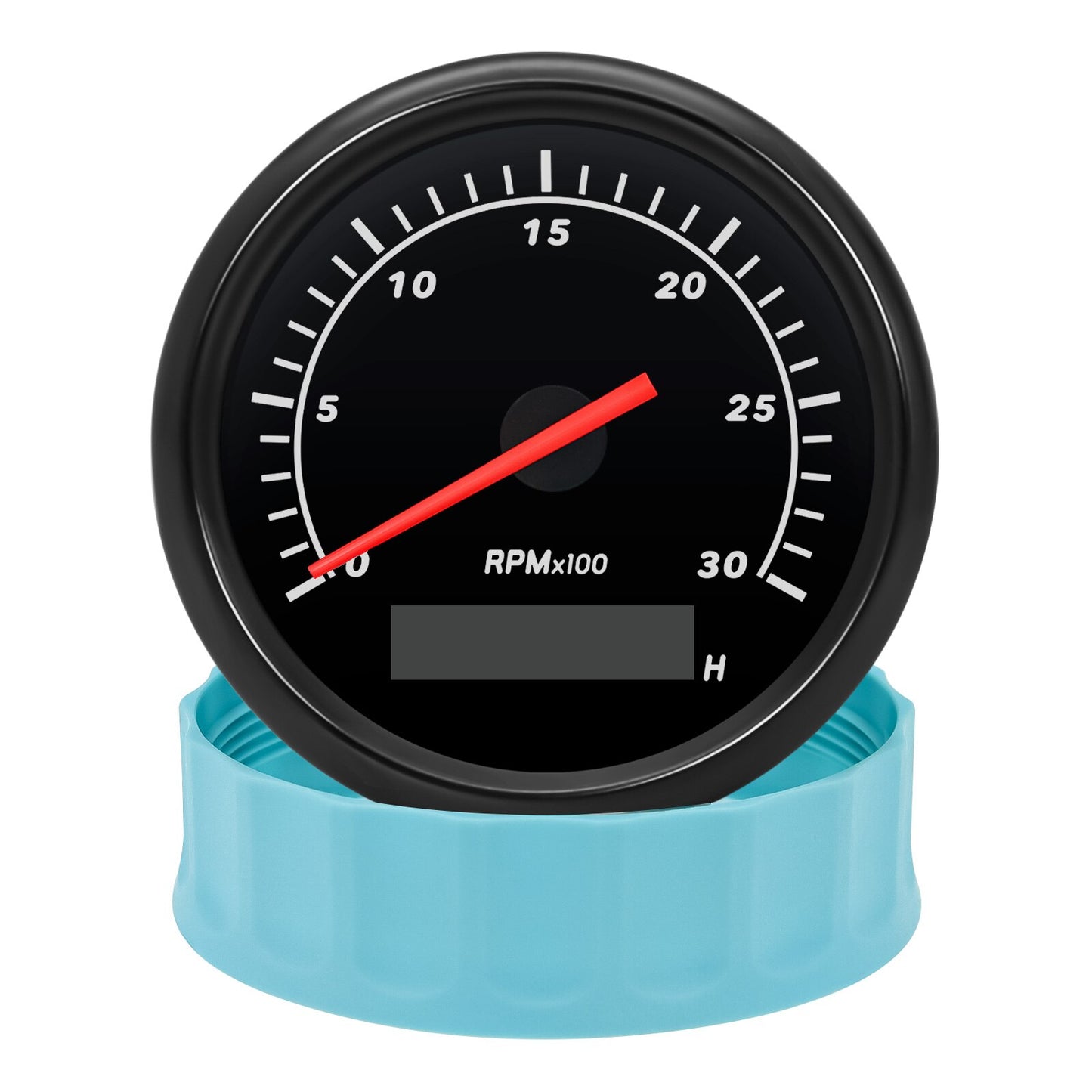

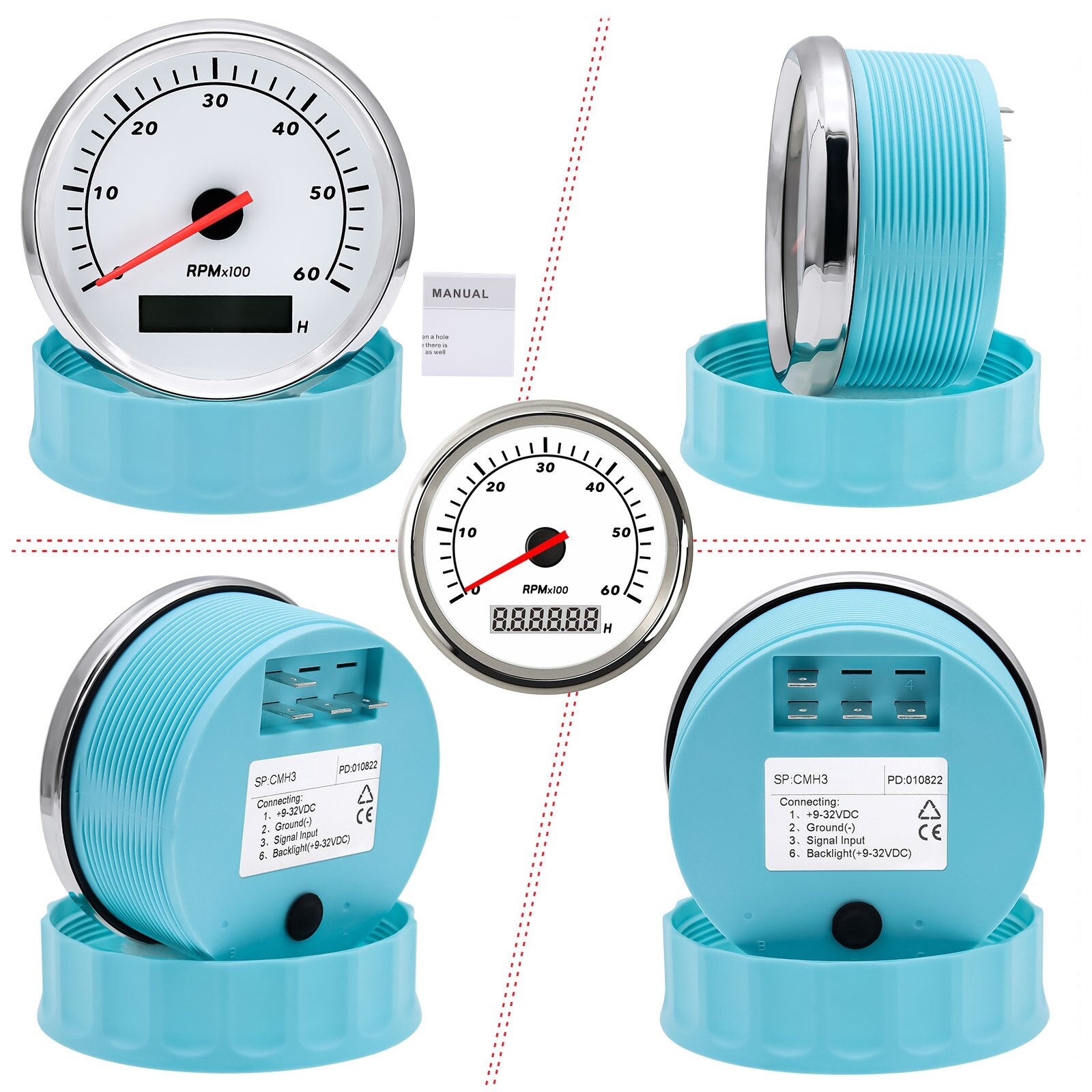

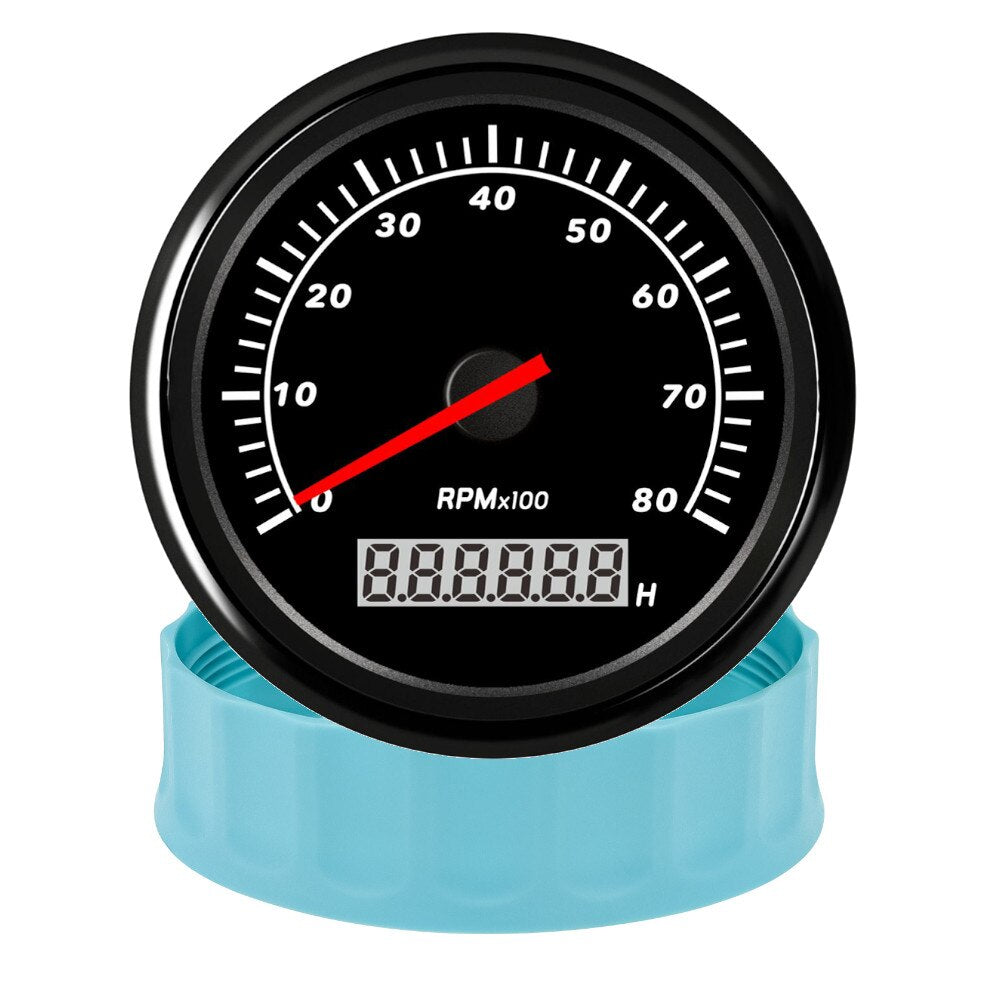

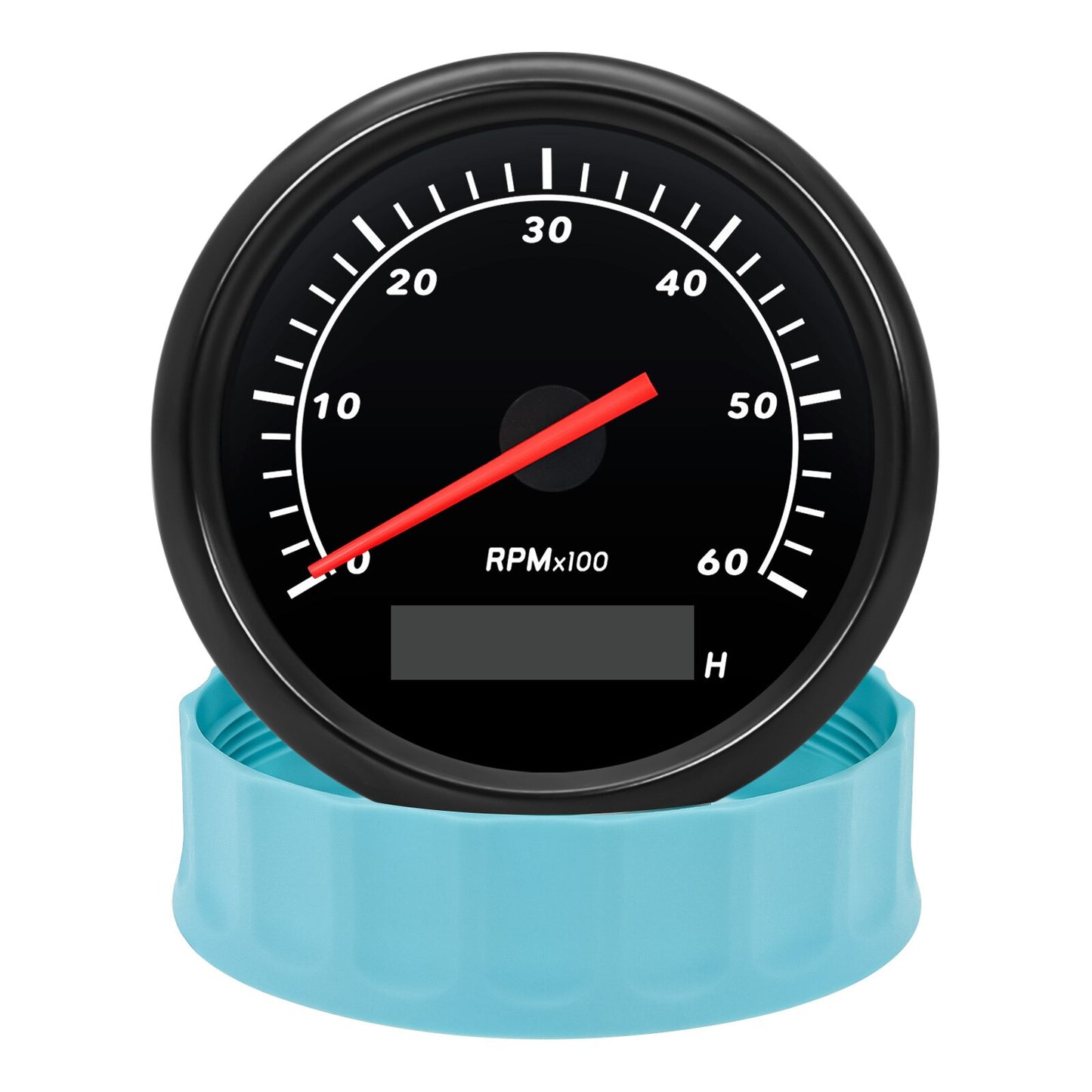

Blue Shell Tachometer

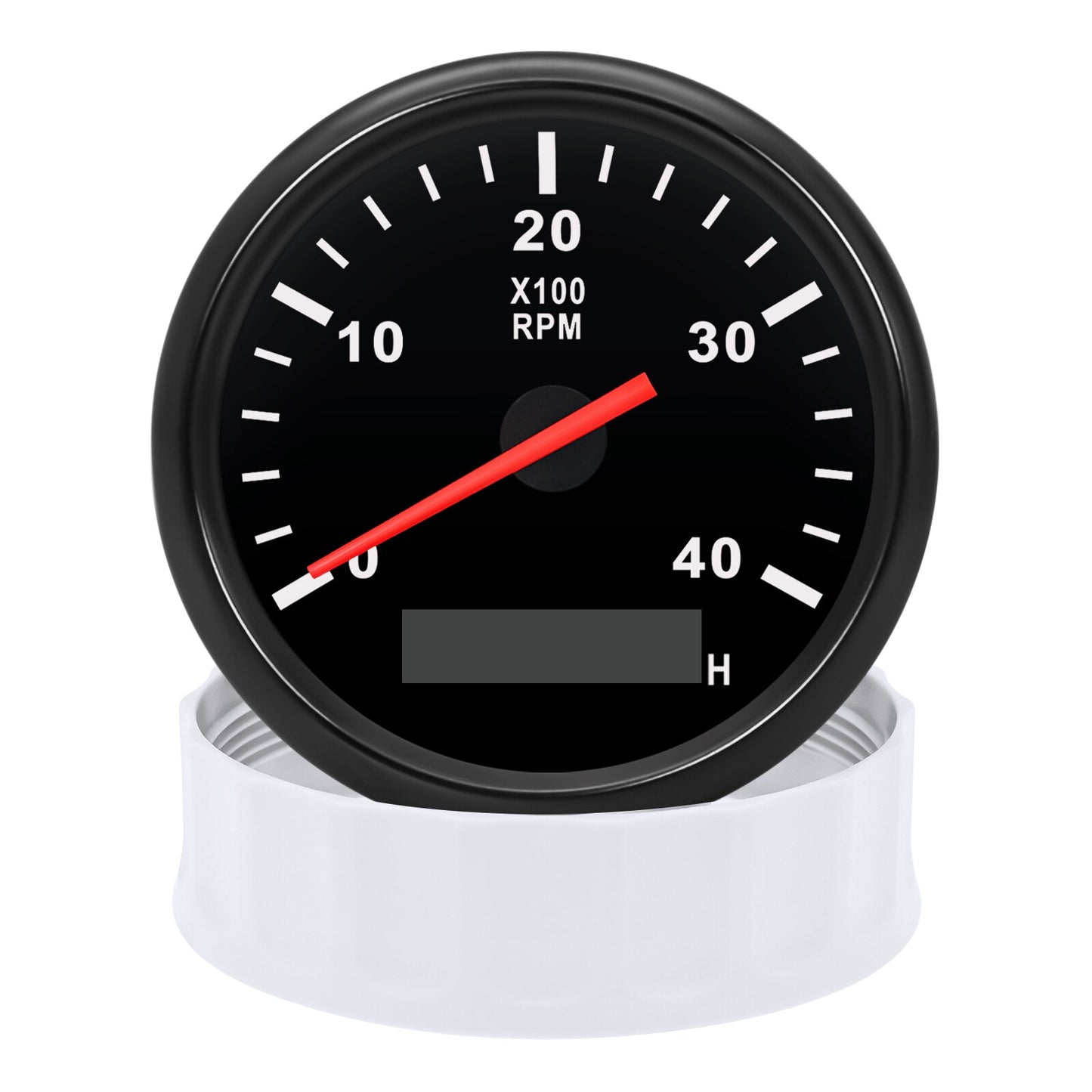

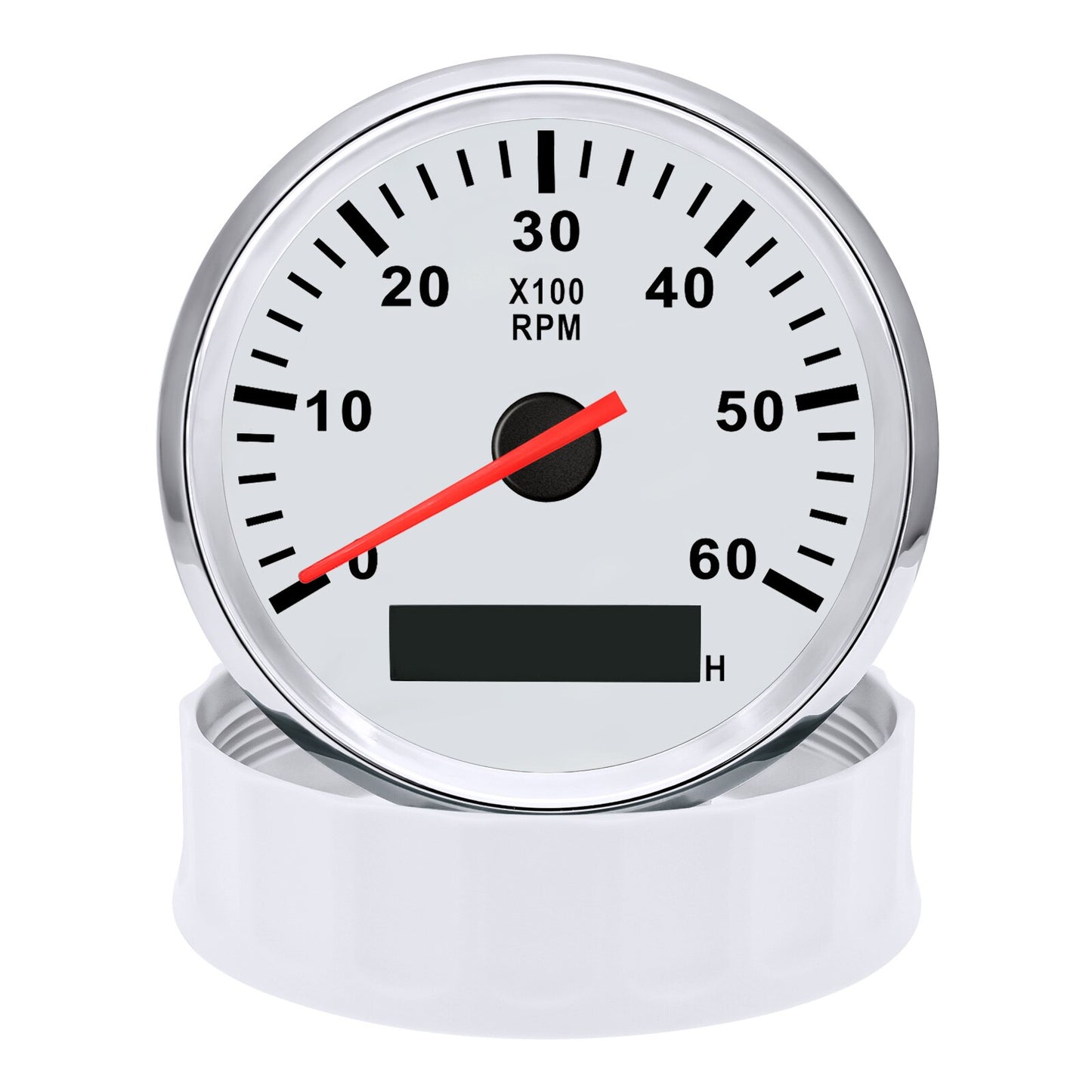

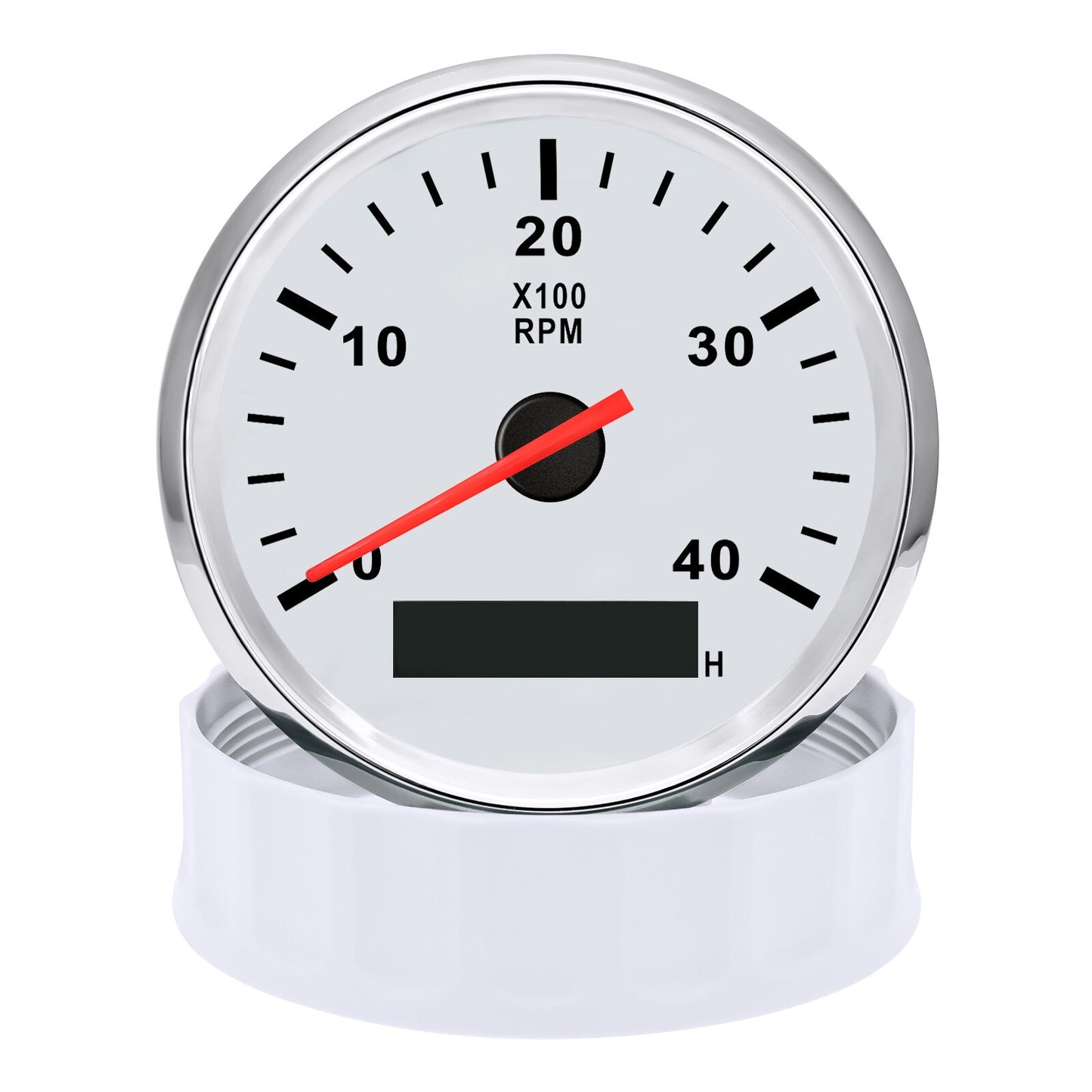

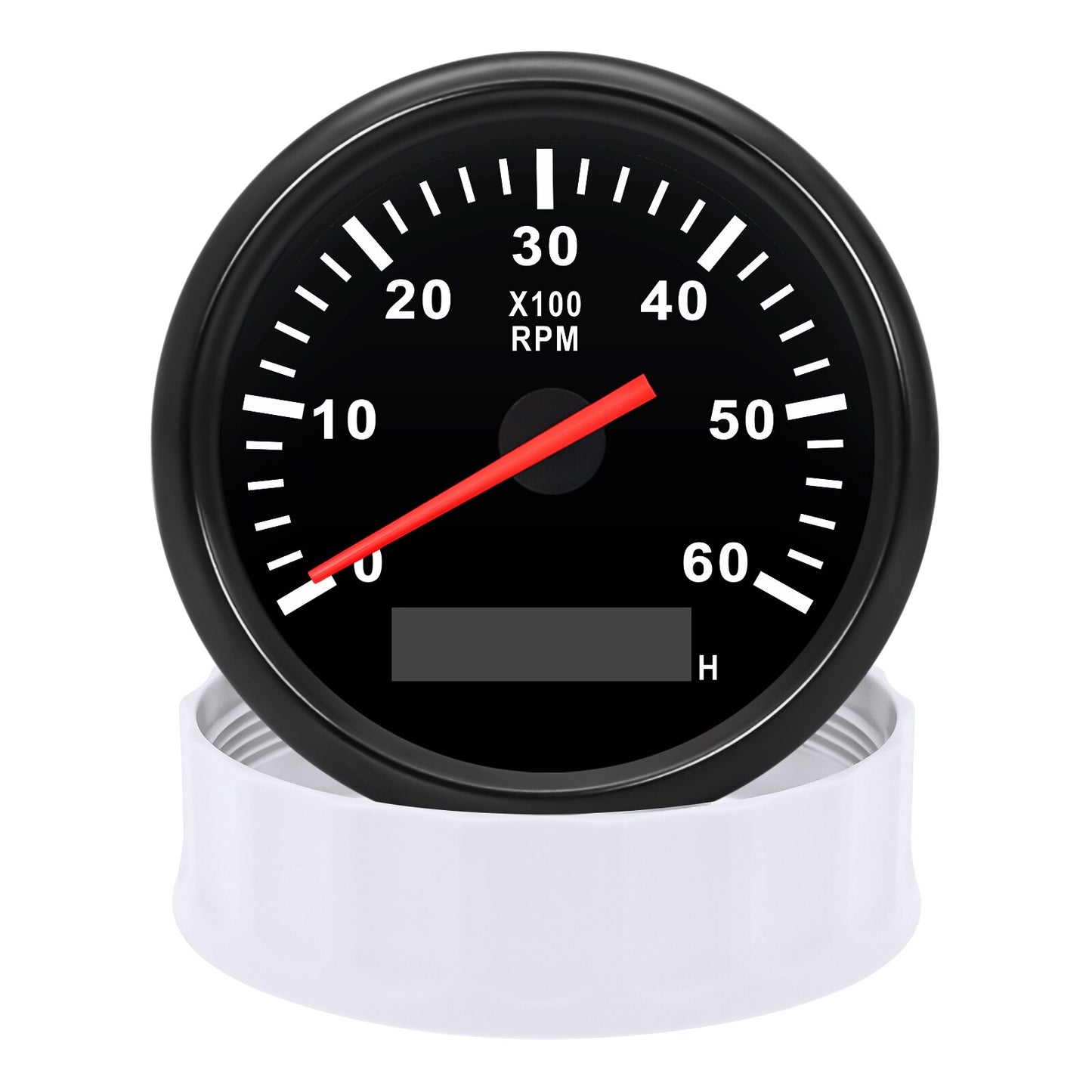

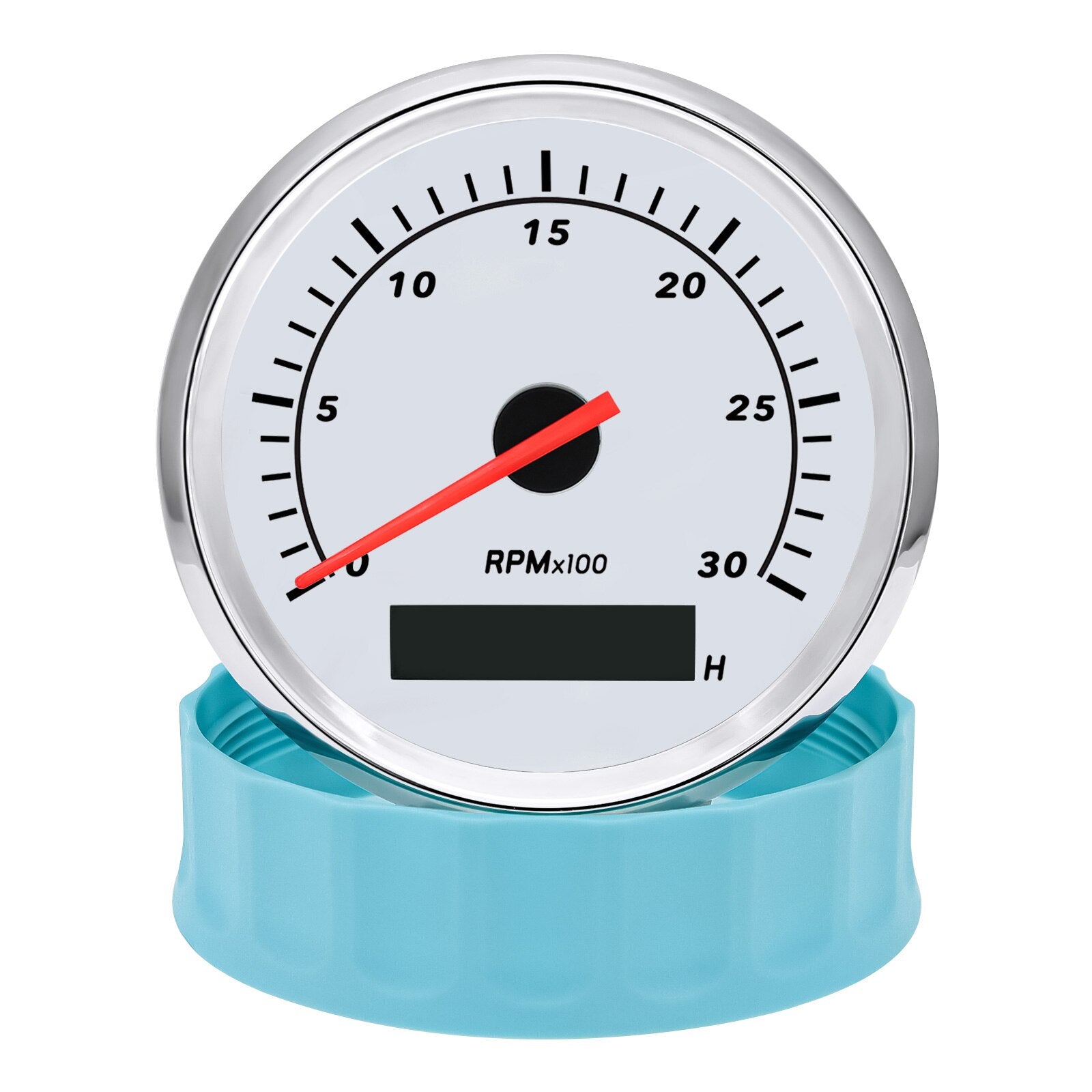

White Shell Tachometer

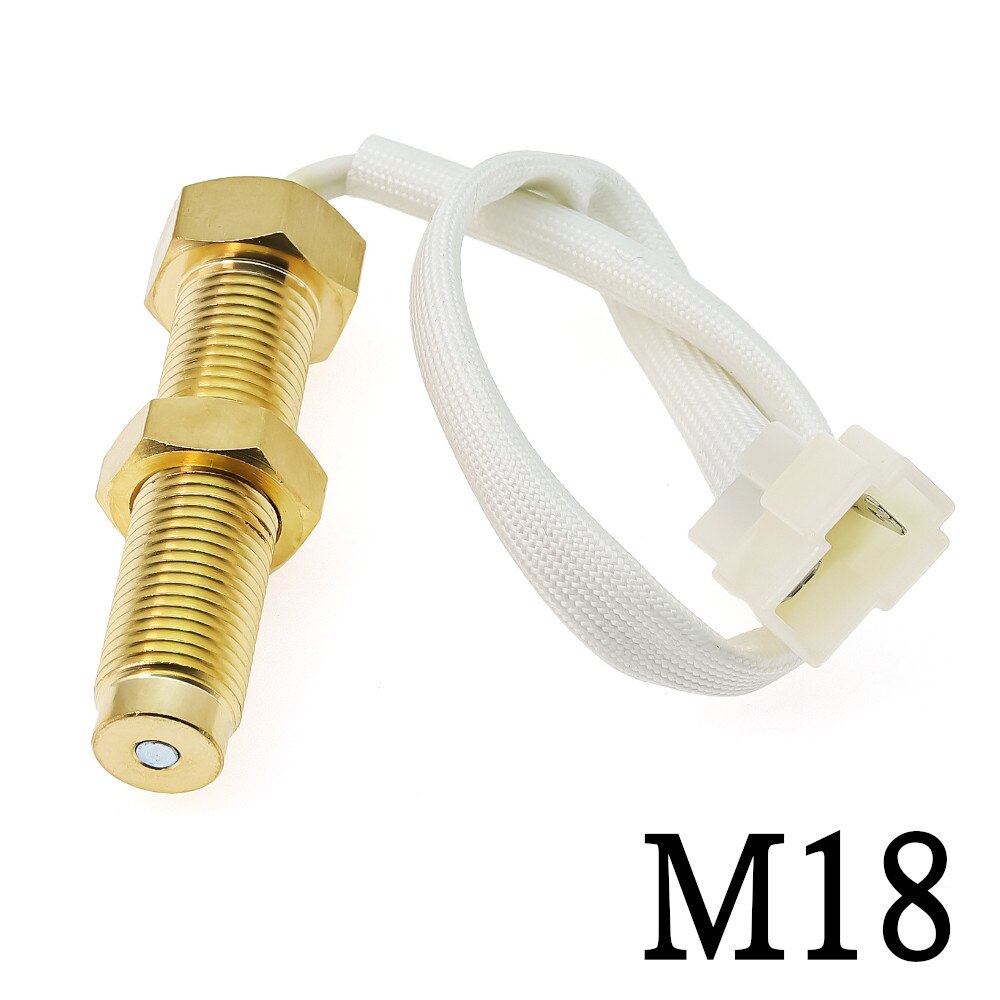

Sensor Specification:

[1].Name: Tachometer Gauge Sensor

[2] Use for Gear Rotation Speed Measurement

[3] Combining The Advantages of Stable Signal, Wide Range of Operating Temperature, Small Size, Simple Assembly, Etc

[4] Signal Duty Factor: 47±5%

[5] Output Signal: Sine Wave

[6] Operating Temperature:-40 to 85℃

[7] Inductance Distance: Less Than 1mm

[8] Tooth Module: 2~6

[9] Connecting Way: Two Wires Connecting

[10] Protection Rank:Waterproof IP67

Please attention:

Please attention we have 2 model sensor size: 80mm*18mm (L*W) , 72.12mm *16mm(L*W)
