85mm boat car gps speedometer Car Marine Boat GPS Speed Odometers LCD Display Gauge 9~32V with 7colors Backlight for BMW e60 e46

85mm boat car gps speedometer Car Marine Boat GPS Speed Odometers LCD Display Gauge 9~32V with 7colors Backlight fit for BMW e60 e46

Product Information:

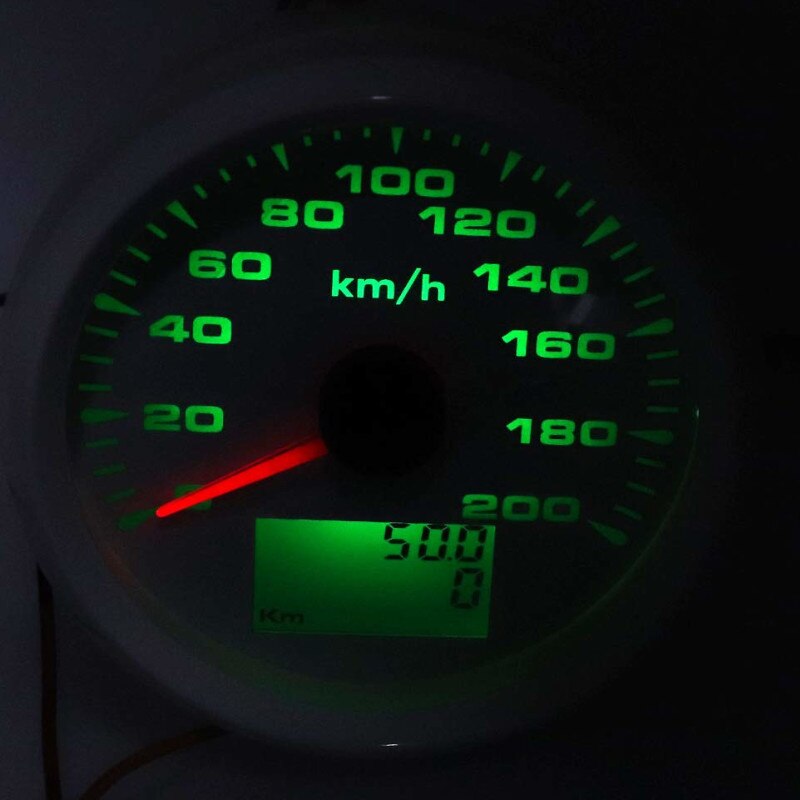

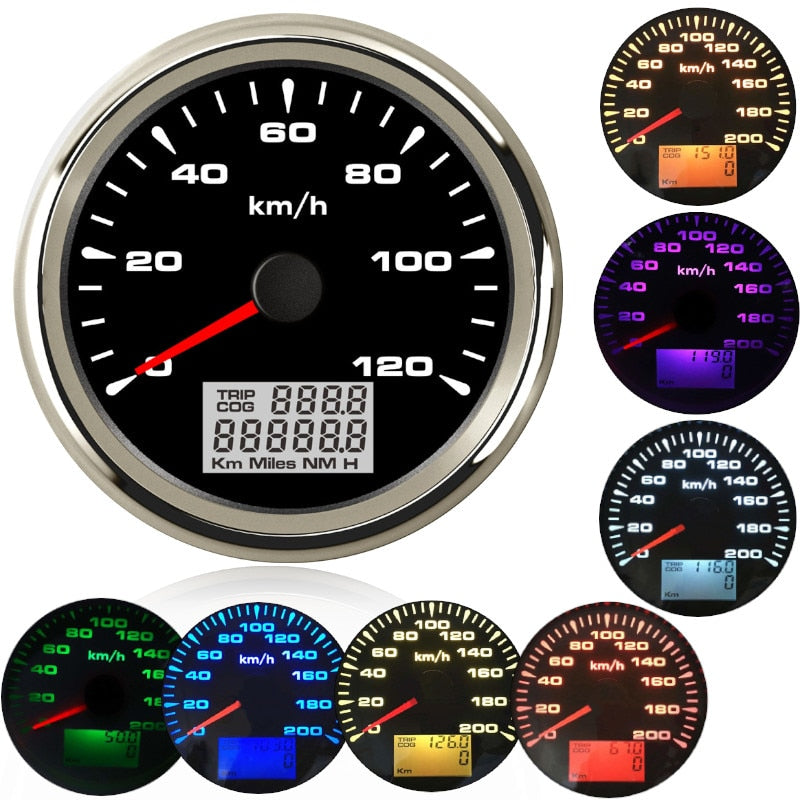

7-Color Backlight : red、green、blue、white、yellow、orange、purple,totally 7 kinds different backlight color,it will change automatically every 1 minute,or you can fix only one color that you like through press the gauge back "set" button

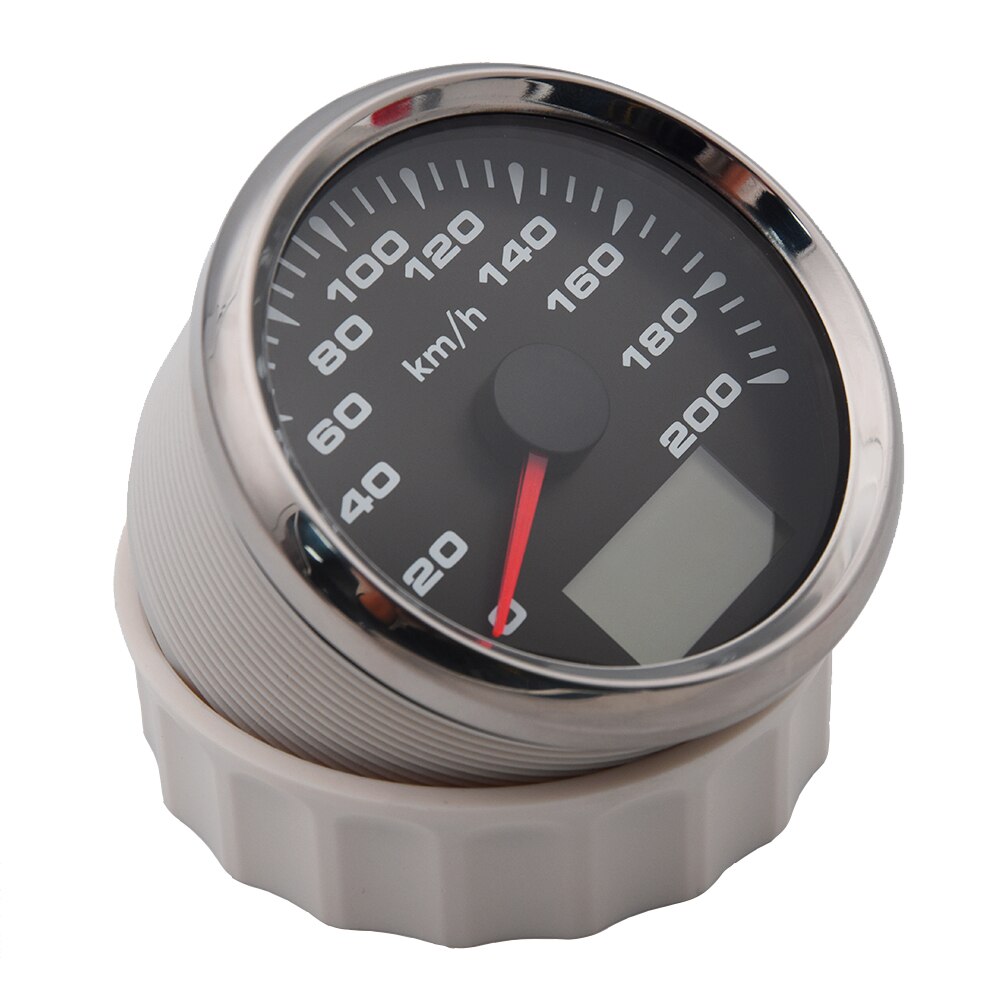

* Material:stainless steel 316L bezel+anti-fog glass
* Install diameter:Φ85mm or 3-3/8"

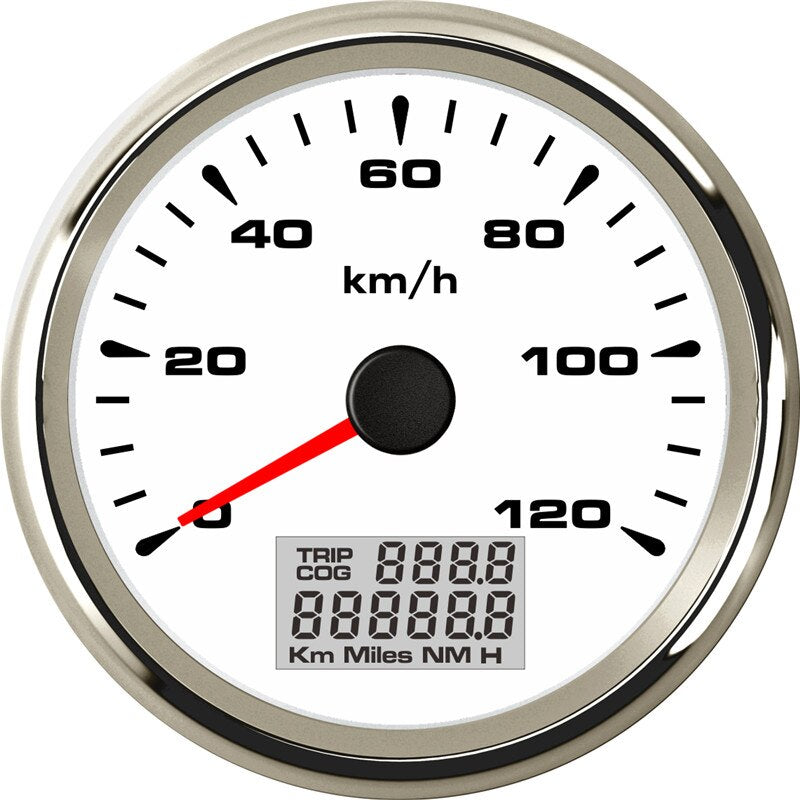

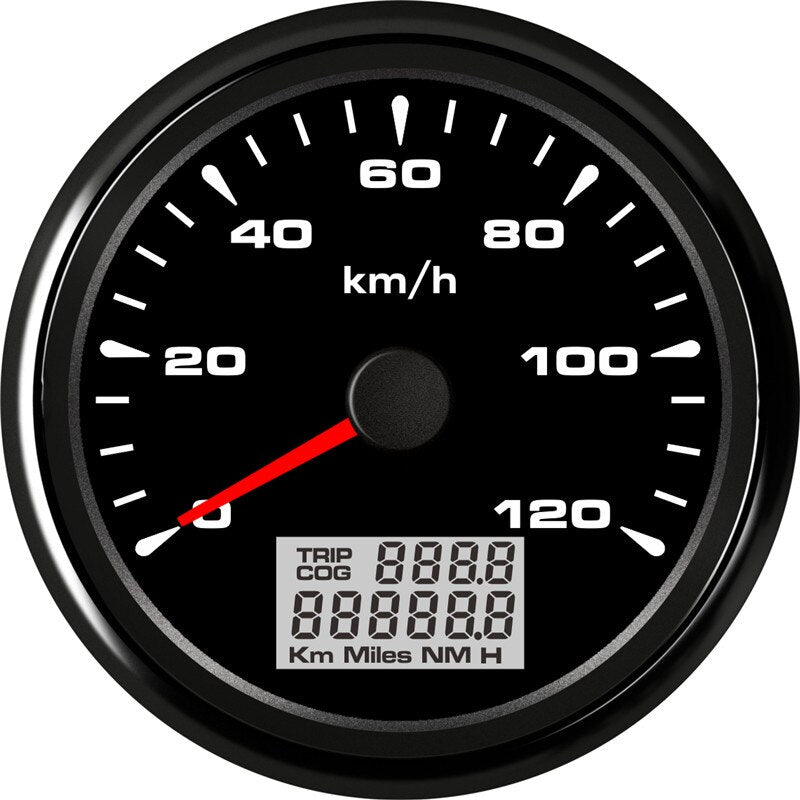

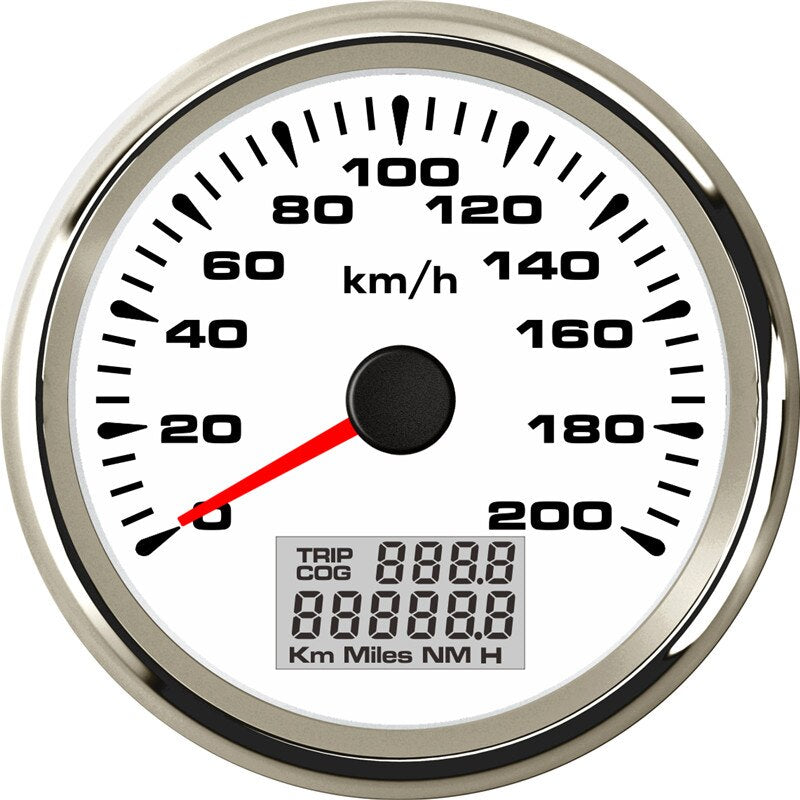

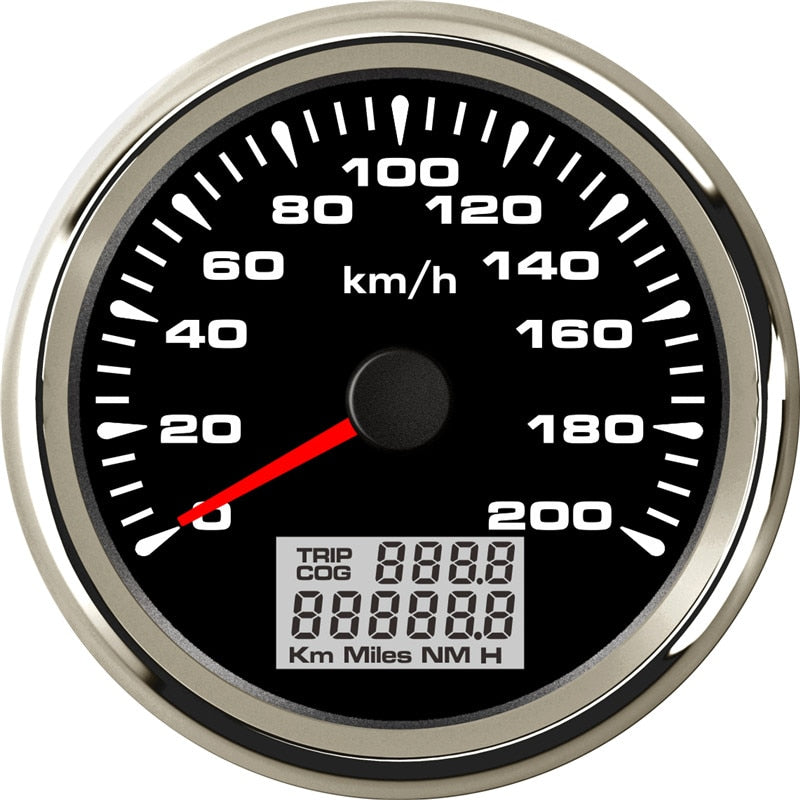

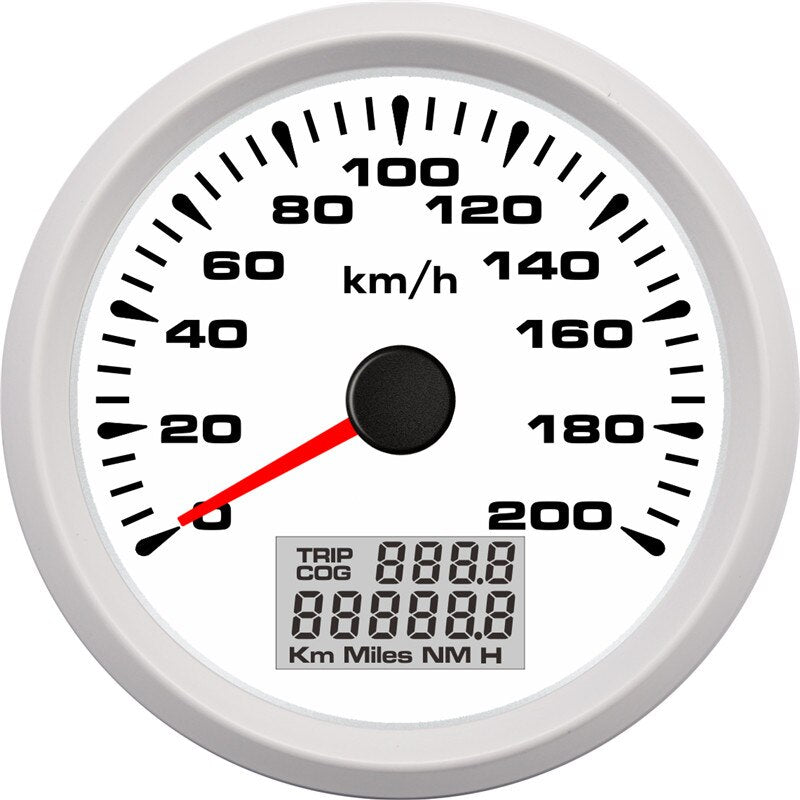

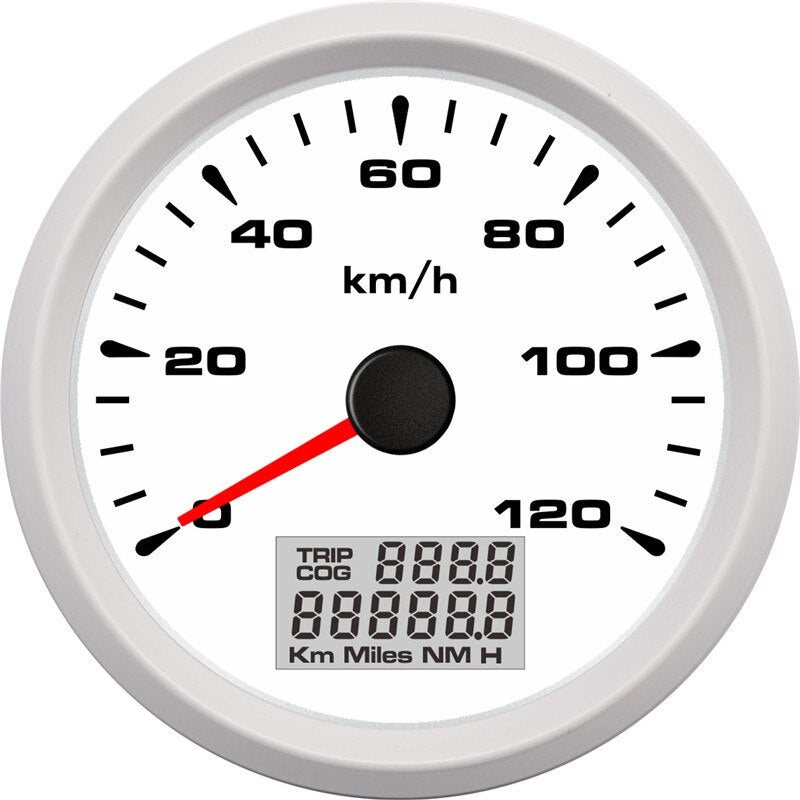

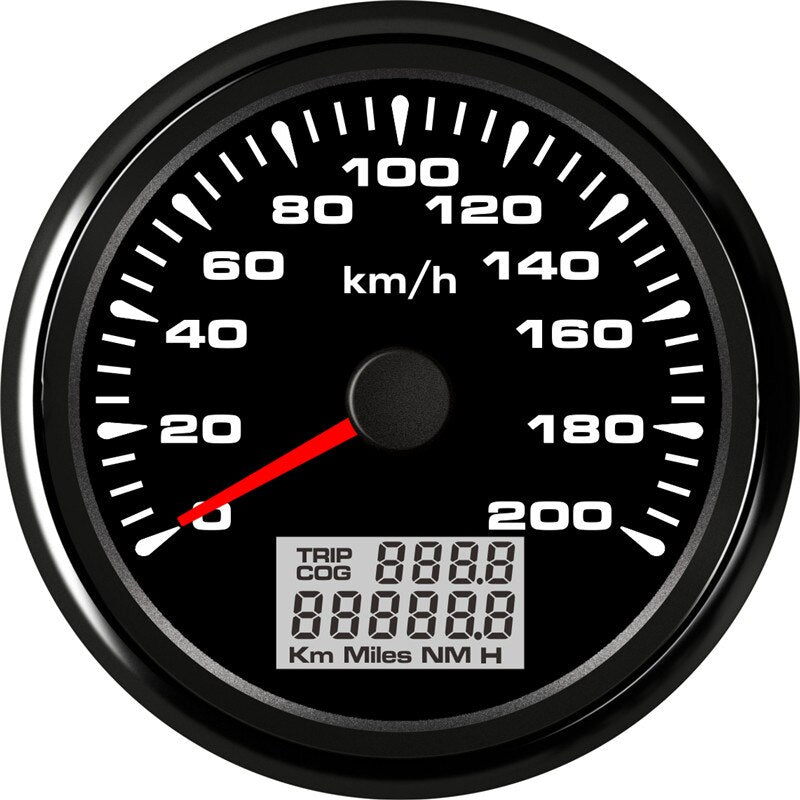

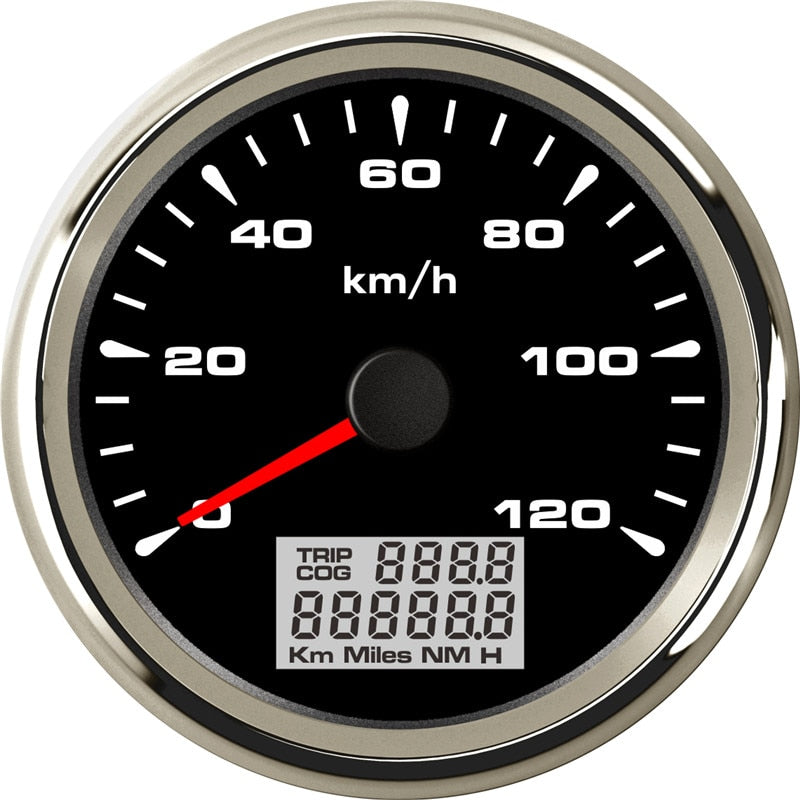

* Indication range:0-120km/h，0~200km/h
* Connection method:row insert
* Working voltage:9~32vdc
* Input signal:gps with antenna
* Working current::≤100mA
* Operating temperature:-30℃~+75℃
* Storage temperature:-40℃~+85℃
* IP67 waterproof and dustproof grade

Package Included:

1 x GPS speedometer
1 x GPS antenna
1 x Wiring harness
1 x Instruction manual

Function intruduce

1) speed odometer use stepping motor drive pointer,can show the speed of engine precisely,and also can show the mileage clearly with LCD display screen
2) 3 different display :press the gauge back "mode" button 3 second continuously,then you can select digital display mode set,press "mode" button again,you can select trip 1、trip 2 and COG 3 kinds different display method,but they can not show at the same time.

trip 1:short mileage,data will not be recorded after power off

trip 2:short mileage data will be recorded after power off,users can hold the "set" button for 3~5 seconds to clear

COG:show azimuth angle,data will not be recorded
Remarks:the unit of trip、total mileage and outta unit of dial are the same

The below is odometer (ODO) function,it will record total mileage automatically

Feature:

- With curved glass (with anti-fog function)
- Stepper motors used for full range of stepping gauges,great feature with its less power consumption,longer life,higher precision etc.
- Gauges front cover use stainless steel 316L for long-term use even in acid-base and humid environment
- With ultra-wide working voltage design (long-term operating voltage:9-32v)
- There is a snap together with the harness connector,for best and firmly connected,in order that the gauges could work even in strong viberation,products can be used for the engines/generating units,ships,construction machinery,agricultural machinery,automotive modification etc.

Install Instruction:

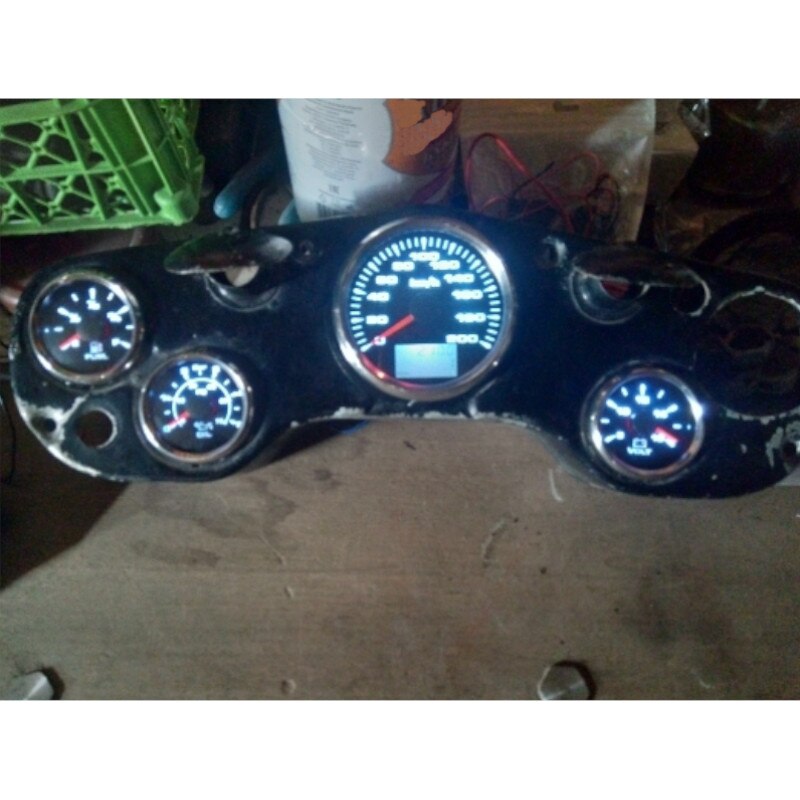

[1] Opening a hole in the panel (your cabin board and dashboard) with a diameter of 85mm,insert meter into the hole,the panel corresponding to the instrument panel is marked with a convex table,and open a small notch in this location,to ensure that there is at least 85mm (3 3/8") of the instrument panel at the back of the instrument

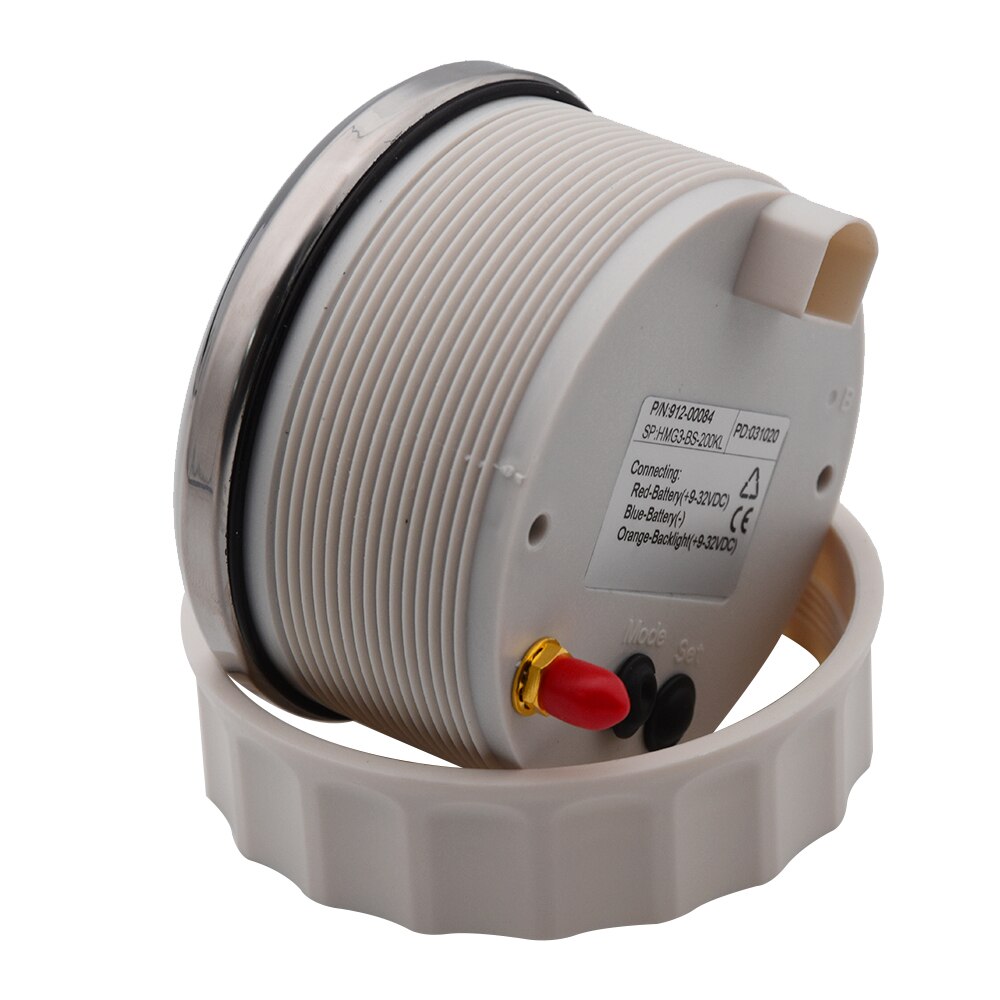

[2] After the instrument is mounted in the panel,screw down with a fixed ring

[3] Connect the wire,the instrument housing is directly connected to the 12/24v power supply

[4] Insert wire harness,firmly locked in the table

Please note:

1.we have 2 model Speedometer Indicating Range:0-120km/h,0-200km/h

2.For this speedometer,we suggest buyers to connect gps antenna firstly and then connect power (can not connect power firstly and then connect gps antenna ),otherwise it will be easy to make gps mould damaged
