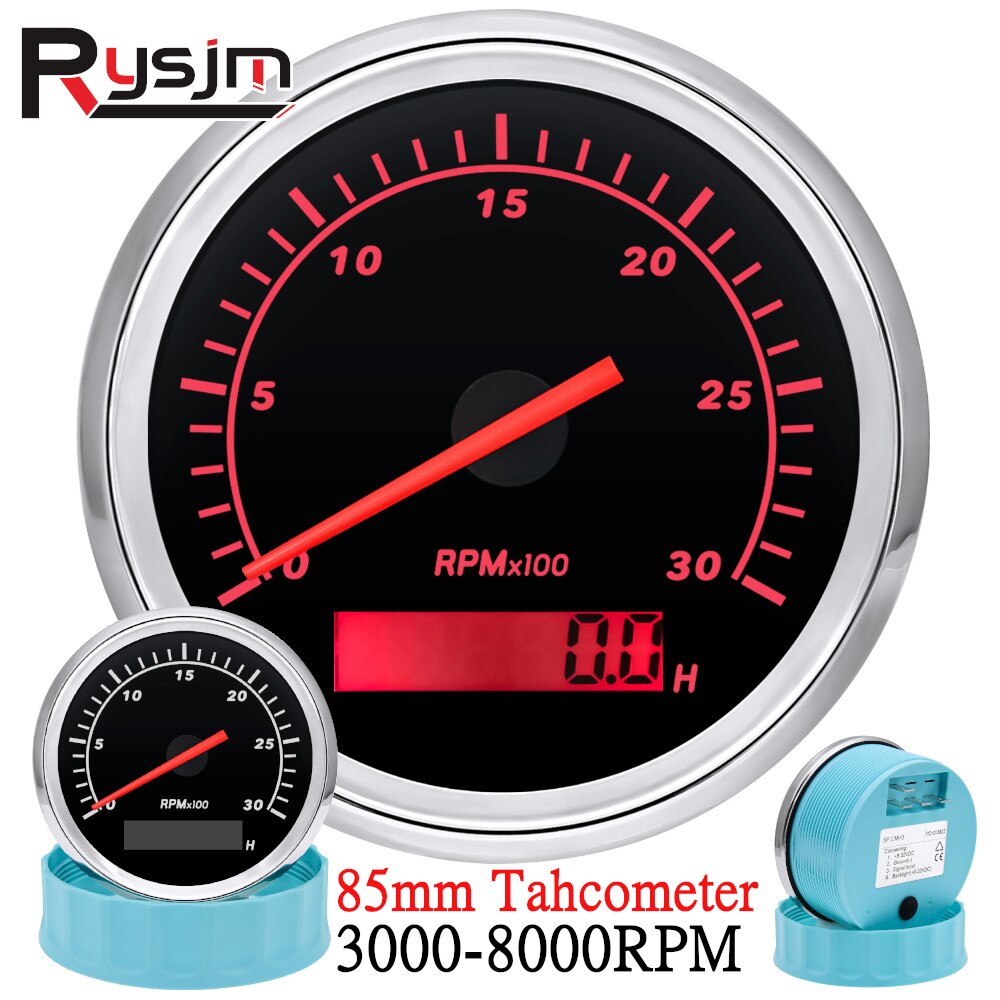

4000 6000 8000 Rpm Tachometer Tacho Meter Gauge Hourmeter 12V/24V 85mm Toerenteller 12v Hour Meter Sensor For Marine Boat Car

4000 6000 8000 Rpm Tachometer Tacho Meter Gauge Hourmeter 12V/24V 85mm Toerenteller 12v Hour Meter Sensor For Marine Boat Car Truck

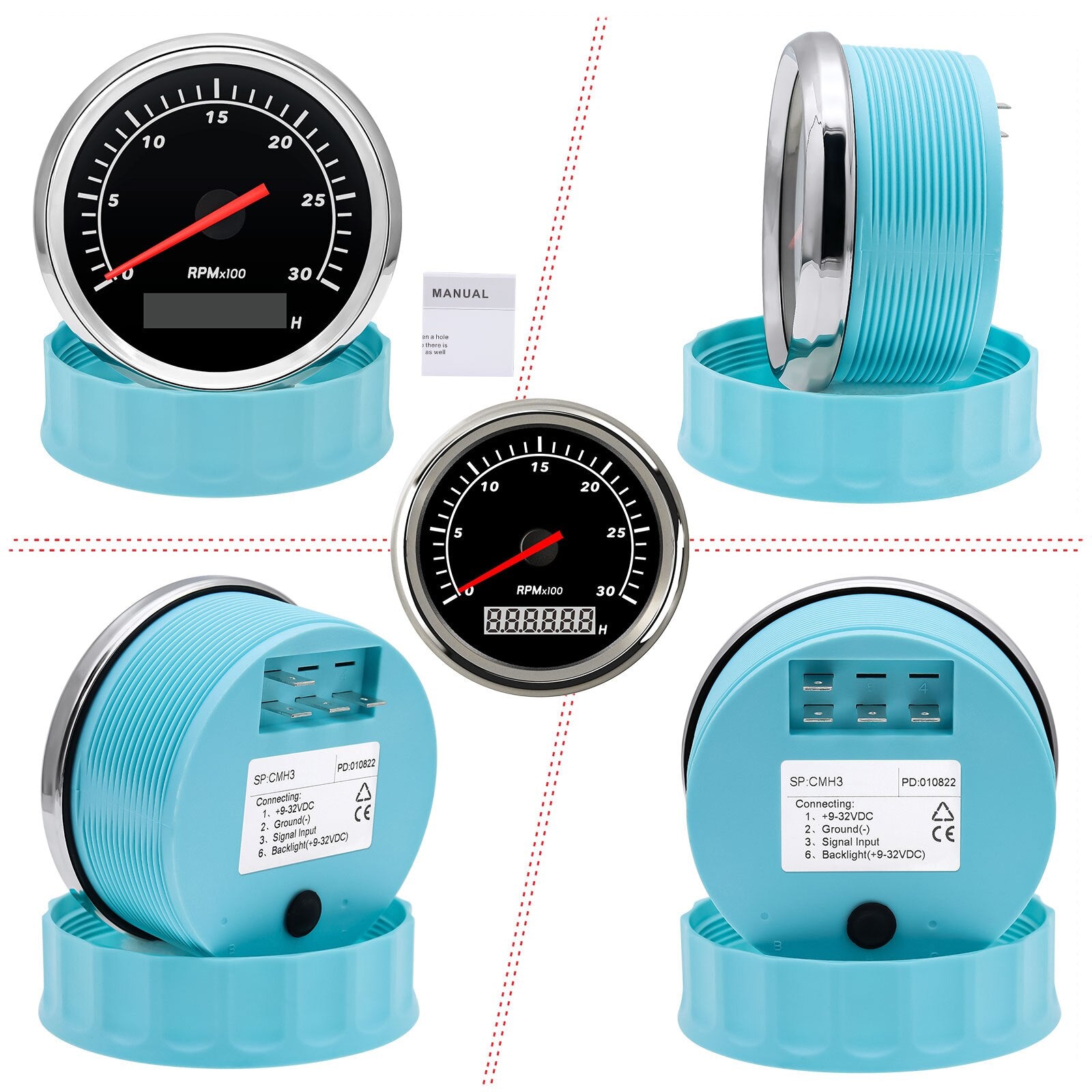

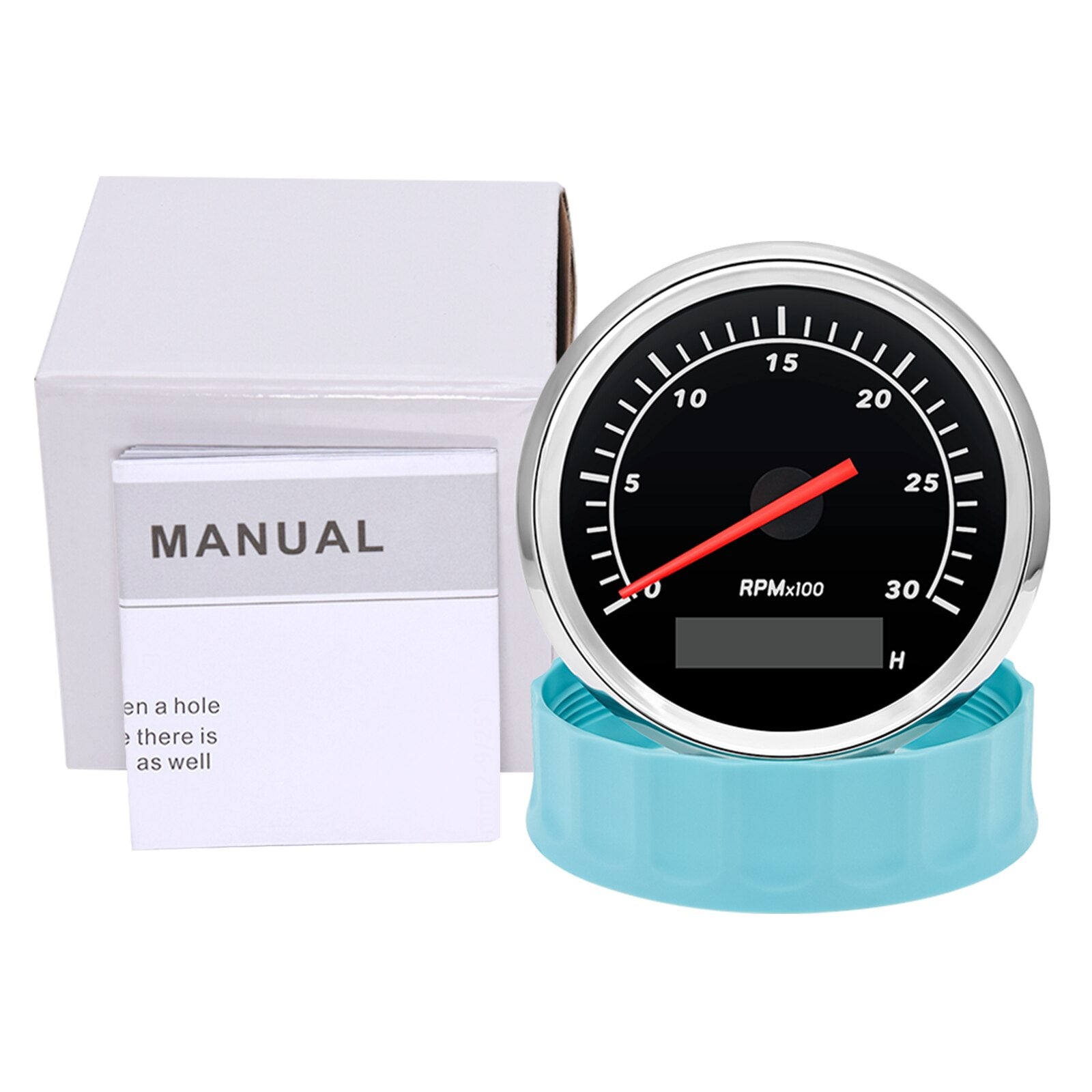

Package 1

1X Tachometer
1X Instruction

Package 2

1X RPM Sensor

The sensor needs to be purchased separately, the tachometer does not include a sensor, please know, thank you！

Feature:

* 316L stainless steel for long-term use even in acid-base, humid environment

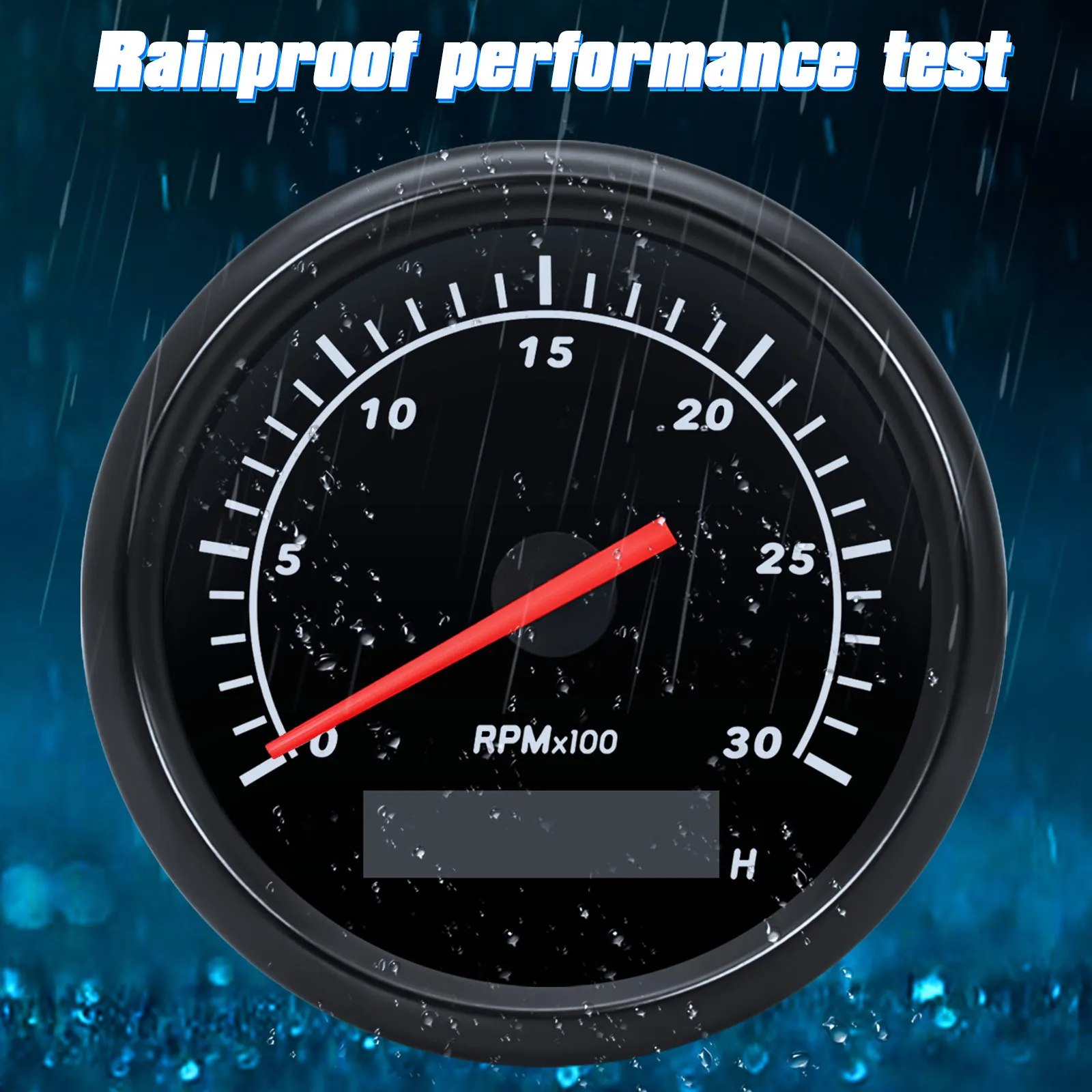

* IP67 waterproof and dust-proof grade
* Stepper motors used for full range of steeping gauges,great feature with its less power consumption, longer life,higher precision, etc.
* With curved glass( with anti-fog function)

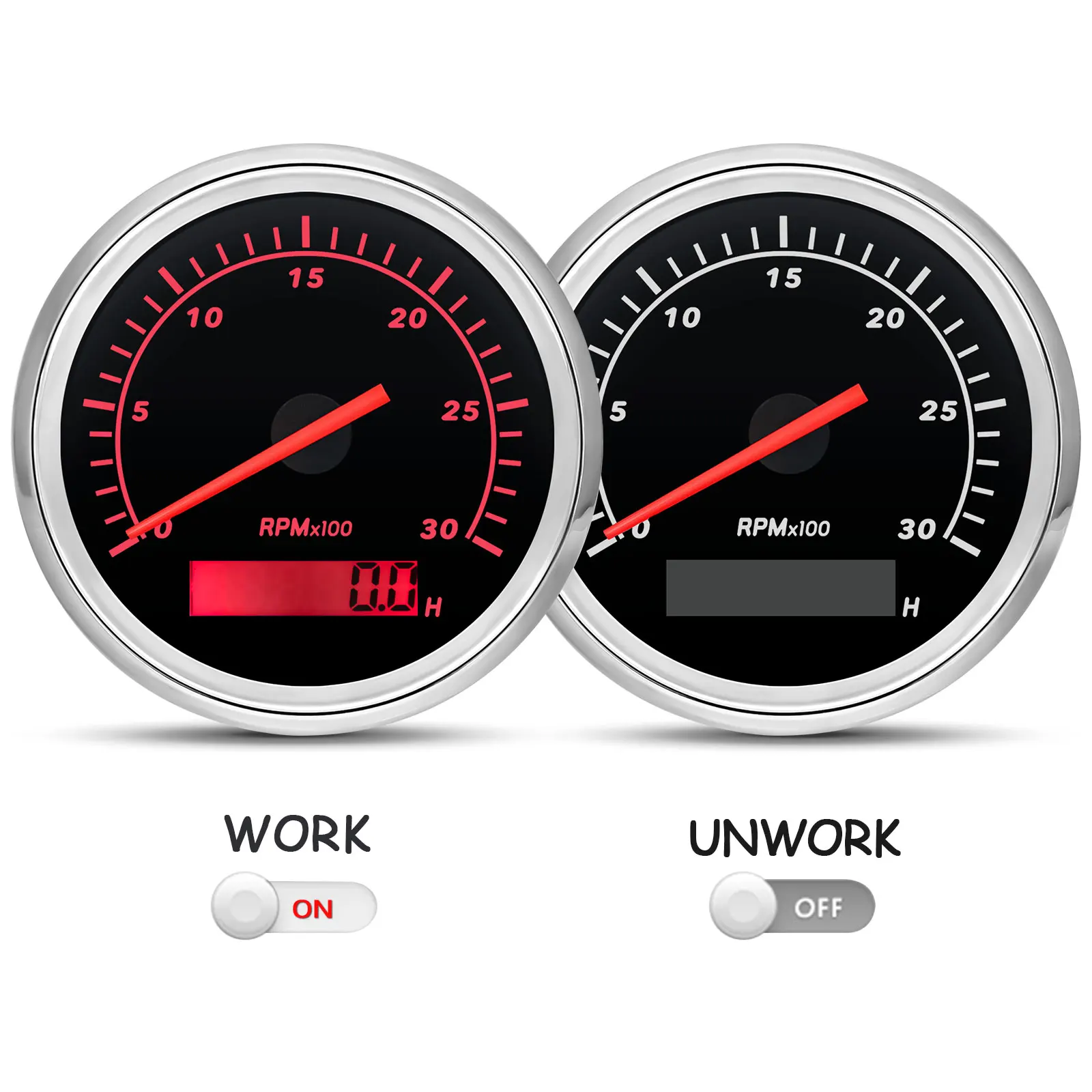

Standard red backlight

Specification:

- Name: Tachometer
- Red Backlight
- High Precision

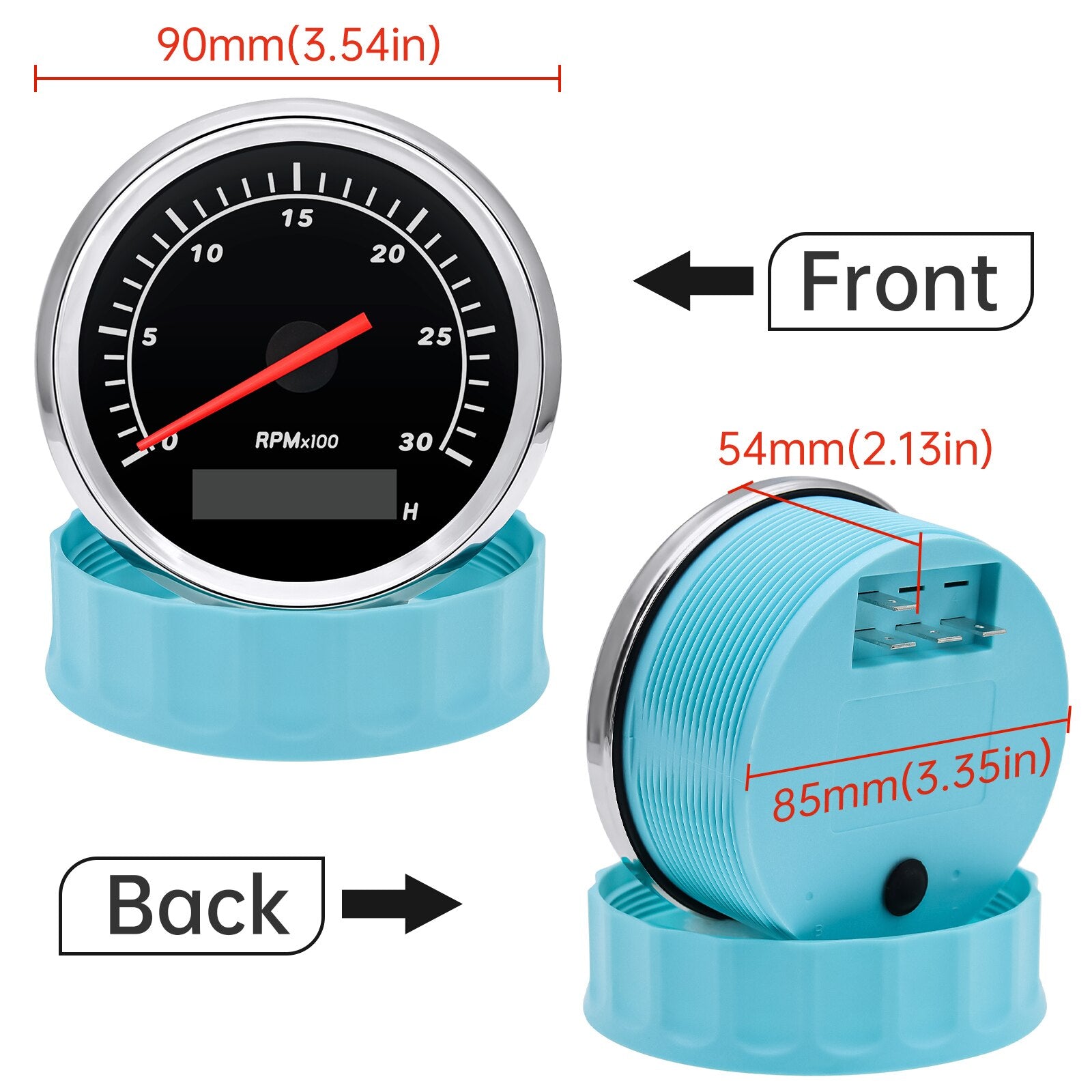

- Size: 90x54mm

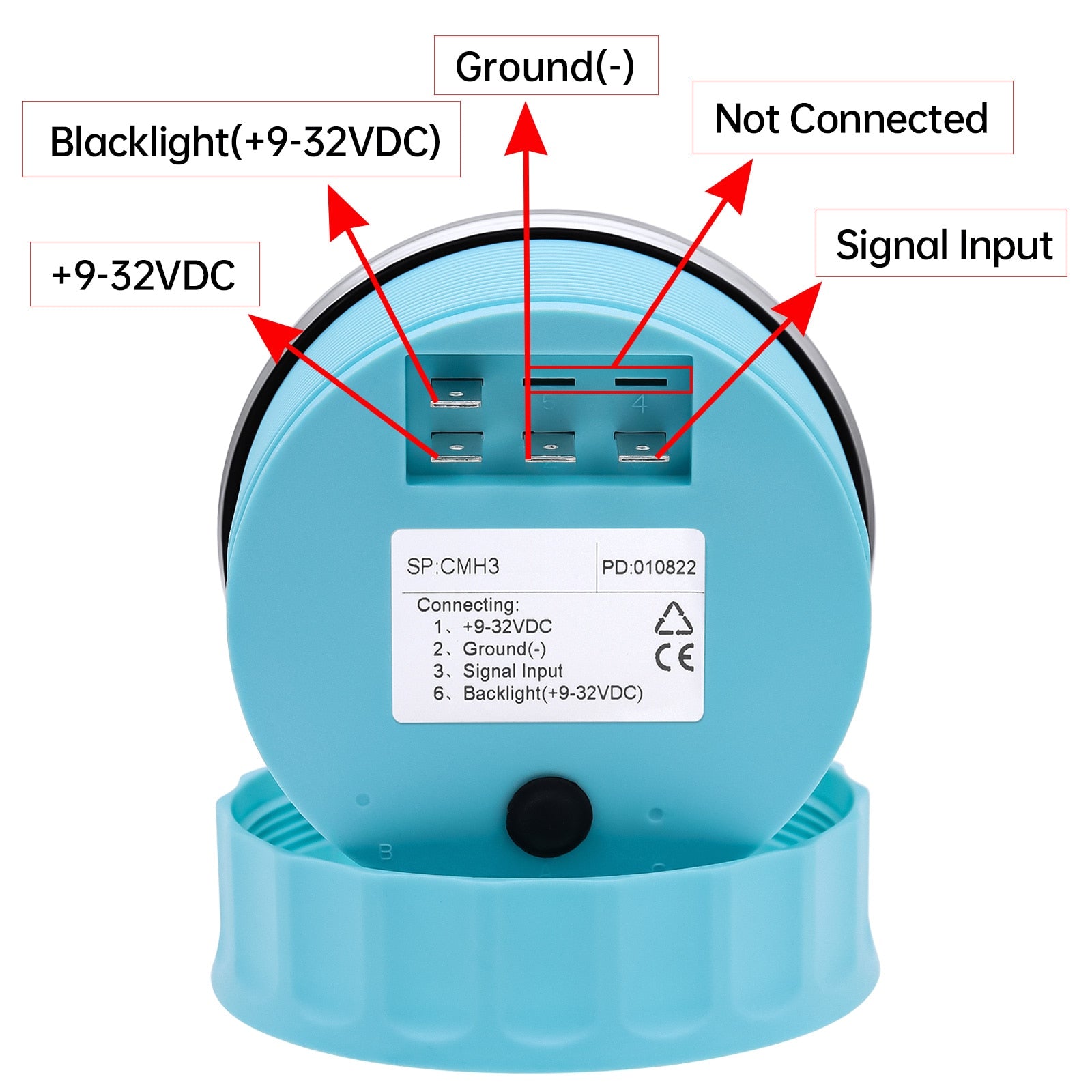

- Voltage: 12V/24V
- Installation diameter: 85mm
- Operating Current:≤100 MA
- Speed Ratio: 1~300 adjustable
- Engine hours: 0.0-99999.9H
- Functions: current tacho/RPM and hour
- Operation mode: LCD display, stepper motor

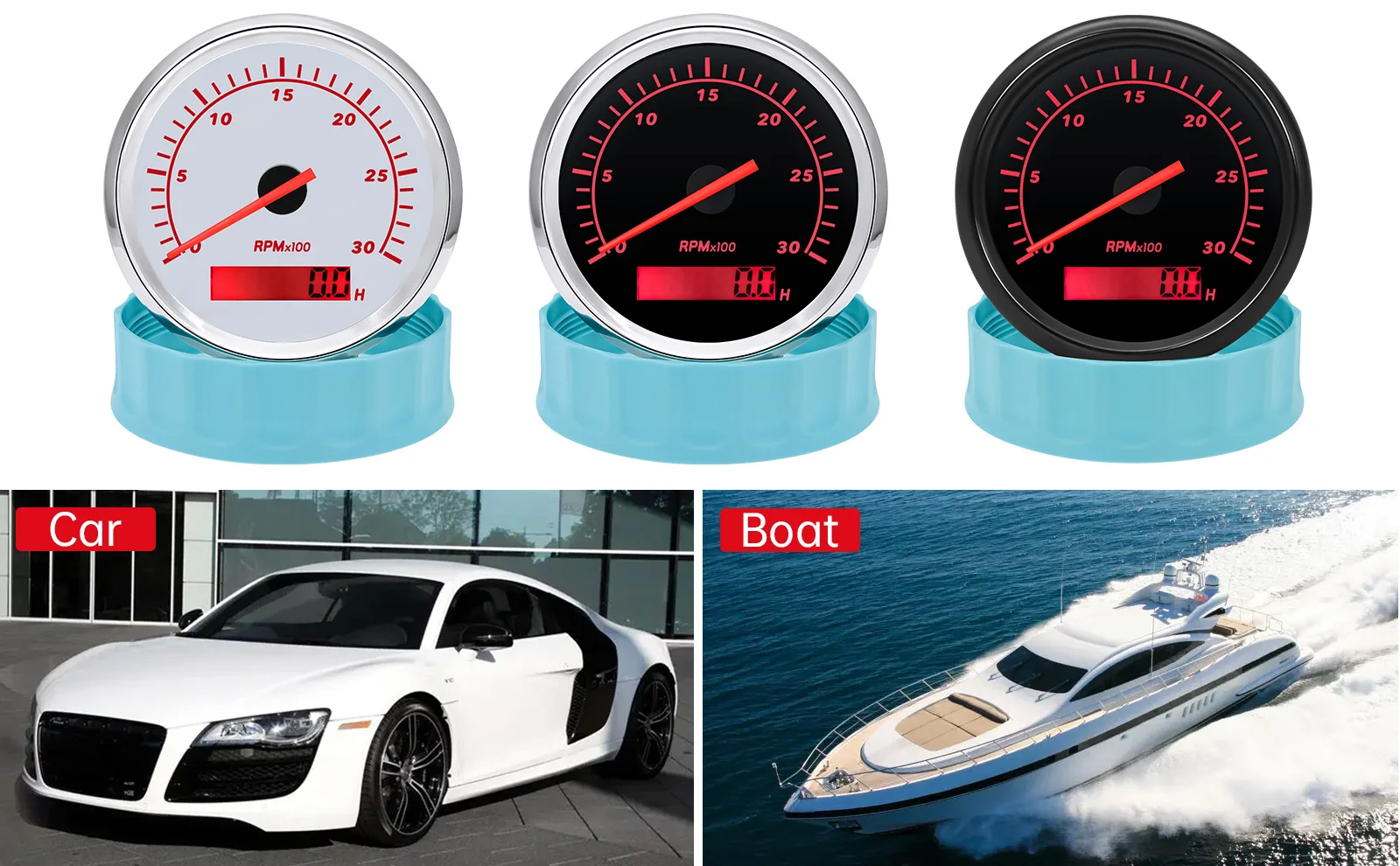

- Tachometer fit for Car /Truck/ Boat /Diesel Generator Engine /Gasoline Engine

Indicating Range:

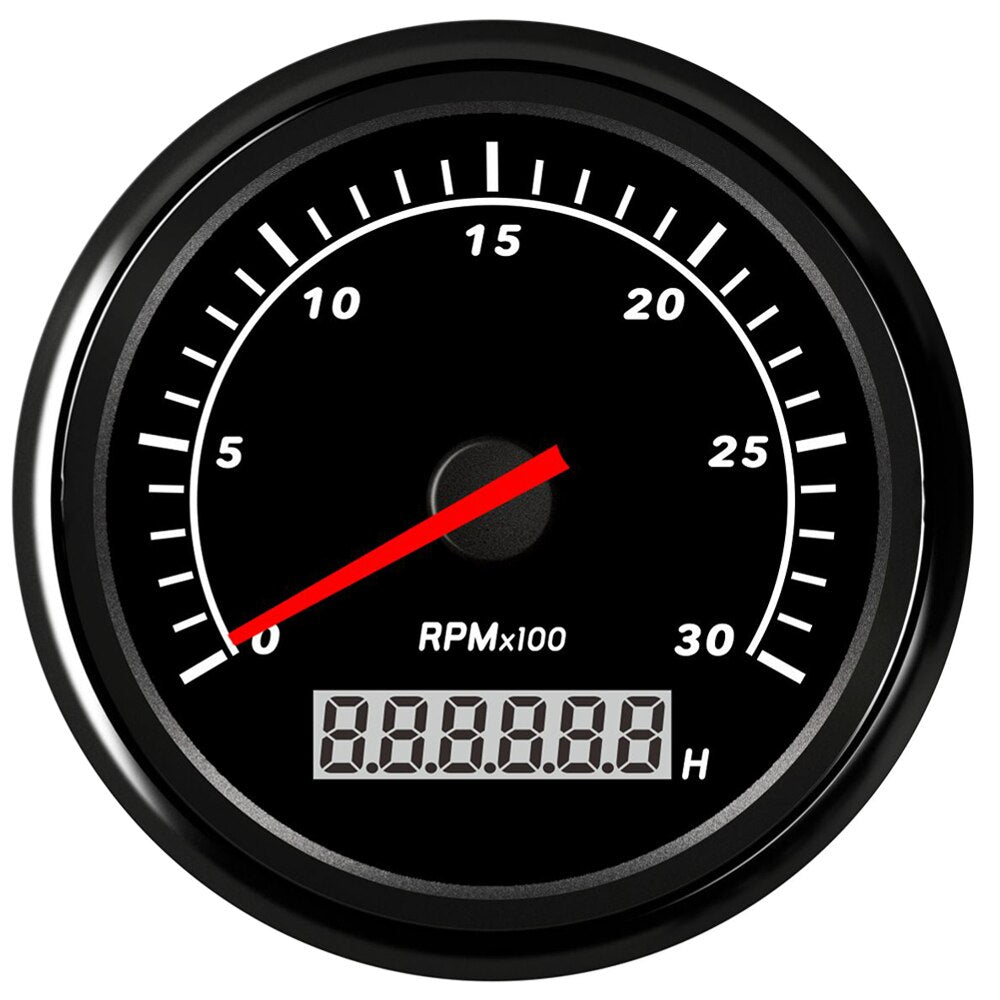

0-3000RPM[85MM Diameter]

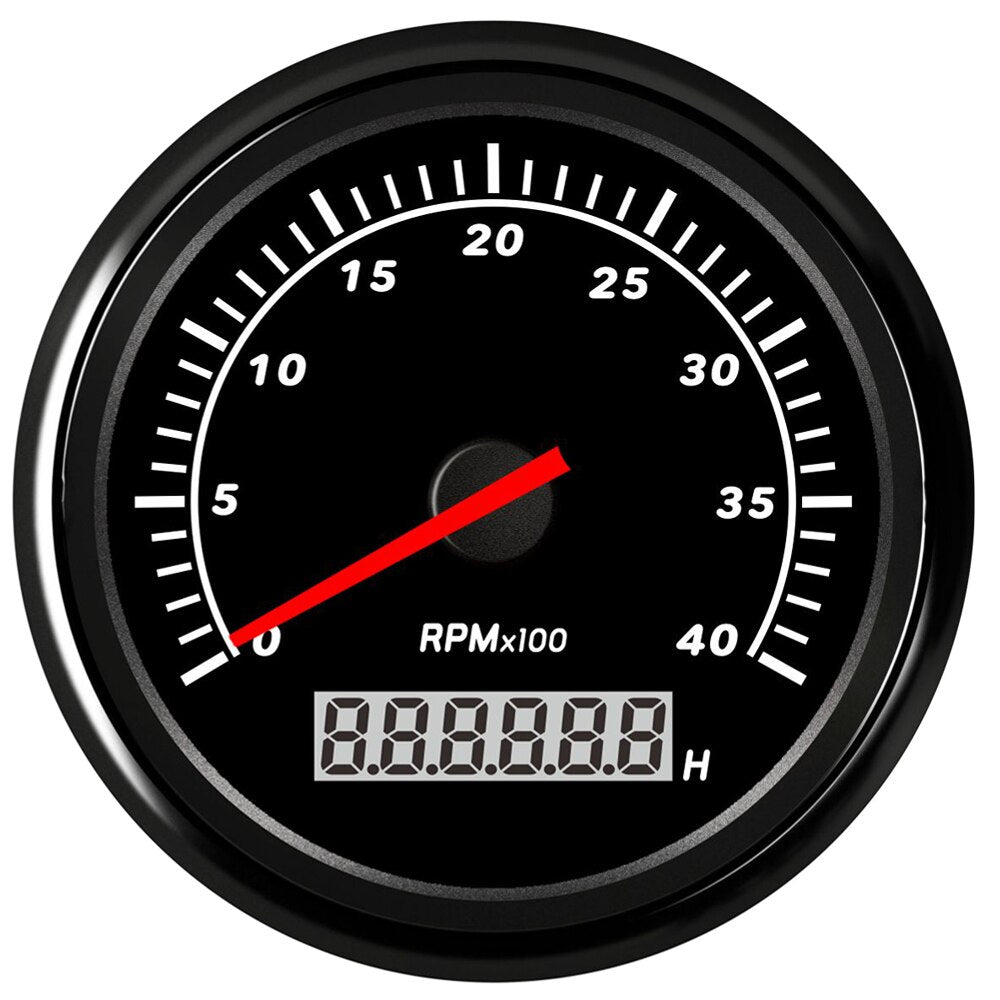

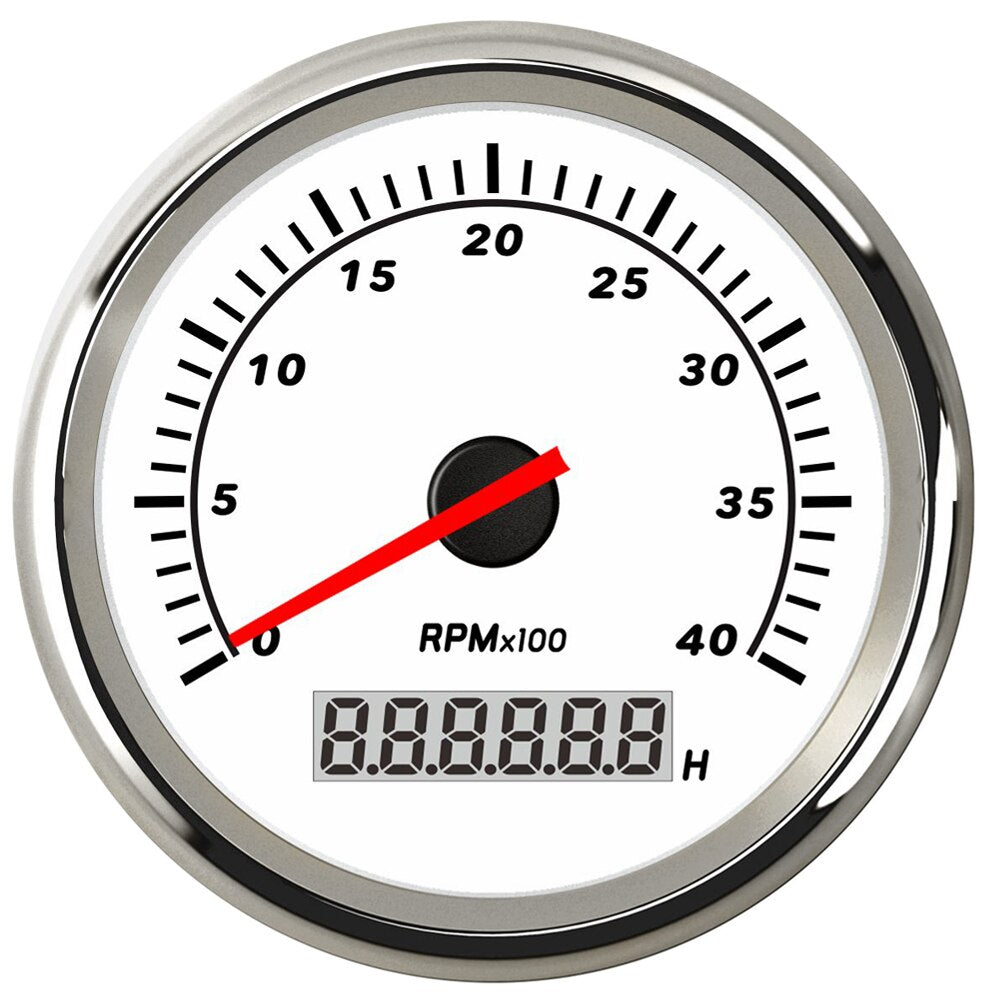

0-4000RPM[85MM Diameter]

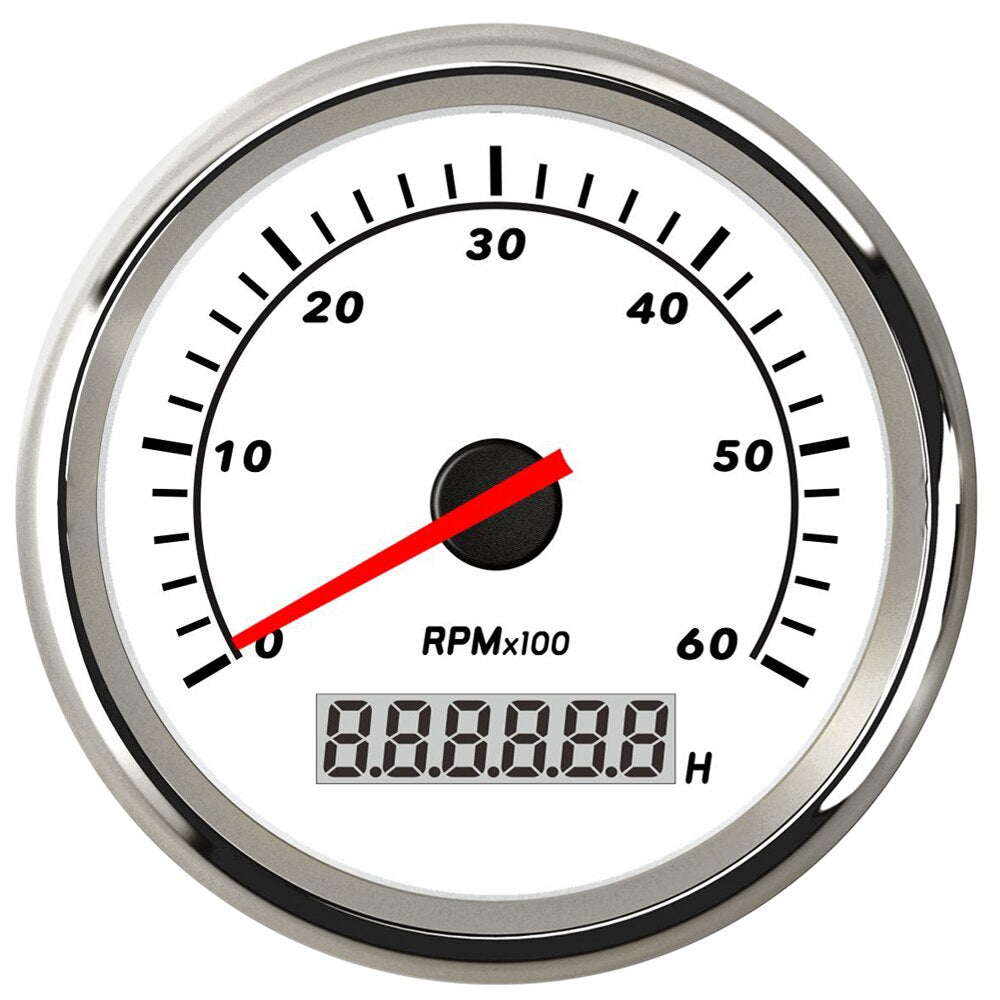

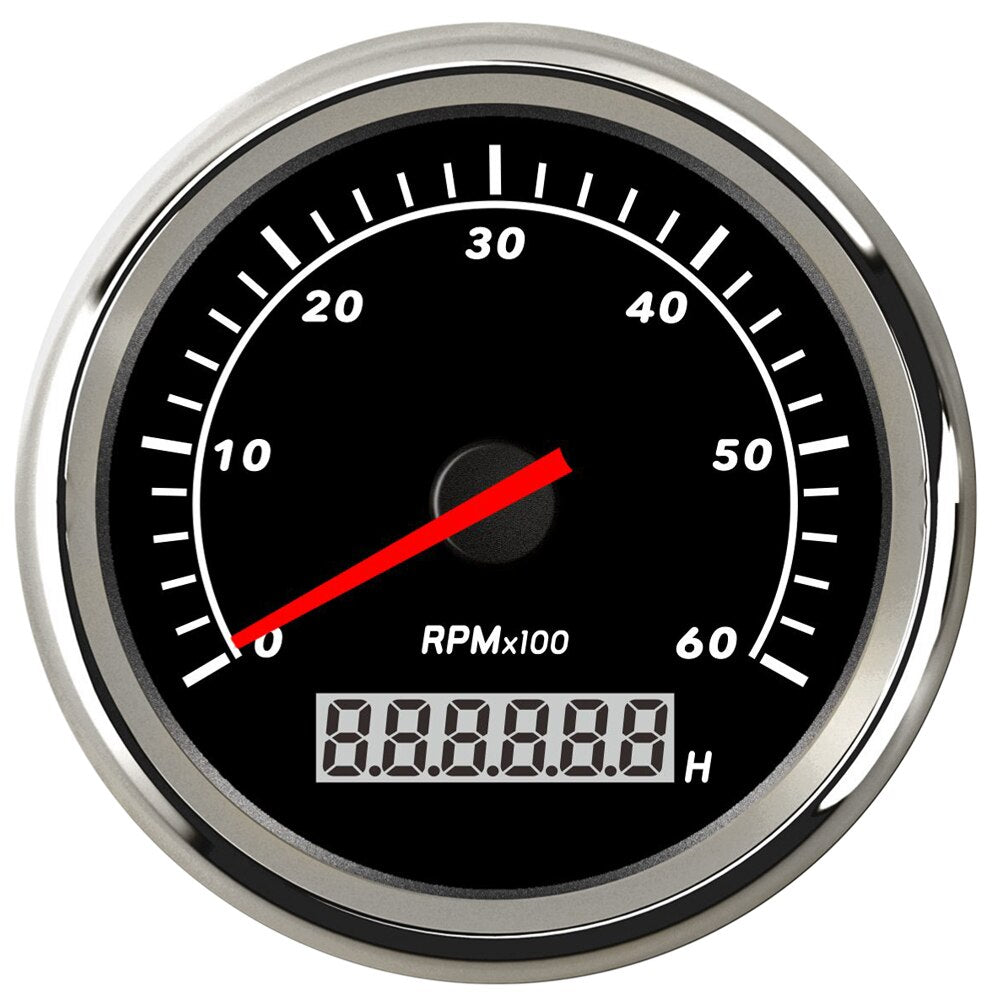

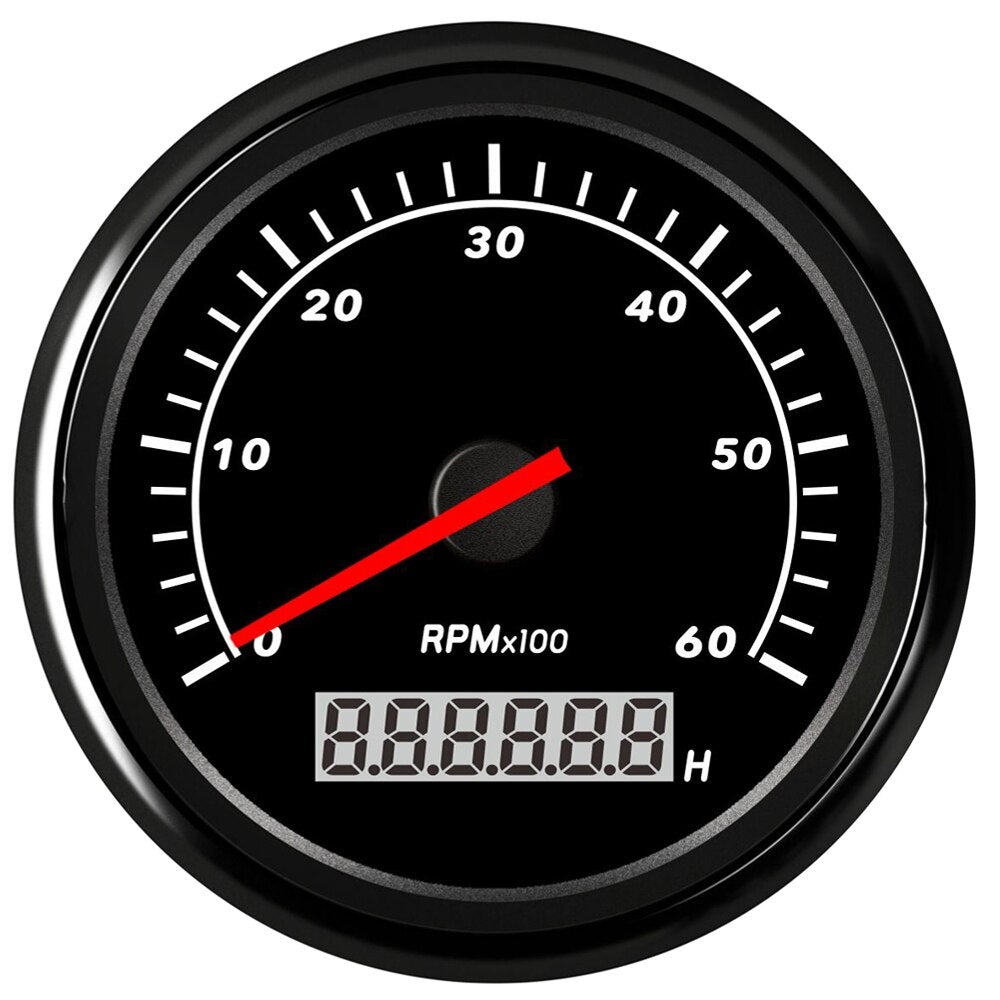

0-6000RPM[85MM Diameter]

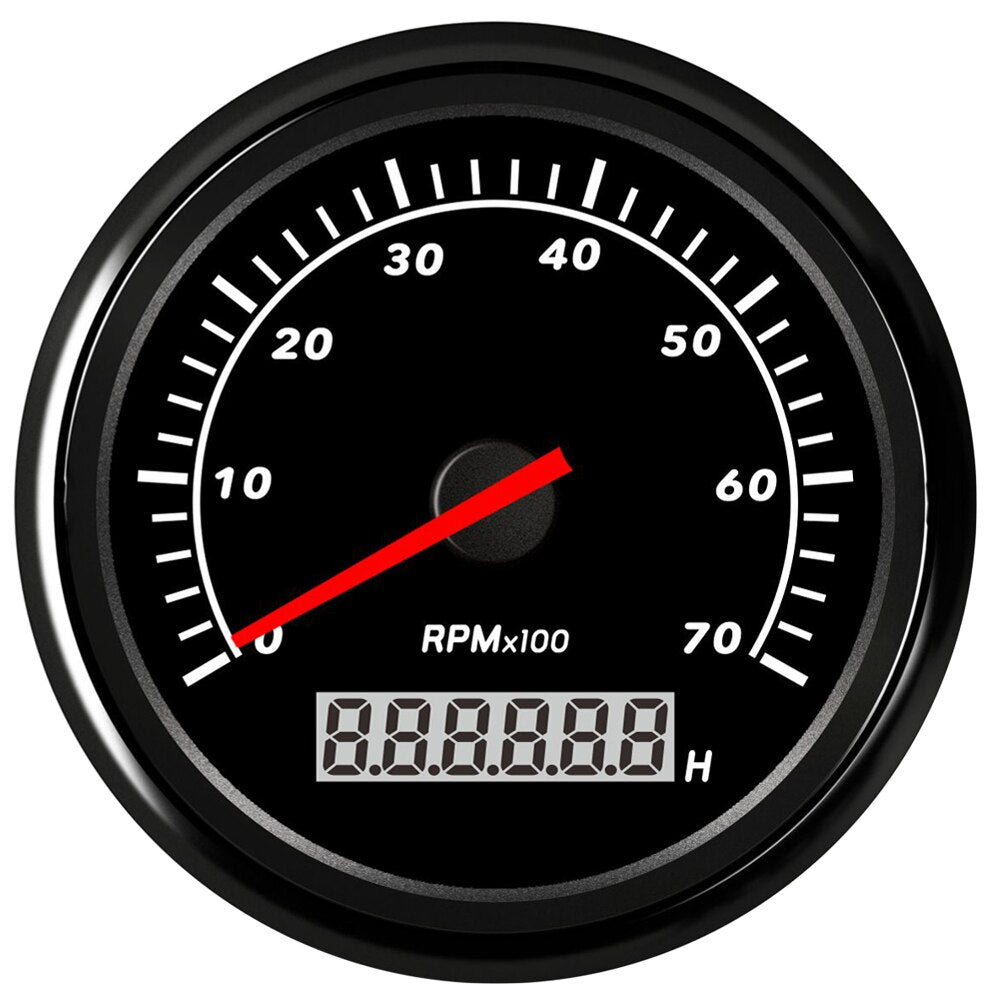

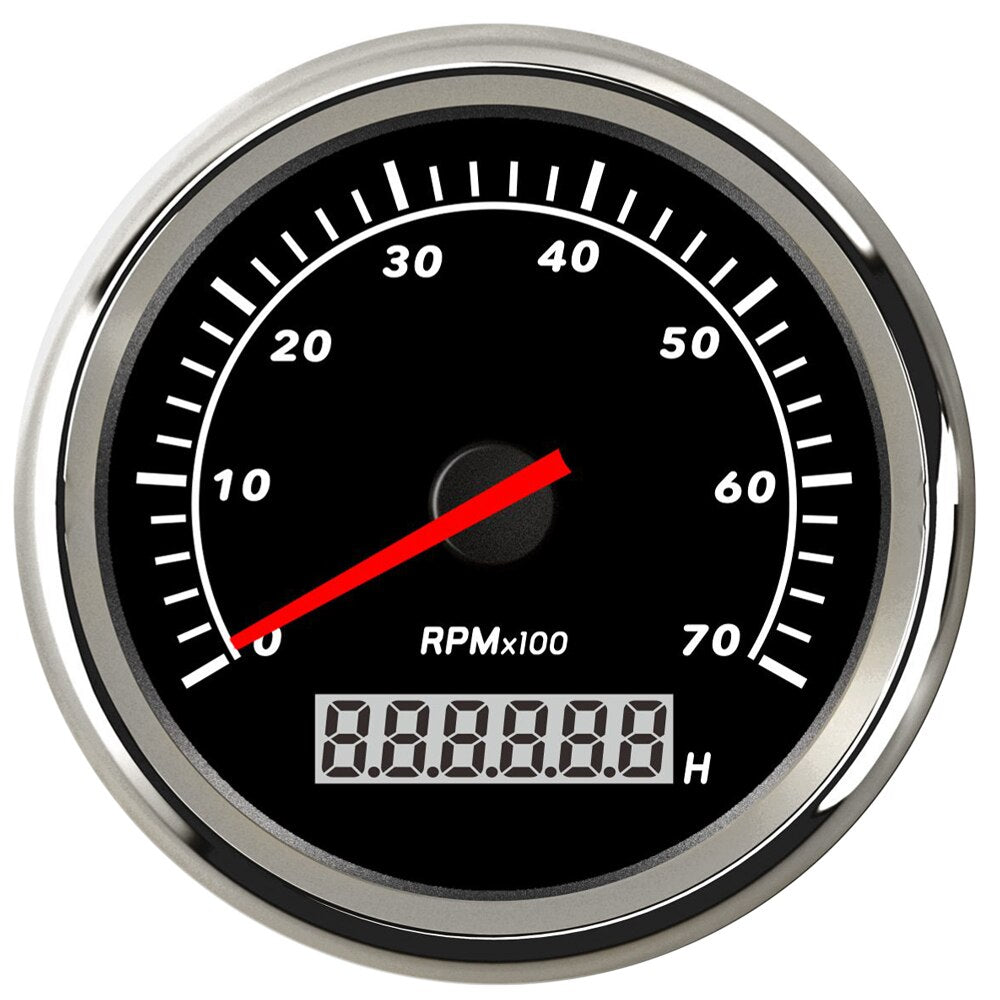

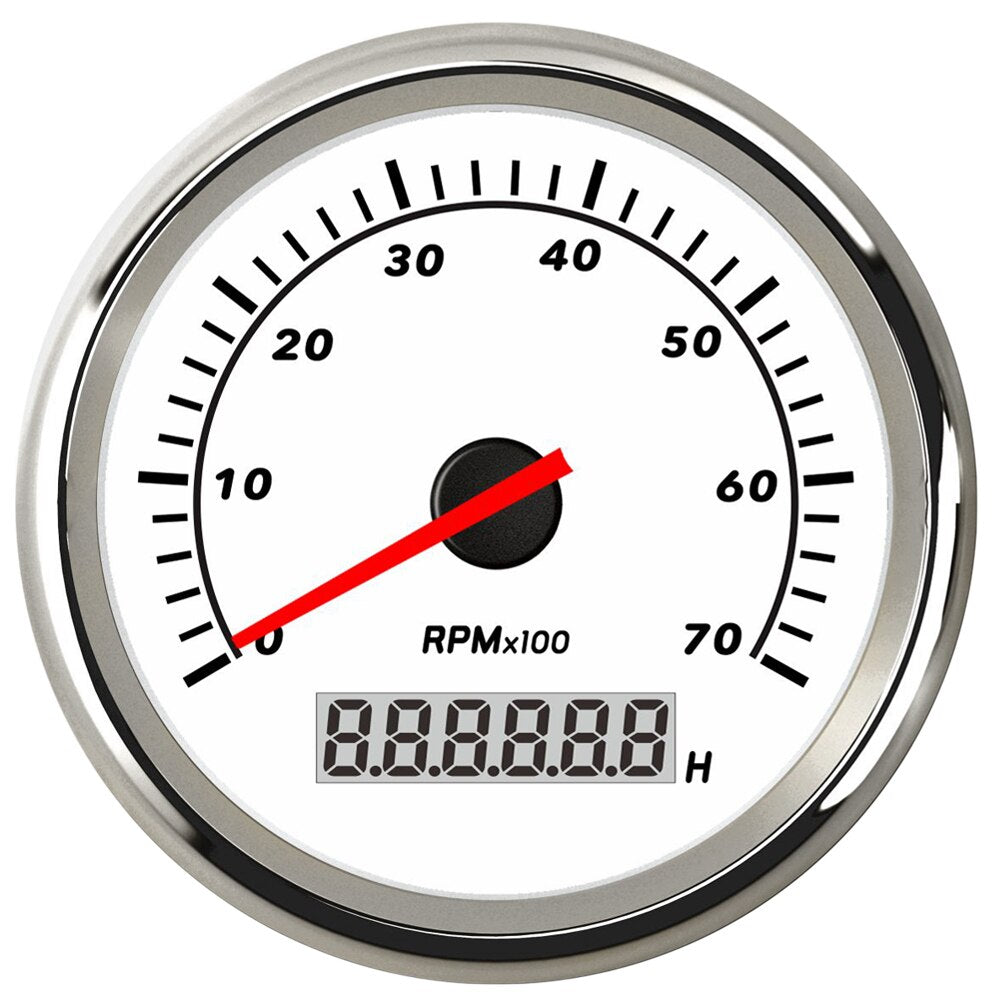

0-7000RPM[85MM Diameter]

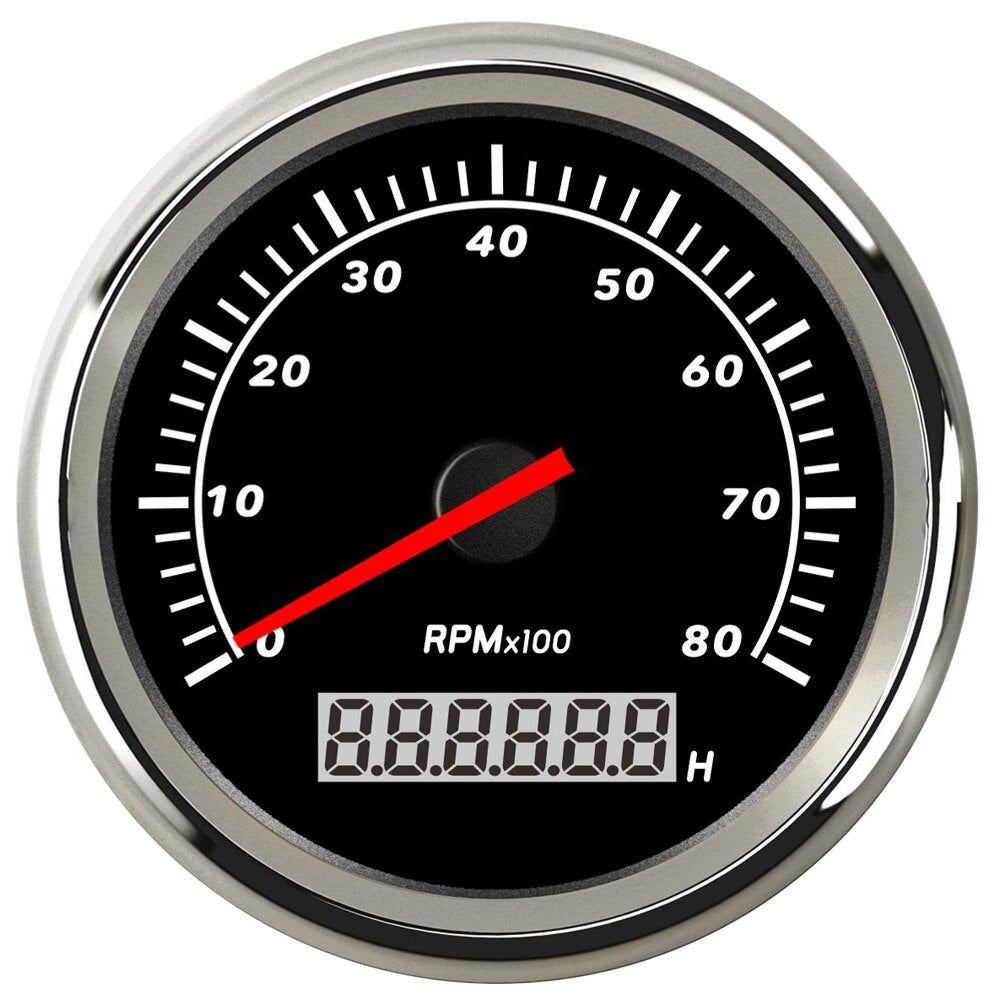

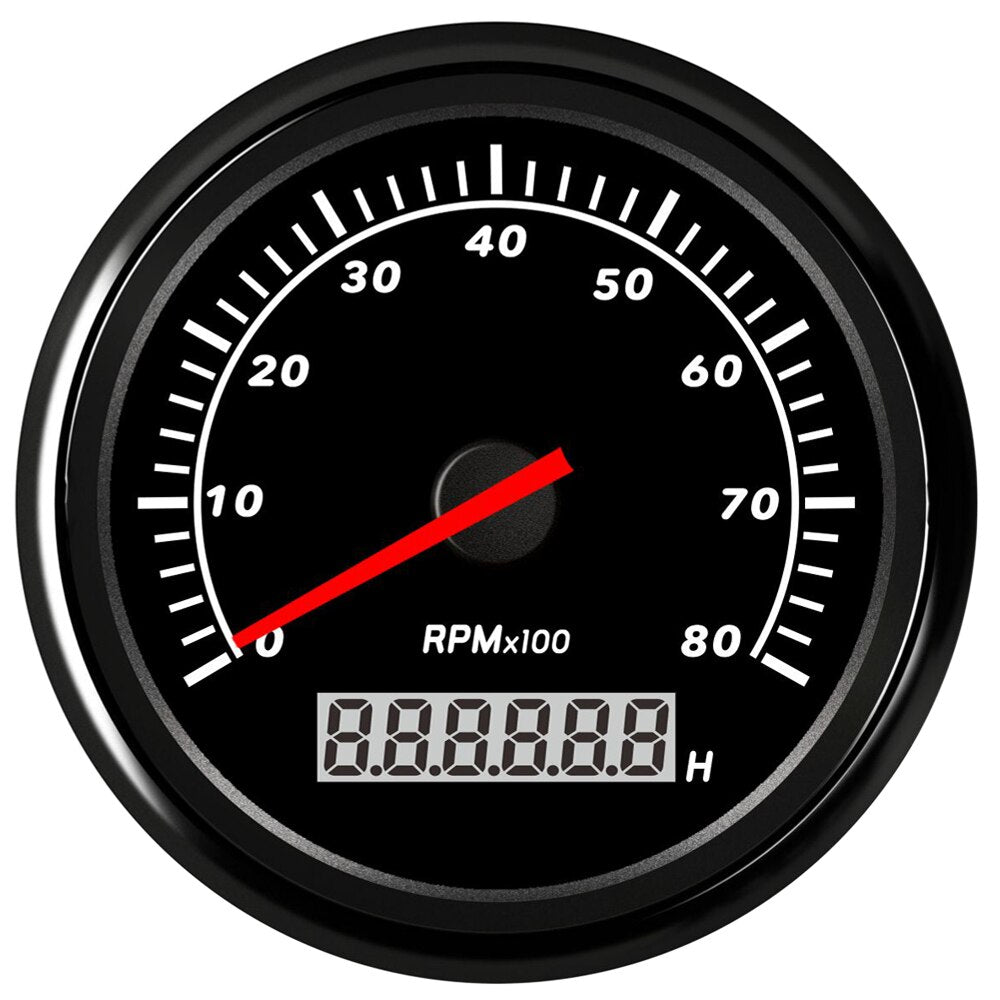

0-8000RPM[85MM Diameter]

Wholesale and drop shipping

- For wholesale, we will offer the discount or free express shipping which only takes 3-7 days to arrive.

- For drop shipping, We could send the goods to your customers directly and won't leave information about us if youd like to.

Sensor Specification:

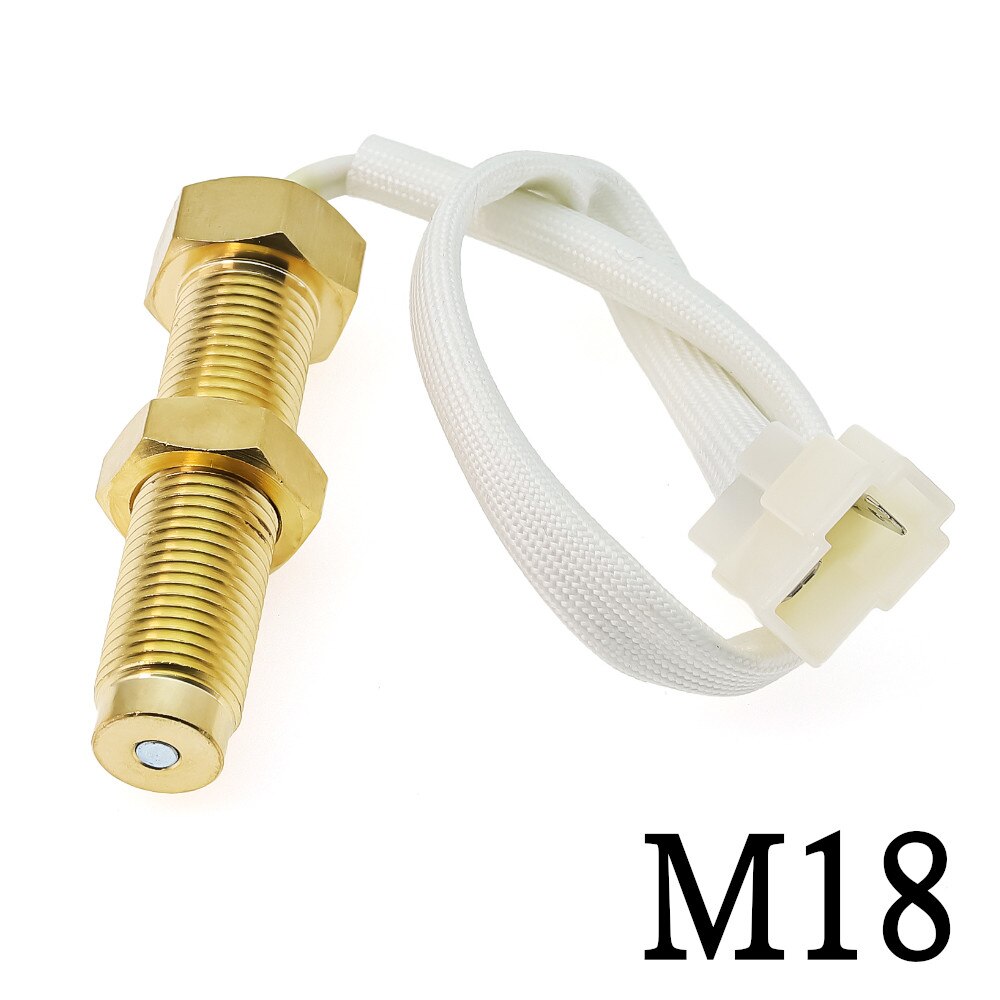

[1].Name: Tachometer Gauge Sensor

[2] Use for Gear Rotation Speed Measurement

[3] Combining The Advantages of Stable Signal, Wide Range of Operating Temperature, Small Size, Simple Assembly, Etc

[4] Signal Duty Factor: 47±5%

[5] Output Signal: Sine Wave

[6] Operating Temperature:-40 to 85℃

[7] Inductance Distance: Less Than 1mm

[8] Tooth Module: 2~6

[9] Connecting Way: Two Wires Connecting

[10] Protection Rank:Waterproof IP67

Please attention:

Please attention we have 2 model sensor size: 80mm*18mm (L*W) , 72.12mm *16mm(L*W)

Package Included(as picture):

1X Tachometer Gauge Sensor
