Weldingcurrent: up to 350A.

Rating: DC: 350 A, AC: 250 A, Duty Cycle 100%.

Electrode Range: 0.5–4.0 mm (0.020–5/32 in).

Default Collet and Body: 2.4mm.

Cable: 4 meters (13ft) length.

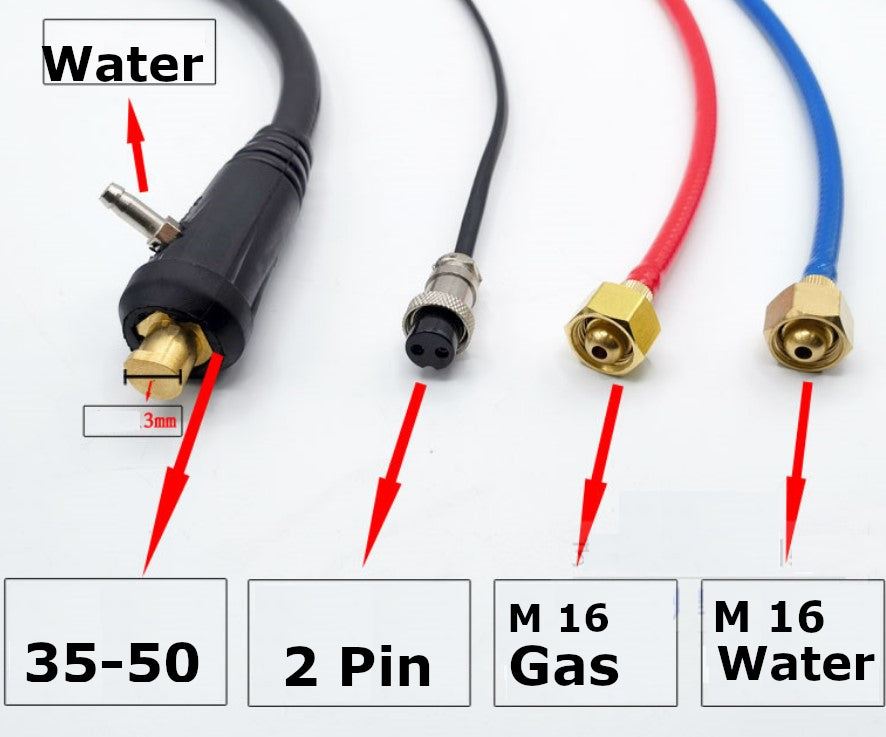

Default quick connector DKJ35-50. (DKJ 16-1, DKJ 50-70, DKJ 70-95, DKJ 35-1, DKJ 50-1, DKJ 70-1, DKJ 95-1, are available, if you want to change, please leave a message or contact us).

Default Gas Connector: M16. ( M10, M12, M14 are available, if you want to change, please leave a message or contact us).

Default Water Connector: M16 ( M10, M12, M14 are available, if you want to change, please leave a message or contact us).

Default Control Connector: 2pin.

Attention: there are different connections on market, you may need to change connections if your connection
method is different.

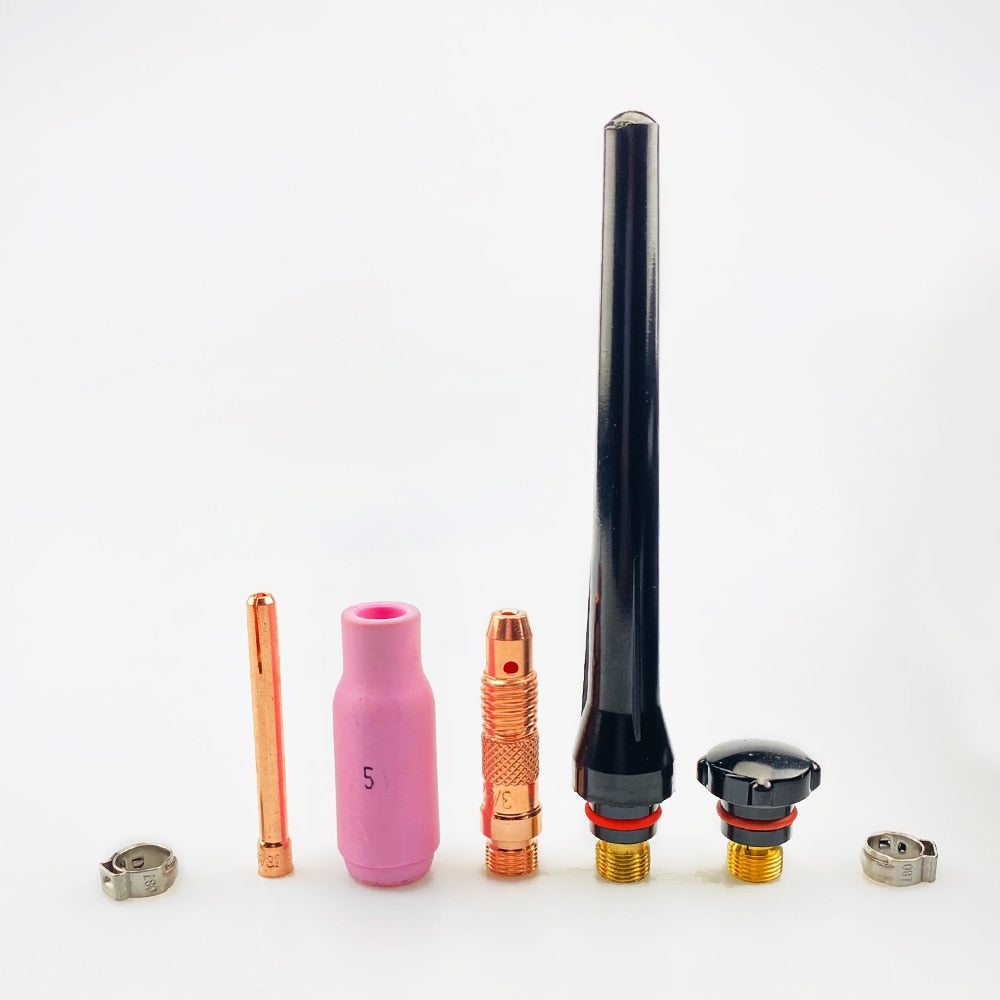

Packing list:

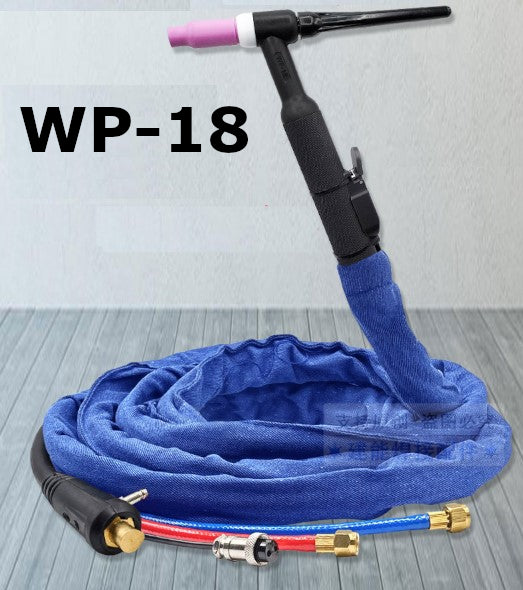

1pcs wp18 torch 4m

1pcs long back cap

1pcs short back cap

1pcs collet body 2.4mm

1pcs collet 2.4mm

1pcs ceramic nozzle #5

2pcs pipe clamps
