SPECIFICATIONS
Welding Type: Tig Torch
Welding Capacity: 125A DC 80A AC
Type1: SR9 SR9F SR9V SR9FV
Type0: WP9 WP9F WP9V WP9FV
Type: Welding Torch
Torch Head Connector: 3/8"-24RH
Origin: Mainland China
Net length of wire: 3.8m/12.5ft, 7.6m/25ft
Model Number: WP-9 Series
Model Number: Welding Torch
Certification: CE
Brand Name: HA&VS
100% Brand New and High Quality.
Shape & Color: Same as the picture show
Product Description:
Copper Wire Gauge: Approx AWG #7 /(0.141") /10mm²
Torch Head Connector: 3/8"-24RH
Torch Head Type:WP-9,WP-9V: WP-9F(Flex), WP-9FV(Flex Valve)
Net length of wire: 3.8/12.5FT, 7.6m/25FT

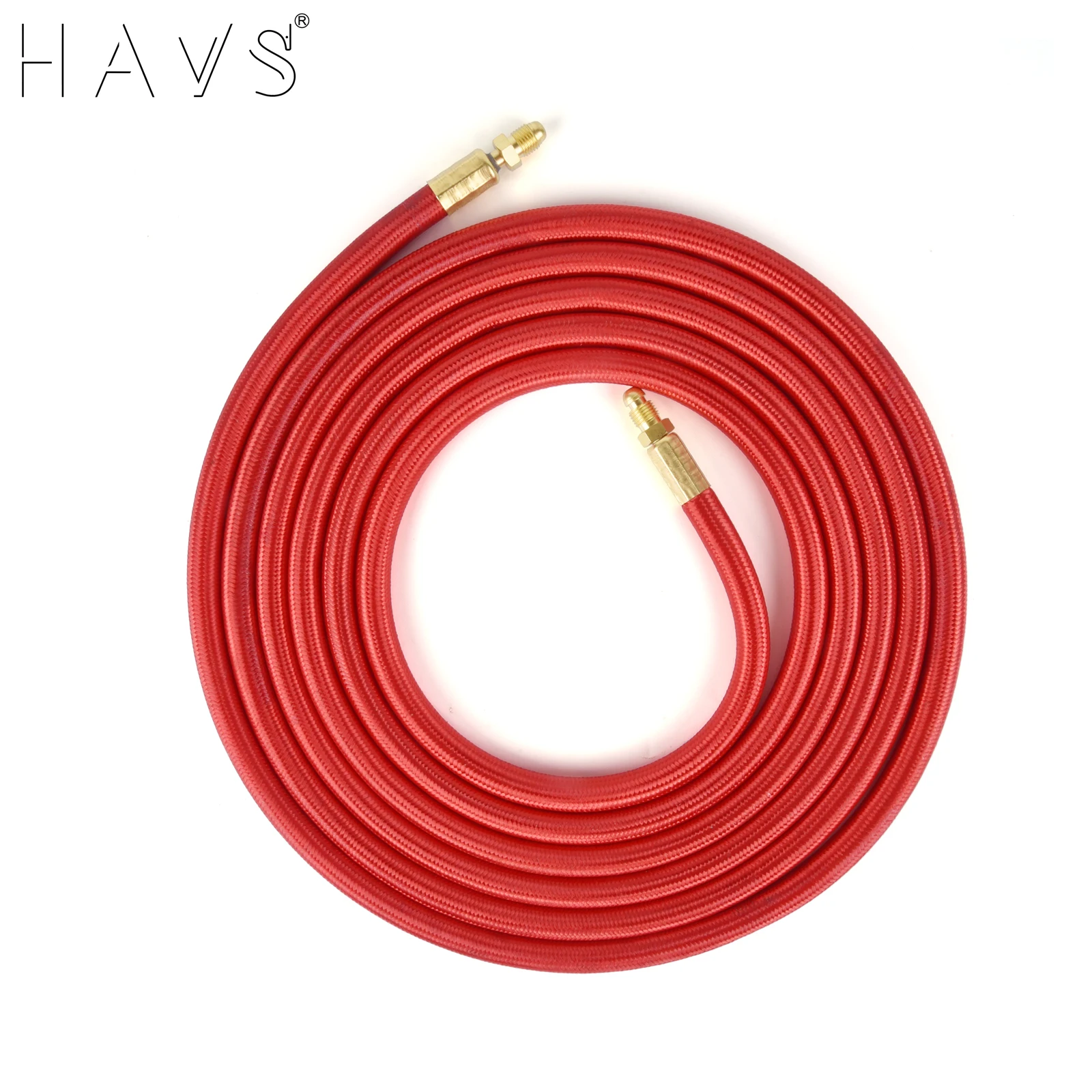

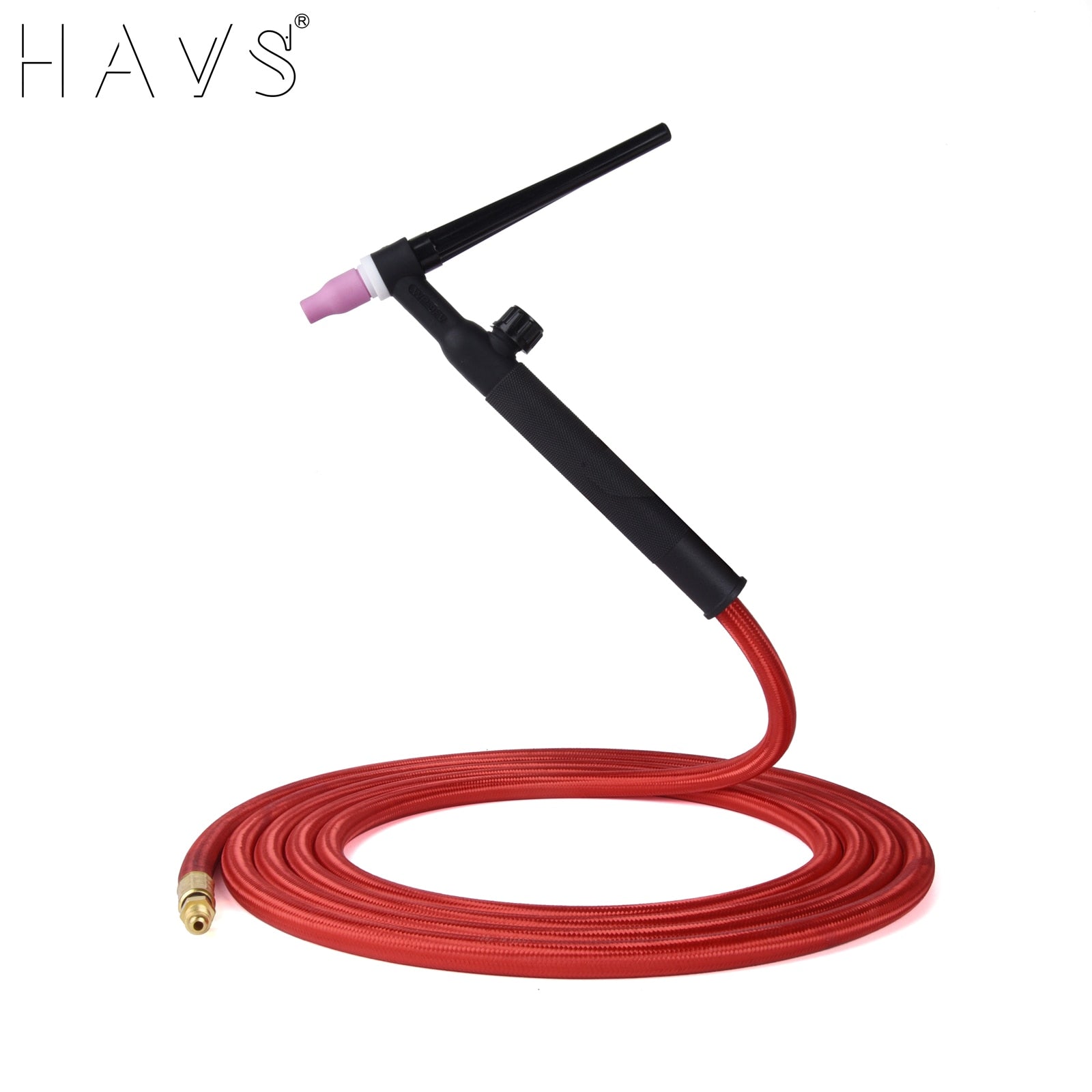

Premium quality 125Amp air-cooled Weldcraft style WP9 Series TIG torch with 12.5FT/25FT Rubber Red power cable (1-Piece style).
With cable cover and accessory kit.

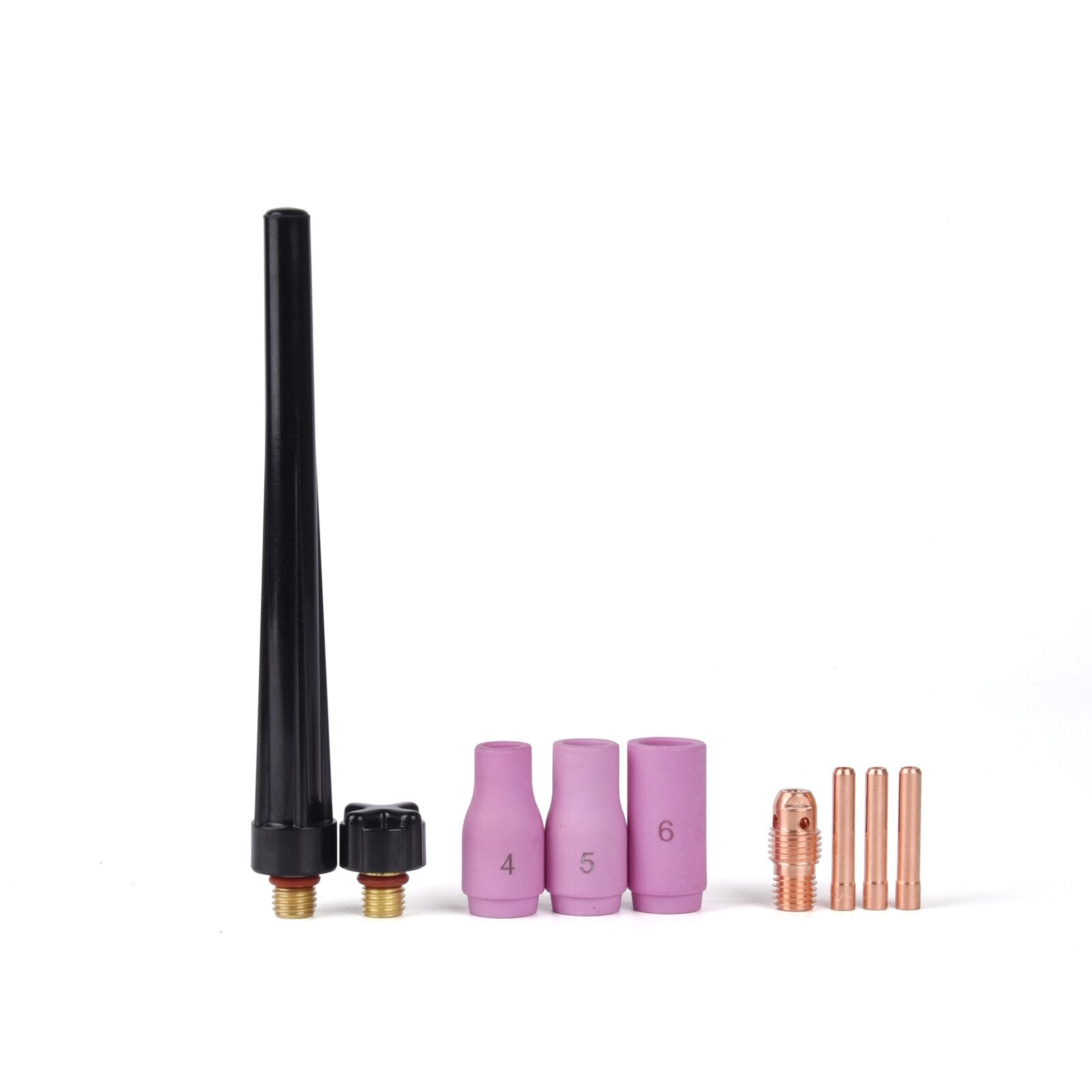

Spare Part:
13N08 (D6.5 x 1/4'' size 4*29mm)*1
13N09(D8.0 x 5/16'' size 5*29mm)*1
13N10(D9.5 x 3/8'' size 6*29mm)*1
13N22(1/16"&1.6mm)*1
13N22M(5/64" & 2.0mm)*1
13N23(3/32" & 2.4mm)*!
13N28(3/32" & 2.4mm)*1
41V24(Long Back caps)*1
41V33(Short Back caps)*1
WP9/WP9V/WP9F/WP9FV(Torch Handle Type(with cup gasket))*1

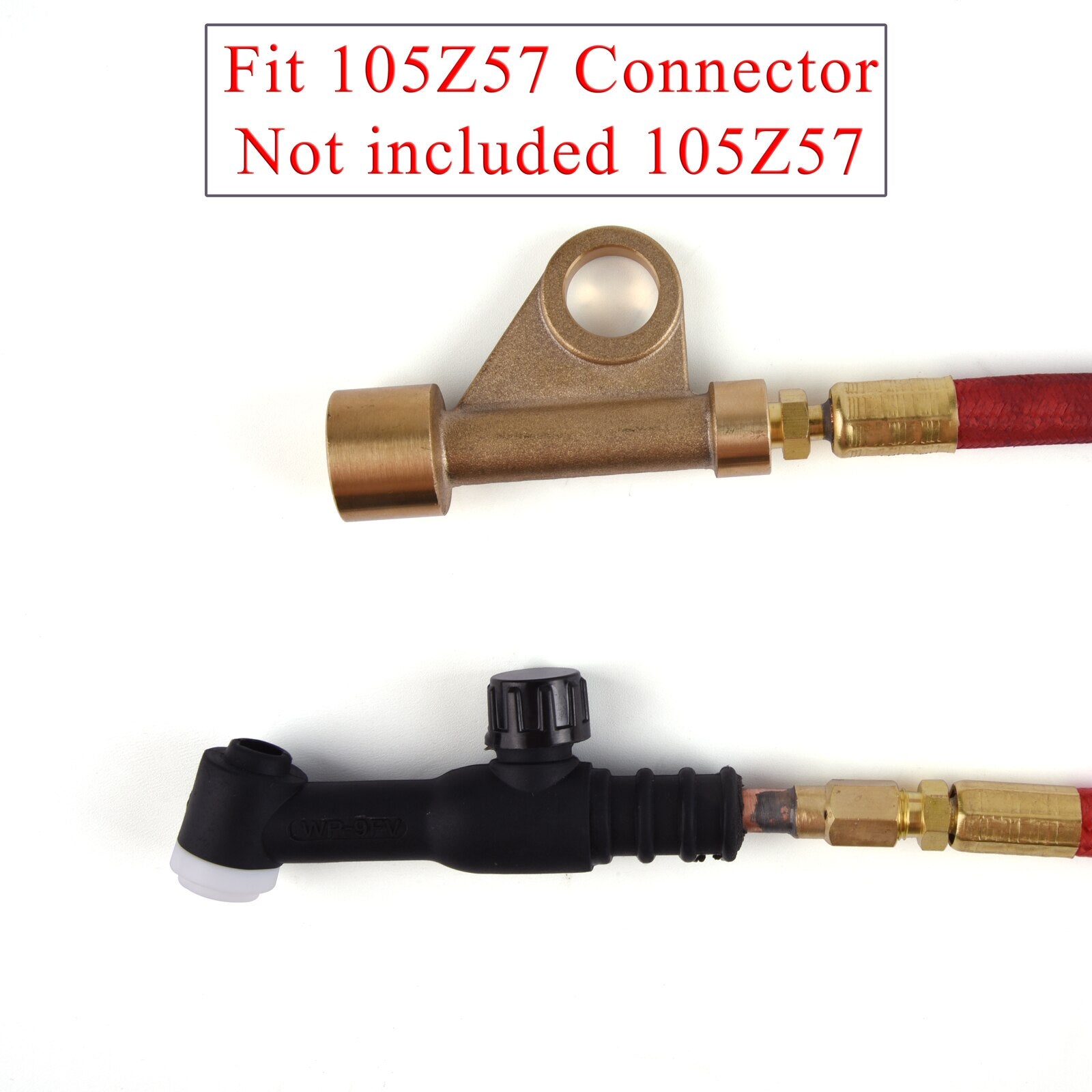

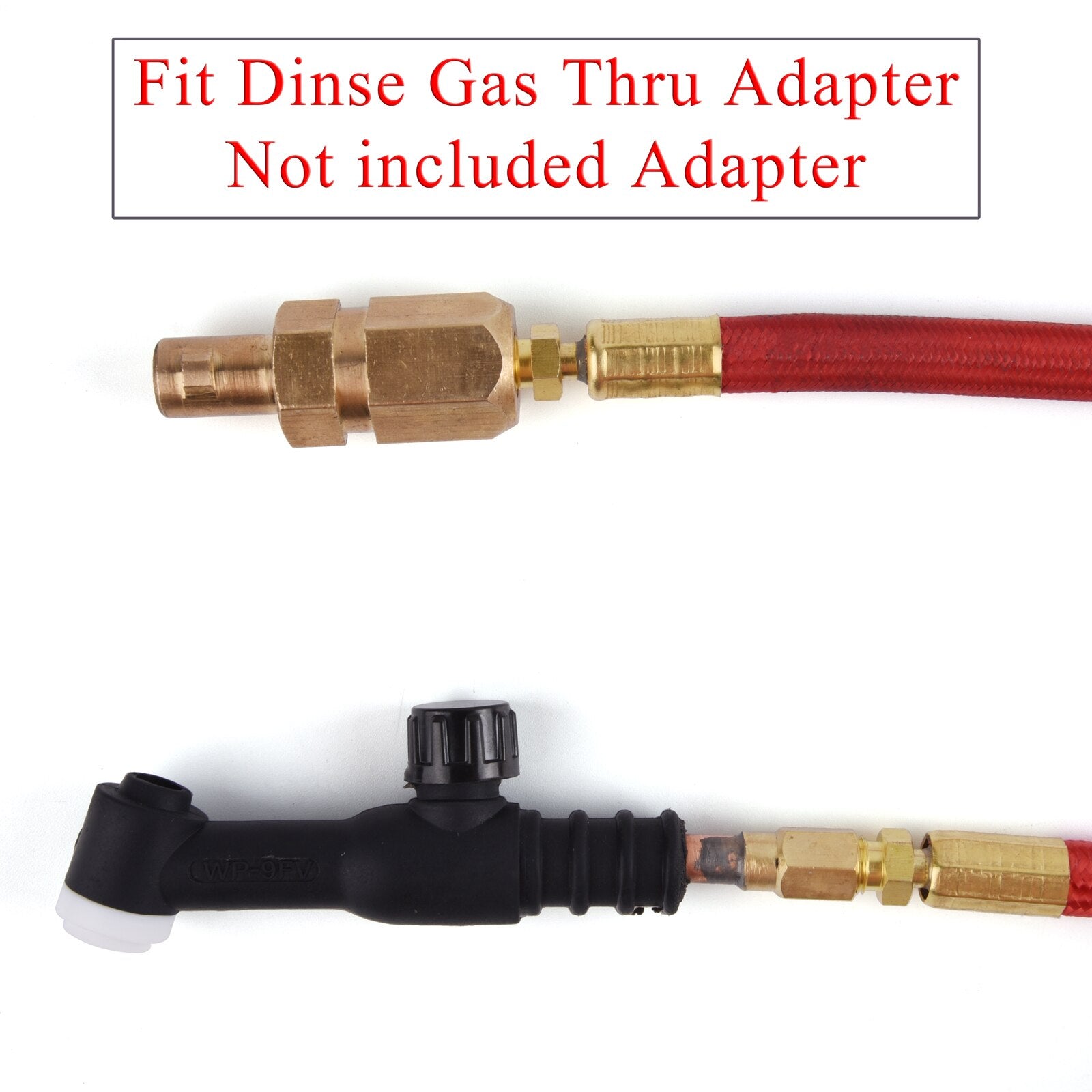

Rear power/gas fitting is Weldcraft style 105Z57 and Fit Dinse Gas Thru Adapter。(Not included Adapter).
Use standard Weldcraft style TIG consumables and parts.

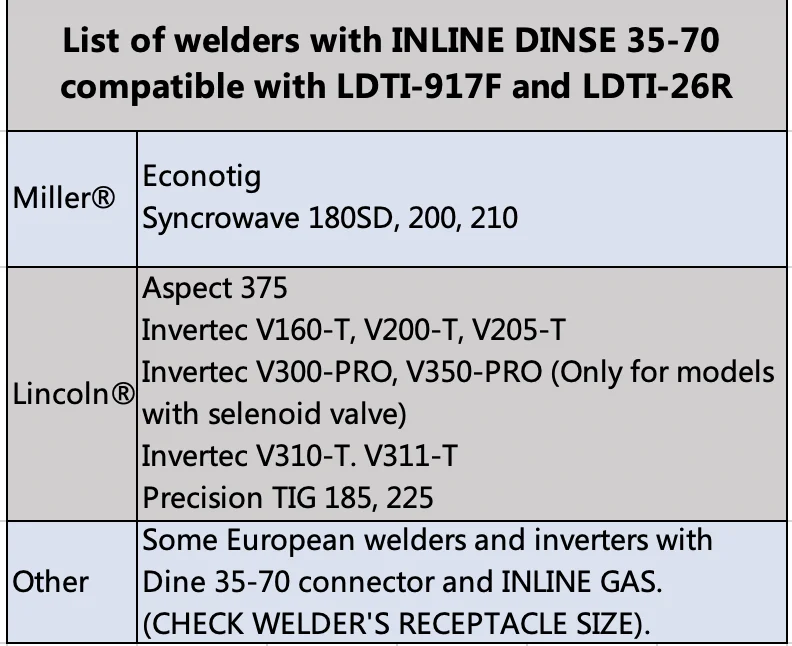

Ideal replacement TIG welding torch for many brands welders like Lincoln Miller ESAB Eastwood AHP Everlast Weldcraft etc. Appropriate connection adapter needed.
(Please refer to Figure #3~#6 for the relevant dimensions and connection accessories , and please refer to the above figure for the list of compatible welders.)
Applications:
Fabrication, Maintenance and repair, Aerospace, Food and beverage industry, Metal art,Petro/chemical, Shipboard installation/repair
Type As Your Choice!!
Quantity As Your Choice!!
Thanks for your visit & Happy cooperation!!
Note: The measurement data has an error of 1% to 5% due to nature and measurement tools.
