10M Heat-resistant Soft Electrical Silicone Wire Cable

  • 10M Heat-resistant Soft Electrical Silicone Wire Cable - KiwisLove
  • 10M Heat-resistant Soft Electrical Silicone Wire Cable - KiwisLove
  • 10M Heat-resistant Soft Electrical Silicone Wire Cable - KiwisLove
  • 10M Heat-resistant Soft Electrical Silicone Wire Cable - KiwisLove
  • 10M Heat-resistant Soft Electrical Silicone Wire Cable - KiwisLove
1 5

KiwisLove

Specification
$44.00
$44.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

There are different options in this auction, you can switch options via button above “Buy Now”. Please make sure you have chosen the right option before placing an order.

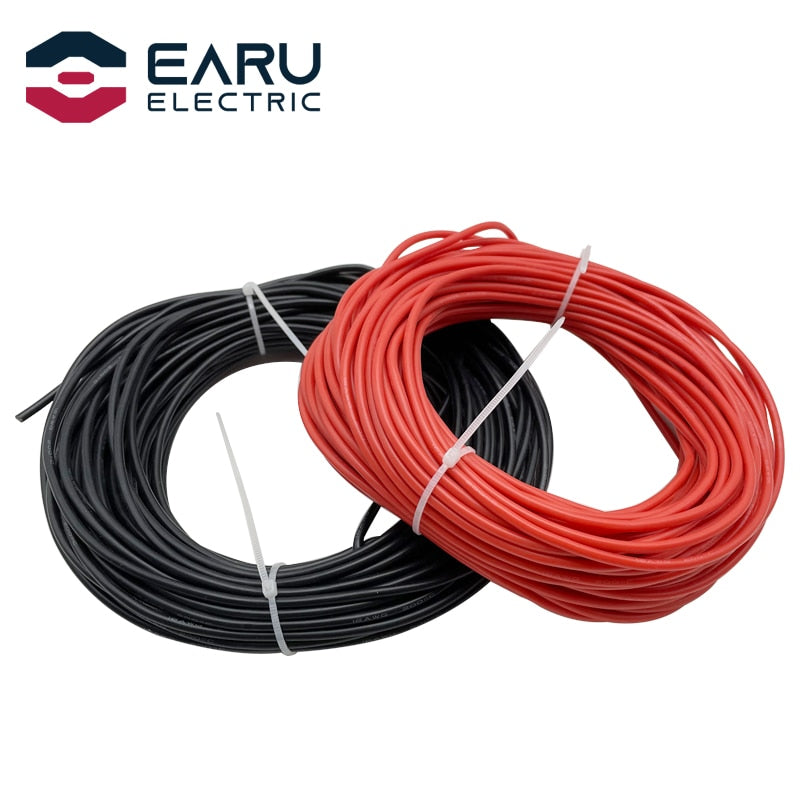

Package including:
5m Red silicone wire

5m Black silicone wire

Products are widely used in electronics, batteries, model aircraft battery, model wiring harness, electric appliance and equipment instrument internal connections,Large transformer and lamps and lanterns and motor lead wire connection wire, etc.

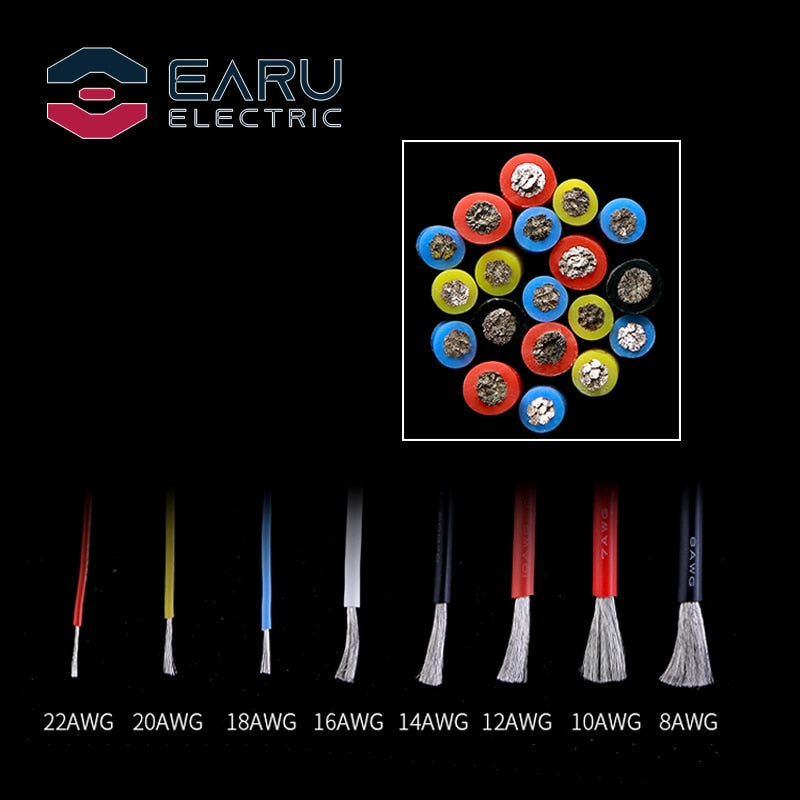

Special soft high temperature silicone wire

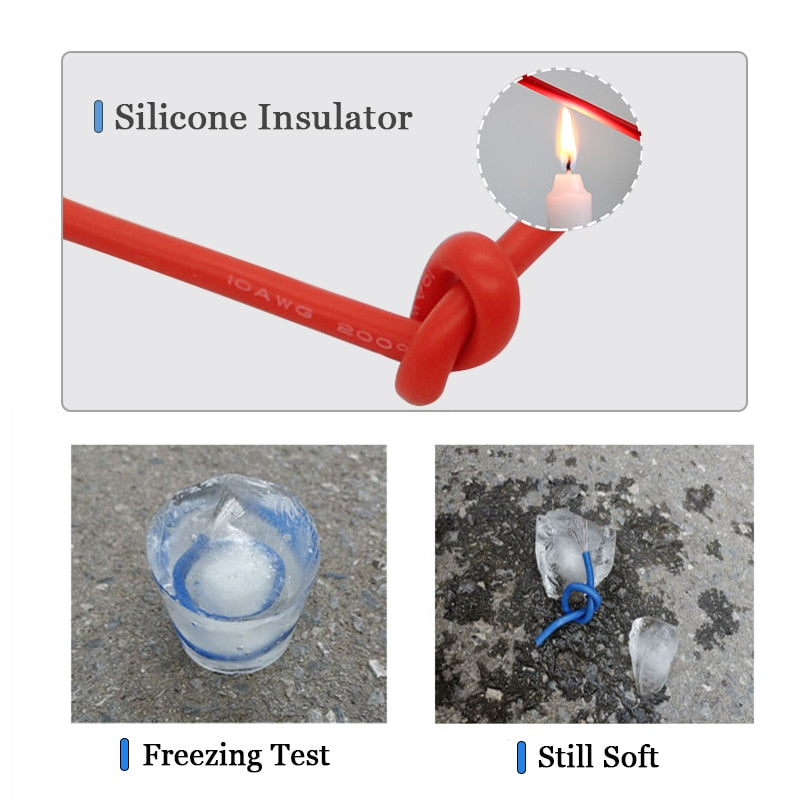

Temperature : -65 degrees to +200 degrees ---

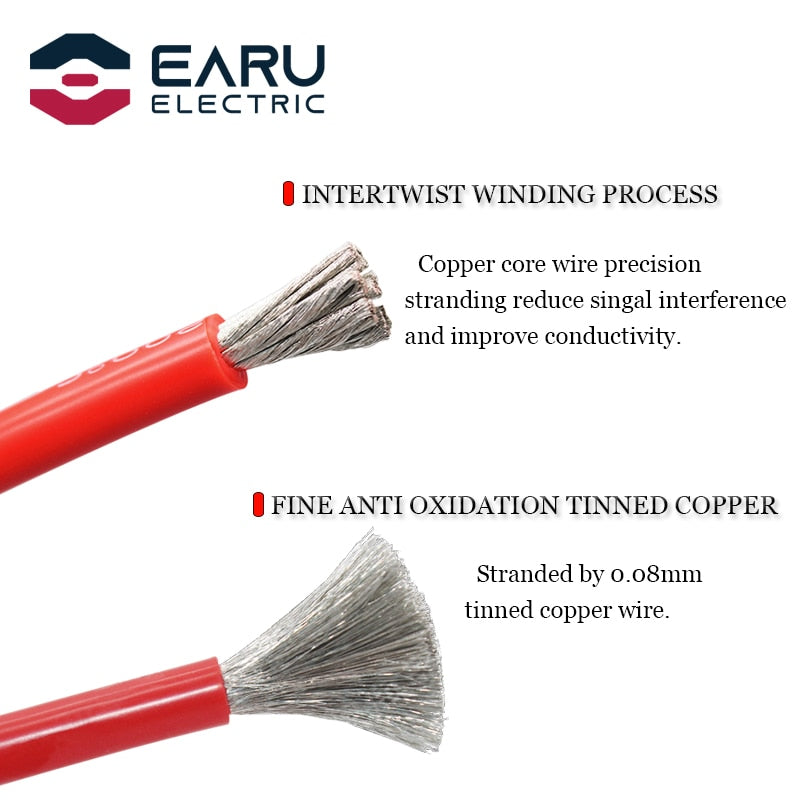

Sheath material: silicone rubber, Core material: tinned copper wire

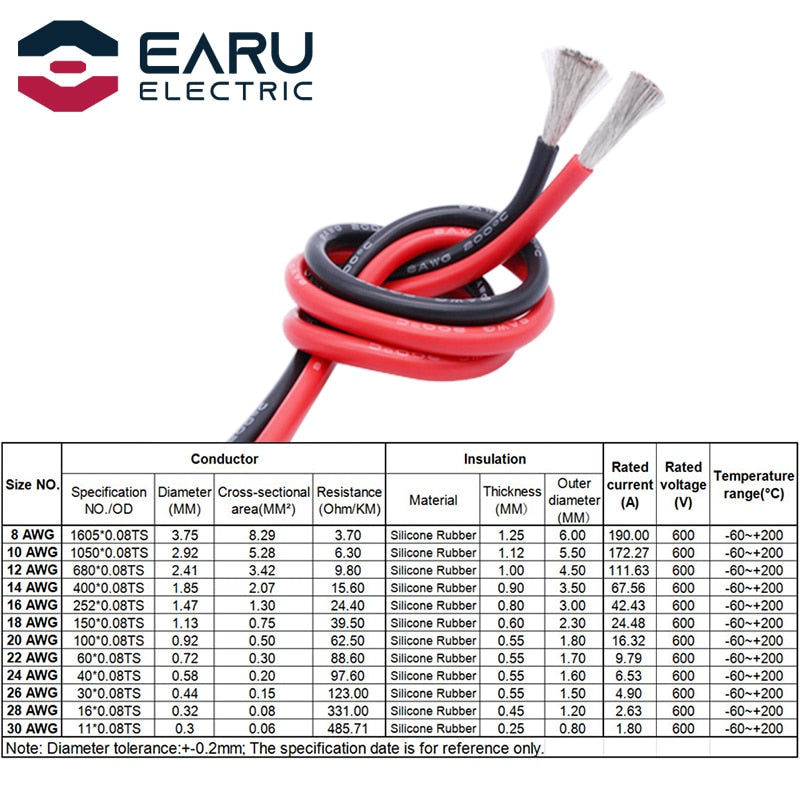

8AWG:

single wire diameter : 0.08mm
Inner core : 1605 Share

Maximum outer diameter of the wire: 6.0 (mm), Outer diameter tolerance: ±0.1mm



10AWG
single wire diameter : 0.08mm
Inner core : 1050 Share
Outer diameter : 5.5mm
12AWG
Single wire diameter : 0.08mm
Core : 680 shares
Outer diameter : 4.5mm



14AWG
Single wire diameter : 0.08mm
Core : 400 shares
Outer diameter : 3.5mm

16AWG
Single wire diameter : 0.08mm
Core : 252 shares
Outer diameter : 3.0mm

18AWG
Single wire diameter : 0.08mm
Core : 150 shares
Outer diameter : 2.3mm



20AWG
Single wire diameter : 0.08mm
Core : 100 shares
Outer diameter : 1.80mm

22AWG
Single wire diameter : 0.08mm
Inner core : 60 shares
Outer diameter : 1.70mm

24AWG
Single wire diameter : 0.08mm
Inner core : 40 shares
Outer diameter : 1.60mm



26AWG
Each copper wire diameter: 0.08mm
Core: 30 shares(0.15 square millimeters)
Outer diameter: 1.5mm



28AWG
Each copper wire diameter: 0.08mm
Core: 16 shares(0.08 square millimeters)
Outer diameter: 1.3mm

30AWG
Each copper wire diameter: 0.08mm
Core: 11 shares(0.06 square millimeters)
Outer diameter: 0.8mm





Brand Name: EARUELETRIC
Certification: CE
Origin: CN(Origin)
Insulation Material: Silicone
is_customized: Yes
Conductor Material: Copper
Conductor Type: Stranded
Application: Underground
