Bridge CAM Gauge Inspection Gage Weld Seam Throad Pocket Measure tool

Descriptions:

The gage is made of stainless steel,Check Angle of Preparation, Excess Weld Metal, Depth of Undercut, Depth of Pitting, and more.

Features:

◆ WS high quality welding gauge.

◆ General Linear Measurements up to 2"(50mm)

◆ Measurements are possible in either inches or millimeters

◆ The Bridge CAM gauge is mini size, can be put in shirt pocket

◆ All scales and numbers are laser engraving ,clearly marked for good visibility

◆ Gauge is made of stainless steel to ensure durability

◆ Packed in synthetic leather bag for the convenience of storage and carrying ,and better of environmental protection

Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 110g

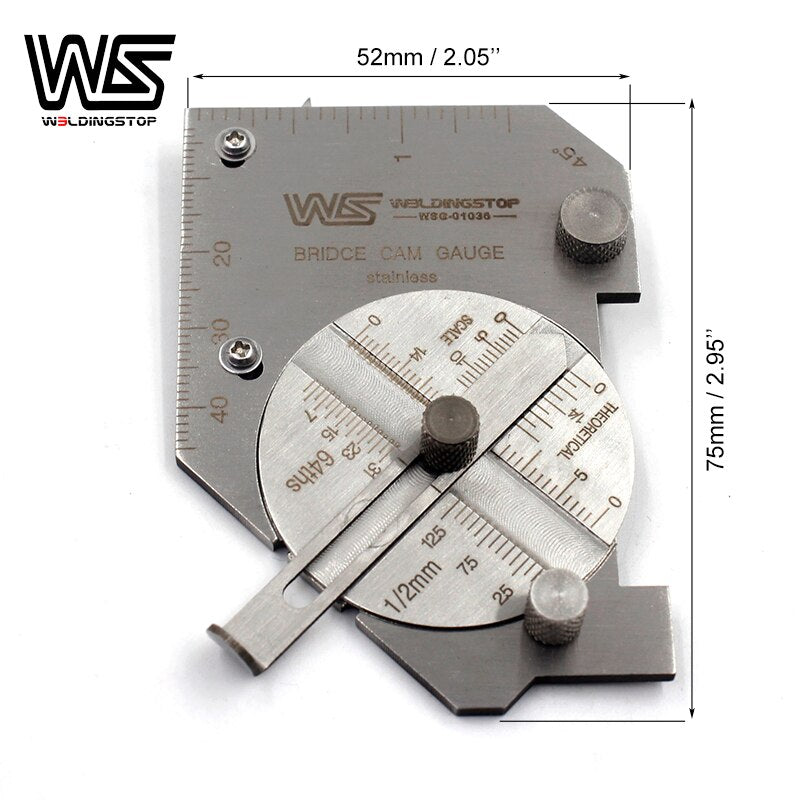

◆ Size：Show in the picture

◆ Transition: 1cm=10mm=0.39inch

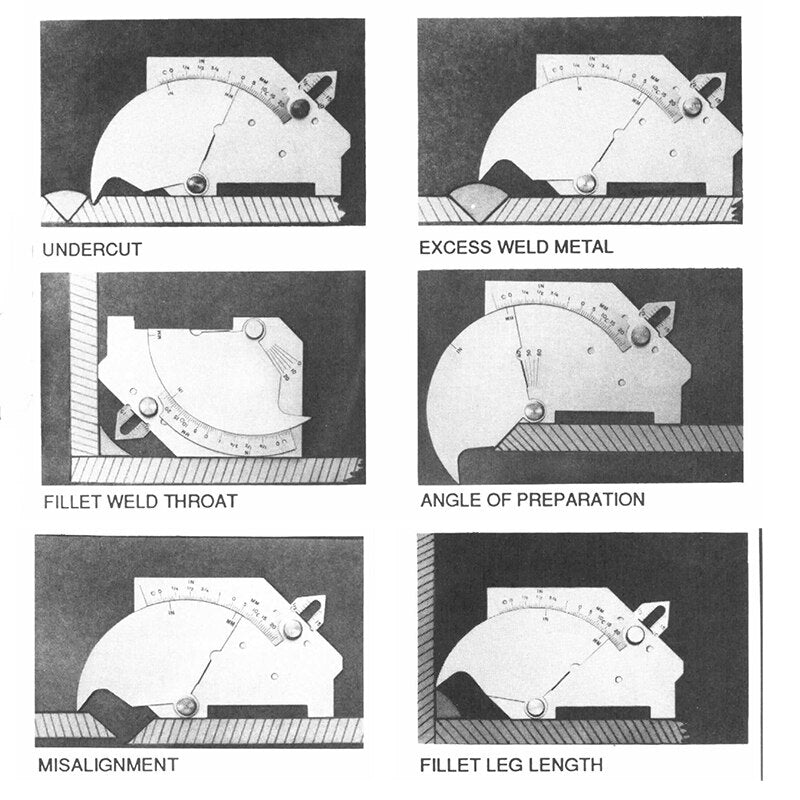

◆ Measuring range:

- Angle of Preparation, 0° to 60°

- Excess Weld Metal (capping size)

- Depth of Undercut by 1/32″

- Depth of Pitting by 1/32″

- Fillet Weld Throat Size (1/64″ or .5mm, Theoretical & Actual)

- Fillet Weld Leg Length

- Misalignment (High-Low)

Package Included:

◆ 1pc x Bridge CAM Gauge WSG-01036

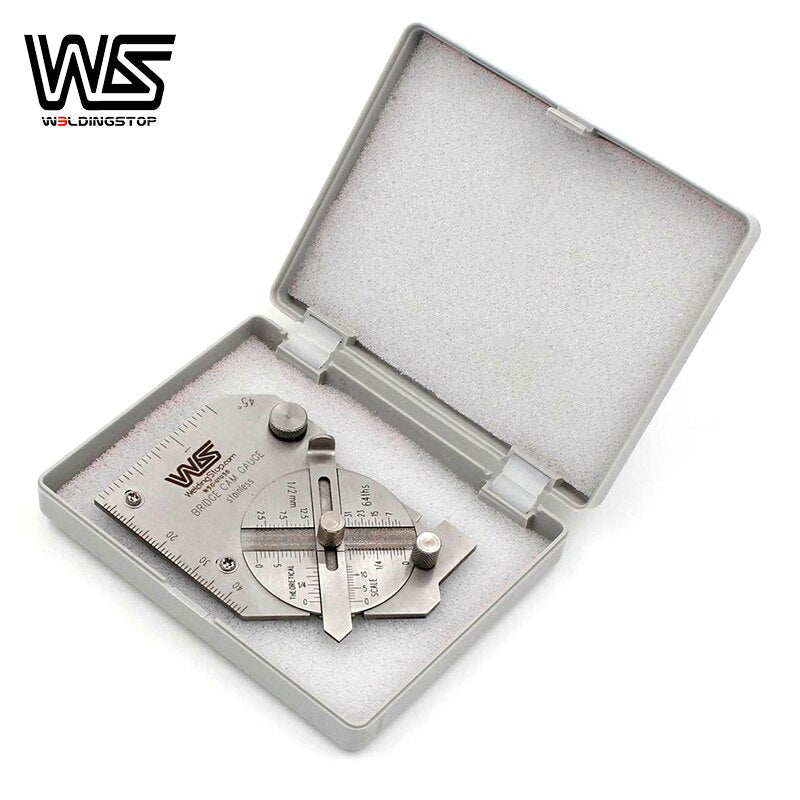

◆ 1pc plastic box
