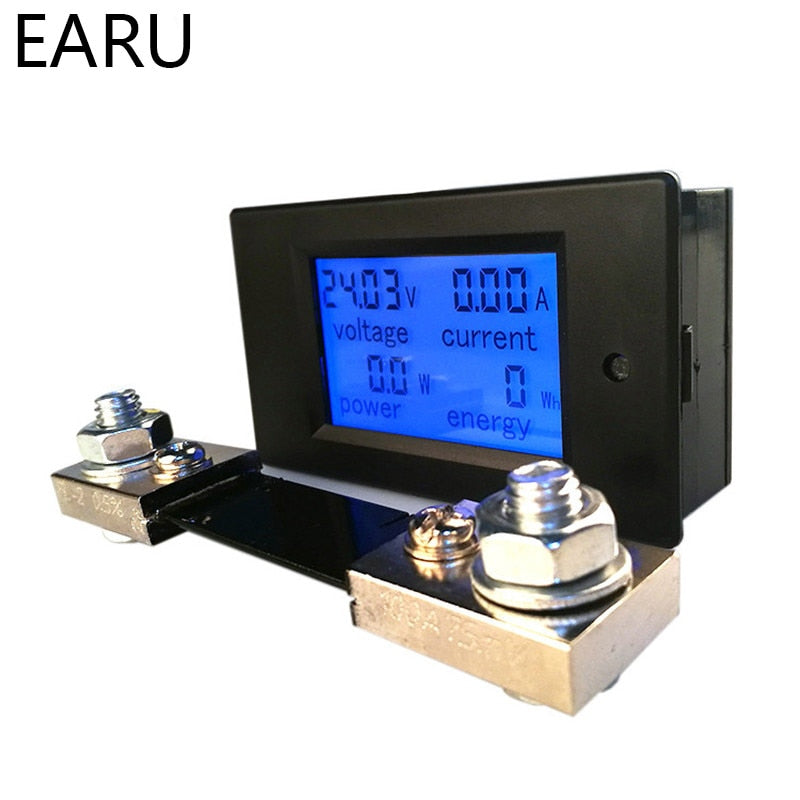

Digital Current Voltage Power Energy Meter Multimeter Ammeter Voltmeter


Color: 100A Meter Shunt
Sale price$25.00


There are different options in this auction, you can switch options via button above “Buy Now”. Please make sure you have chosen the right option before placing an order.

1. Electrical parameter measurement function (voltage, current, active power, energy)

2. Voltage alarm function (over voltage alarm threshold, backlight and voltage flashing to alarm).

3. The reset function of energy key.

4. Store data when power off.

5. Large-screen LCD (display voltage, current, active power, energy at the same time)

6. Backlight function.

Display format

1.       Power: test range: 0~10kW

Within 1KW, the display format is 0.0~999.9W;

1KW and above, the display format is 1000~9999W.

2.       Energy: test range: 0~9999kWh

Within 10KWh, the display format is 0~9999Wh;

10kWh and above, the display format is 10~9999kWh.

3.       Voltage: test range: 6.5~100V

Display format: 6.50~99.99V

4.       Current: test range: 0~100A (0~20A)

Display format: 0.00~99.99

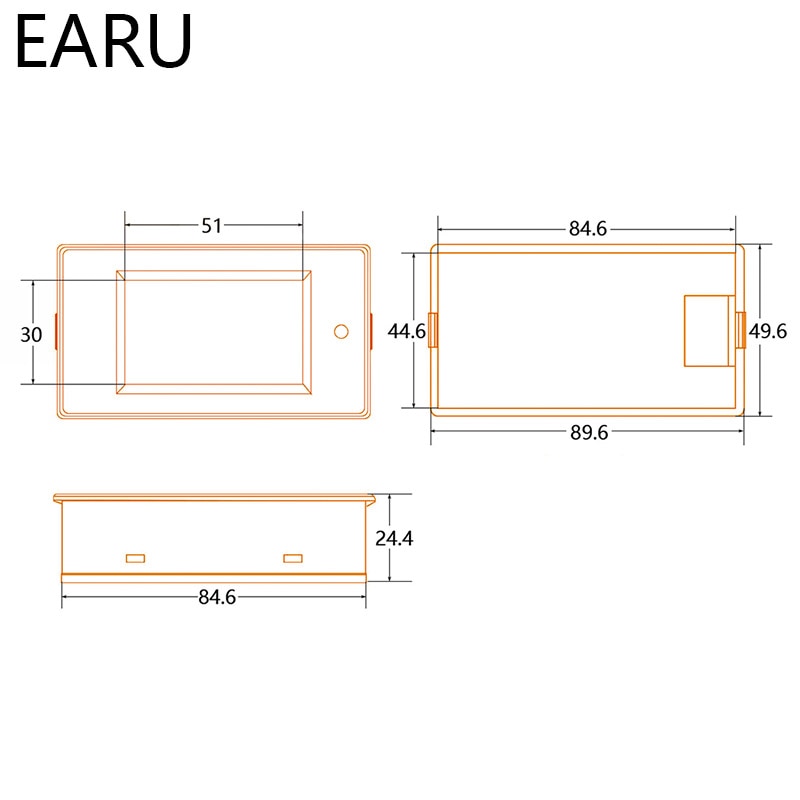

Dimensions: 89.6*49.6*24.4mm(L*W*H)
Display Type: Digital Only
Operating Temperature: -10-60 degree
Power Supply: DC
Accuracy Class: 1.0
Working voltage: 6.5 ~ 100VDC
Test voltage: 6.5 ~ 100VDC
Rated power: 100A/10000W
Measurement accuracy: 1.0
Power: Test range 0~10kW;1kW display format within 0.0~999.9W;
Energy: Test range 0~9999kWh;display format 0~9999Wh;display format 10~9999kW
Feature: Large-screen LCD screen full display function
measurement function: voltage, current, power, energy
Backlight: Blue
Package Listing: Due to what you choose
Measuring Range: 6.5 ~ 100VDC

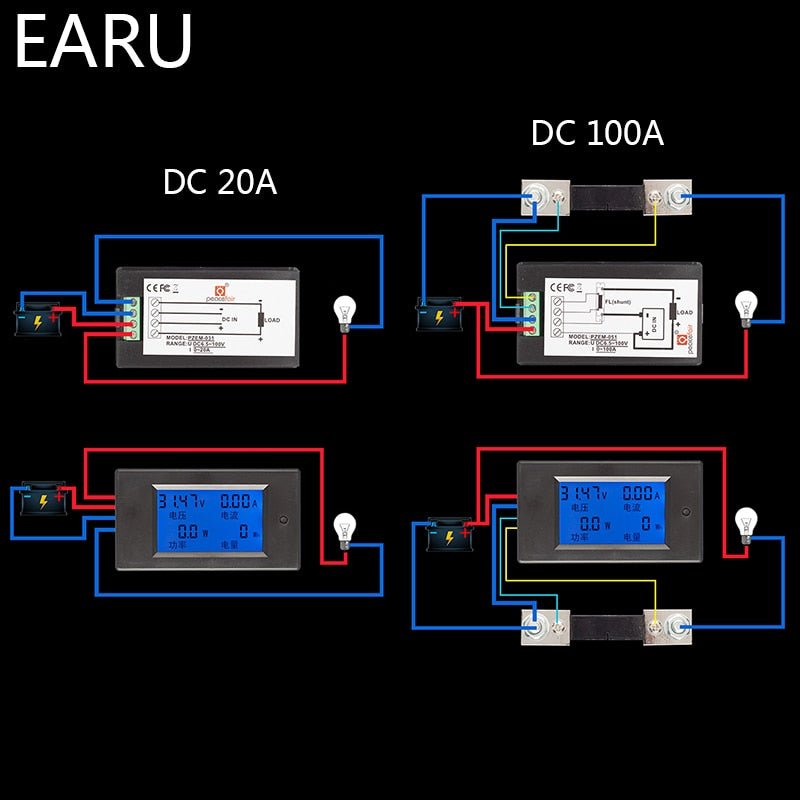

Note1: 100A with SHUNT, 20A is without SHUNT
