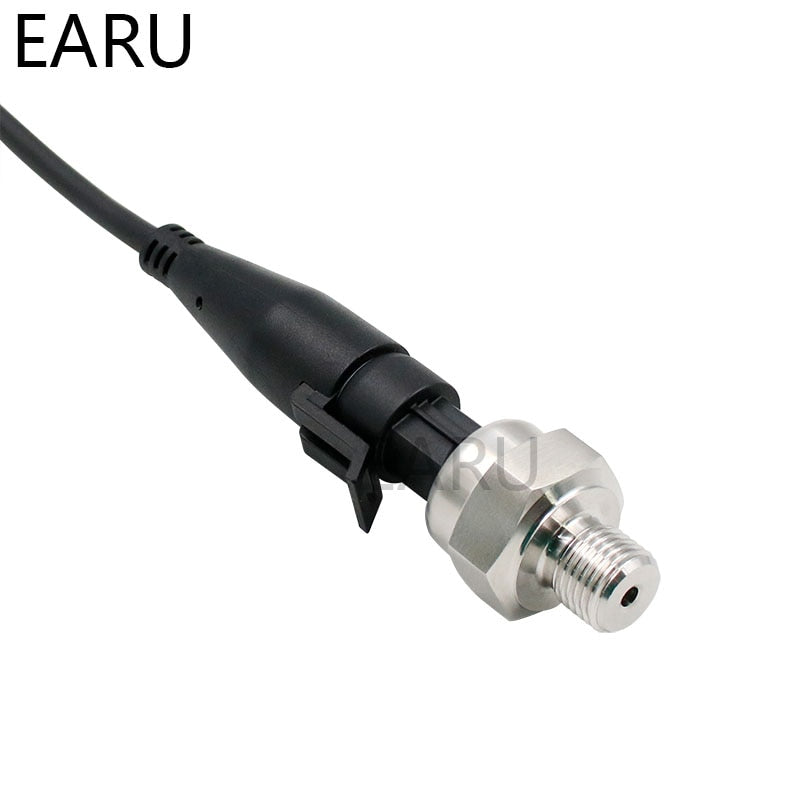

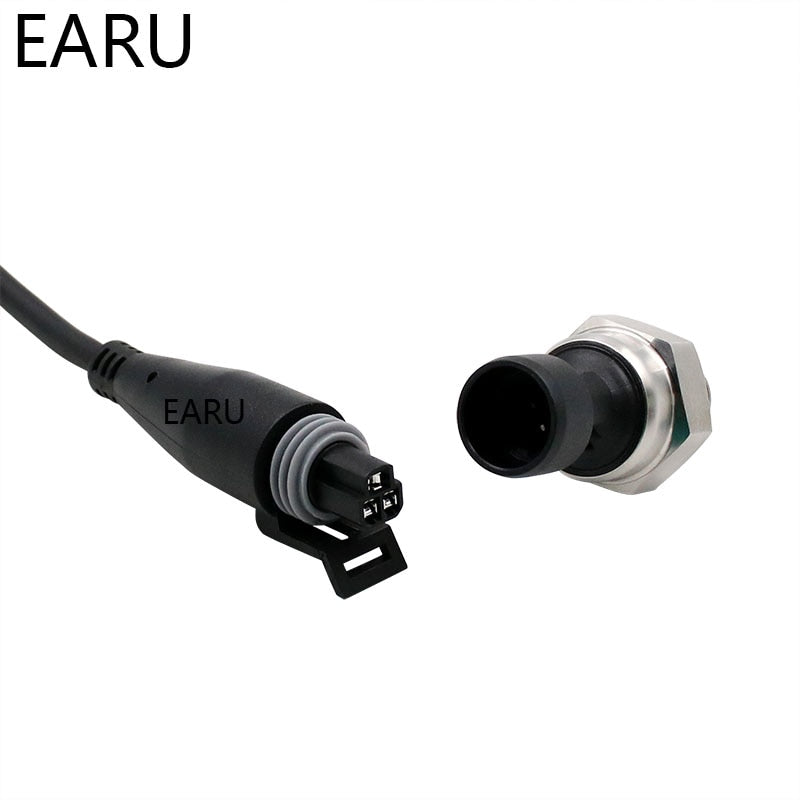

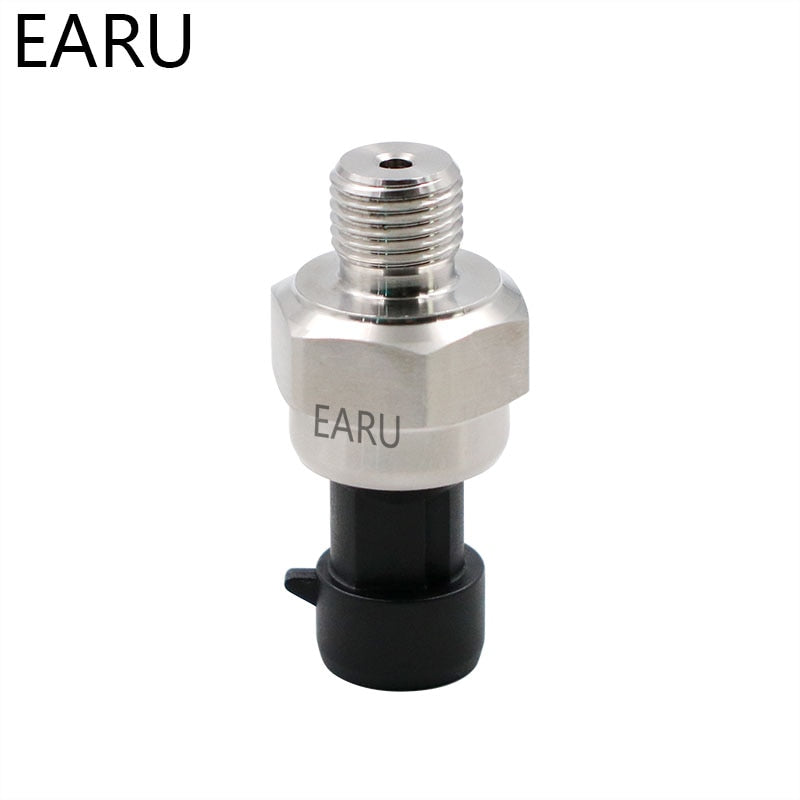

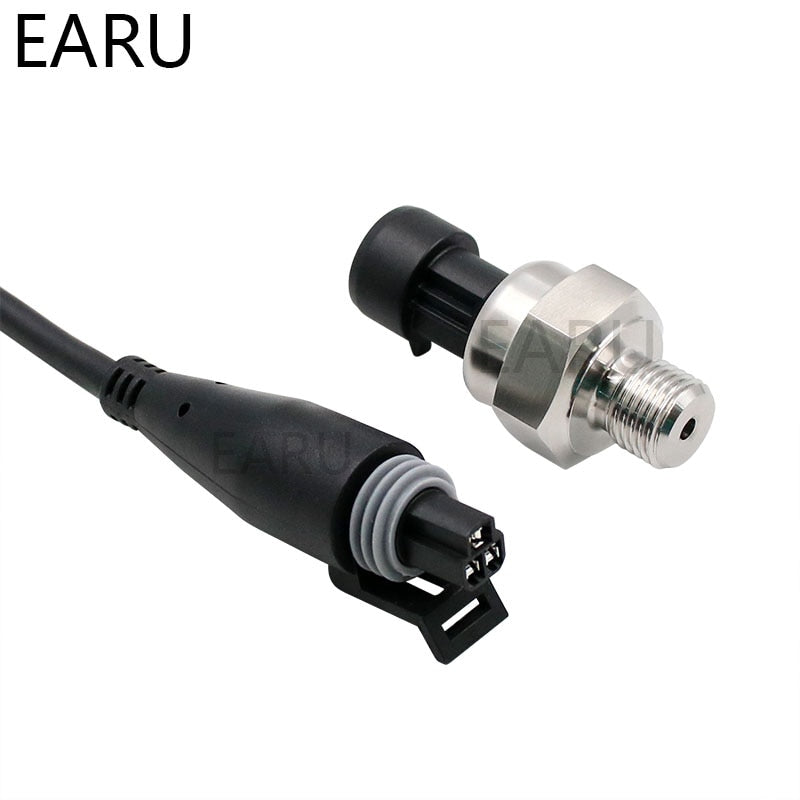

DC 5V G1/4 Pressure Sensor Transmitter Transducer 1.2 MPa 174 PSI

We can make the pressure transimitter according to your requirement, such as different thread size, pressure range, voltage and so on, if you need, please contact us.

1.Suitable for wall hanging furnace, gas furnace, gas storage, etc all kinds of hydraulic, pneumatic pressure measurement
2.Suitable for civil use product batch
3.Static accuracy: plus or minus 1.0% FS
4.Pressure range 0-1.2 MPa (can be customized according to customer requirements)
5.Wide range of temperature compensation
6.Medium for non-corrosive gas, water, oil, etc

Typical Application: Non-corrosiveness Liquid pressure survey

Specifications:
Working Voltage: 5VDC
Output Voltage: 0.5-4.5 VDC
Sensor material: Stainless Steel

Working Current: ≤10 mA
Working Pressure Range: 0-1.2 MPa
The Biggest Pressure: 2.4 MPa
Cable length: 19cm
Destroy Pressure: 3.0 MPa
Working TEMP. Range: -40~125 degrees
Storage Temperature Range: -40~130 degrees
Measuring Error: ±1.5 %FSO
Temperature Range Error: ±3.5 %FSO
Response Time: ≤2.0 ms
Cycle Life: 500,000 pcs
Application: non-corrosive gas liquid measurement

Features:
Easy removal, stainless steel connection more firmly.
Stainless steel is durable, sealed waterproof line, imported chips.

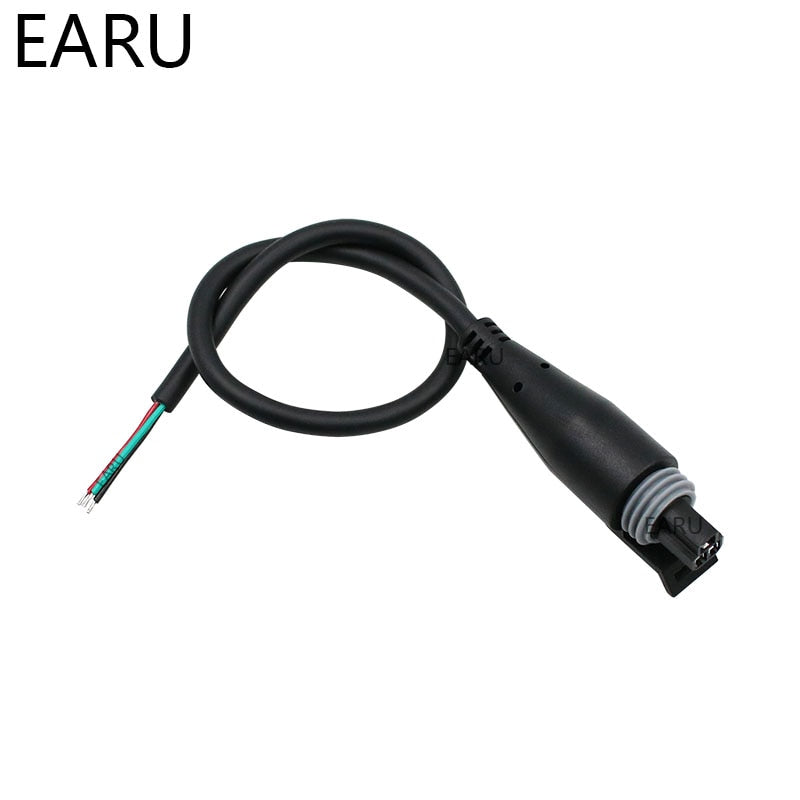

Wiring: red +, black -, green output

Package includes:
1x Pressure Transducer Sensor

Capacity: 0-1.2Mpa
Brand Name: EARUELETRIC
Package Weight: 0.1kg (0.22lb.)
Working Voltage: DC 5V
Working Temperature: -40℃~125℃
Storage Temperature: -40℃~130℃
Output Voltage: 0.5-4.5V
Testing Range: 0-1.2Mpa
Overload Pressure: 2.4Mpa
Explosion Pressure: 3.0Mpa
Material: Stainless Steel
Working Current: ≤10 mA
Cable length: 19cm
Measuring Error: ±1.5 %FSO
Temperature Range Error: ±3.5 %FSO
Response Time: ≤2.0 ms
Cycle Life: 500,000 pcs
Medium: non-corrosive gas, water, oil, etc
