WS Adjustable Fillet Weld Gauge MG-3 Standard MIG/TIG/STICK Welding gauge measuring tools
Uniserval welding inspection gauge
Markings of all sizes and numbers for easy reading.Made of stainless steel,bend-proof.durable, heavy duty,Apply to the pattern is applied during the visual control of the measuring geometry of the weld,To control the cutting elements of a weld, electrodes and weld elements in enterprises and organizations that produce welding.
◆ WS high quality welding gauge.
◆ WG-3 adjustable fillet weld gauge with unequal leg measurement feature.
◆ This gauge measures any fillet weld from 1/8" to 1" to 1/32" accuracy with just one simple to use gauge.
◆ The WG-3 adjustable fillet weld gauge used an offset arm which slides at a 45º angle to make fillet weld length measurement. Simply adjust the arm until it touches the toe of the vertical leg. The gage is calibrated to 32nds.
◆ Four screws hold the offset arm in position for future adjustments. This gauge also measures weld throat thickness to 1/16" of an inch by adjusting a pointer in position for future reference.
◆ If the weld is concave, more filler material can be added to build the weld throat up to standard. The WG-3 adjustable fillet weld gauge is made of durable, rust resistant stainless steel.
◆ Its 2-1/4 x 3" slim design weighs only 1-1/2 Oz. It fits easily into a shirt pocket.
◆ Because there is just one gage need to make all measurements, the chance of losing essential fillet weld gage blades is eliminated. Fumbling through seven different gages blades is also eliminated.
◆ WG-3 adjustable fillet weld gauge measures both leg lengths and weld throat fillet weld thickness.
Instructions for use：
◆ To measure Fillet Welds with the Adjustable Fillet Weld Gauge: with the base of the gauge in line with the horizontal weld member, place the tip of the irregular curve edge flush to horizontal toe of weld so. Adjust the offset arm until it touches the top of the weld, and read teh weld size indicated.
◆ To measure Weld Throat Thickness, place the 45º angle ends of the Adjustable Fillet Weld Gage flush to the horizontal and vertical members. Loosen the thumb screw and slide the pointer until it touches the face of the weld. Tighten the thumb screw adn read measurement from the 1/16" marks along the pointer.
◆ The Adjustable Fillet Weld Gauge also features a sliding measurement scale on the gauge base which, when placed flush to the horizontal toe of the weld, the offset arm is adjusted to the top of the weld to permit mesurement of unequal weld leg lengths.
◆ Material:stainless steel
◆ Scales Engraving Type: Laser Engraving
◆ Weight: 100g

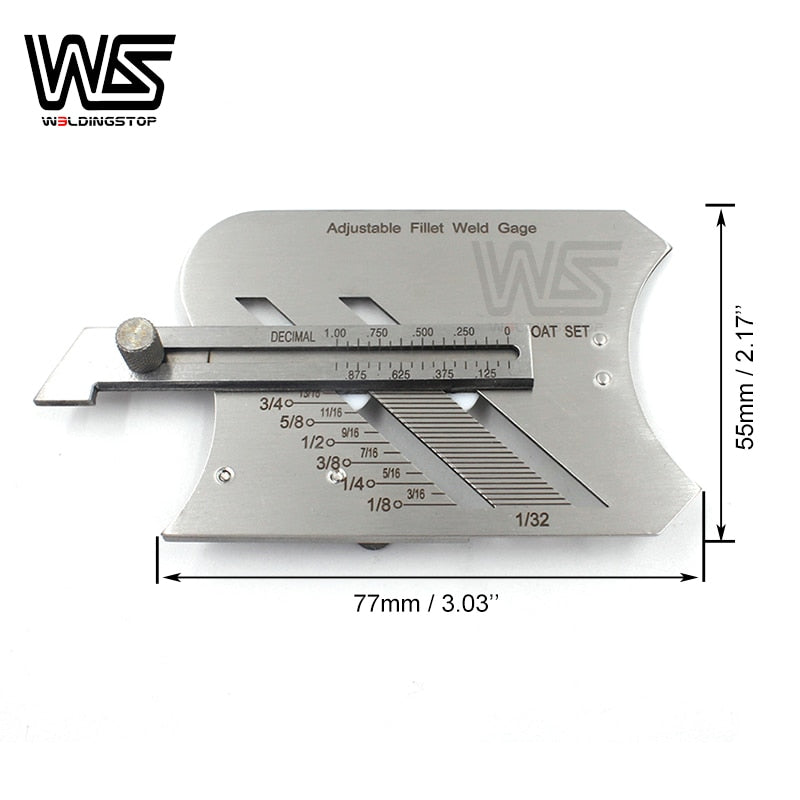

◆ Size：Show in the picture
◆ Transition: 1cm=10mm=0.39inch
◆ Measuring range:
- 1/8" to 1" to 1/32" accuracy
◆ 1pc x Adjustable Fillet Weld Gauge WSG-01042
◆ 1pc PU bag and Instructions
