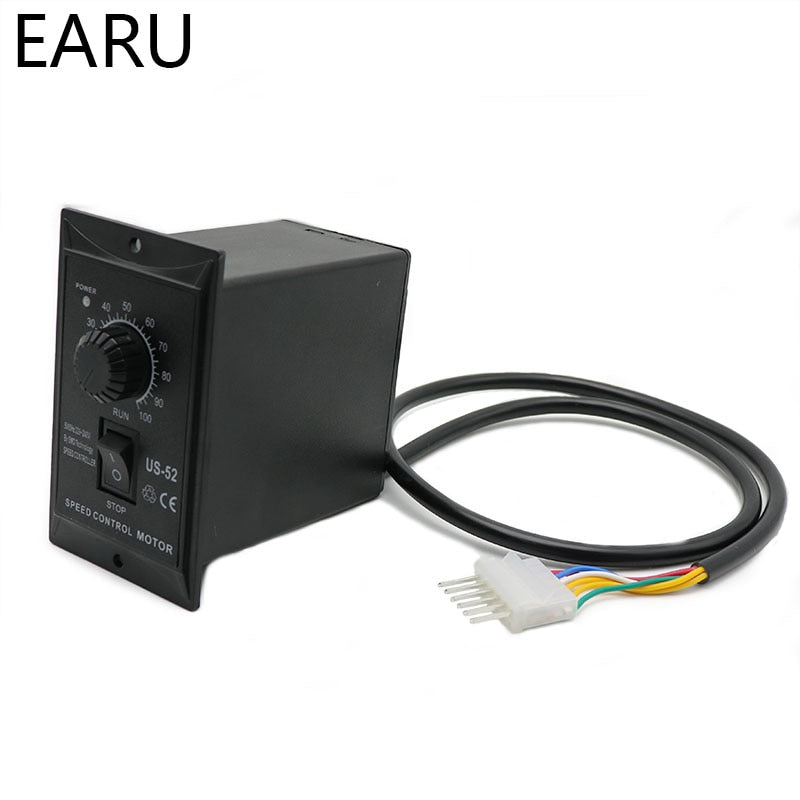

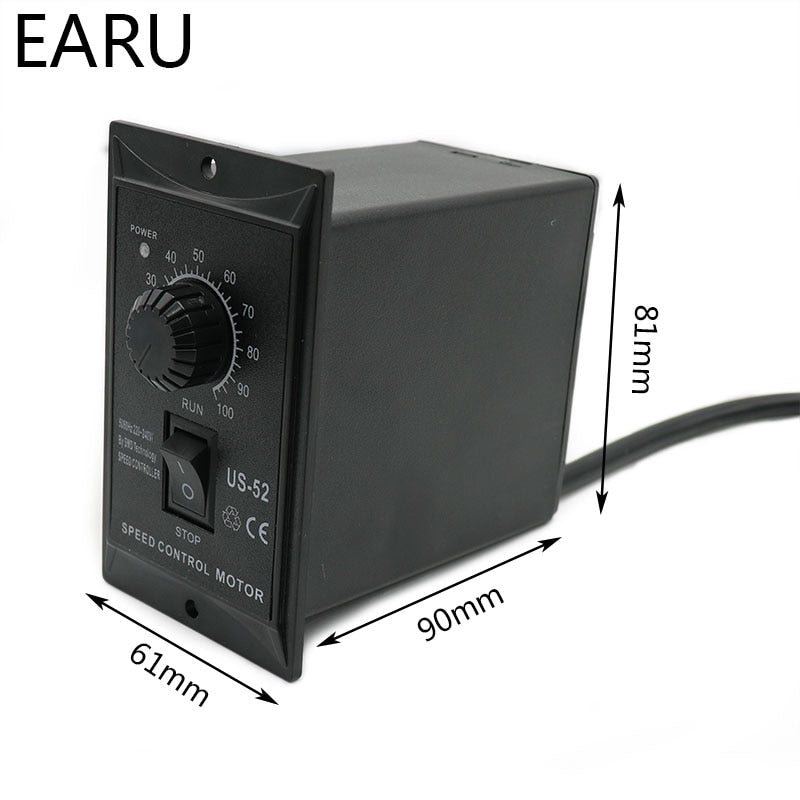

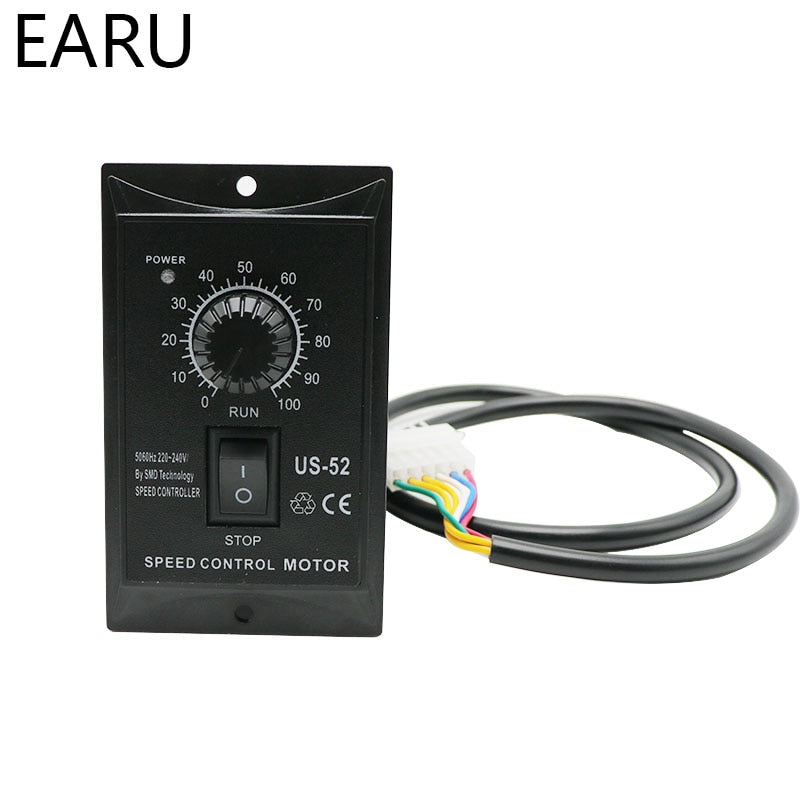

400W Motor Speed Pinpoint Regulator Controller US-52


Sale price$22.00


Power supply: AC220V 50/60Hz

Rated power: 400W

Environment  temperature: - 10 ~ + 50°;

Relative humidity:<90%;

Speed regulation range: 90-1400r/min 50Hz, 90-1700r/min 60Hz

Weight: 295g



    This motor speed controller is suitable for AC220V 50/60Hz motor. Speed regulation range is 90-1400r/min 50Hz, 90-1700r/min 60Hz Suitable for packaging, printing, food, electronics, instrumentation, medical equipment, clothing industry production line for speed control drive devicesThe controller uses high quality electronic circuit and integrated components for durability.It has small size, high precision, wide speed controlling range, and long service life.

Method of use
1. Turn off the power, connect it according to the wiring diagram and make sure the connection is correct.
2. Fix the controller well and set the speed to the lowest "0", so as to avoid sudden large current and permanent damage when starting the power supply;
3. Then turn on the power and adjust the speed knob to the desired position. Please turn off the power when not needed;
4. The governor is connected to the motor. If the torque or speed is found to be inconsistent with the requirements, please adjust the fine-tuning potentiometer on the side of the product

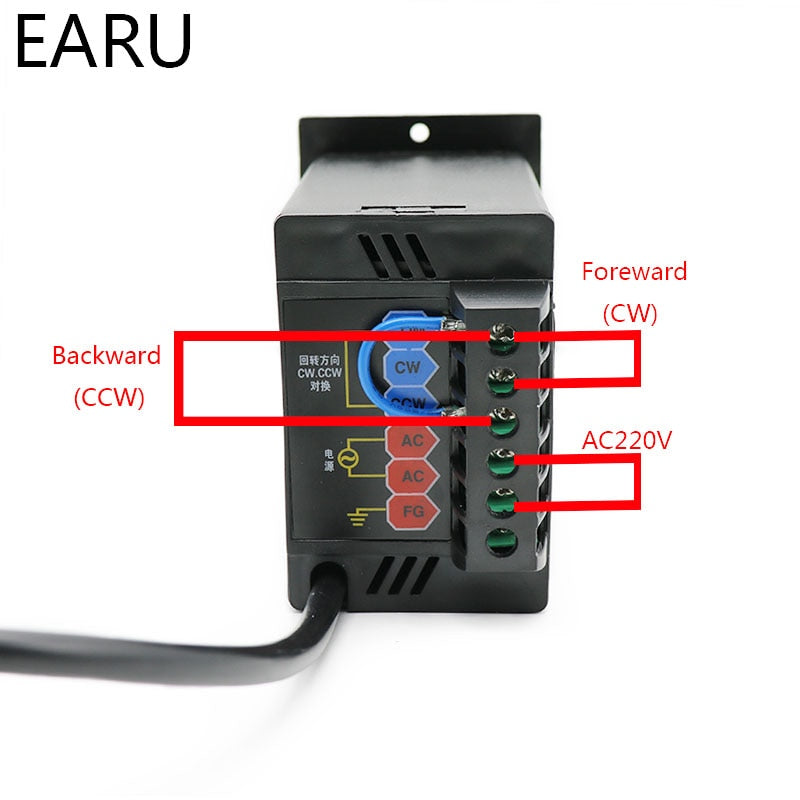

5. To change the running direction of the motor, simply replace the jumper lines of "CCW" and "CW" on the back of the controller.
6. Select COM and CW short connection, then the motor will rotate clockwise.
7. Select COM and CCW short connection, then the motor do counterclockwise rotation.
(when changing direction, do not change the direction until the motor stops running completely.)


Wiring method

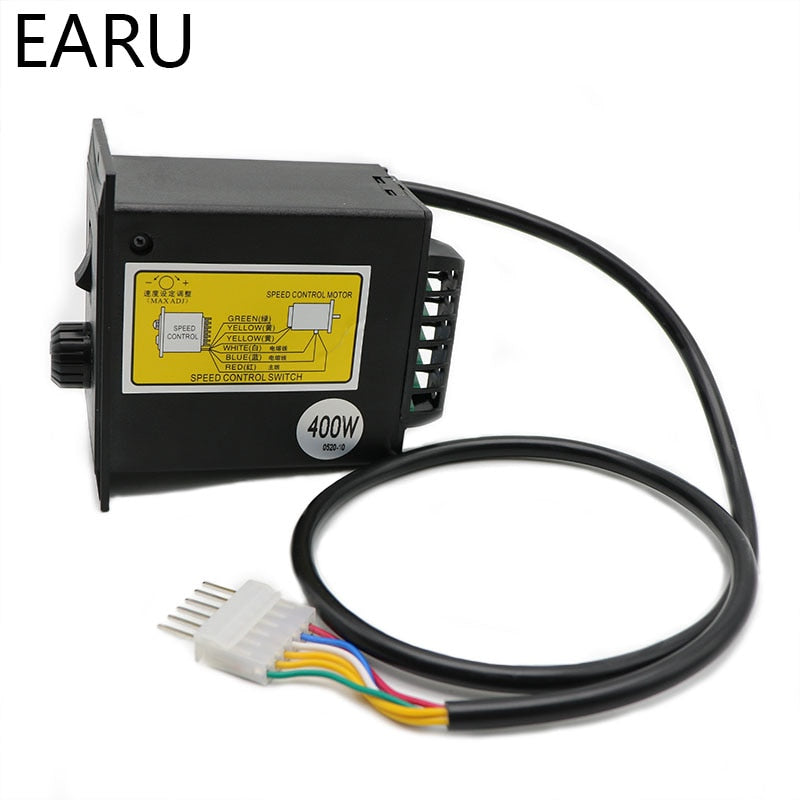

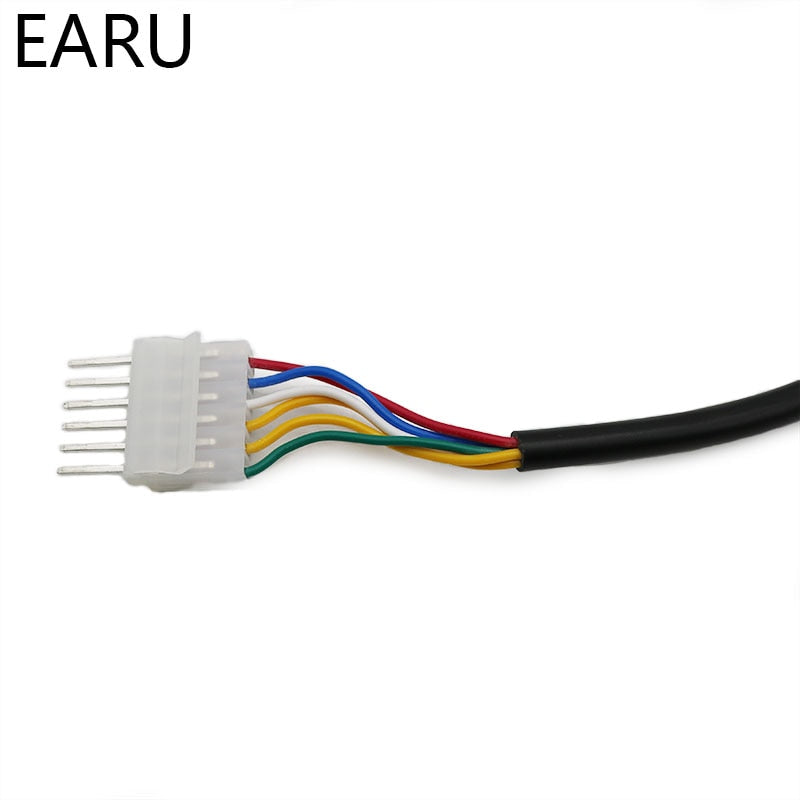

Black wire is the motor main wire, red and white are the capacitor auxiliary wires, and 2 blue wires are the speed control feedback wires, the green wire is the ground wire.


Motor Type: AC Motor
Certification: CE
Origin: CN(Origin)
Model Number: 400W
Modwl Numble: Speed Controller
Attributes: Motor Speed Controller
Features1: AC Motor Speed Controller
Features2: Governor
Features3: Motor Governor
Power Supply: AC220V 50/60Hz
Rated Power: 400w
Weight: 295g
Application: Motor Speed Ragulator
Speed regulation range: 90-1400r/min 50Hz, 90-1700r/min 60Hz
Environment Temperature: - 10 ~ + 50°
Relative Humidity: <90%
