Automatic Adjustable Fillet Weld Gage Standard Gauge INCH inpection

Product Name:

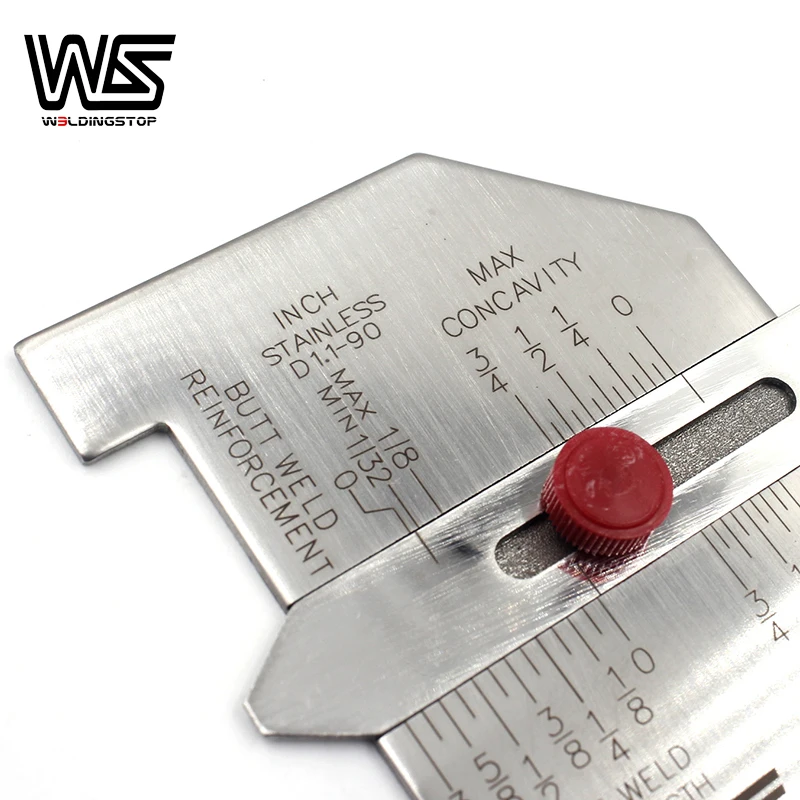

Automatic Weld Size Gauge butt weld reinforcement fillet weld gage

Descriptions:

Made of stainless steel,The newly designed instrument is pocket-sized and easy to operate, and new features include thumbscrews, which can replace the old rivet types that are difficult to pierce.the ease with which welders and inspectors may accurately check sizes of convex or concave fillets as well as butt weld reinforcements.

Features:

◆ WS high quality welding gauge.

◆ reinforcement, fillet convexity / concavity throat and leg length

◆ Laser printing technology marks the scale clearer

◆ The automatic weld gauge is made of stainless steel, not easy to rust, effectively extending the service life

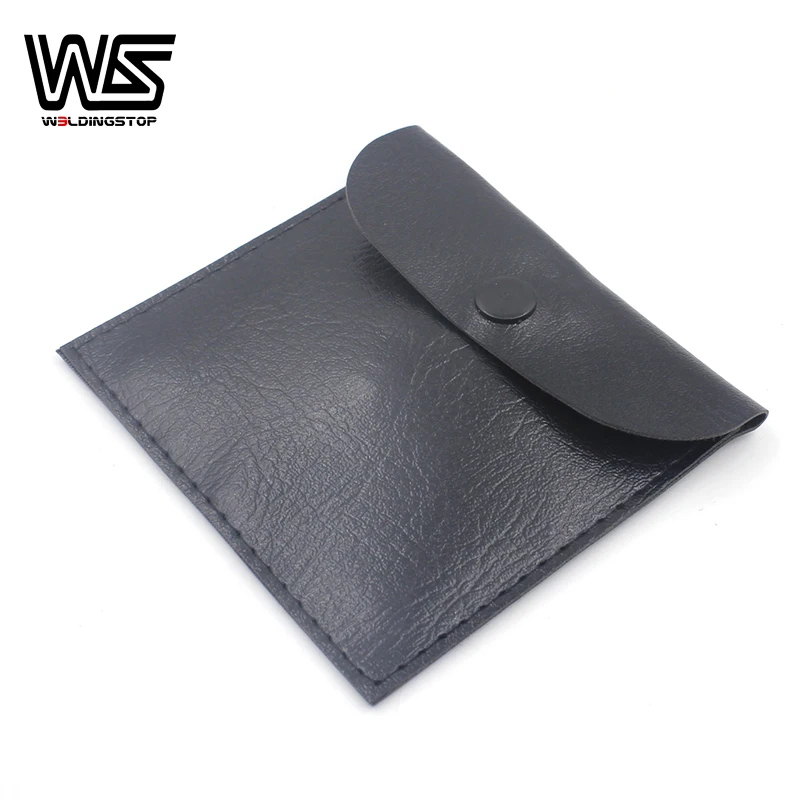

◆ Packed in synthetic leather bag for storage and transportation ,and better of environmental protection

◆ The gauge has an instruction that you can download for understanding how to use better

Specifications:

◆ Material:stainless steel

◆ Scales Engraving Type: Laser Engraving

◆ Weight: 75g

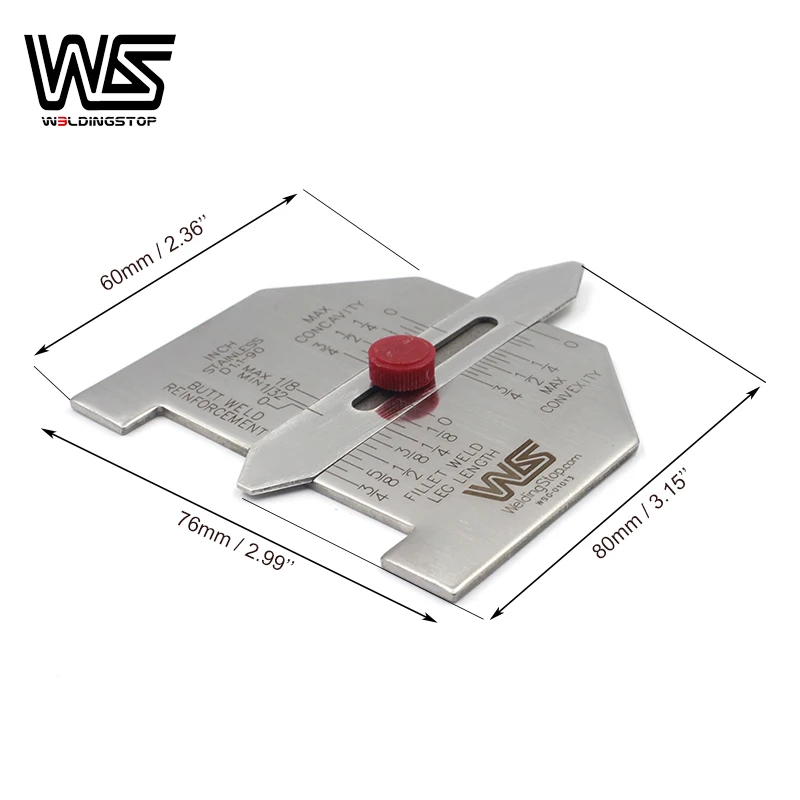

◆ Size：Show in the picture

◆ Transition: 1cm=10mm=0.39inch

◆ Measuring range:

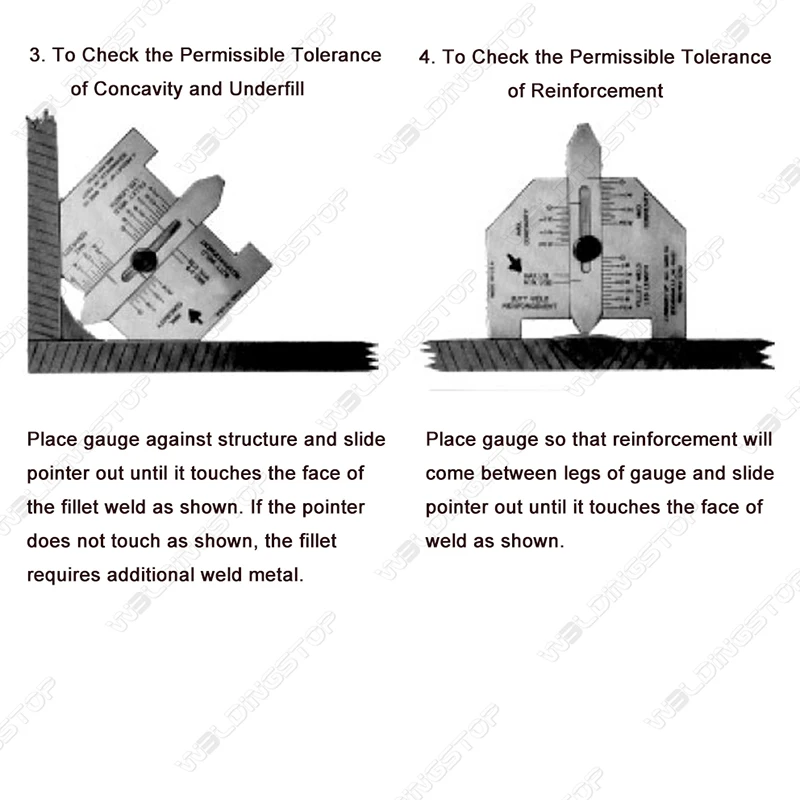

- Check Reinforcement of Butt Weld

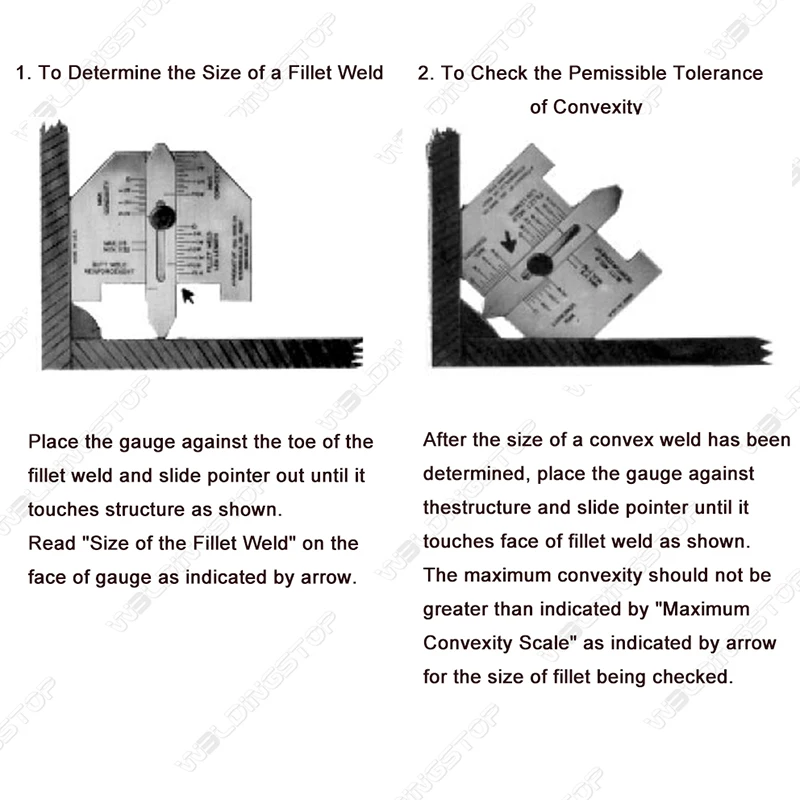

- Check The Throat of Fillet Weld

- Check Leg Size of Fillet Weld

Package Included:

◆ 1pc x Automatic Weld Gage(in) WSG-01013

◆ 1pc PU bag and Instructions
